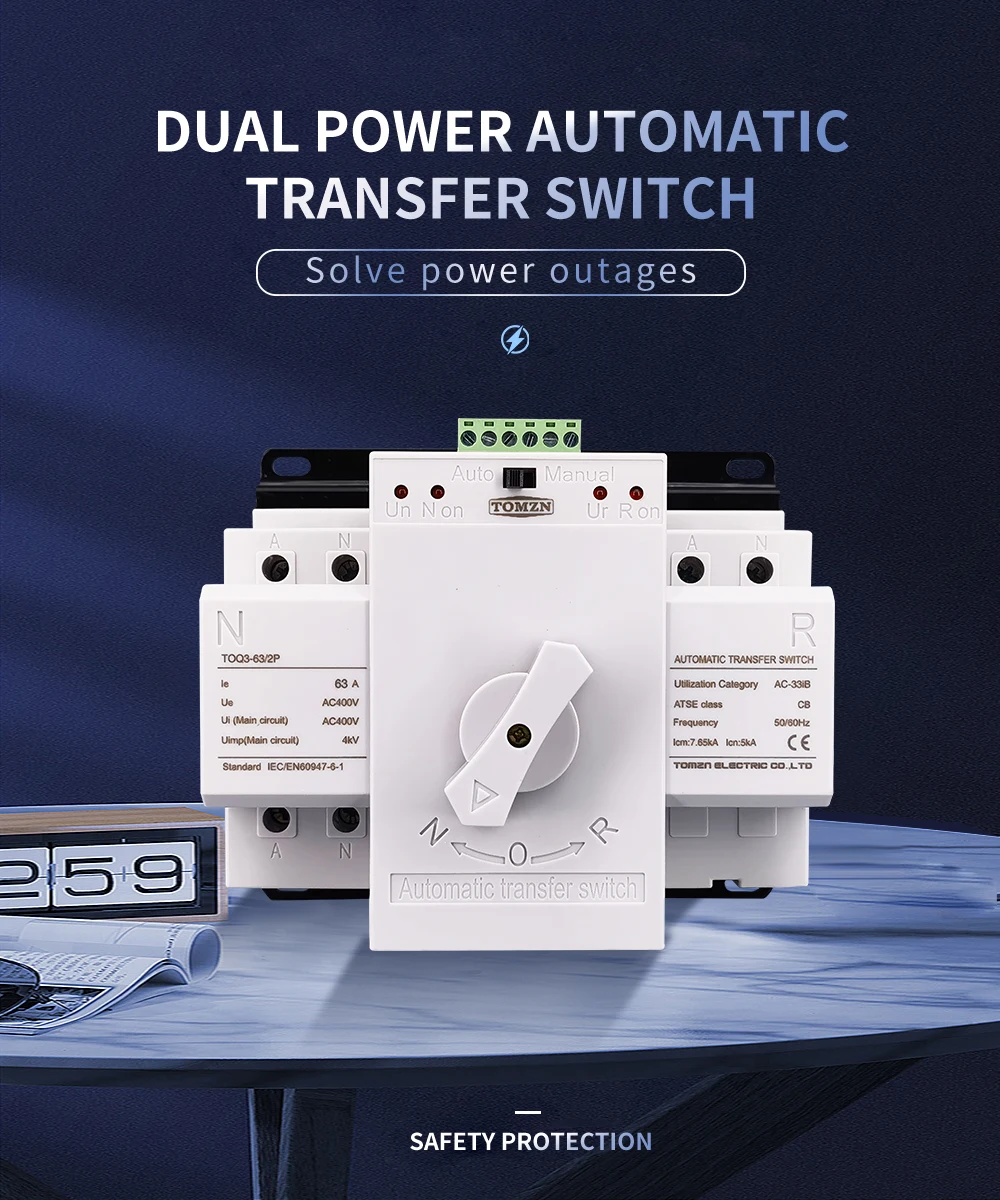

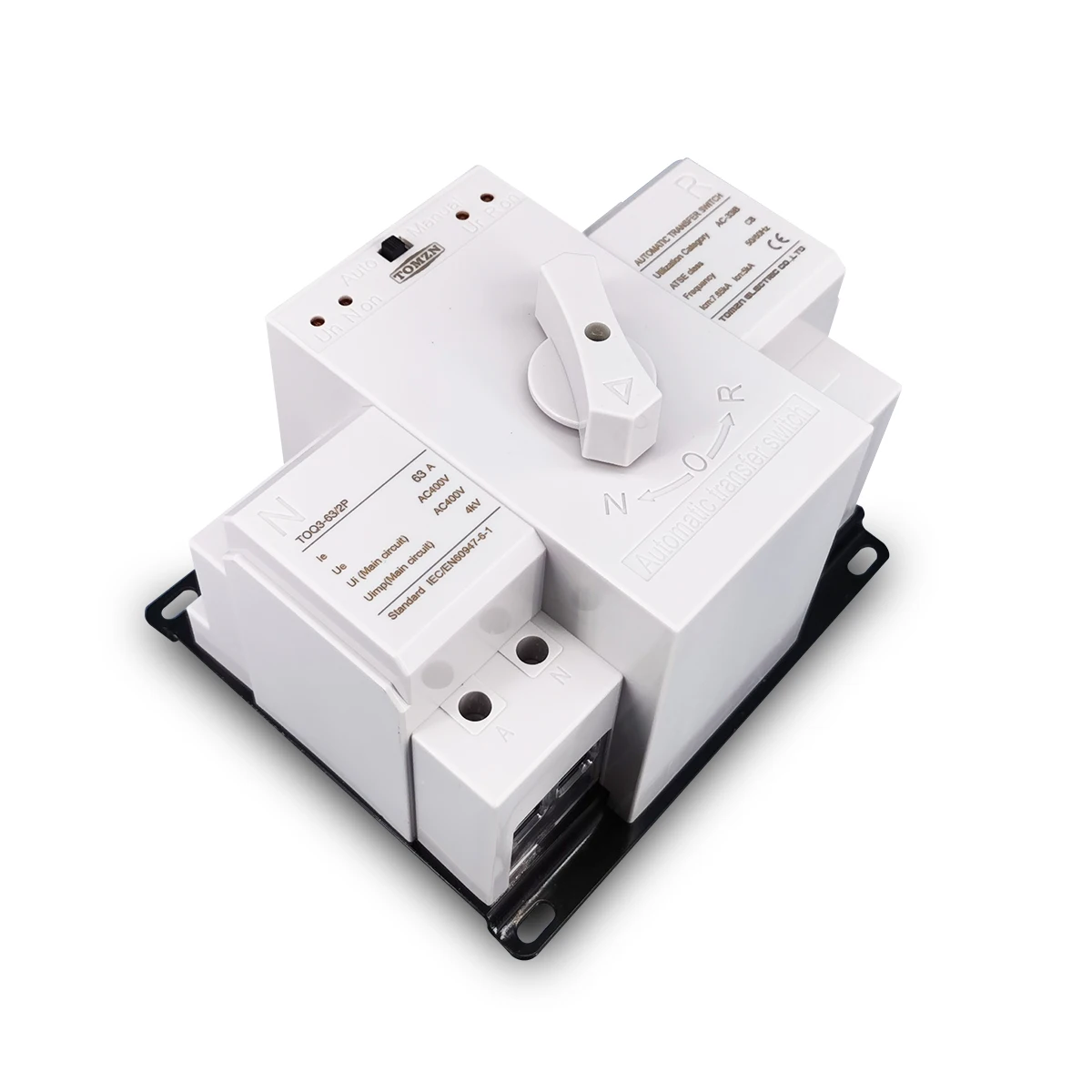

2P 63A 230V 50/60Hz MCB Type Dual Power Automatic Transfer Switch ATS 2 Input 1 Output High Power Load Sealed Protect Feature
2P 63A dual power ATS (Automatic Transfer Switch) with small circuit breaker (MCB) type. Double input single output interface,The high-power load suitable for the 230V, 50/60Hz power environment automatic rapid switching two power supply can seamlessly seamless switching; maintain an uninterrupted power supply. But we know that its sealing protection function can effectively dust, moisture-proof, in complex environments, improve the reliability of the switch, escort the stable operation of the power system.
- Overview
- Recommended Products
Rated: voltage 220V 50/60HZ
Noted: power will be interrupted when Switching.
Switch time<4S
Max current: 63A.

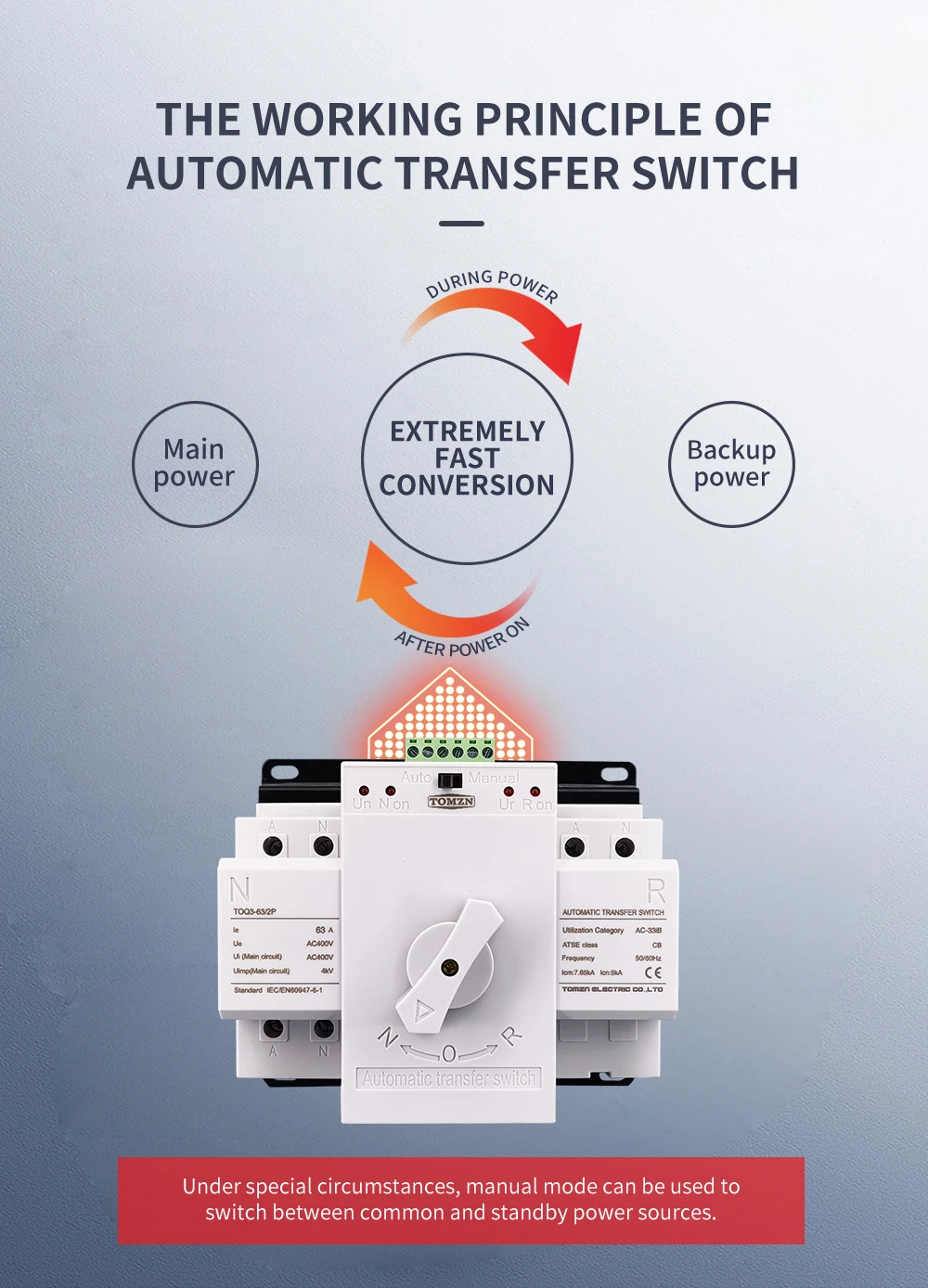

1. Dual power Automatic transfer switch can switch to Normal power or reserve power automatically. Please noted that the switch can't turn on or turn off the generator. This switch Normal power first. If normal power on, the switch will switch to Normal power. If normal power off, and reserve power on, the switch will switch to reserve power.

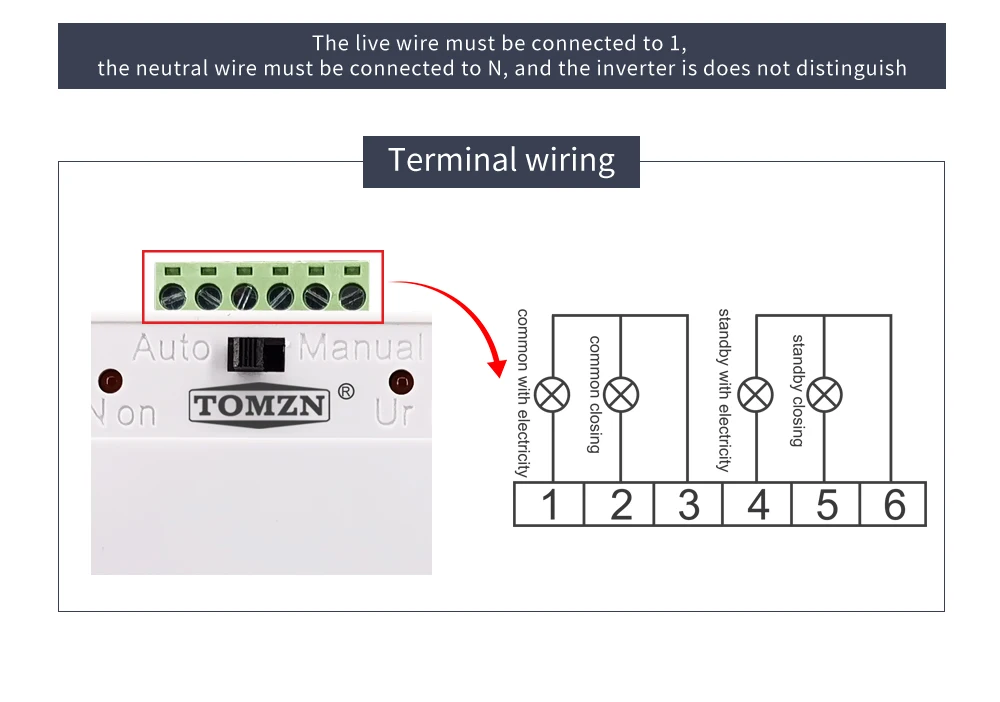

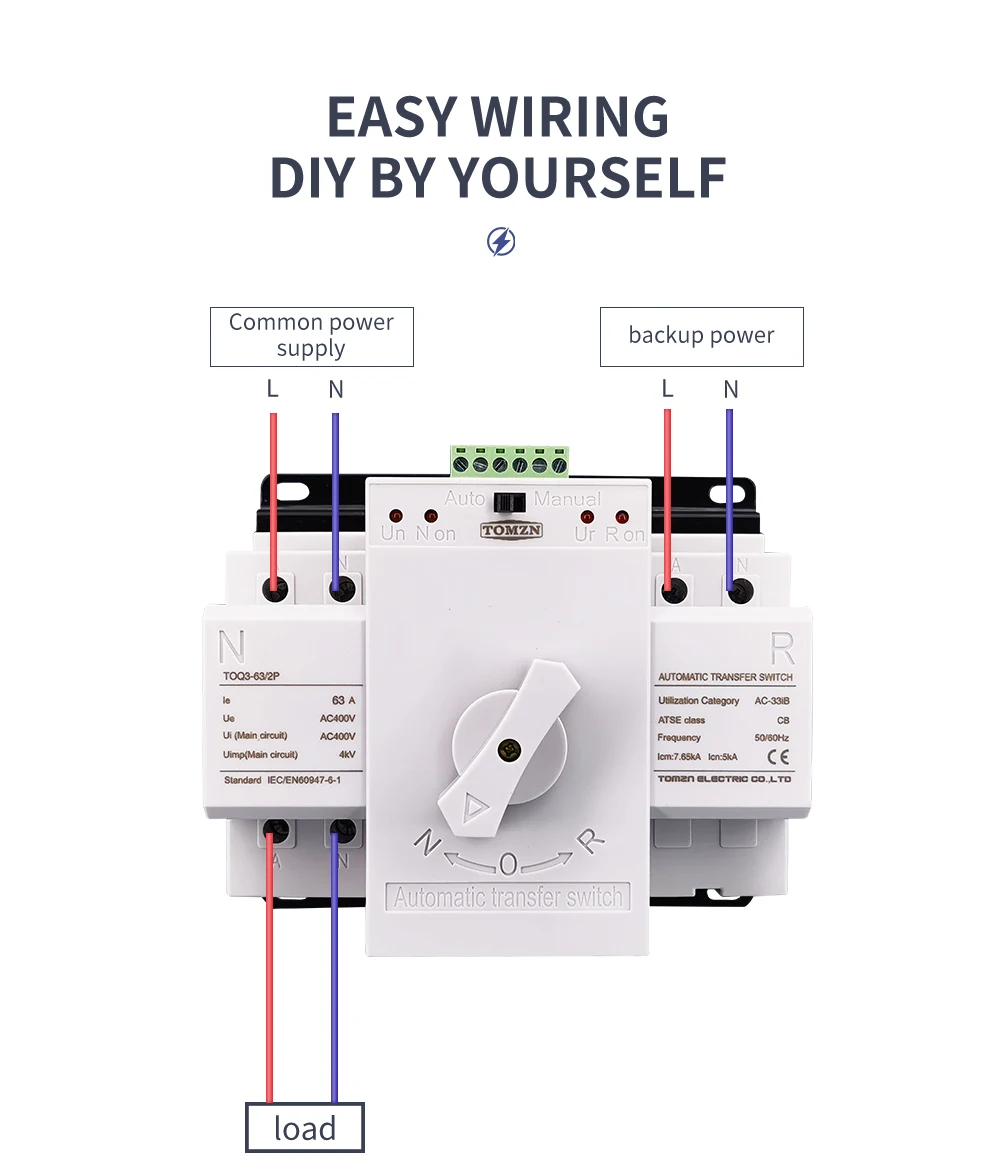

2.Wire

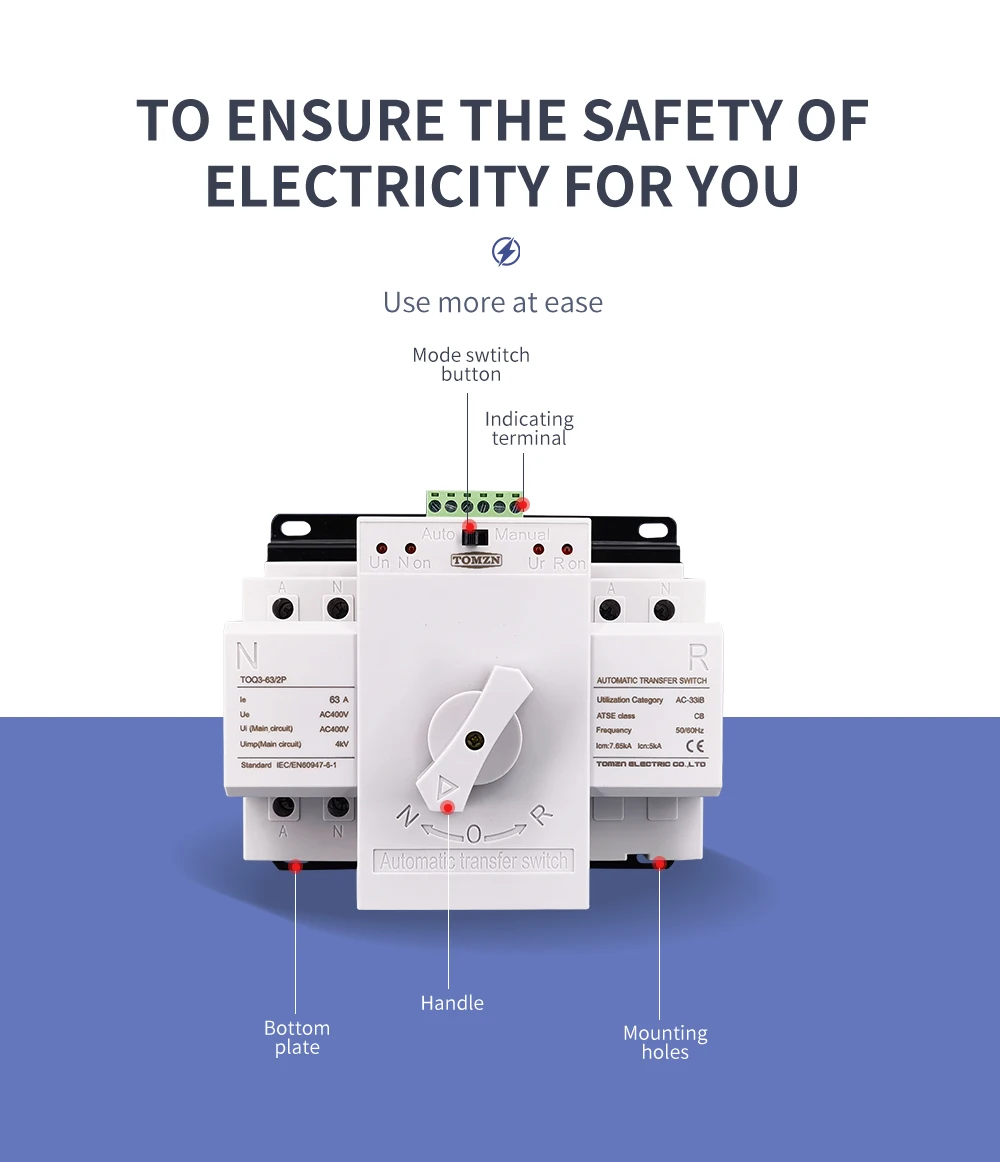

Press the button to Automatic, the switch will switch to Normal power or reserve power automatically.
Press the button to Manual, Then you have to switch the Direction manually.
1.Application
TOQ3D is terminal type automatic transfer device. It's suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits.
The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11
