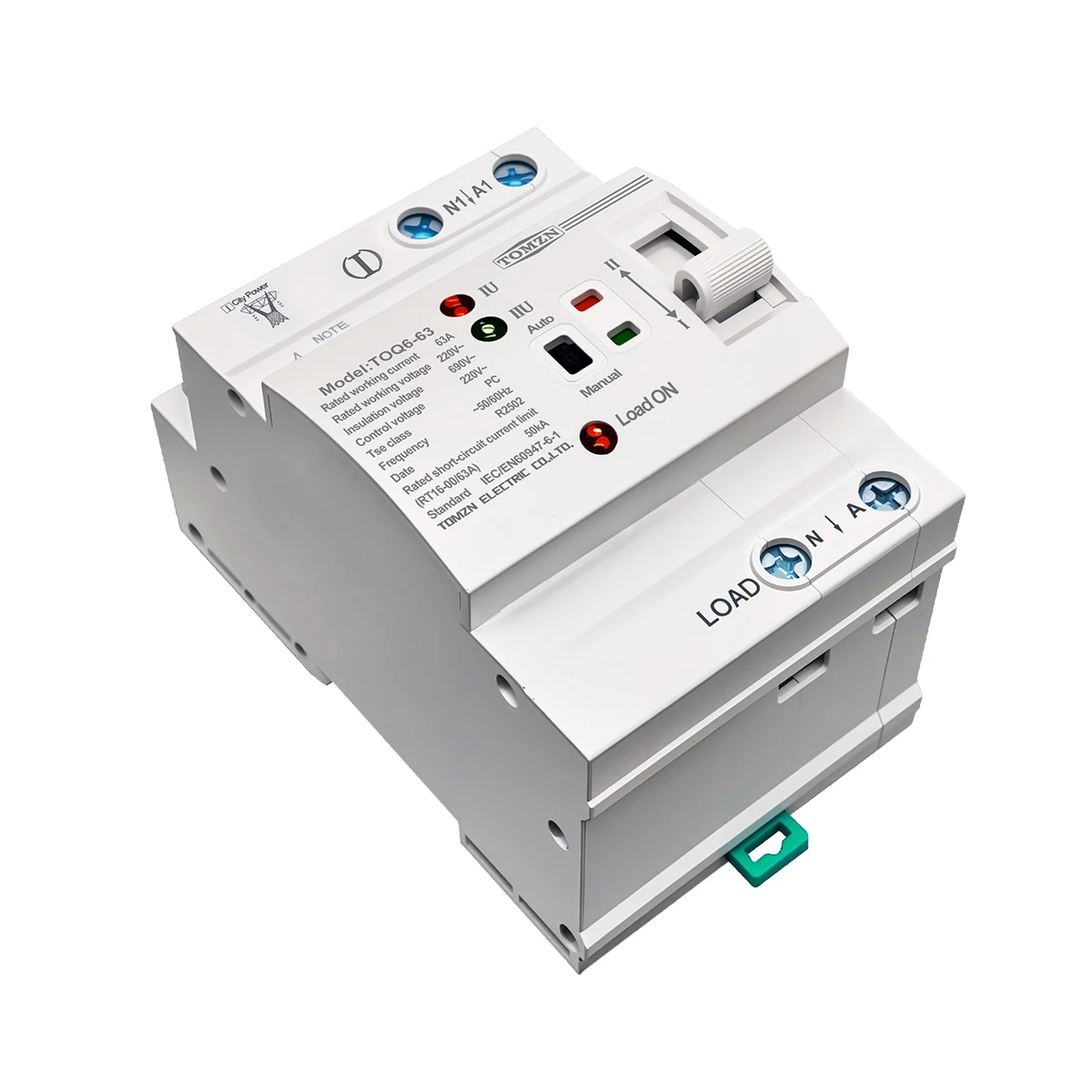

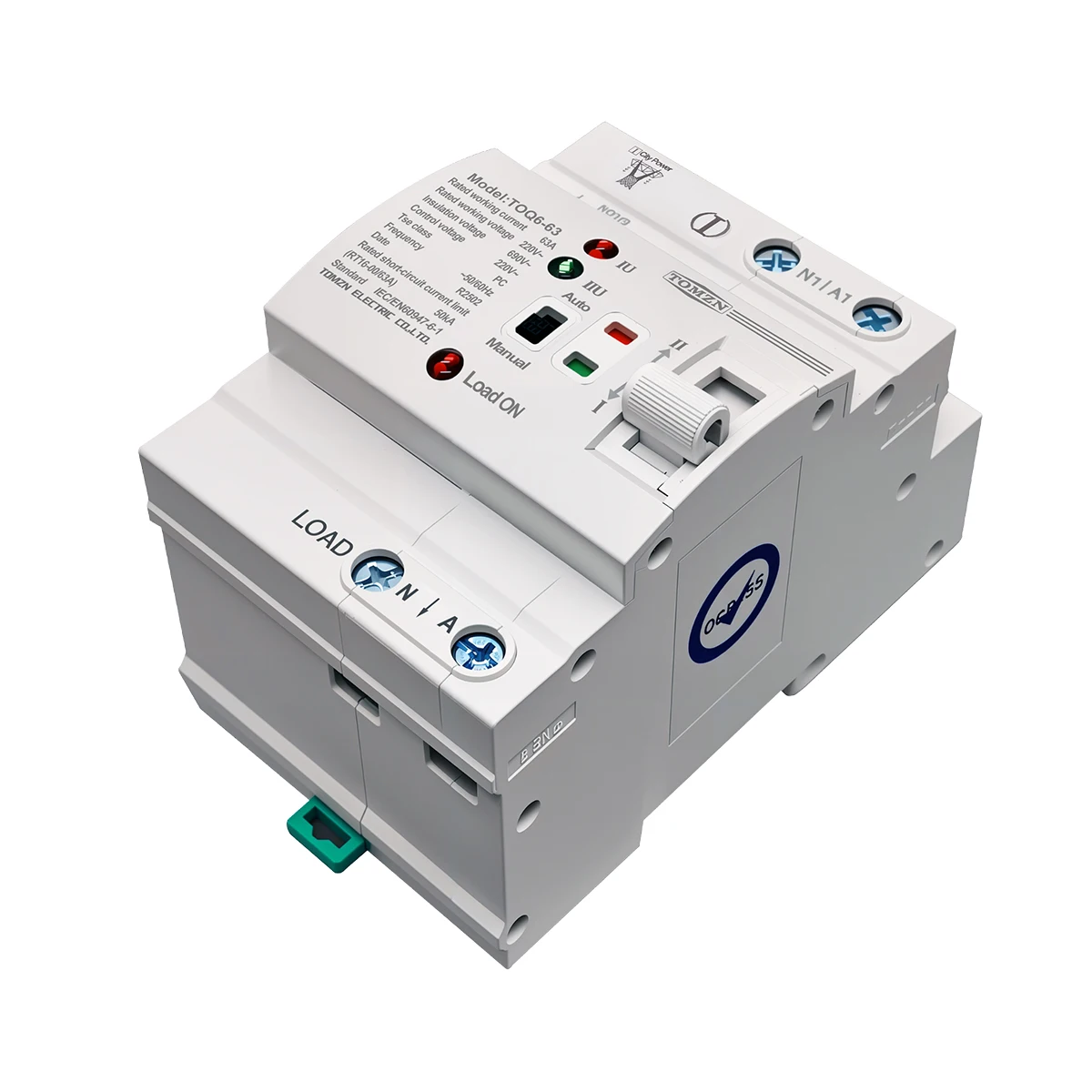

TOMZN Din Rail ATS L N 220V Small Dual Power Automatic Transfer Electrical Selector Switches Uninterrupted 2P 63A TOQ6
Thomson TOQ6 rail mounted auto switch, 220V L, N line special 220STATIC【Auto Transfer Switch】. The overall compact body is very suitable for dual power automatic conversion. 2P structure, rated current up to 63A, can achieve uninterruptible power supply. Highly responsive changeover without downtime of electrical appliances when on mains and internal power supply. And, thus be it an office setup or a home energy context, it can offer a consistent assurance of power supply.
- Overview
- Recommended Products
TOQ6-63/2P
Dual power switch. PC level, Switch less than 50ms, no Interrupt.
Only for city power and Generator, not for PV system and Inverter.
1.Case grade:80
2.Rated insulation voltage Ui:690V
3.Rated impulse withstand voltage:8kV
4.PC class:can be switched on an loaded without generating short-circuit current
5.Rated short-circuit current Iq:50kA
6.Short circuit protection device (fuse):RT 16-00-63A
7.Rated control voltage Us:AC220V 50Hz
8.Normal working conditions: 85%Us-110%Us
9.Auxiliary circuit:AC220V 50Hz le=5A
10.Contactor change-over time:<50ms
11.Operation change-over time:<50ms
12.Return change-over time:<50ms
13.Power off time:<50ms
14.Mechanical life:≥5000 Times
15.Electrical life:≥1500 Times
16.Usage category:AC-31B
Noted: the product works with L+N 220-240V 50-6Hz
