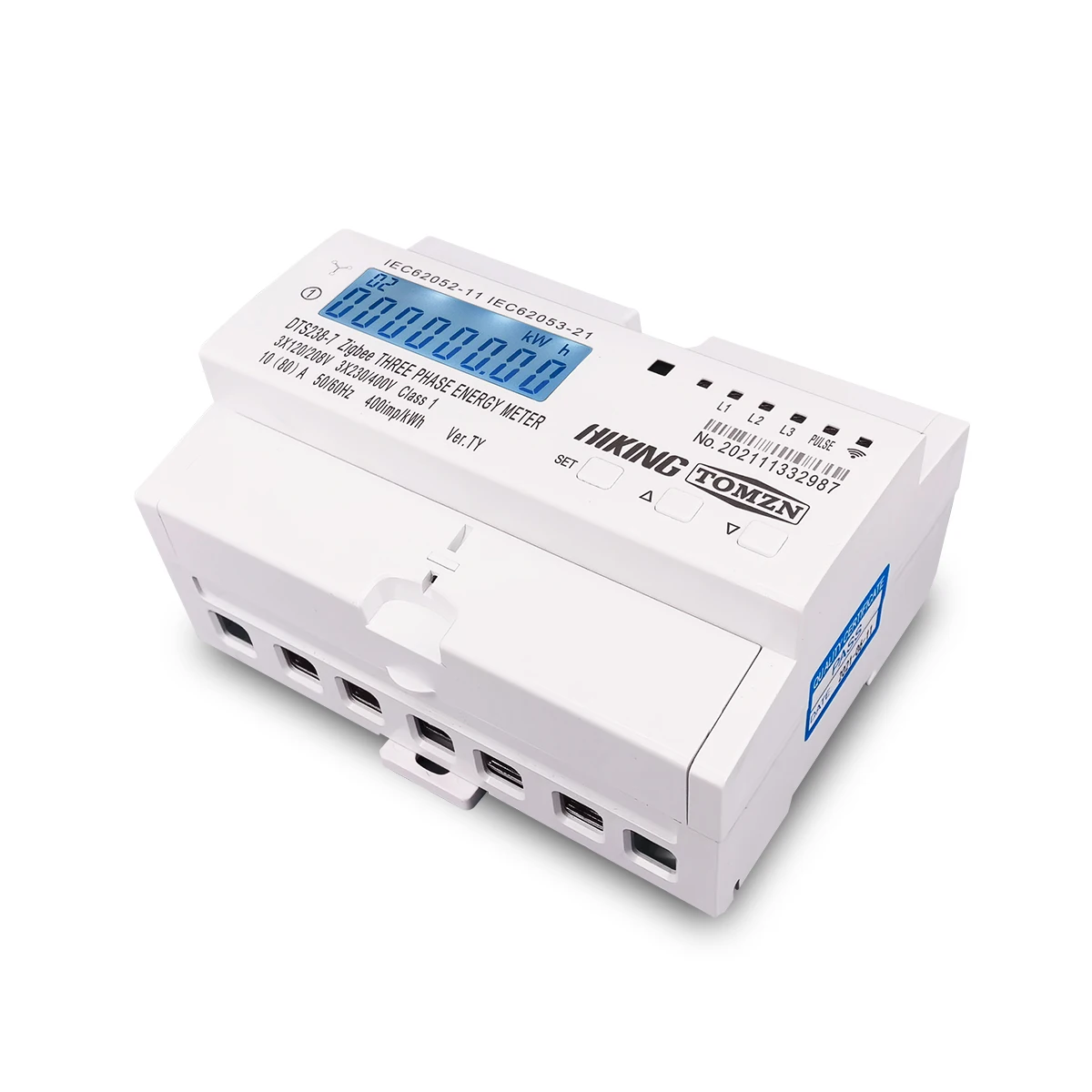

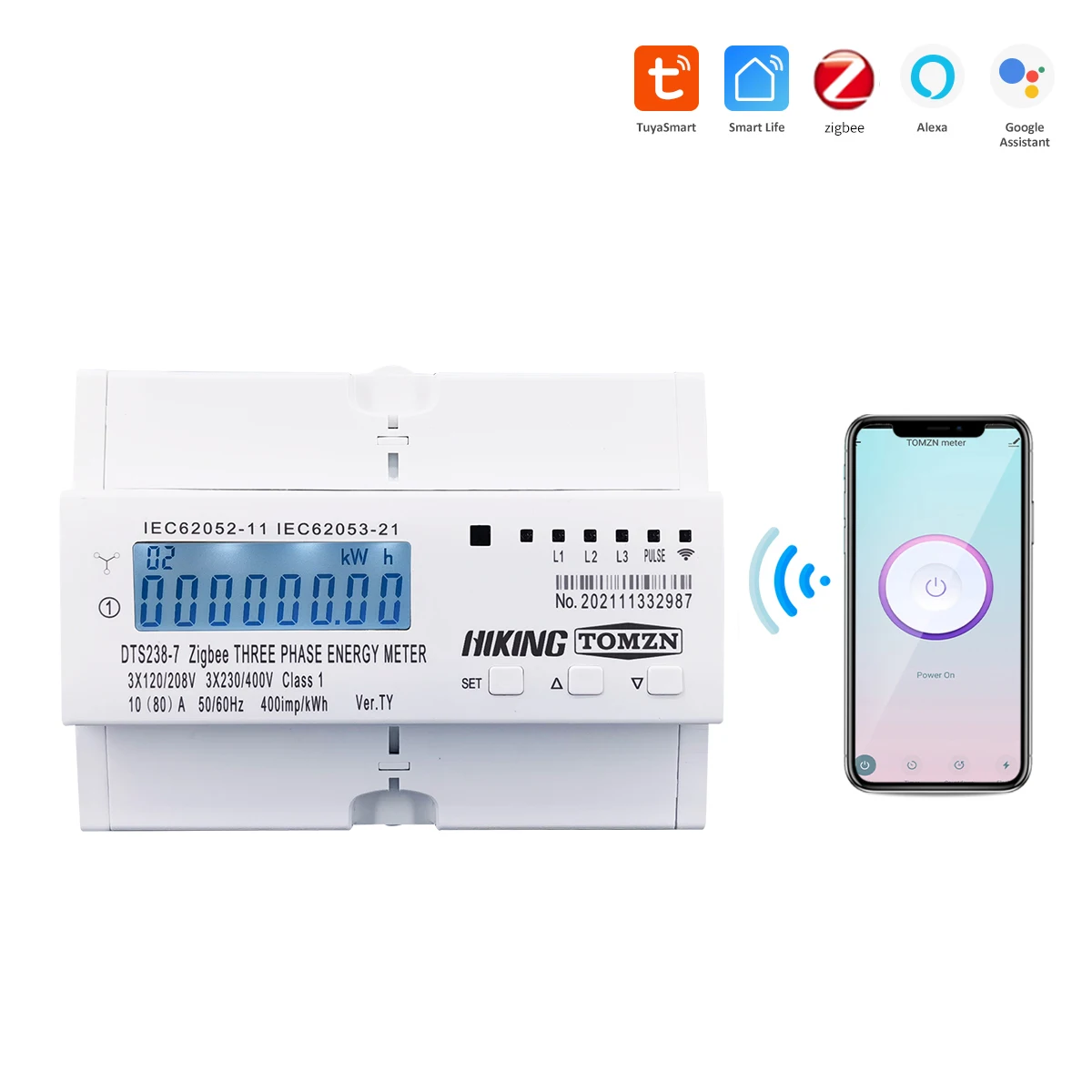

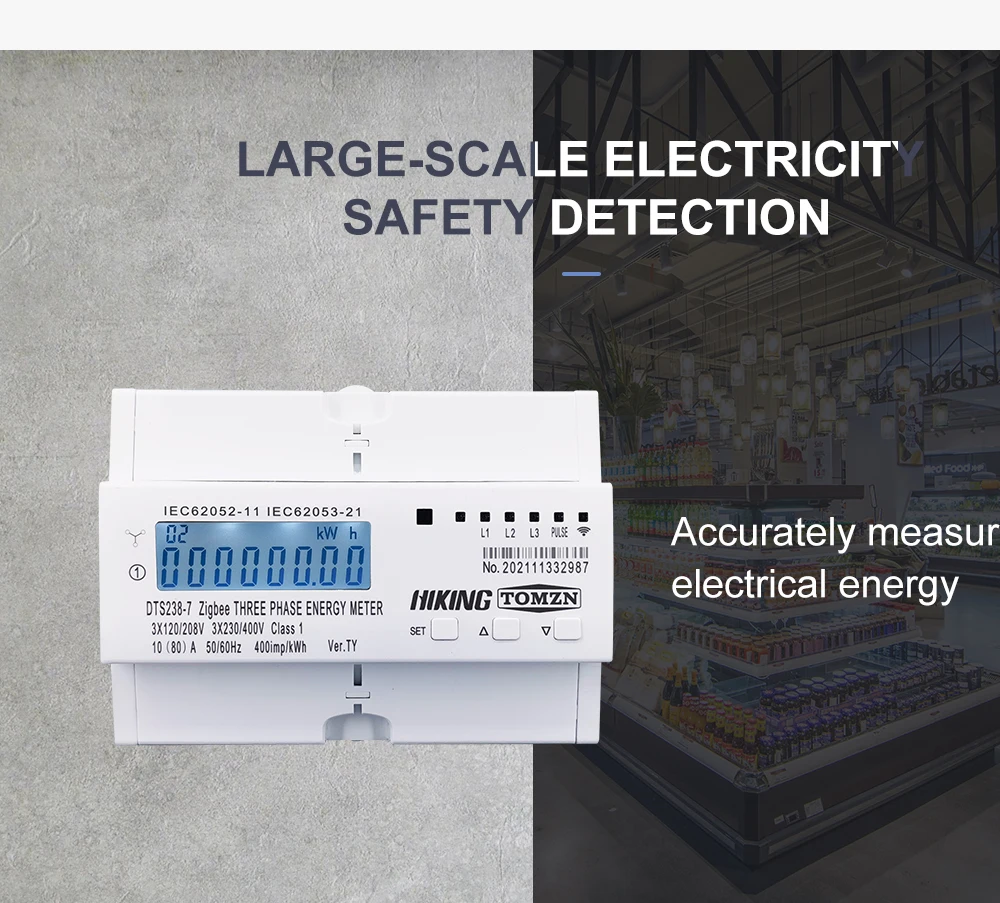

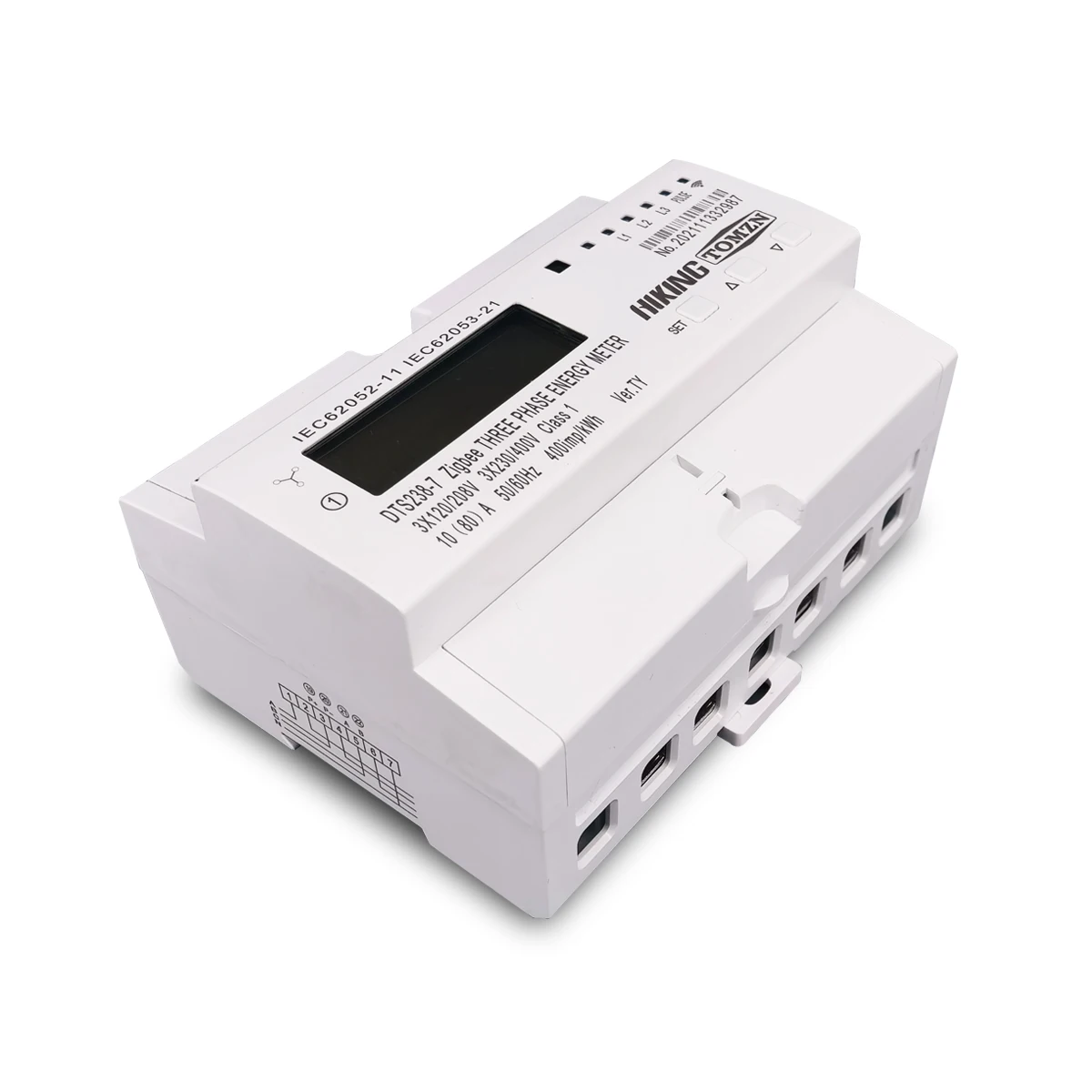

80A 3 Phase Zigbee Gateway Tuya Din Rail WIFI Smart Energy Meter Timer Monitor kWh Meter Wattmeter 3*120V 3*230V
This is an 80 amp three-phase unit. It supports Zigbee gateway integration for quick, intelligent networks construction. In Hikvision automotive products, use graffiti technology to bring rich intelligent experience. Rail provides installation capabilities that are straightforward and space-saving. Smart energy meter with WIFI function, timer and monitor in one, can accurate KWH and monitor power. It is capable of adapting 3 phase ×120V and 3 phase ×230V voltage, covering a full intelligent management solution for three-phase power consumption scenario.
- Overview
- Recommended Products
This meter work with Zigbee Smart gateway!
Description:
Description:

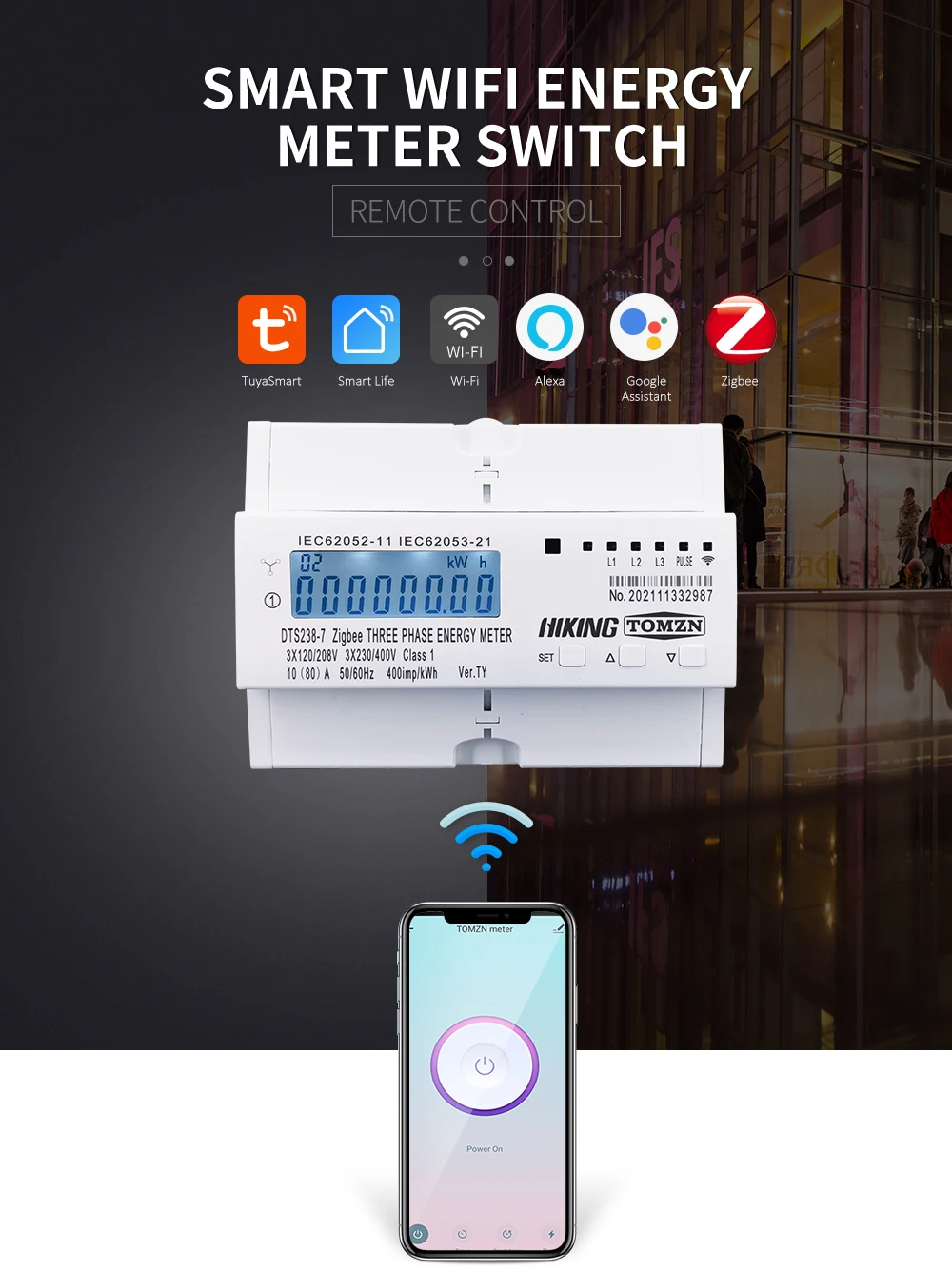

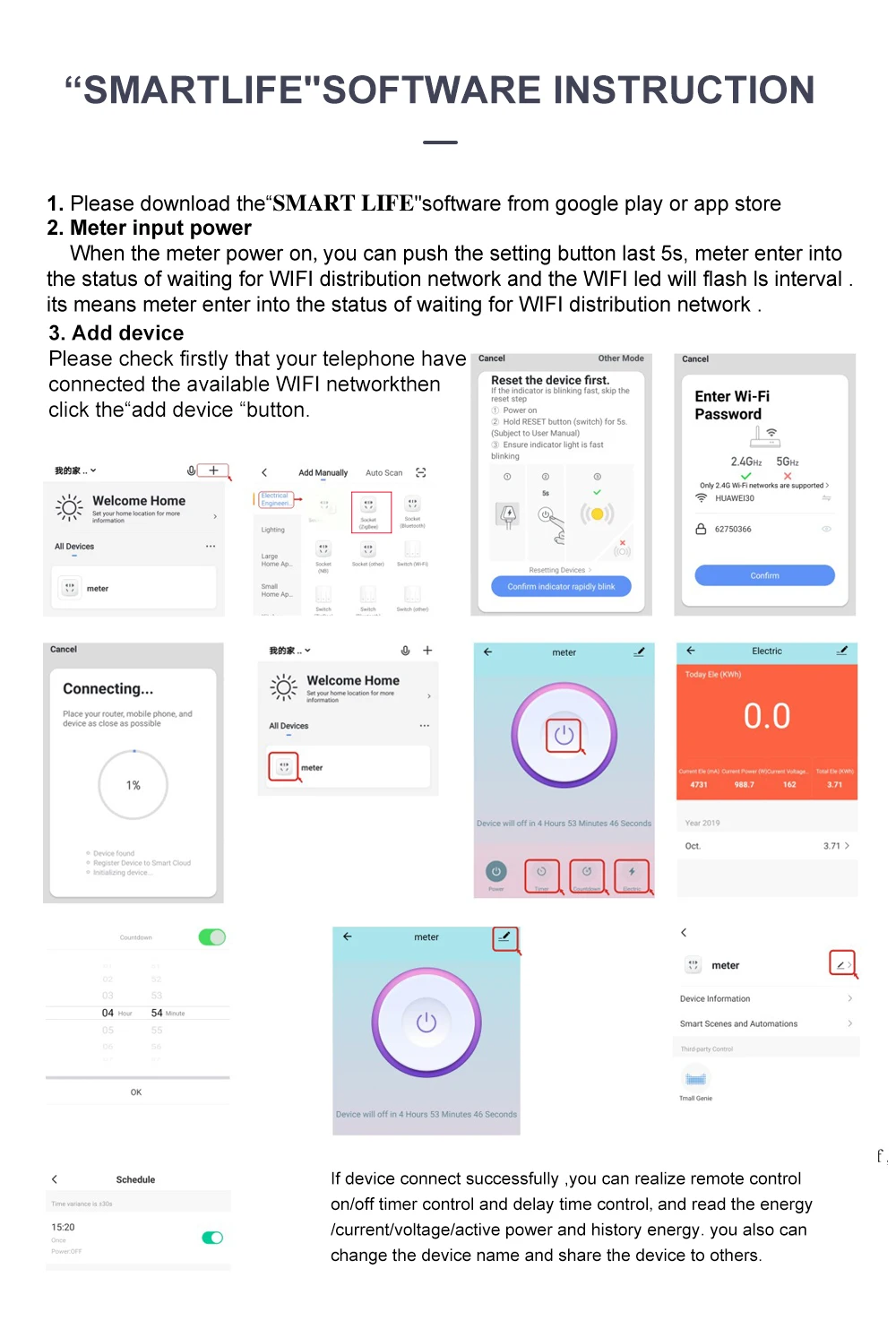

1. Remote Control ON/OFF by Tuya APP or Smart Life APP at anytime from anywhere
2. Total active energy kWh measure

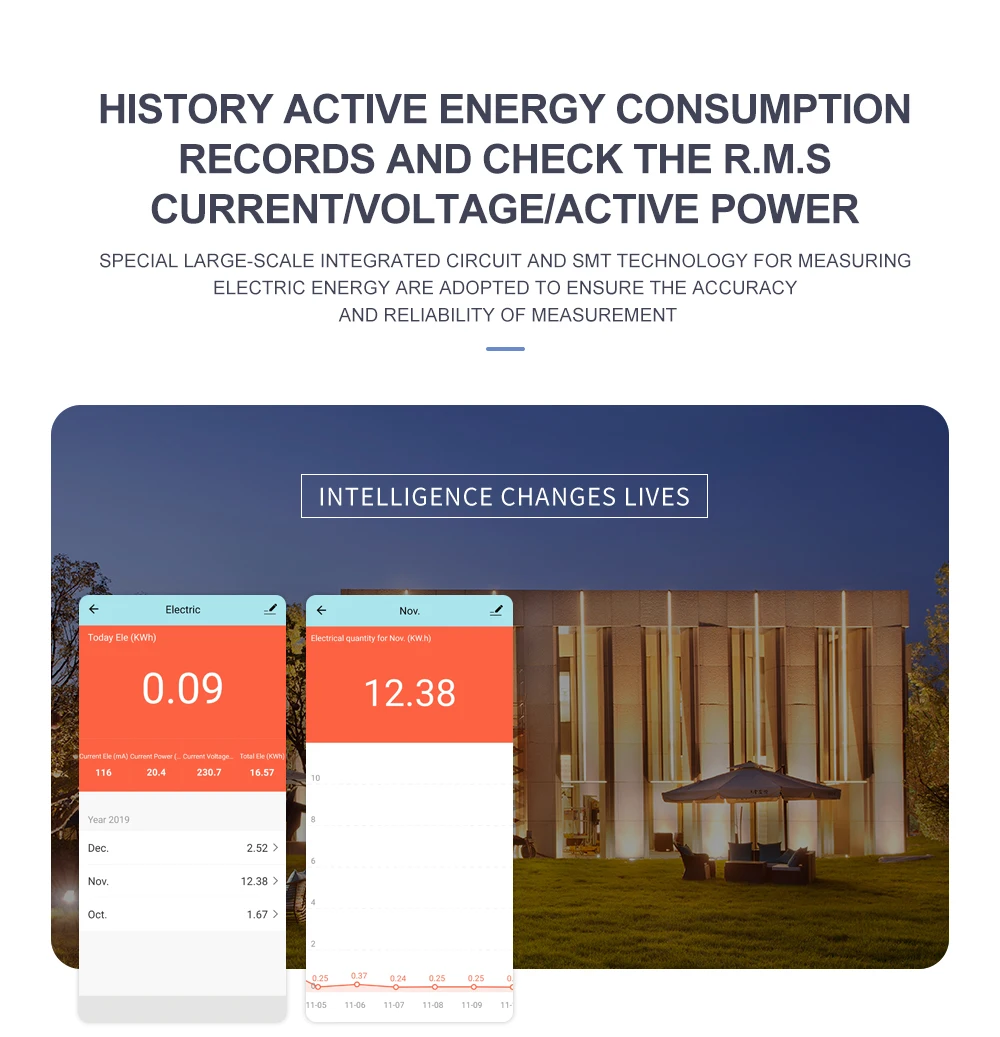

3. APP can read kWh , R.M.S current , voltage , active power(The active power current voltage only for A phase, if balance it's all the same for 3 phase)

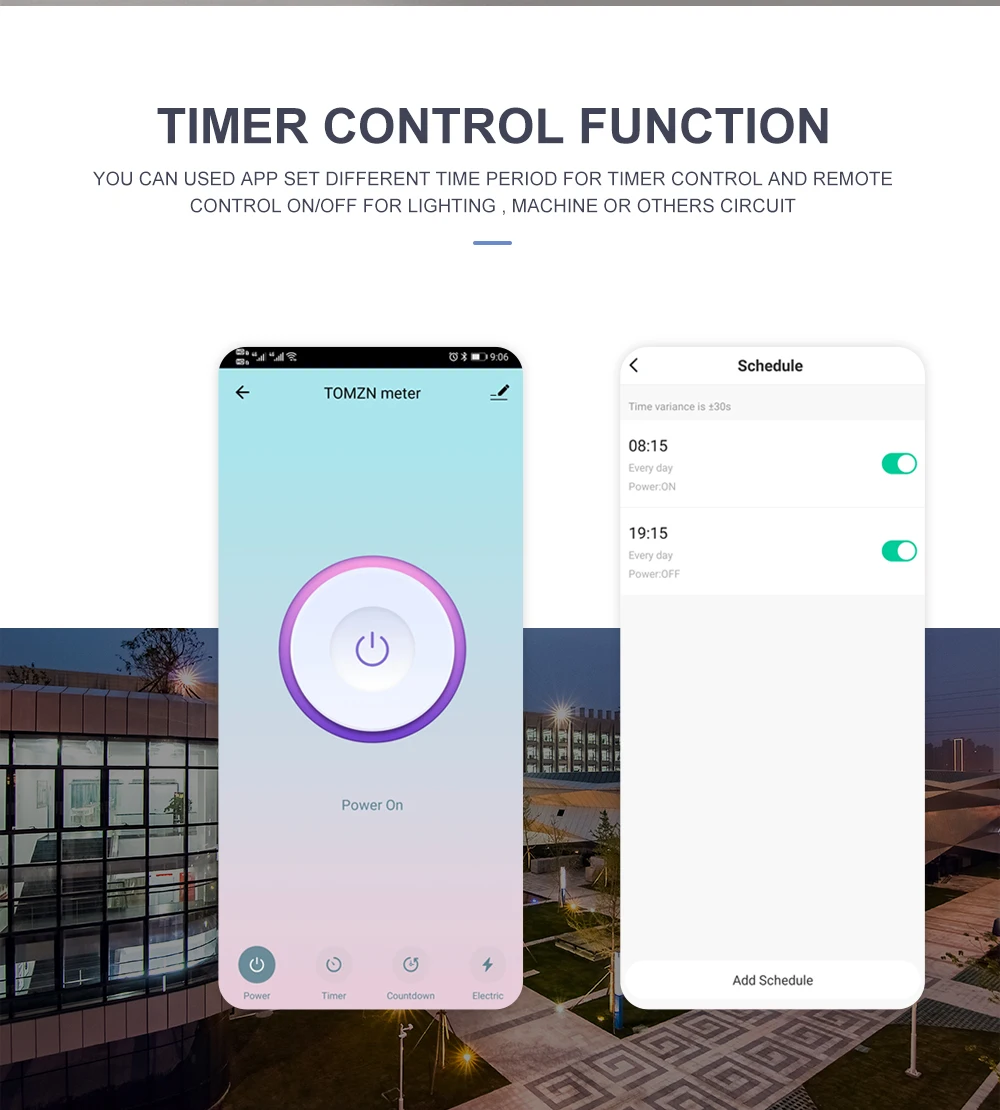

4. Timer control function
5. Delay time cut off function

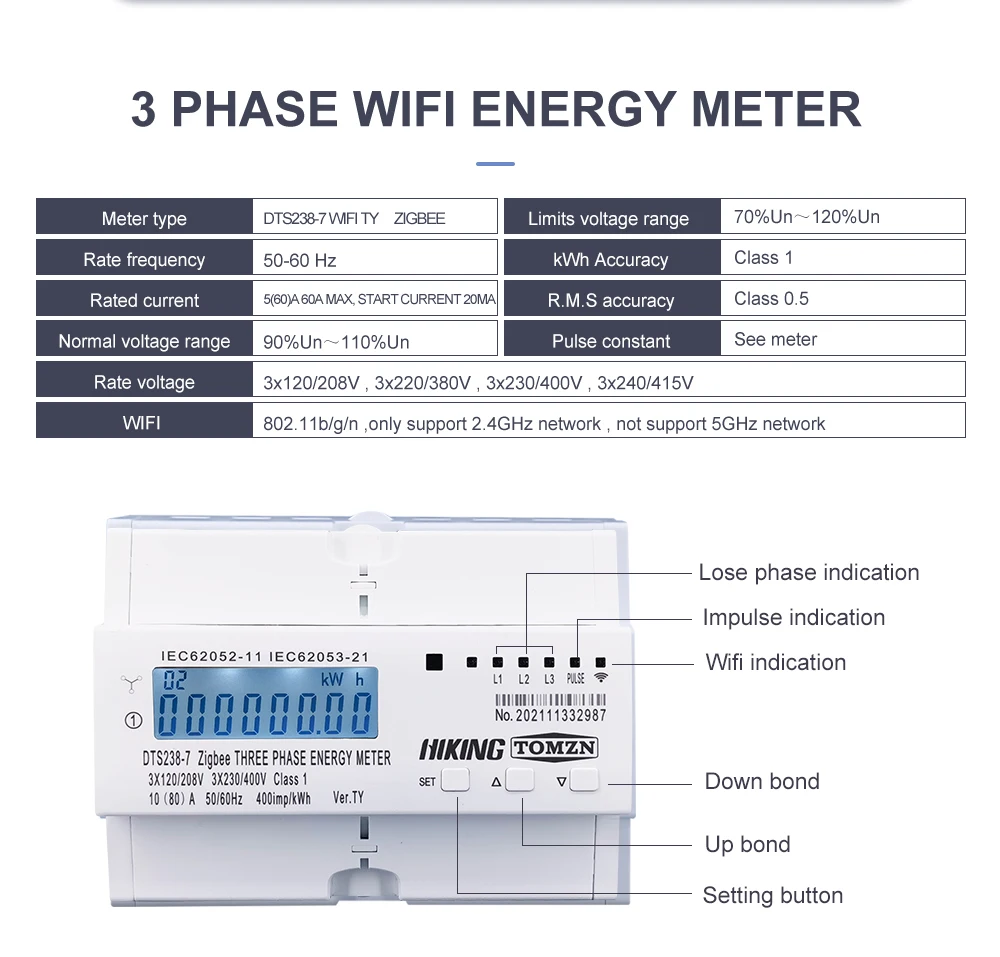

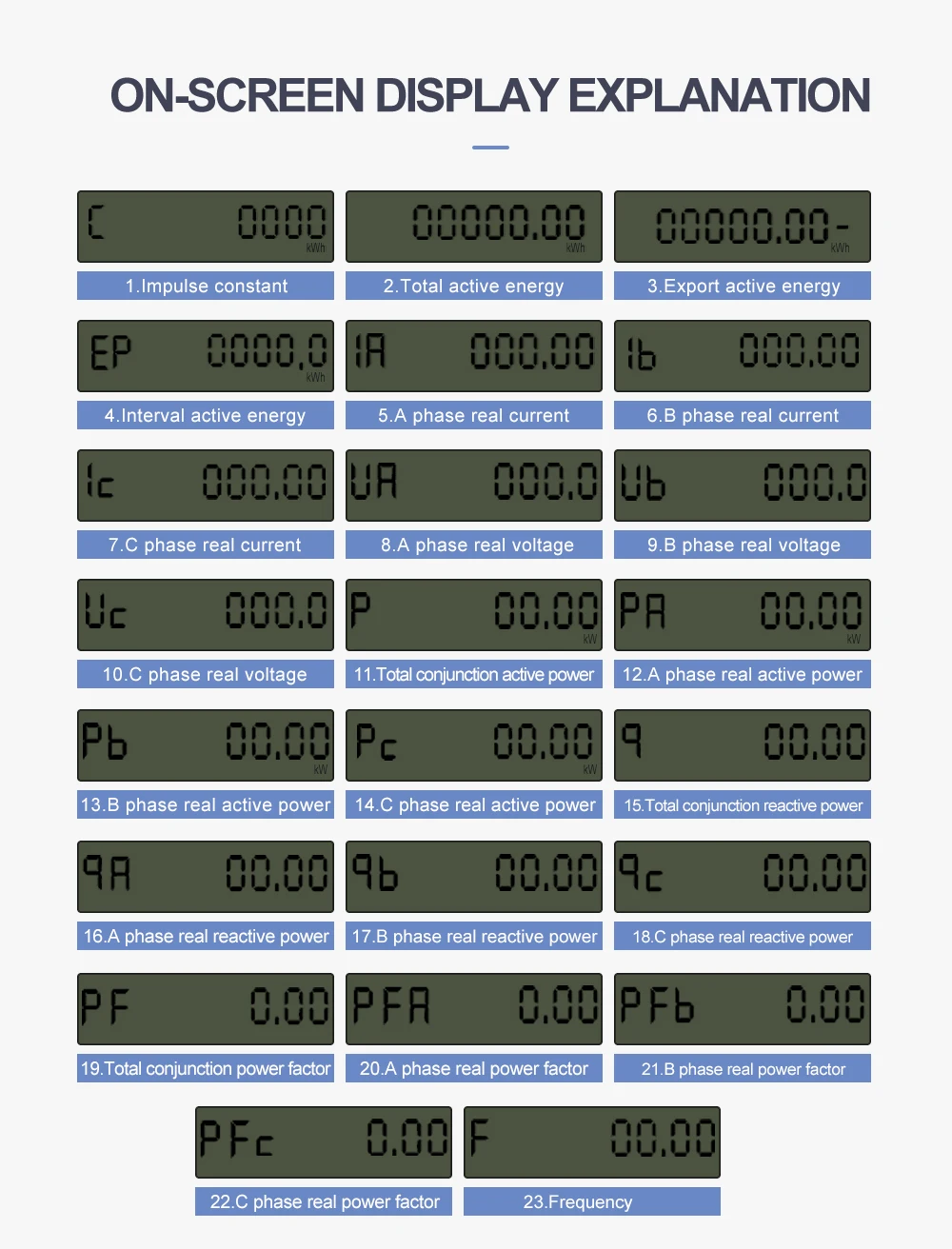

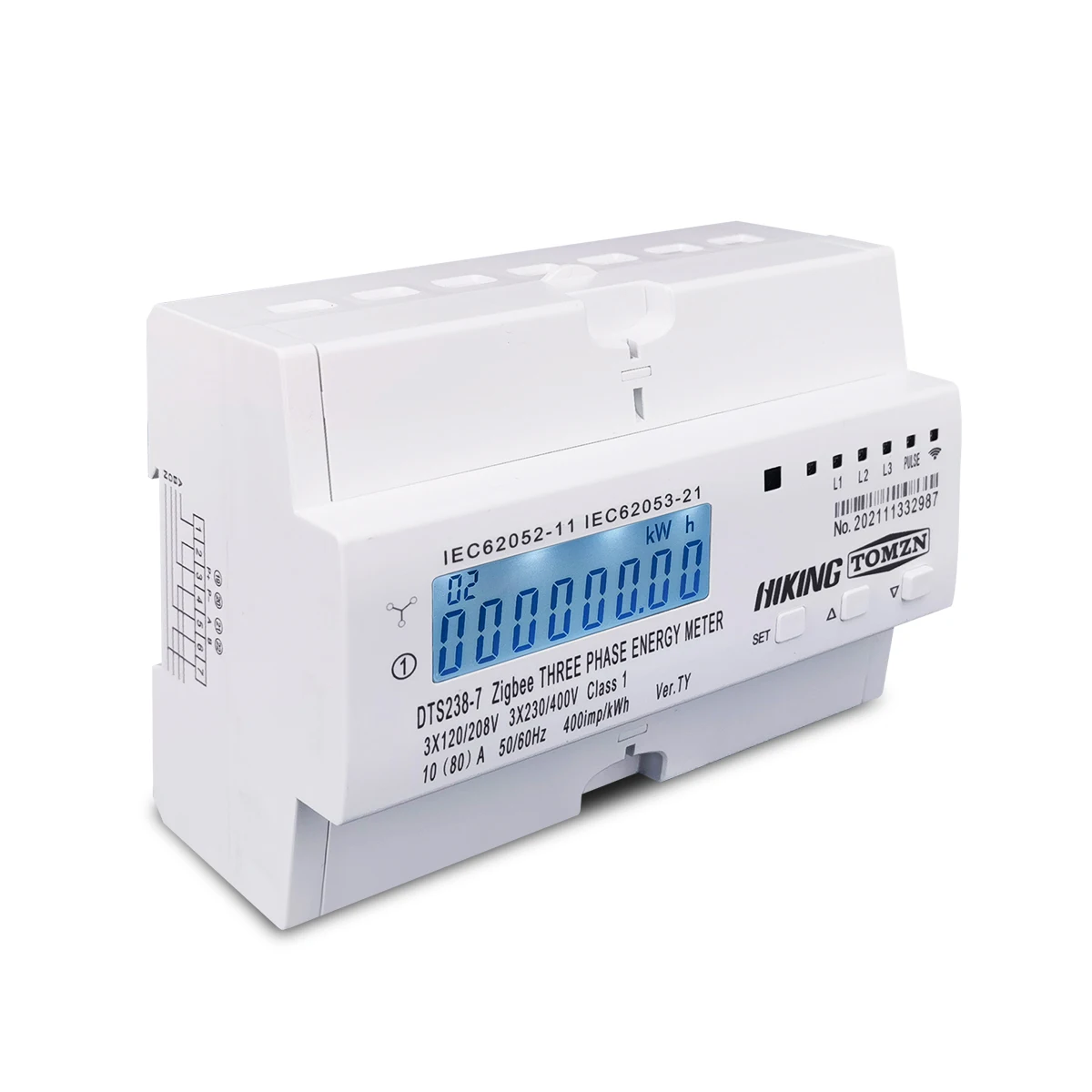

6. LCD display, Real-time display of Voltage, Current, Active Power, reactive Power, power factory ,frequence, total Energy kWh
7. Power Supply: 3*120 3*220V 3*230V 3*240V 50-60Hz
8. Rated Current: 60A
10. Pulse Frequency: 400imp/kWh

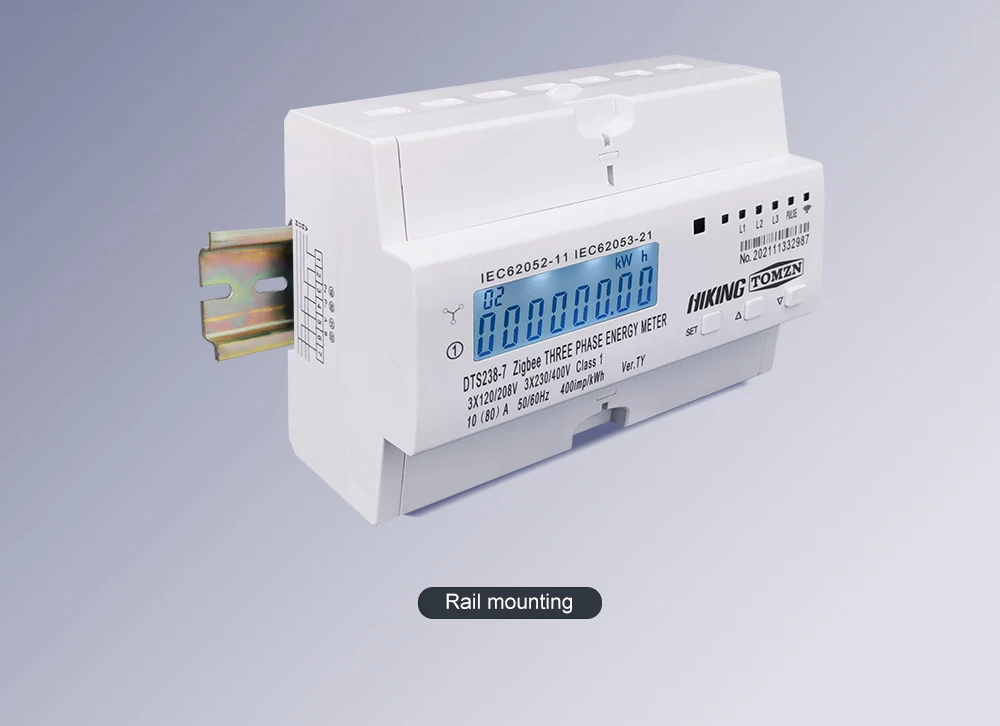

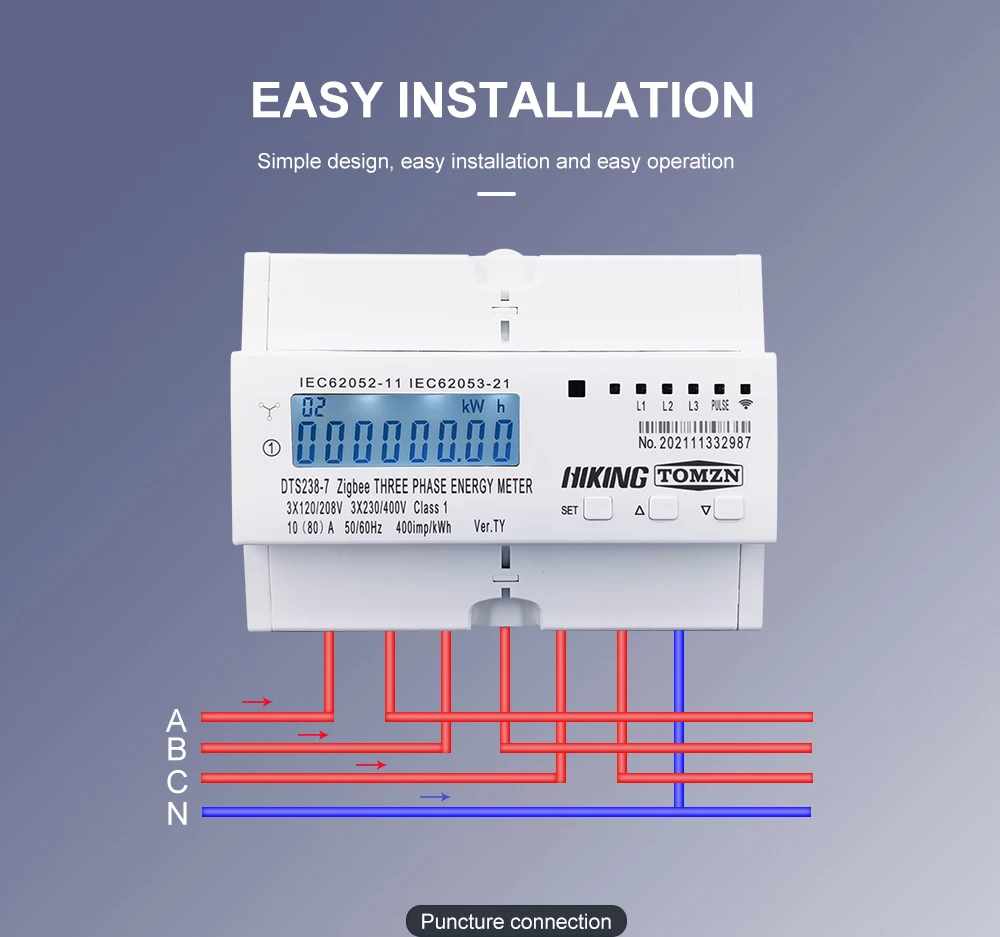

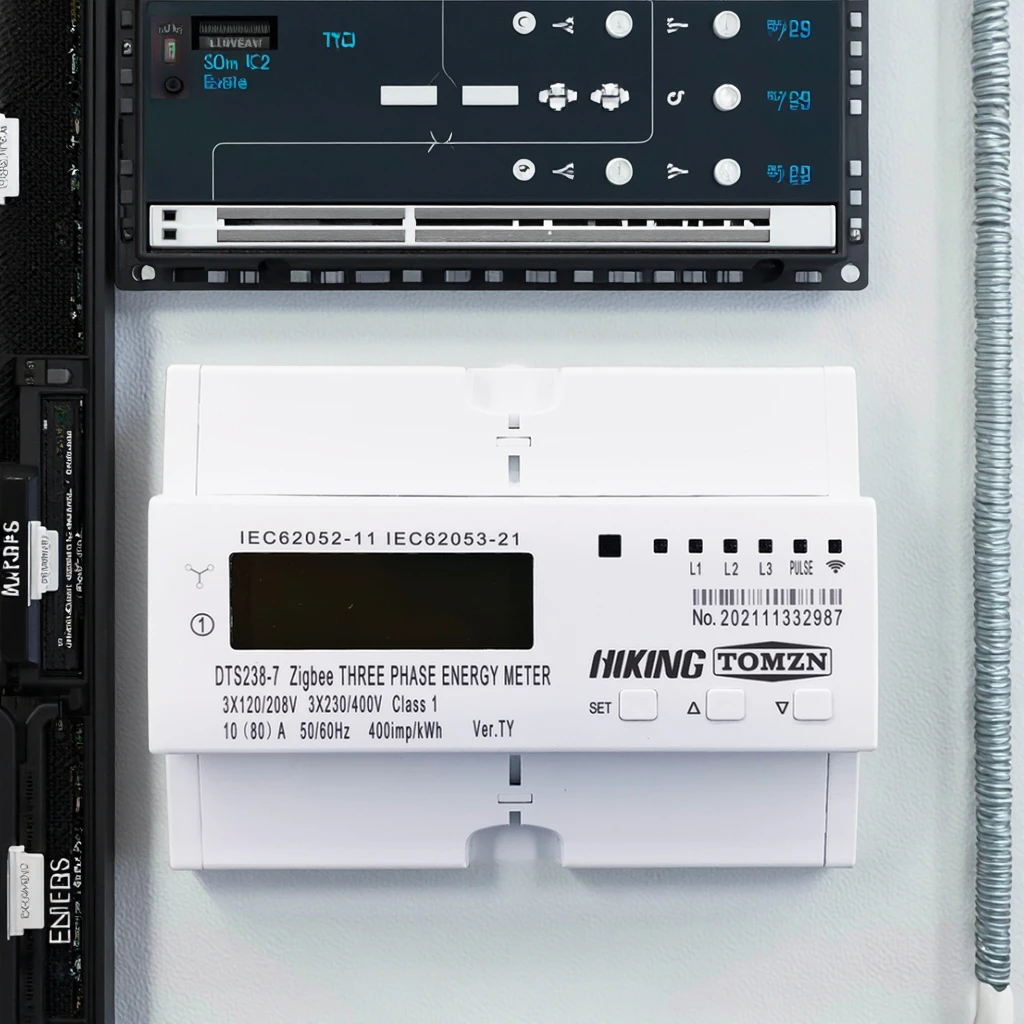

11. 35mm Din Rail install

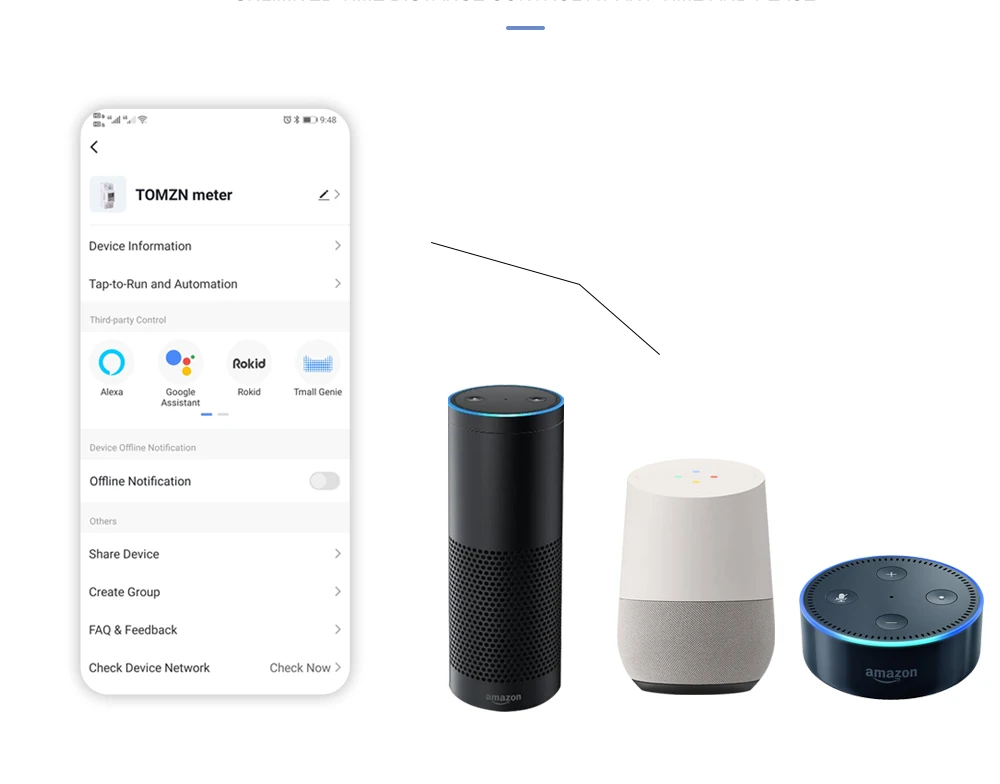

12. can use same TUYA APP , compatible with other TUYA product such WIFI socket , led ,fans and so on
13. Active energy accurate is class 1 , IEC62053-21

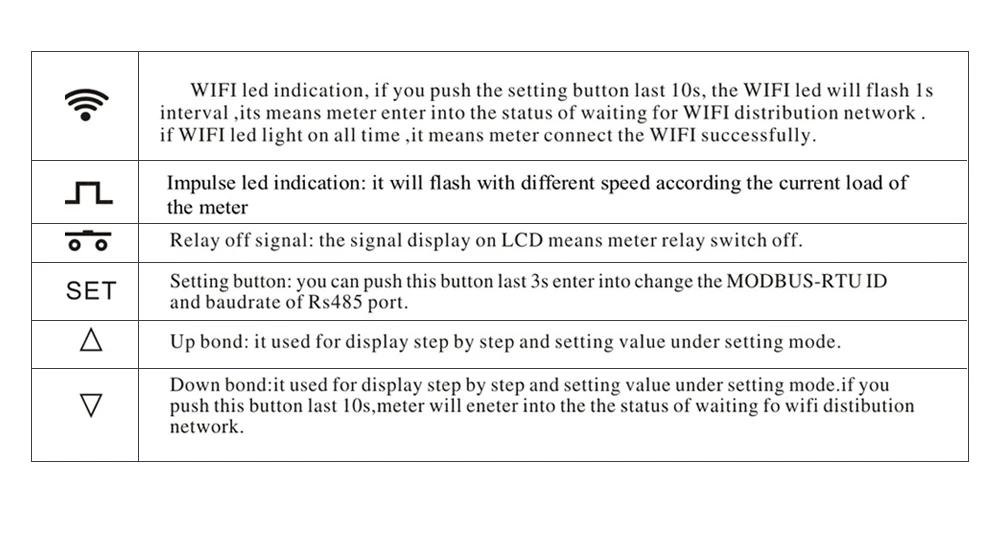

Push the button last more than 10s , the WIFI led will flash quickly , then use APP to operation
Note:This meter Only supports 2.4G Wireless Network, NOT for 5G
