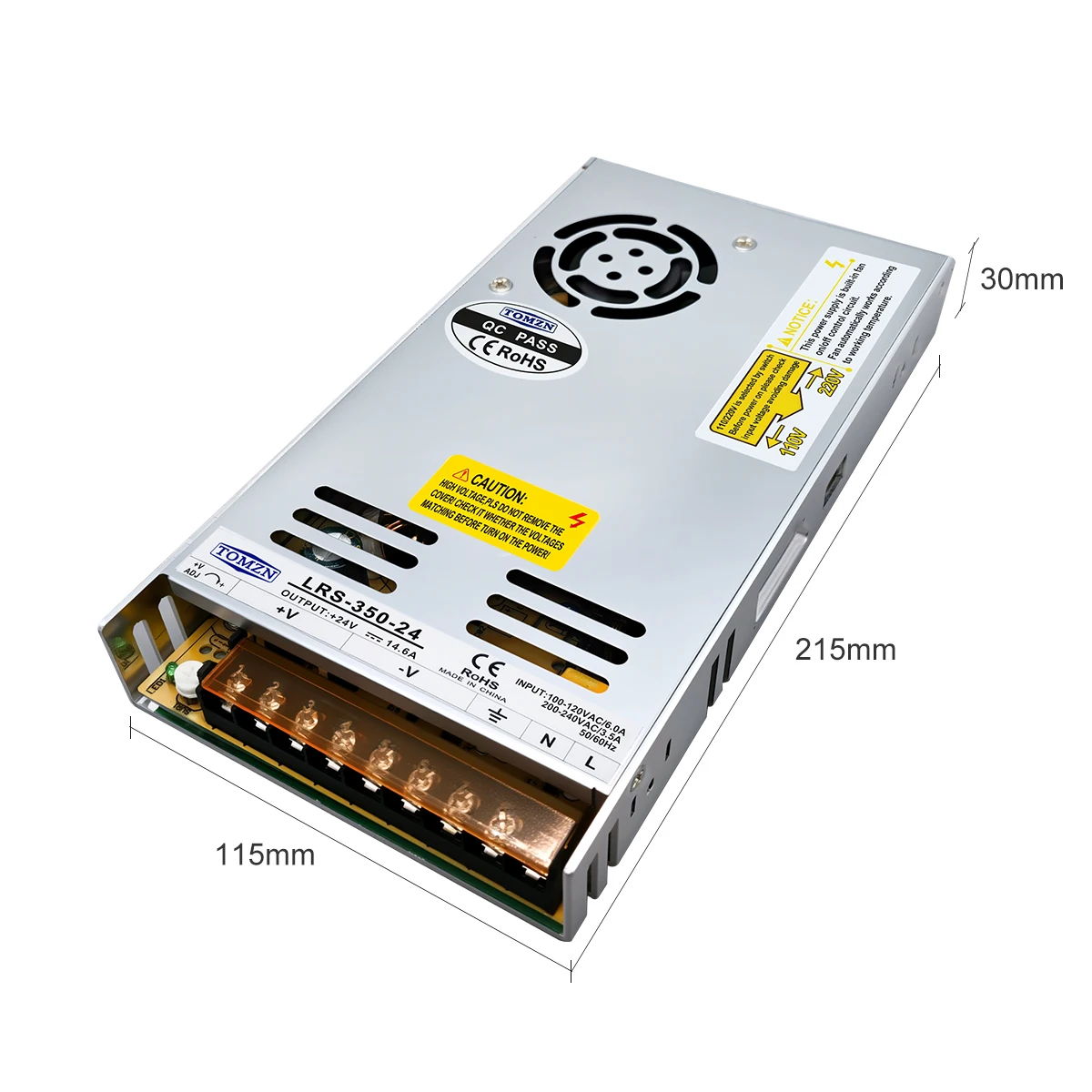

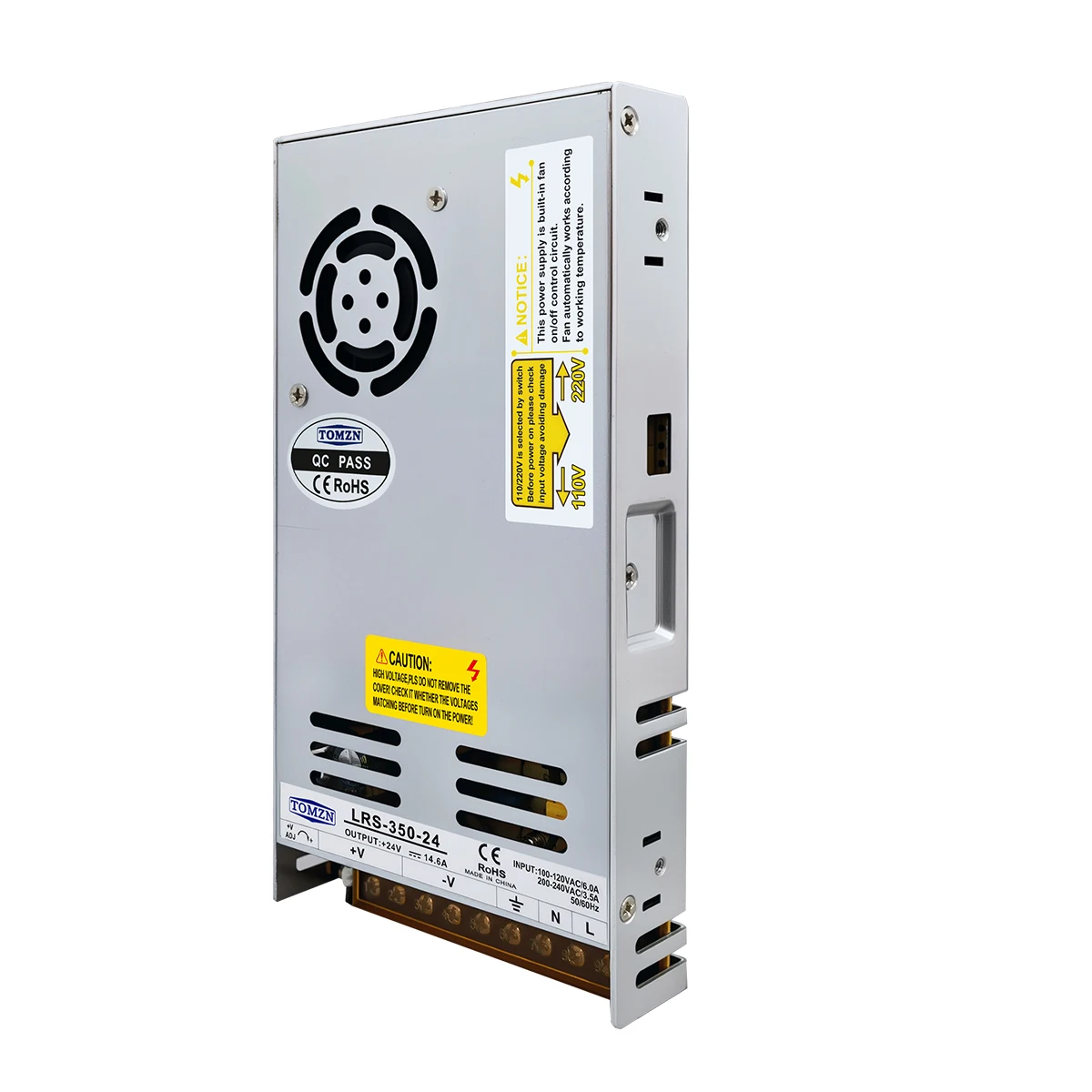

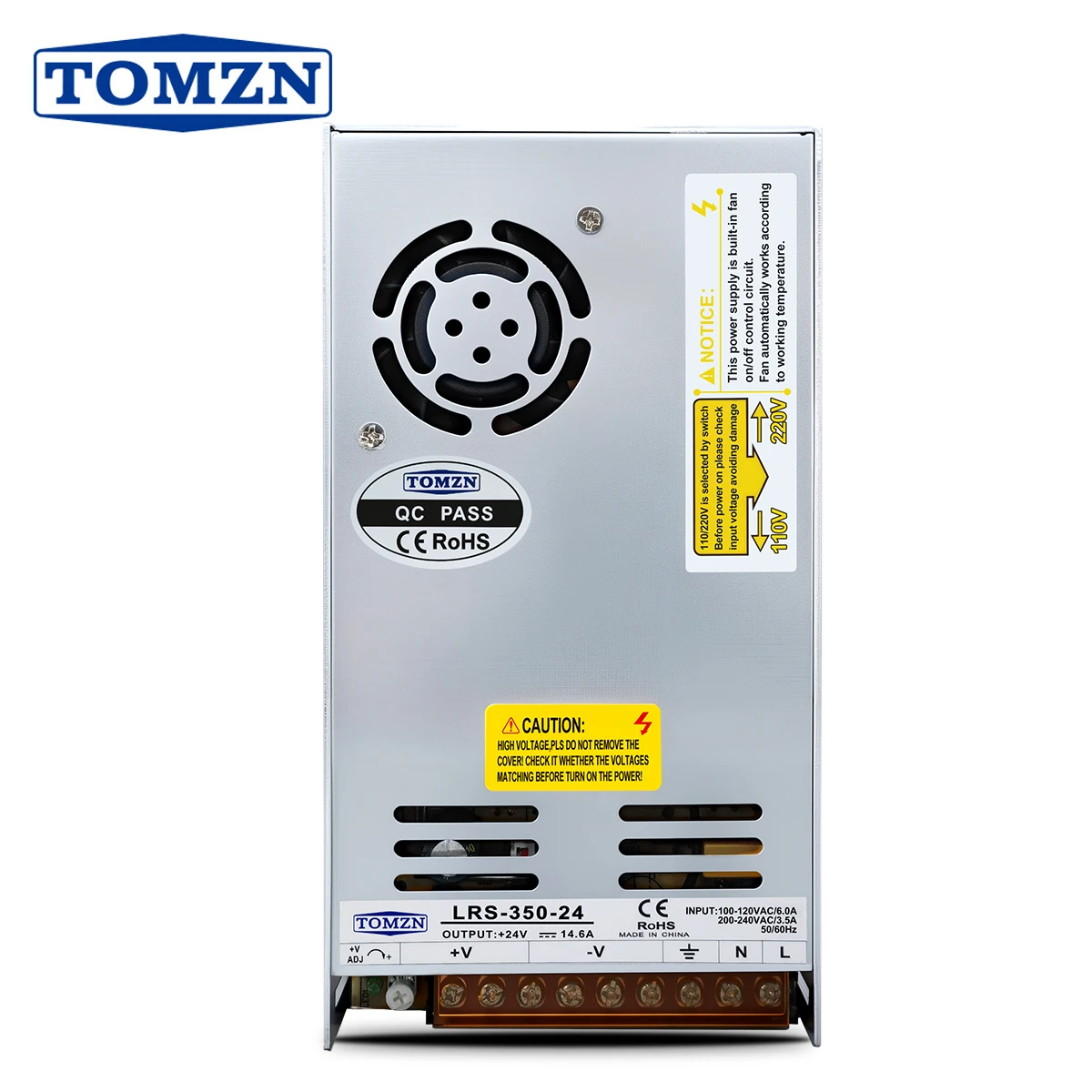

TOMZN 350W AC-DC SMPS Single Output Switching power supply input 110-240V output 5V 12V 15V 24V 36V 48V adjustable for LED
Thomson (TOMZN) 350W AC-DC switching power supply is designed for LED applications. It is compatible with a wide range of input voltages from 110-240V, adapting to most global power grid environments. Single output, 5-48V output voltage can be adjusted according to demand, for all kinds of LED lamps and equipment to provide adaptive and stable power. With strong power and flexible voltage regulation, it is easy to cope with large-scale LED lighting projects and ensure durable and efficient lighting.
- Overview
- Recommended Products
Function: LRS-350 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.

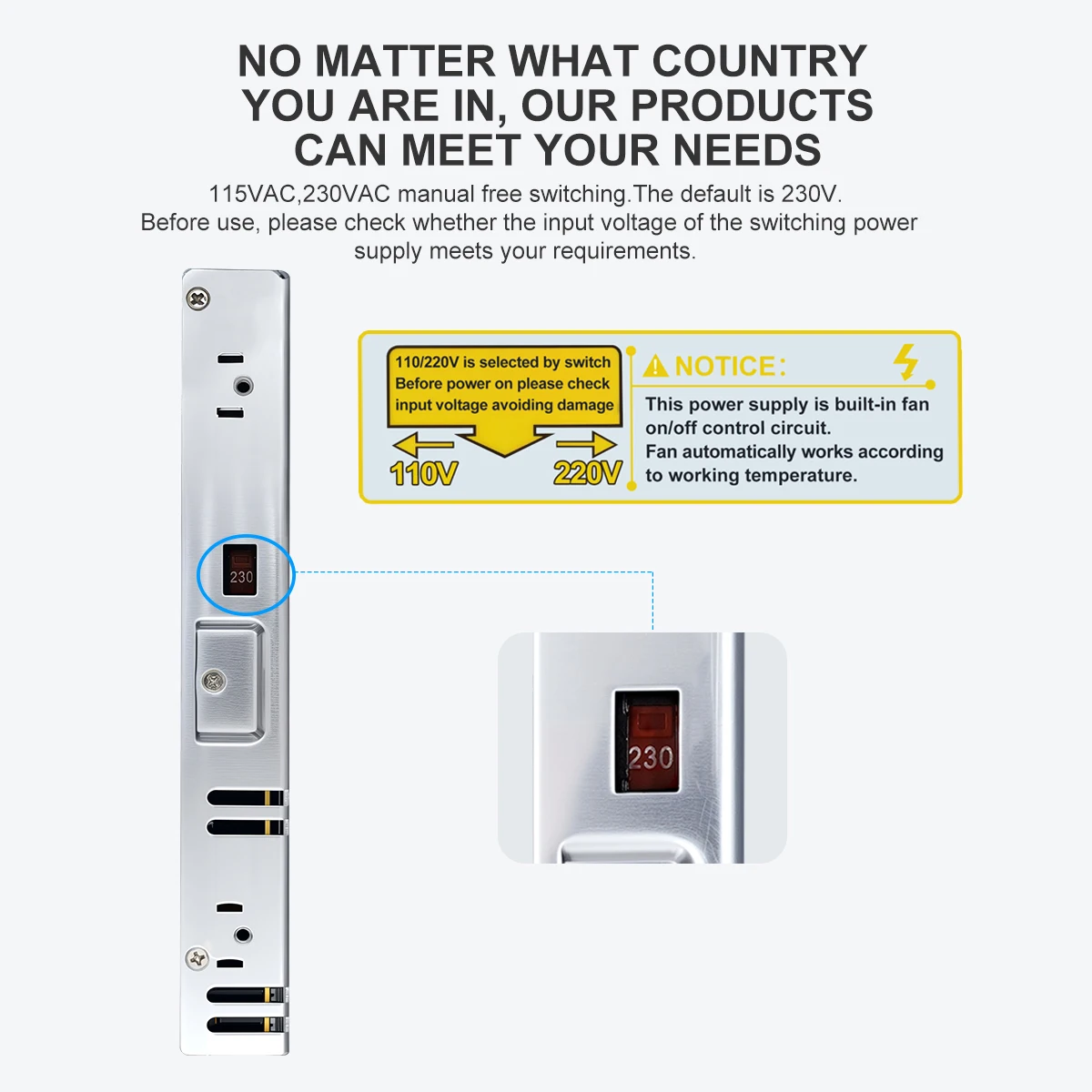

Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
