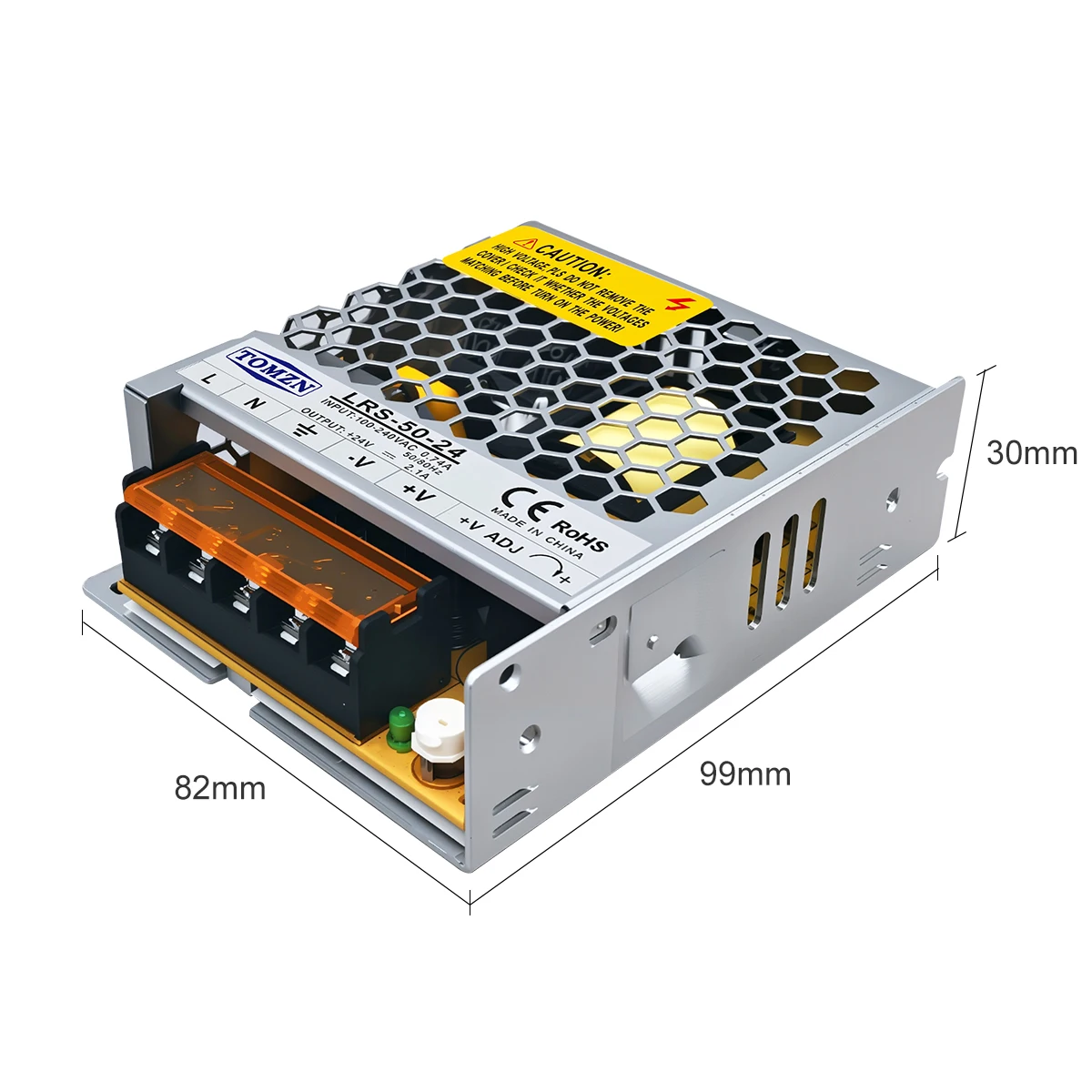

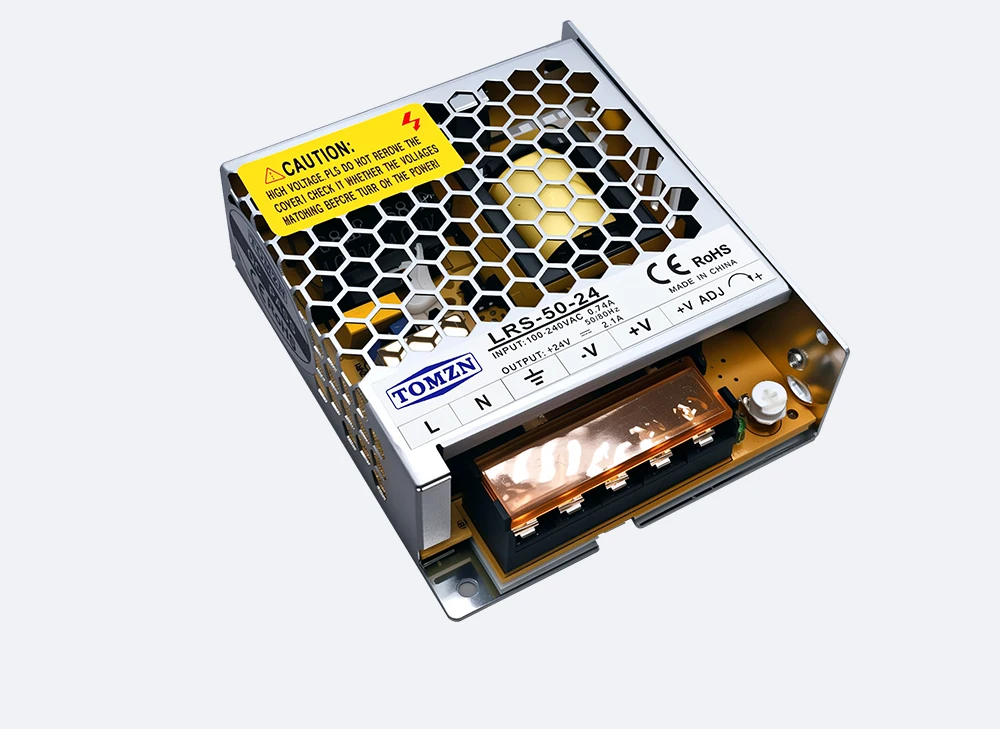

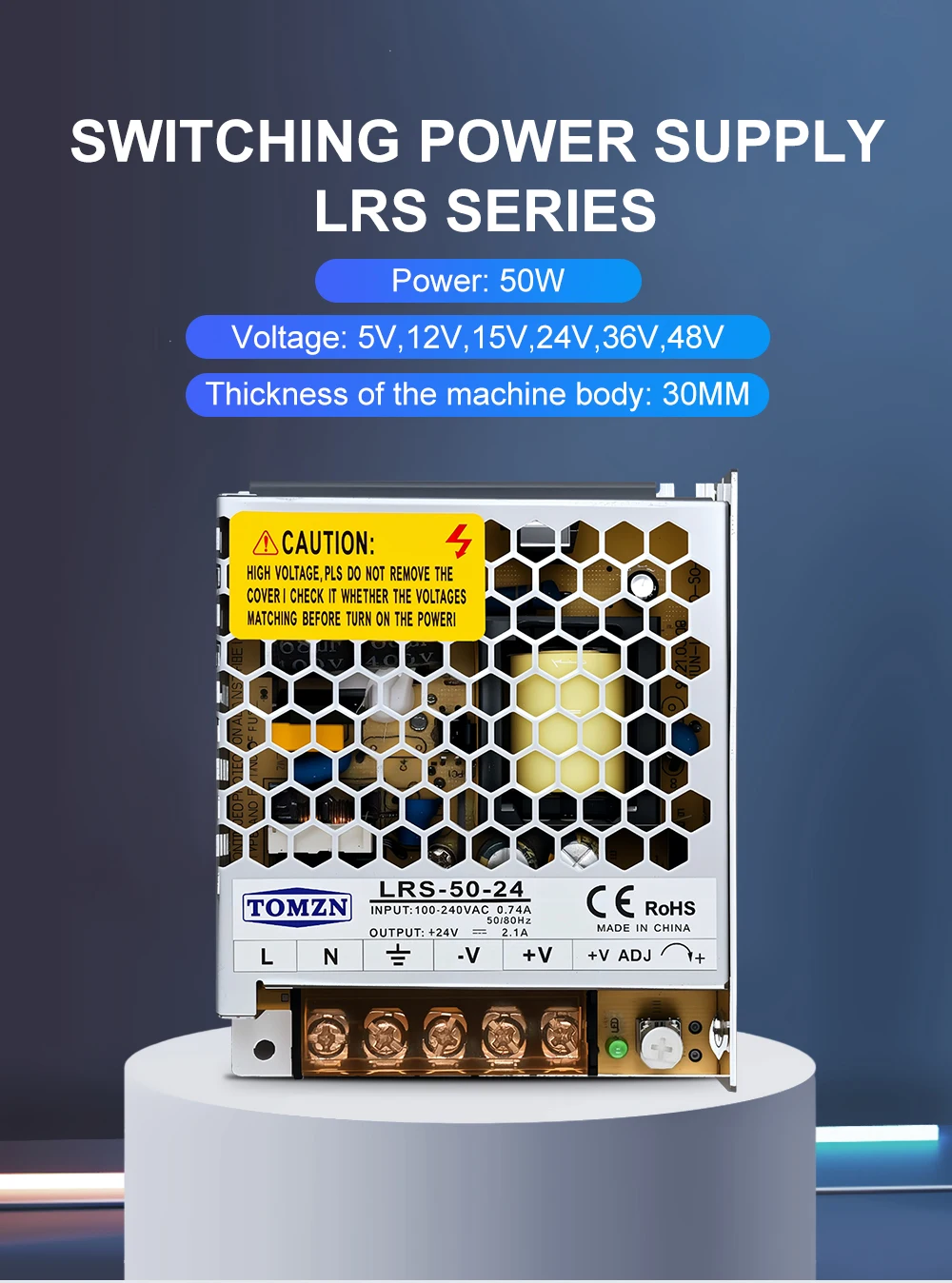

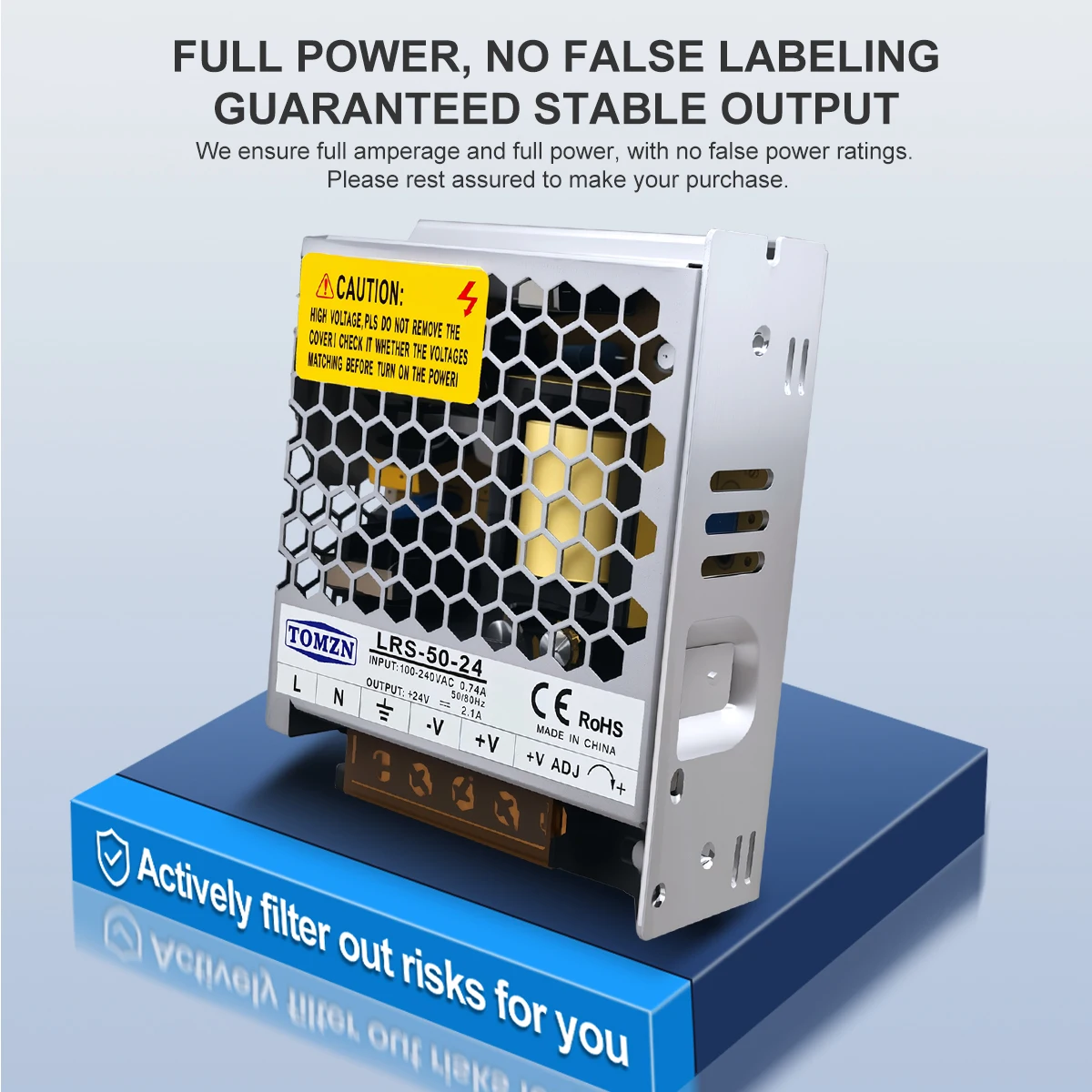

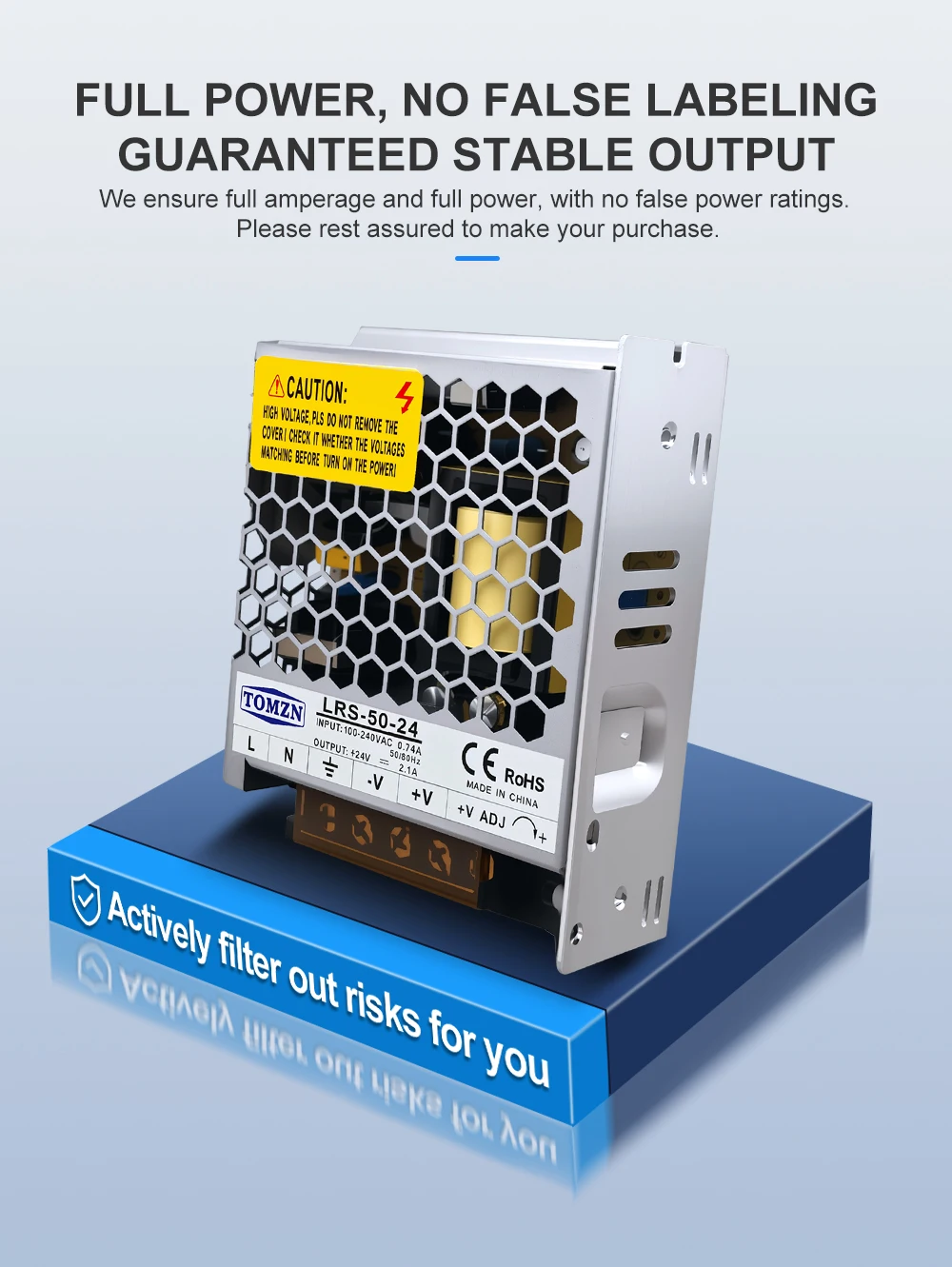

TOMZN 50W AC-DC SMPS Single Output Switching Power Supply Input 110-240V Output 5V 12V 15V 24V 36V 48V Adjustable for LED
TOMZN This 50 watt AC-DC switching power supply is designed for LED devices. The single output design is simple and efficient, and the input voltage range is wide to 110-240V AC, which can adapt to different electric environment. The output voltage has a variety of options such as 5V, 12V, and can also be adjusted on demand to meet the diversified power supply needs of LED. Reliable performance and stable output provide a strong guarantee for the normal operation of LED equipment.
- Overview
- Recommended Products

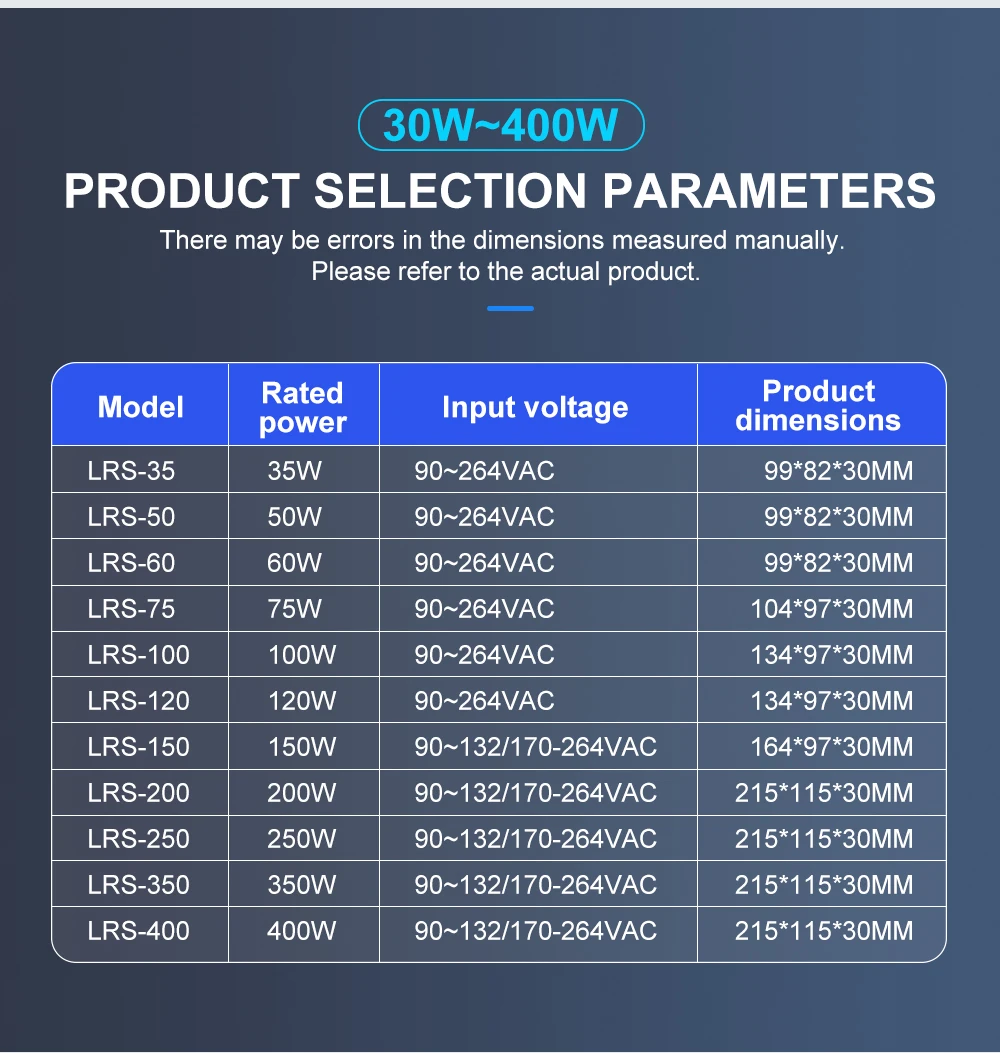

Function: LRS-50 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC

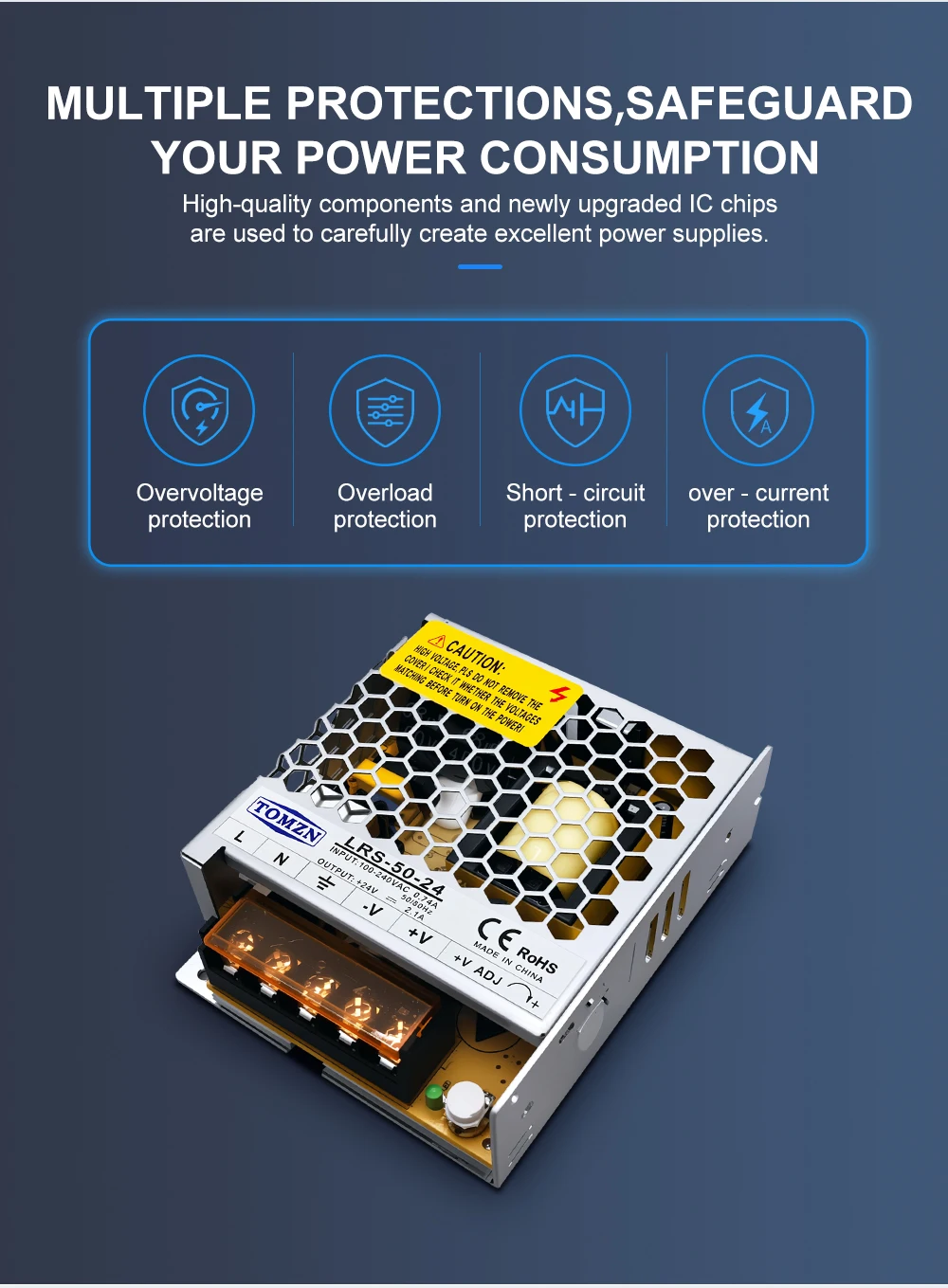

Protections: overload/ over voltage/ short circuit.

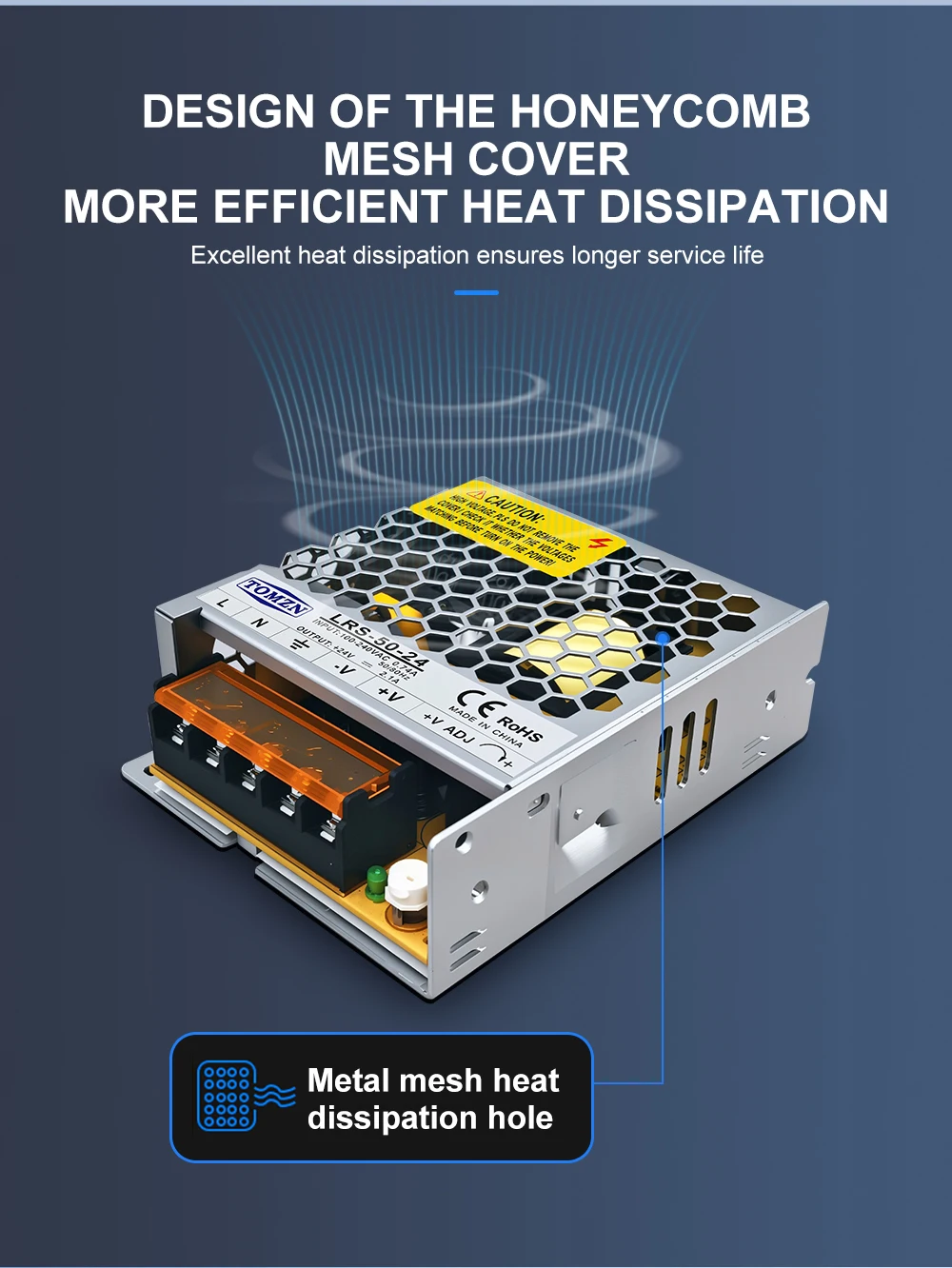

Cooling by free air convection.
(Not suggest for use in bathroom)

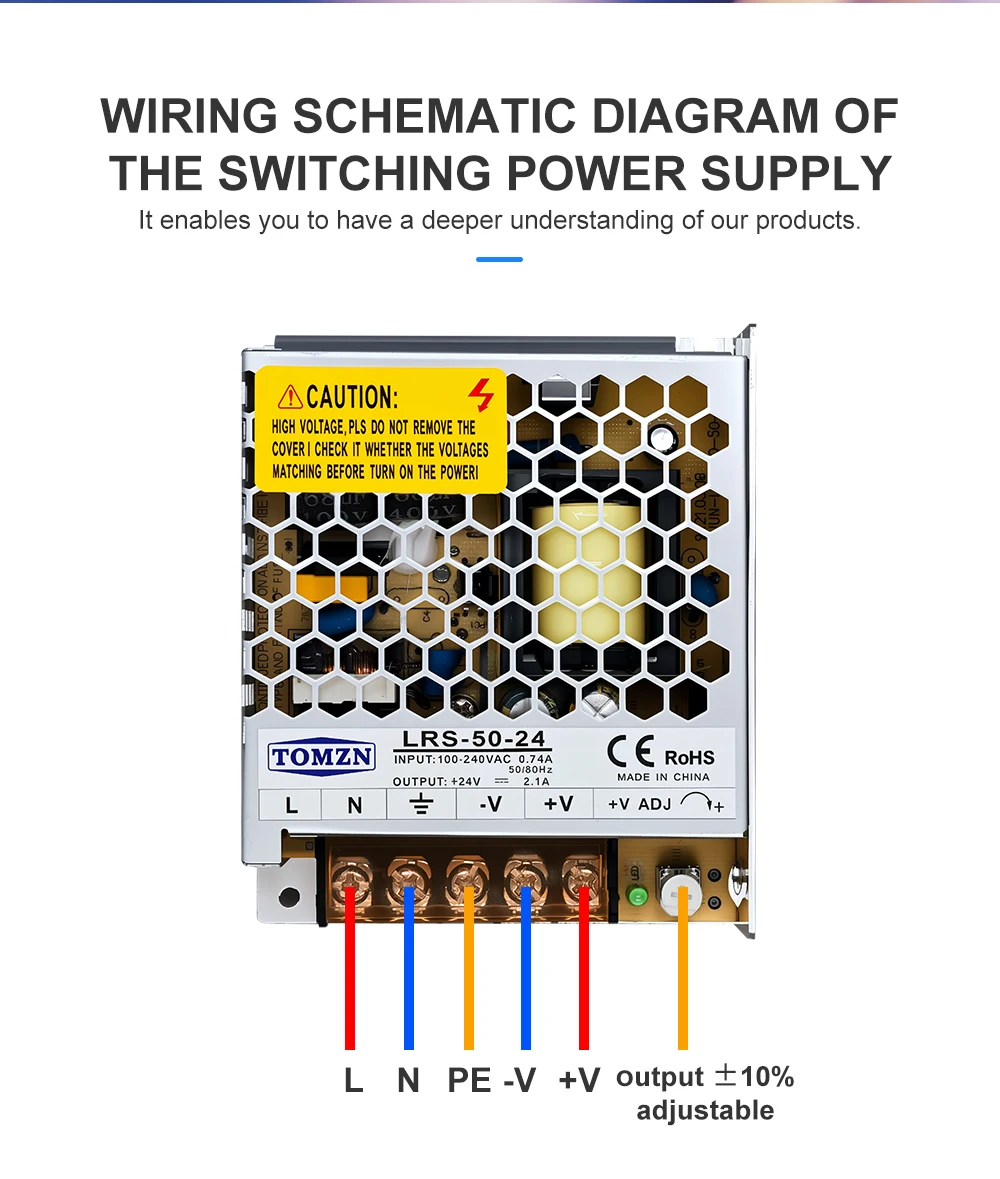

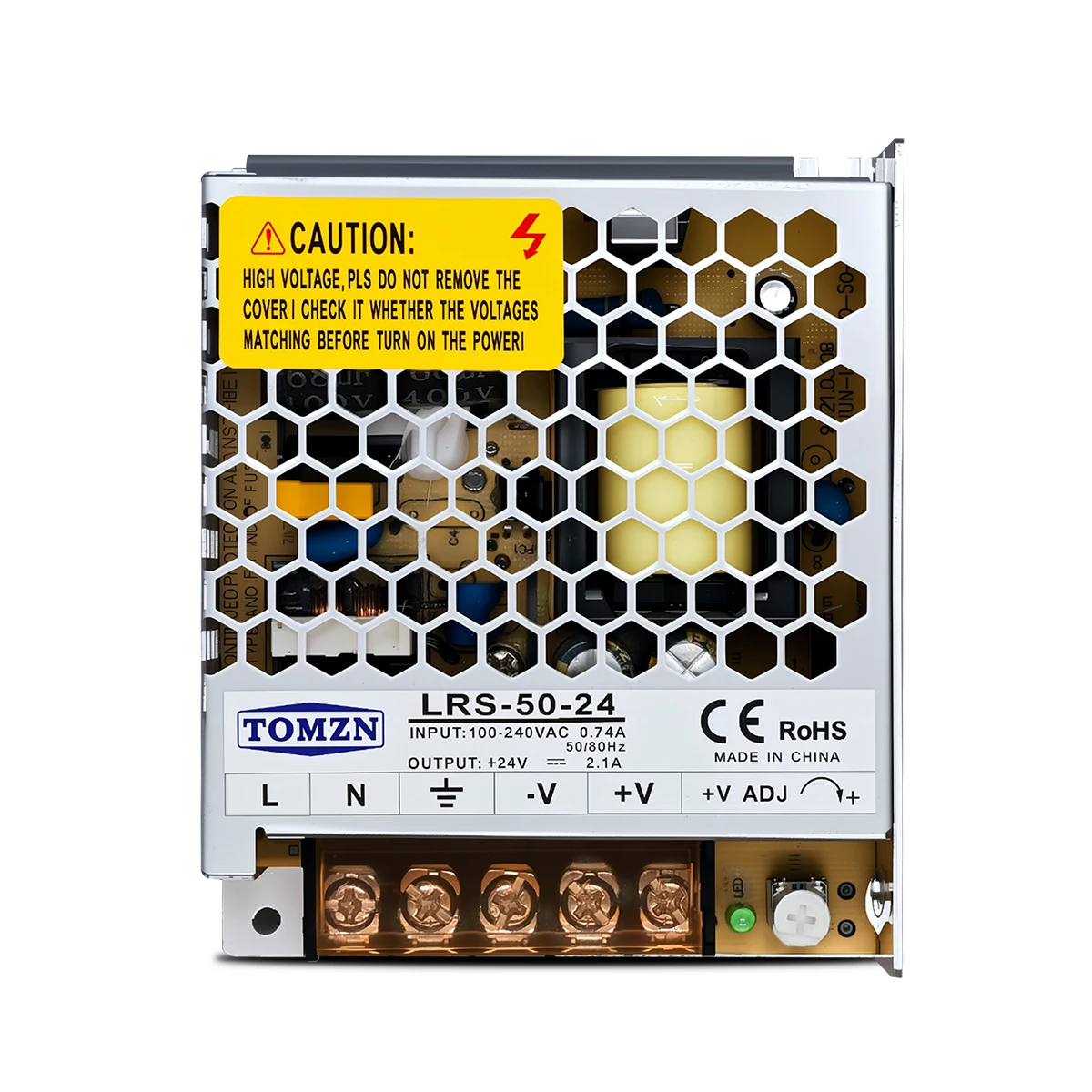

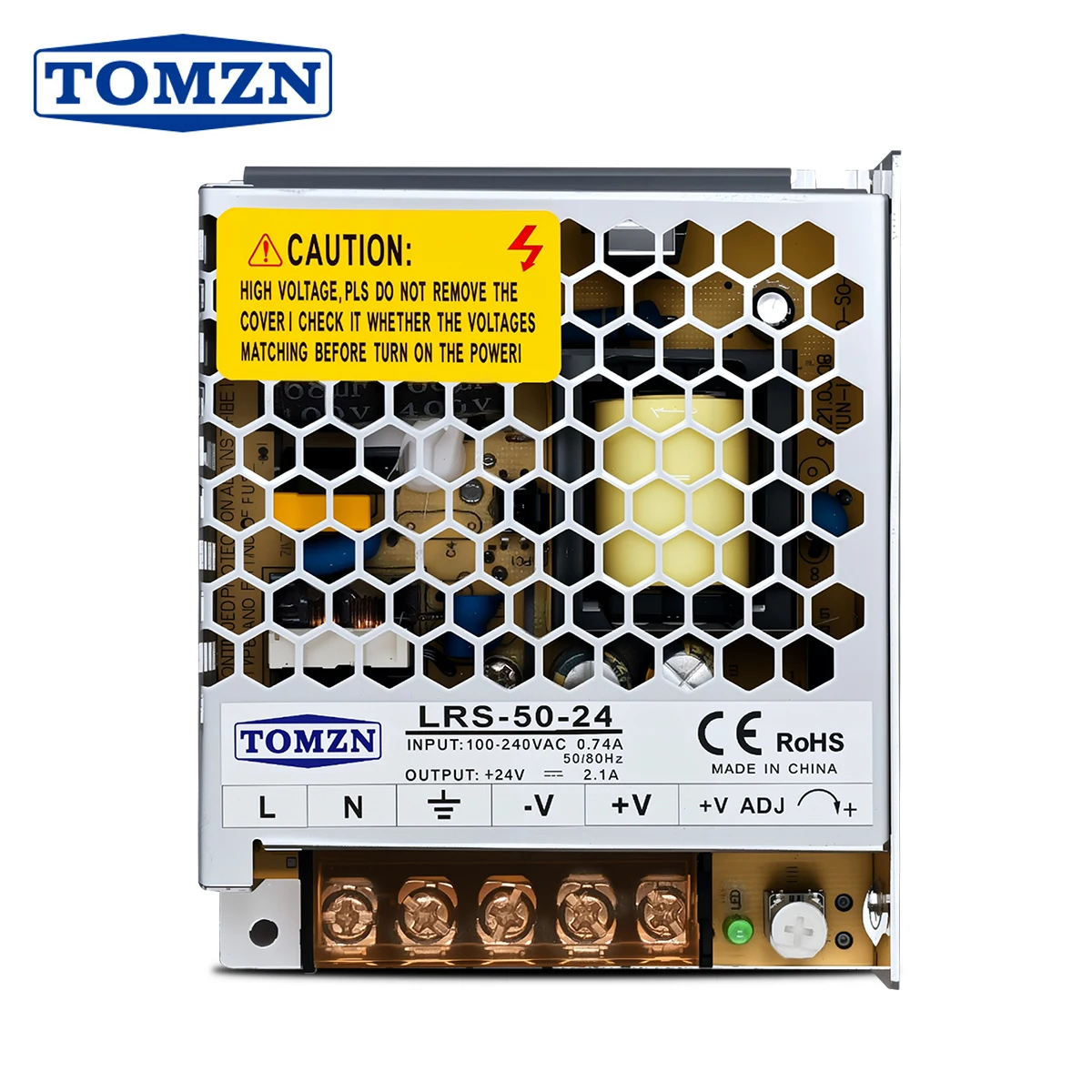

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
