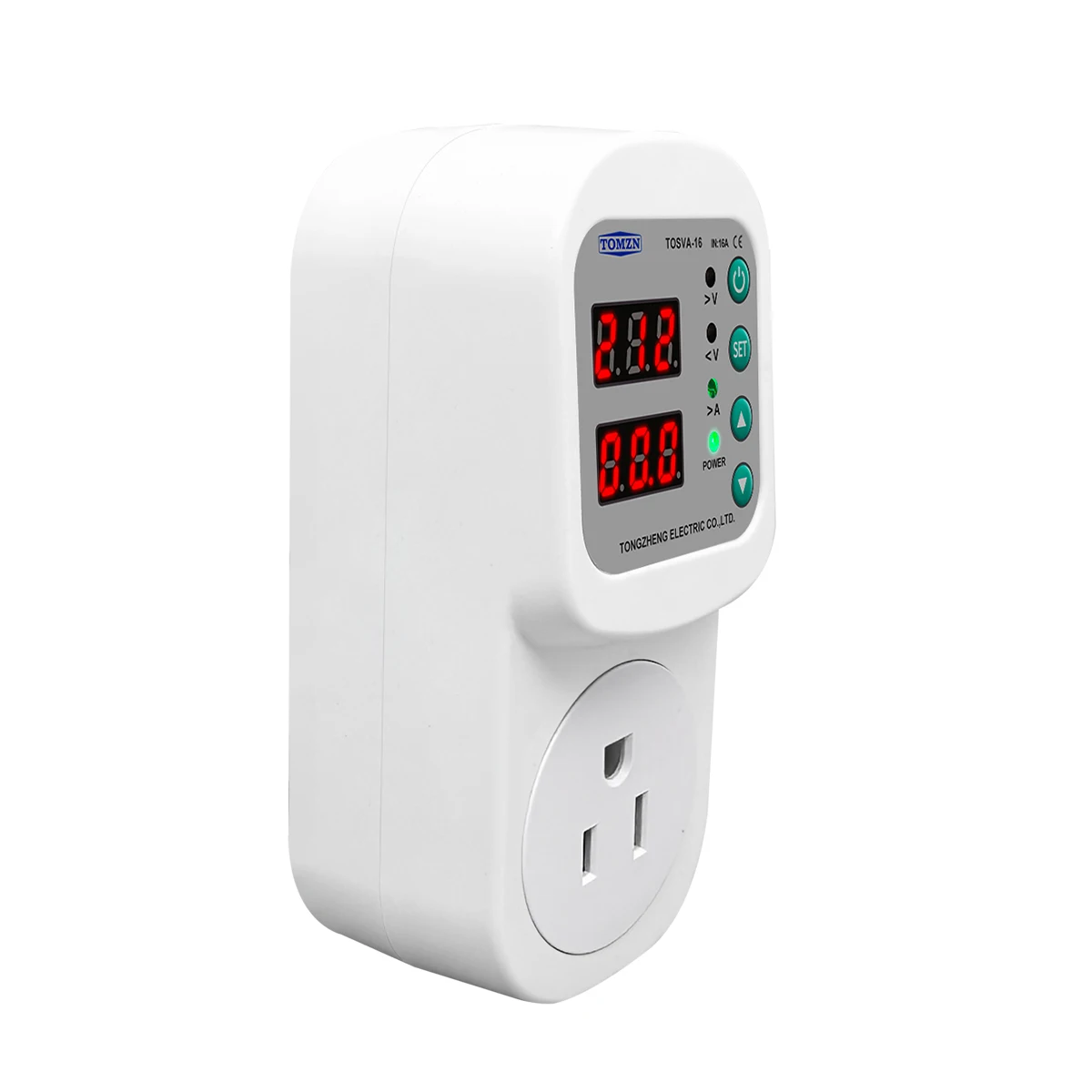

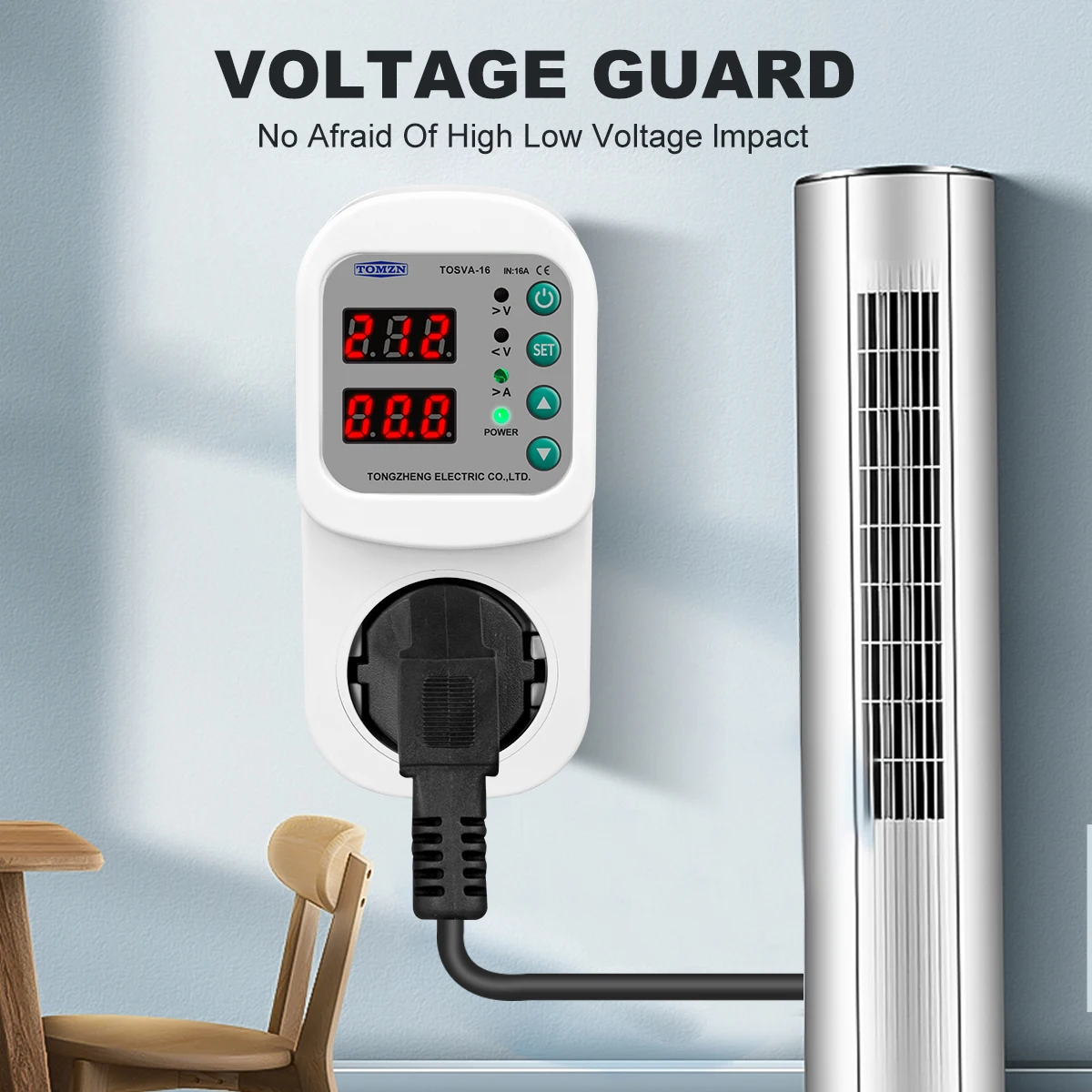

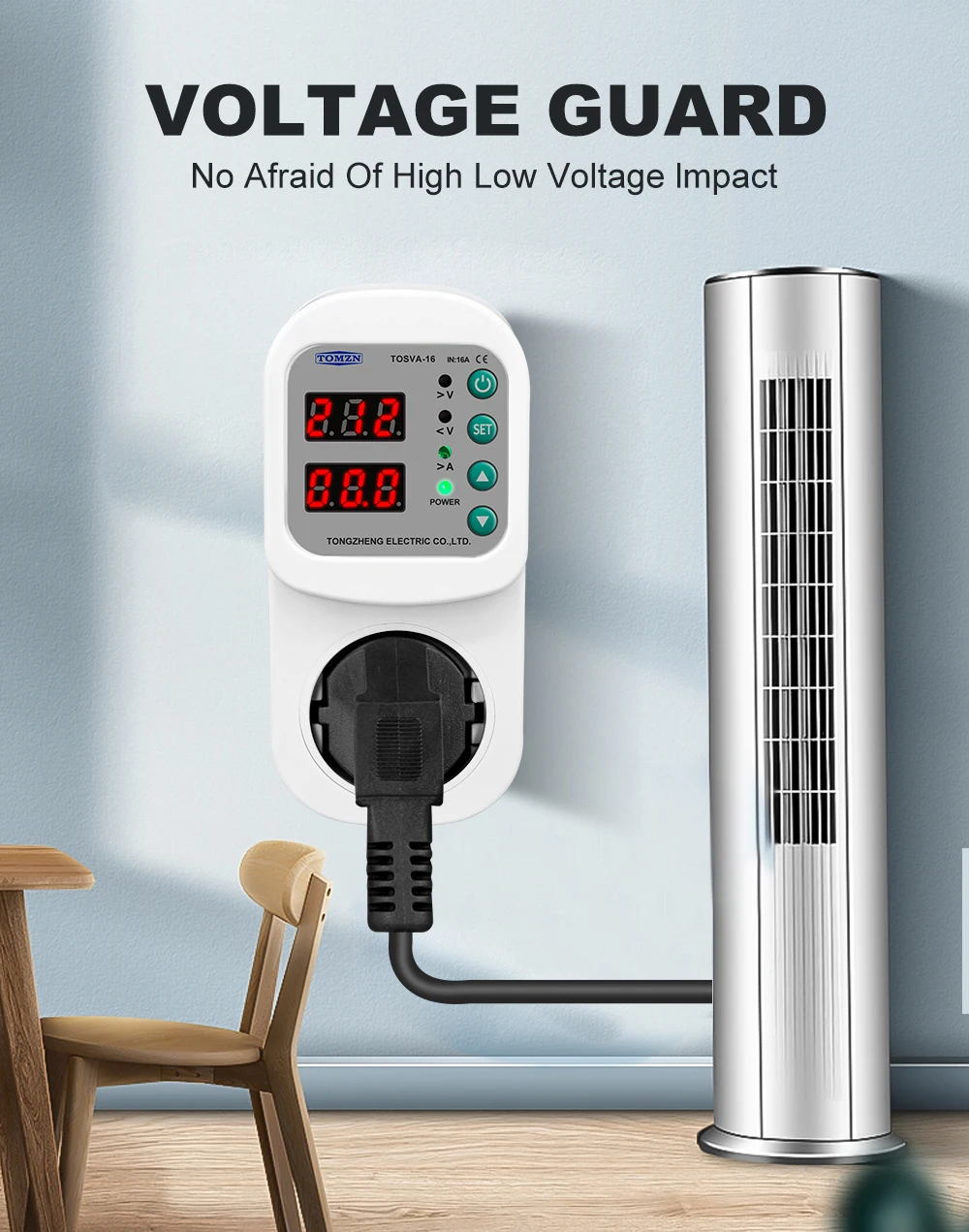

TOMZN US Plug Socket TOSVA-16 Automatic Voltage Current Protector Socket AC 110V 220V Adjustable 16A Power Surge Protector
TOMZN a.k.a. TOSVA-16 US specification plug socket Gatable for 110V and 220V AC voltage, wide application scenarios. There is an automatic voltage and current protection function considers to be adjusted according to demand, the rated current is 16A, can adapt to various electrical appliances. The surge protection function can effectively resist the sudden surge impact, provide a stable and safe electricity environment for electrical equipment, at the same time is a practical choice for home and office.
- Overview
- Recommended Products

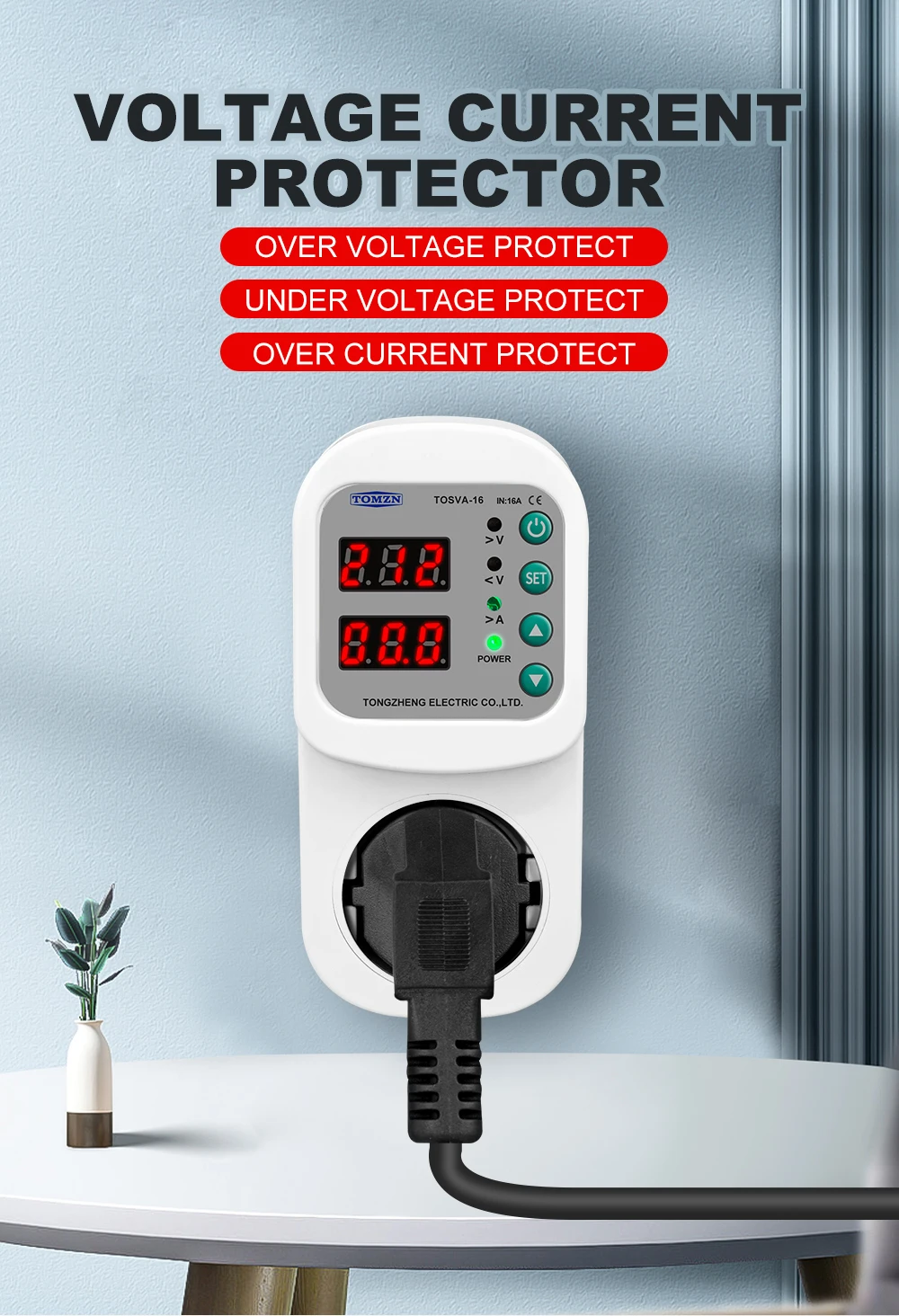

Functions:

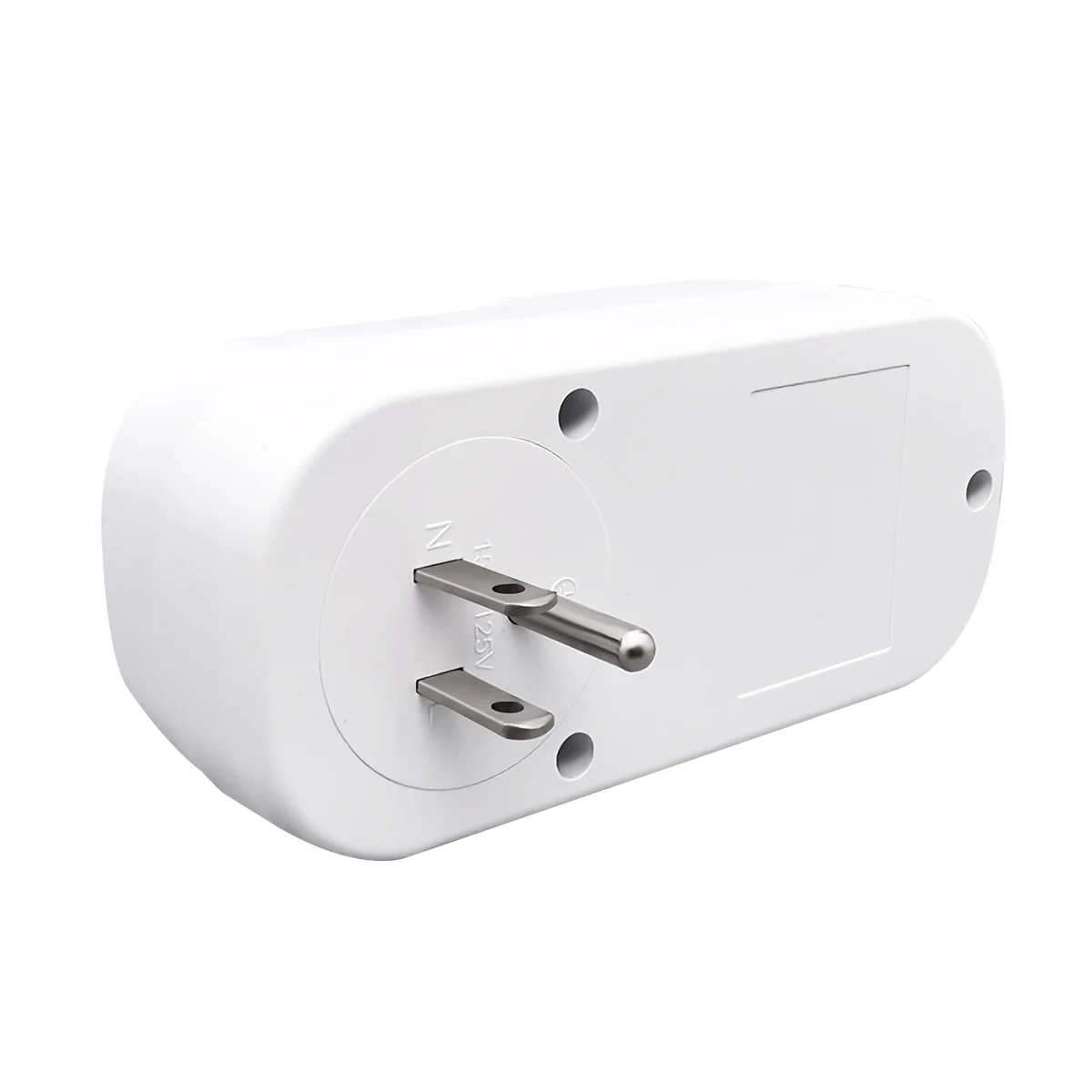

Only for US Socket

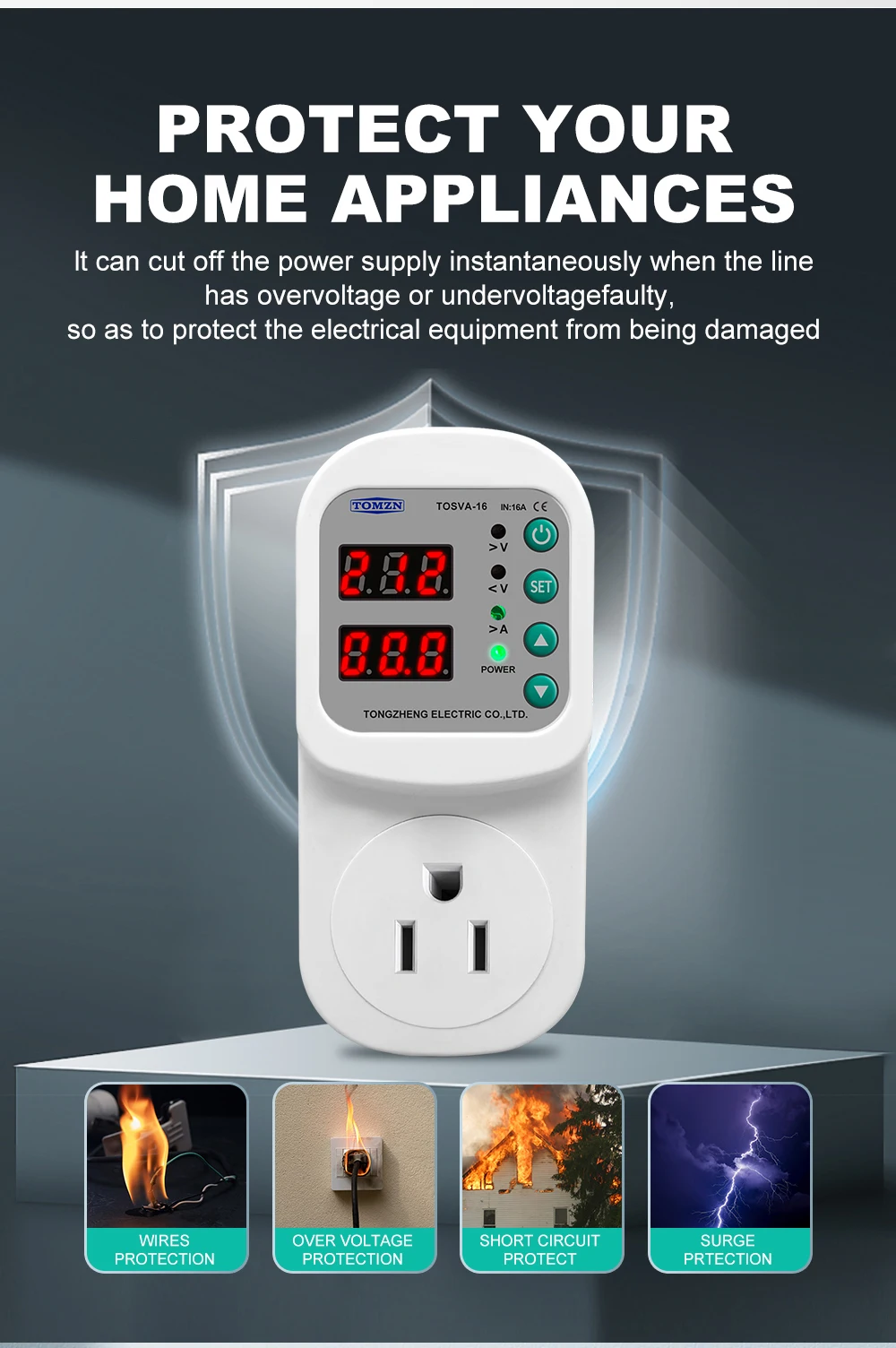

1.Over-voltage protection
2.Under-voltage protection

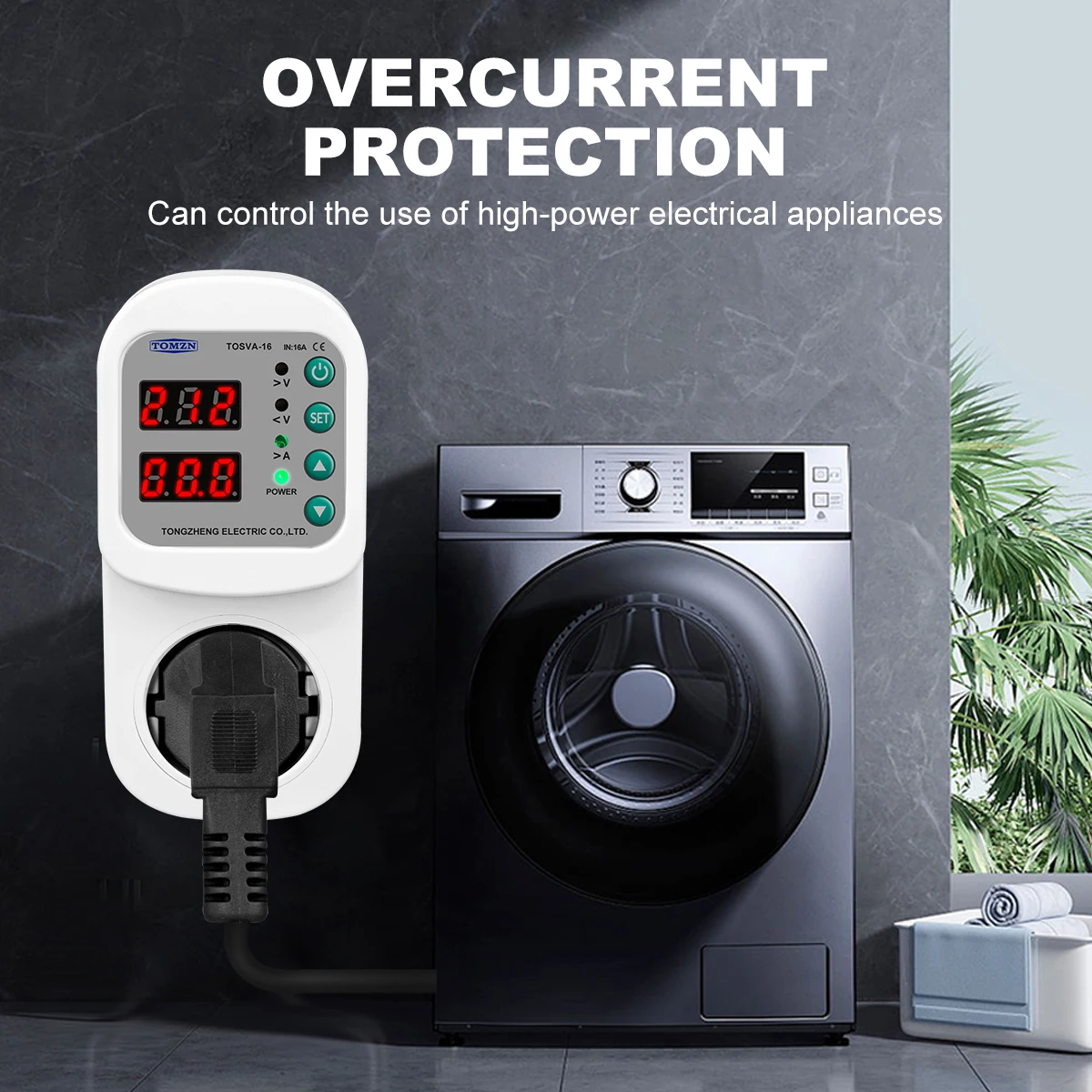

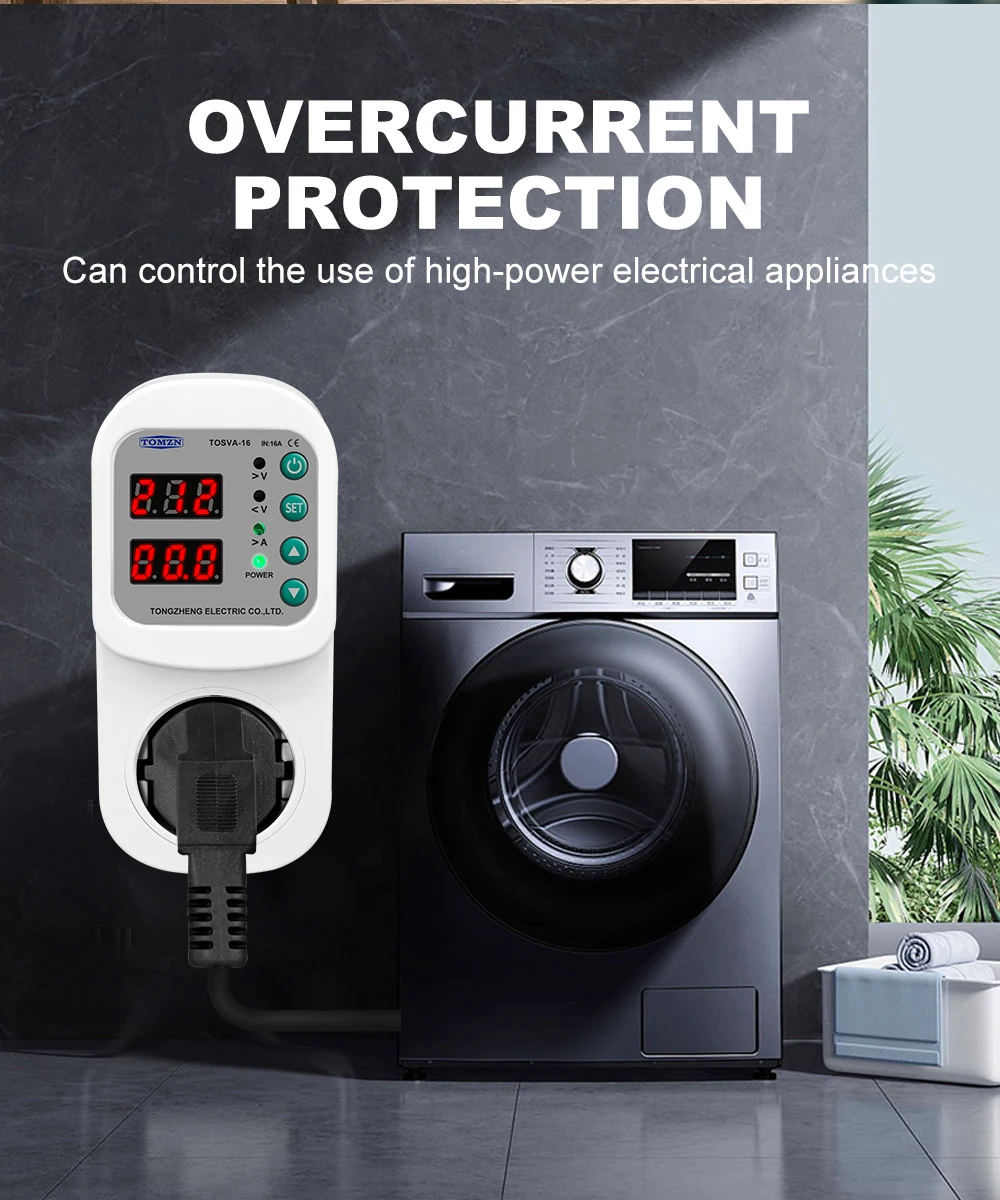

3.Over-current protection
4.Automatic recovery

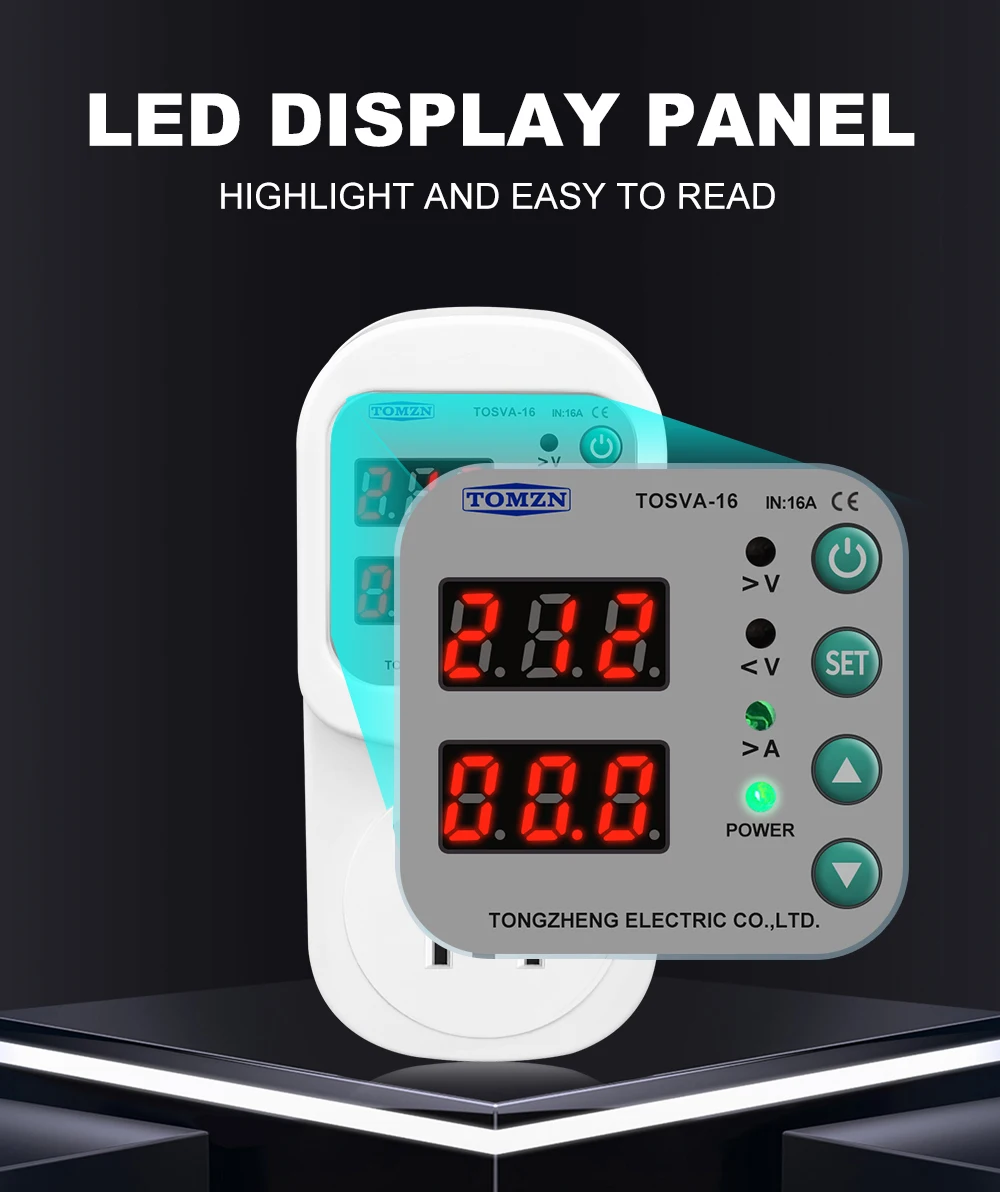

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-9.5% adjustable.
8. Restore factory settings: press the down button for more than 12s
9. Fault inquiry: Press the UP button from more than 12S

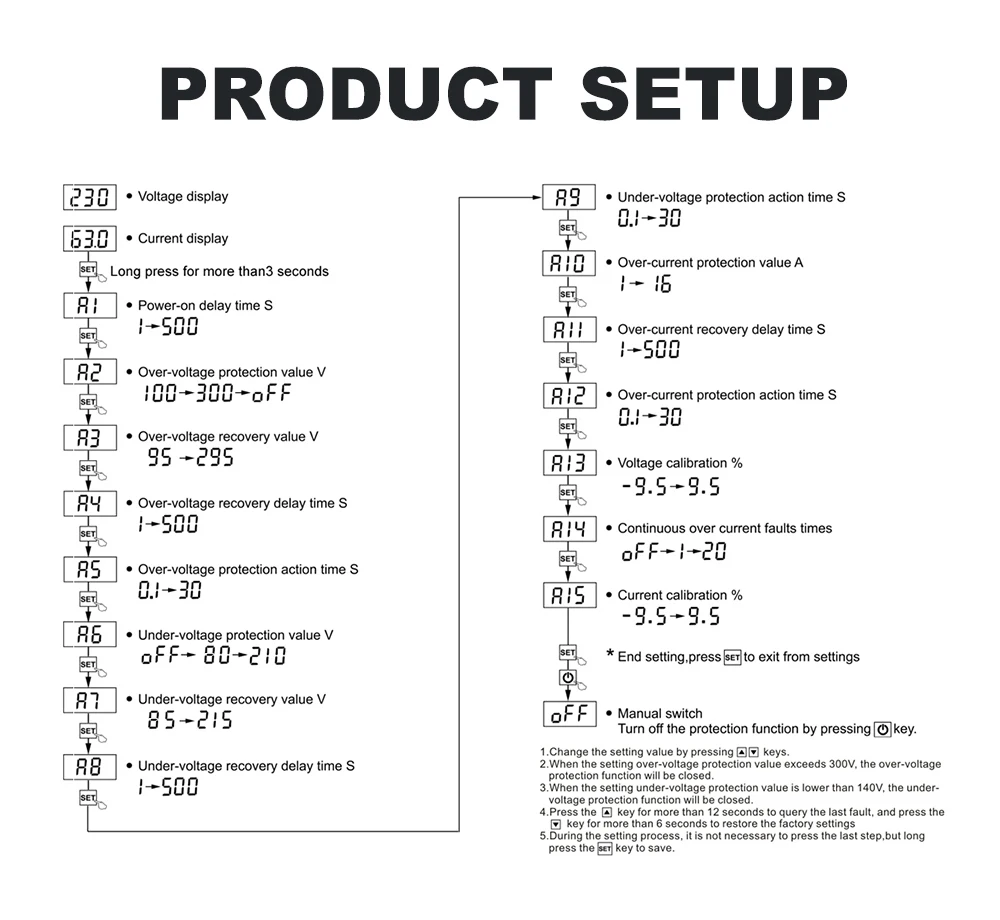

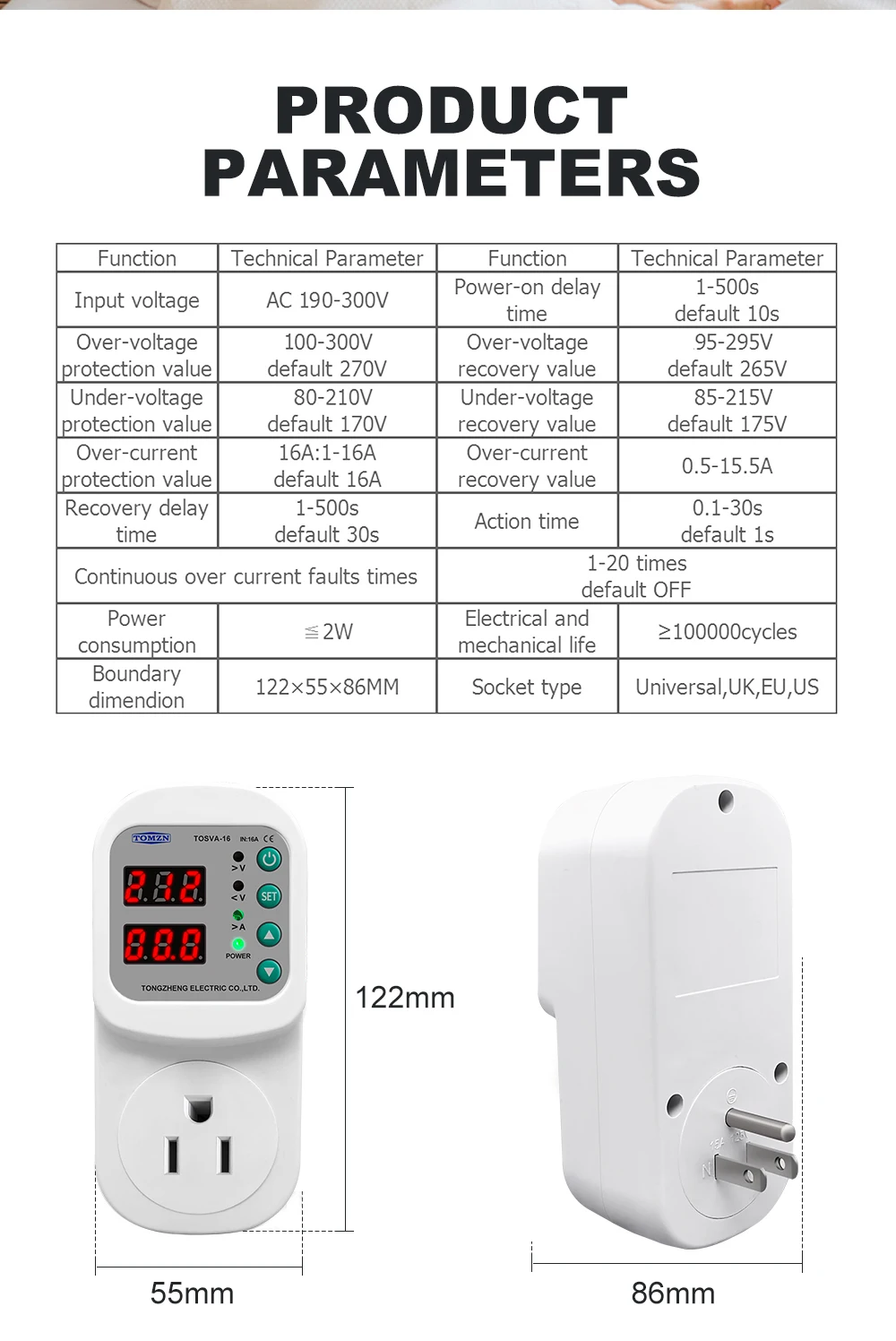

Product Parameters:
1.Model number:TOSVA-16
2.Power supply:90-300VAC 50/60Hz
3.Max.Loading power: 1~16A Adjustable(default:16A)
4.Over-voltage protection value range:100V~300~OFF(default:270V)
Over-voltage recovery voltage range: 95V--295V(default:265V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V--210V --OFF(default:170V)
Under-voltage recovery voltage range:85V--215V (default:175V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-16A (default:16A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
10.Installatin:35mm DIN rail
