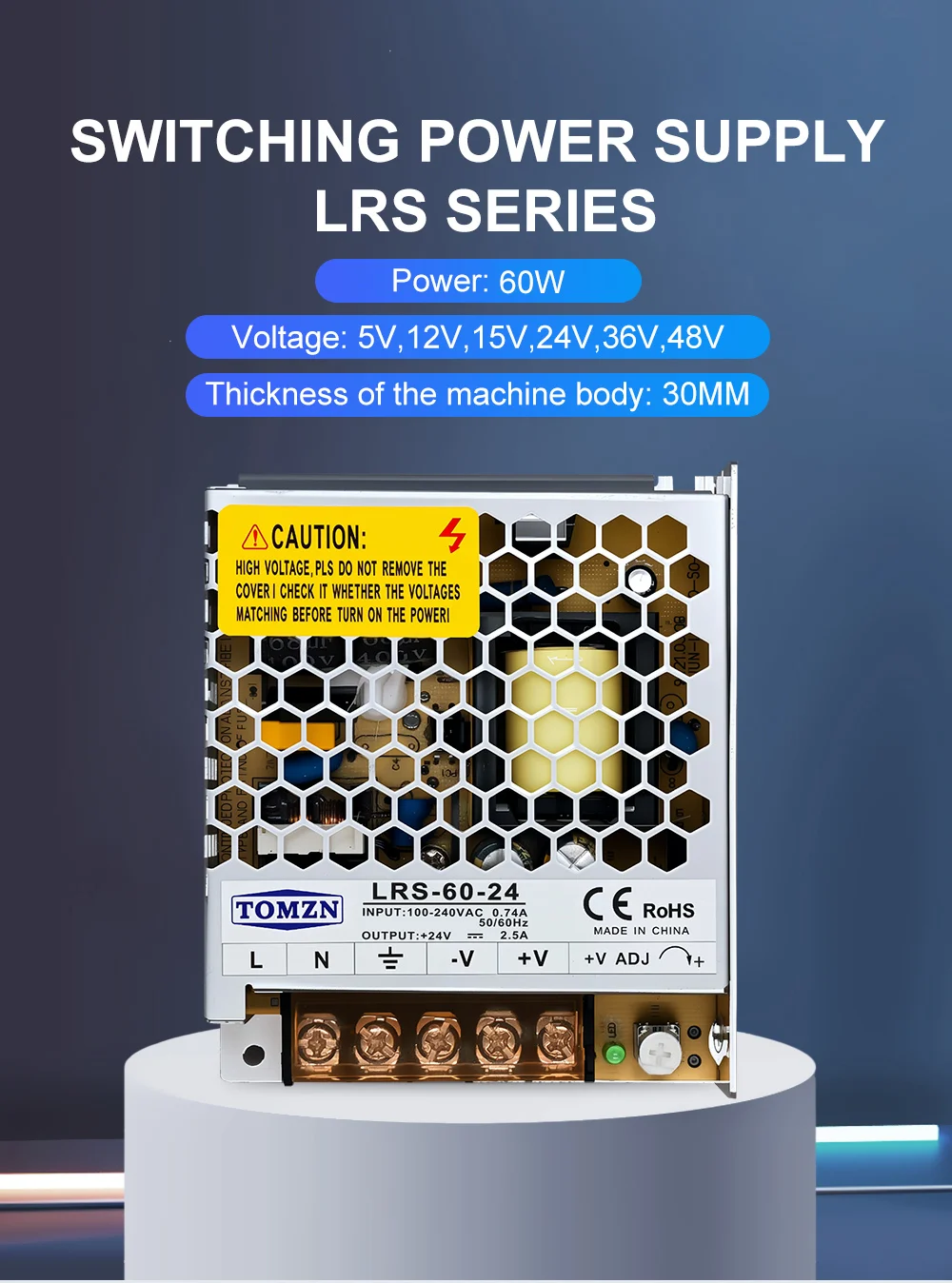

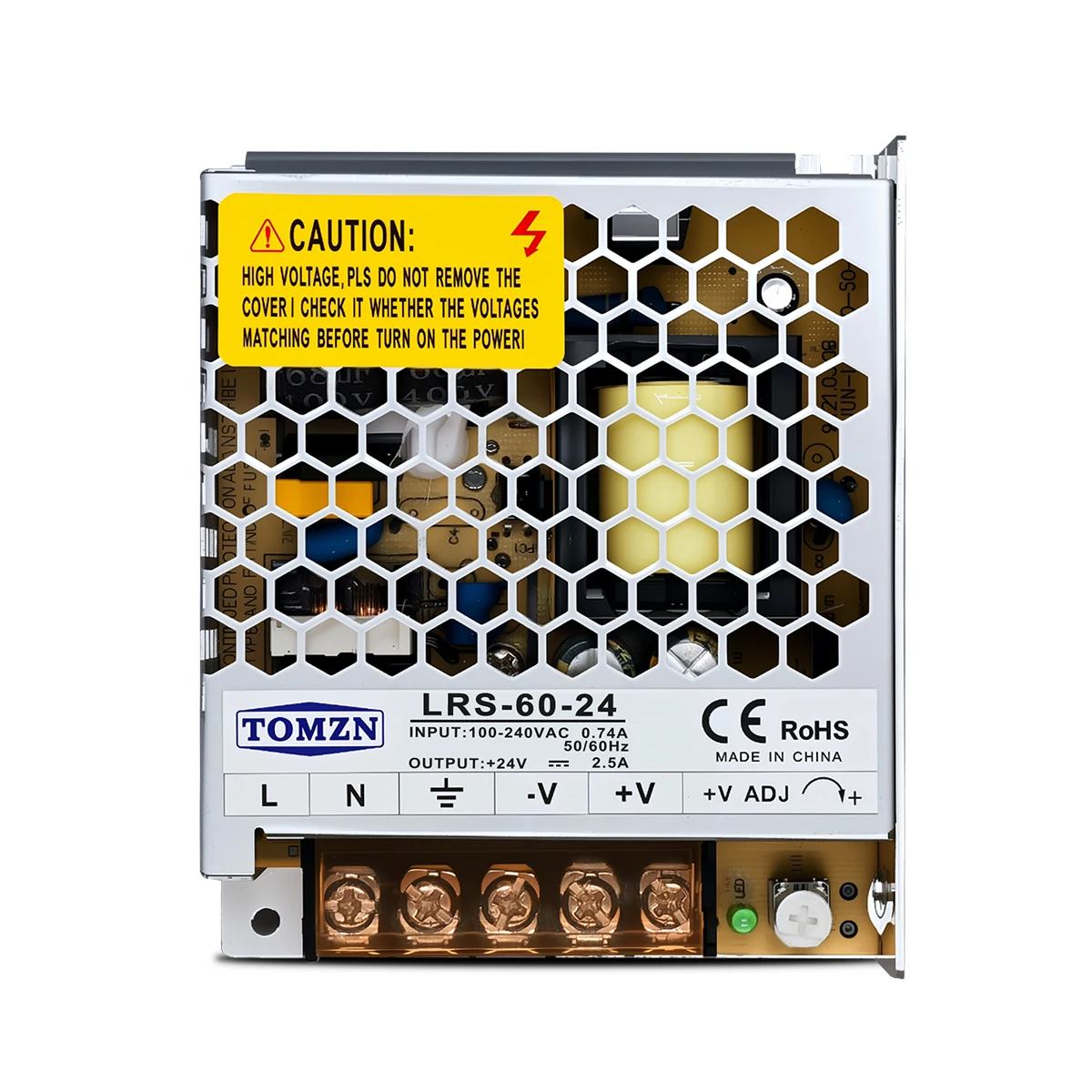

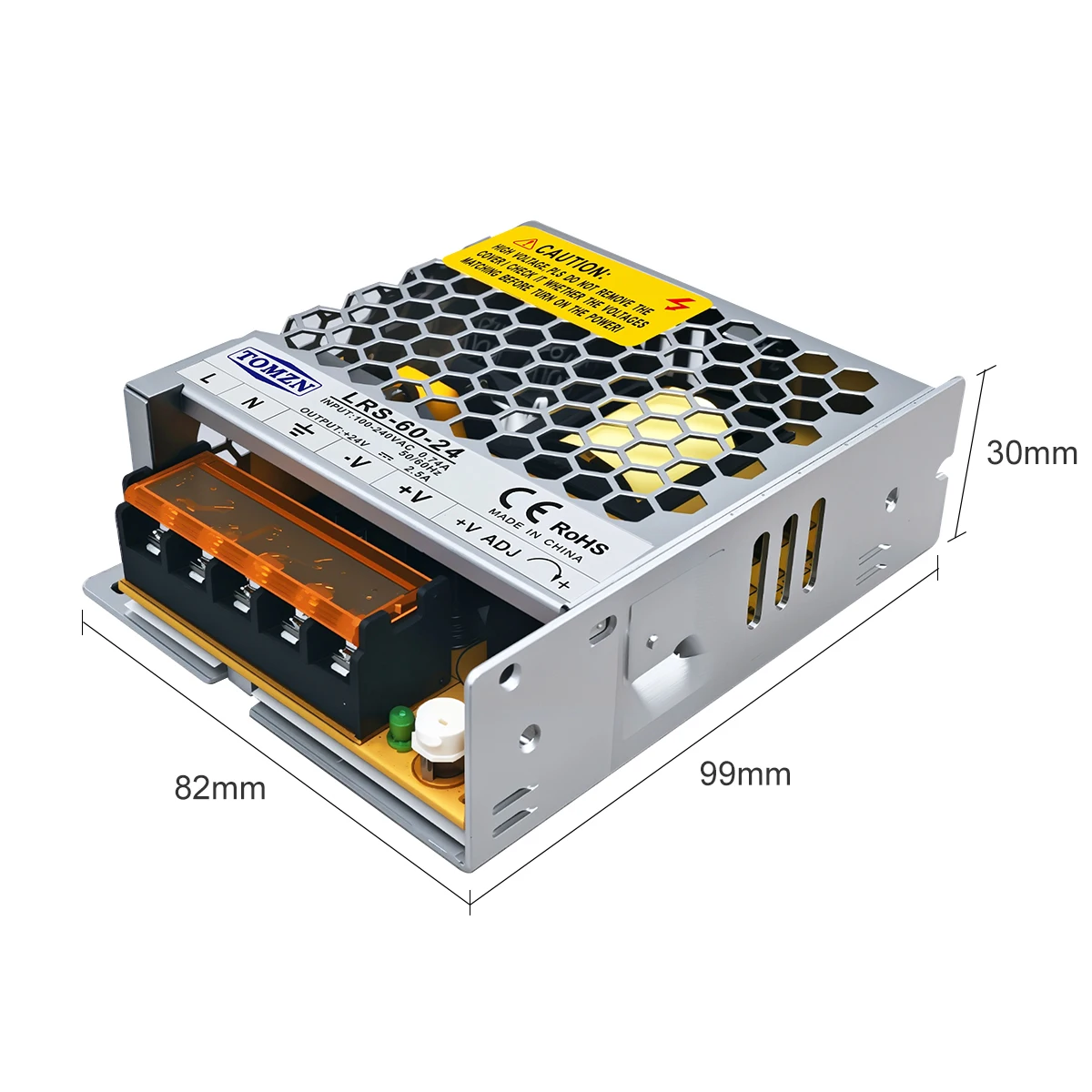

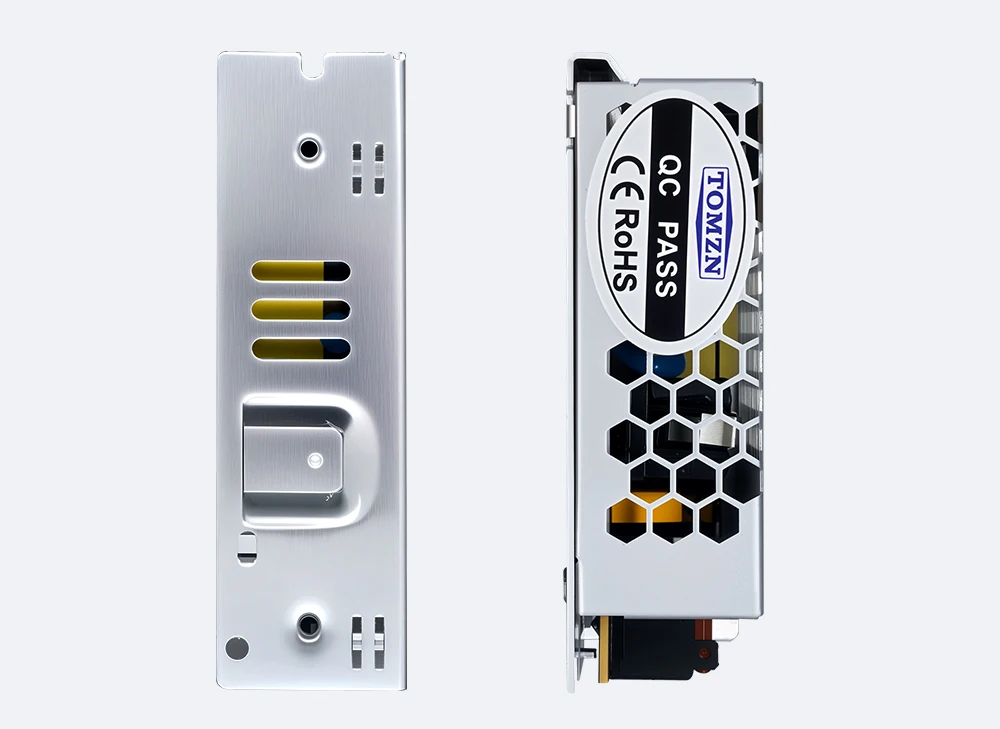

TOMZN 60W AC-DC SMPS Single Output Switching Power Supply Input 110-240V Output 5V 12V 15V 24V 36V 48V Adjustable for LED
The Thomson (TOMZN) 60 watt ac-dc switching mode power supply for led lamp It has access to the common voltage of 110 to 240 volts, and can easily adapt to a variety of electricity environment. With single output design, output voltage is flexible adjustable within 5~48 violith ground, which can match perfectly with different power and light source specifications. It beautifully ensures that LED lamps continue to shine and illuminate every place, with the high efficiency and stable performance of the power supply.
- Overview
- Recommended Products
Function: LRS-60 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC

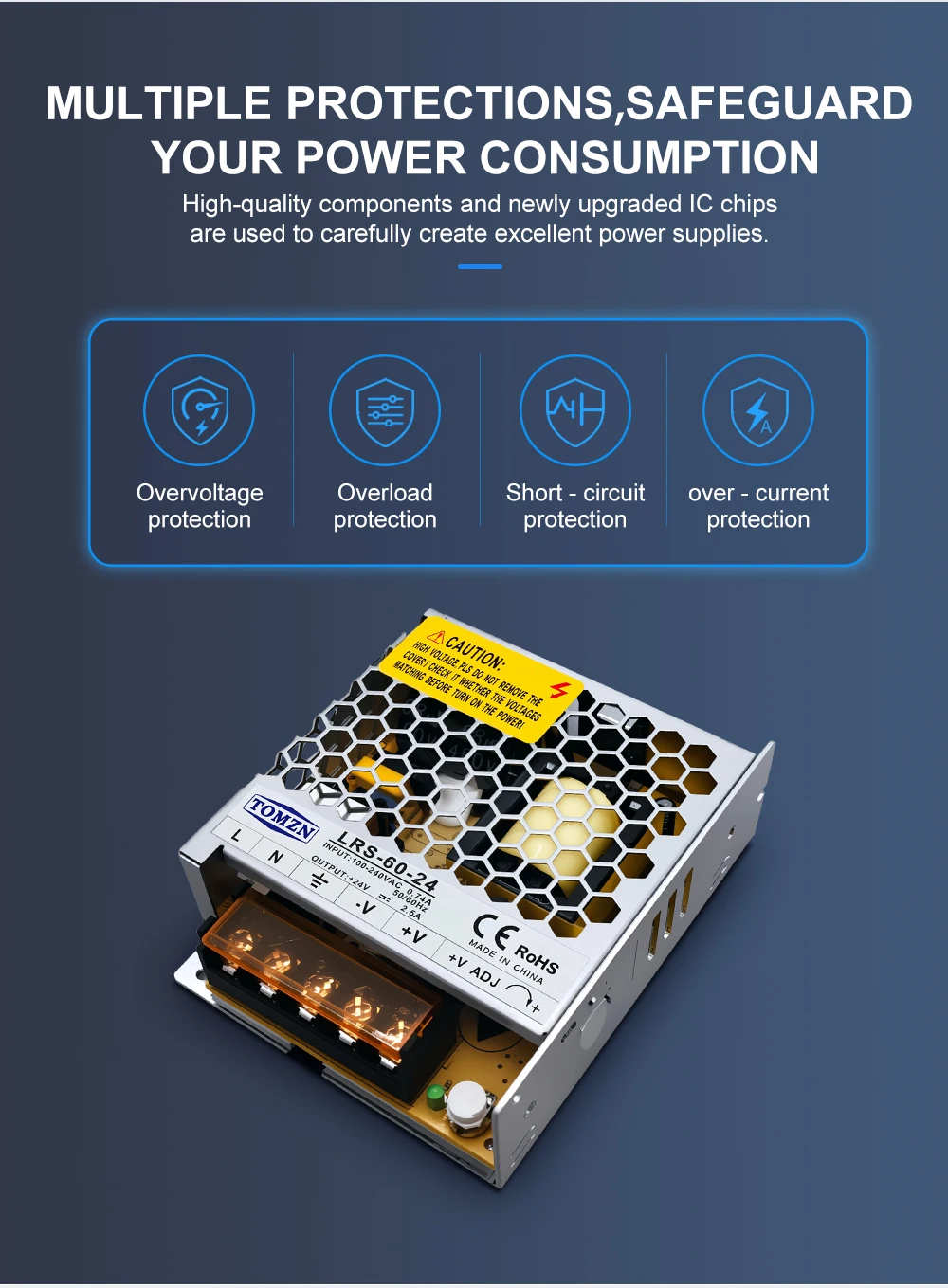

Protections: overload/ over voltage/ short circuit.

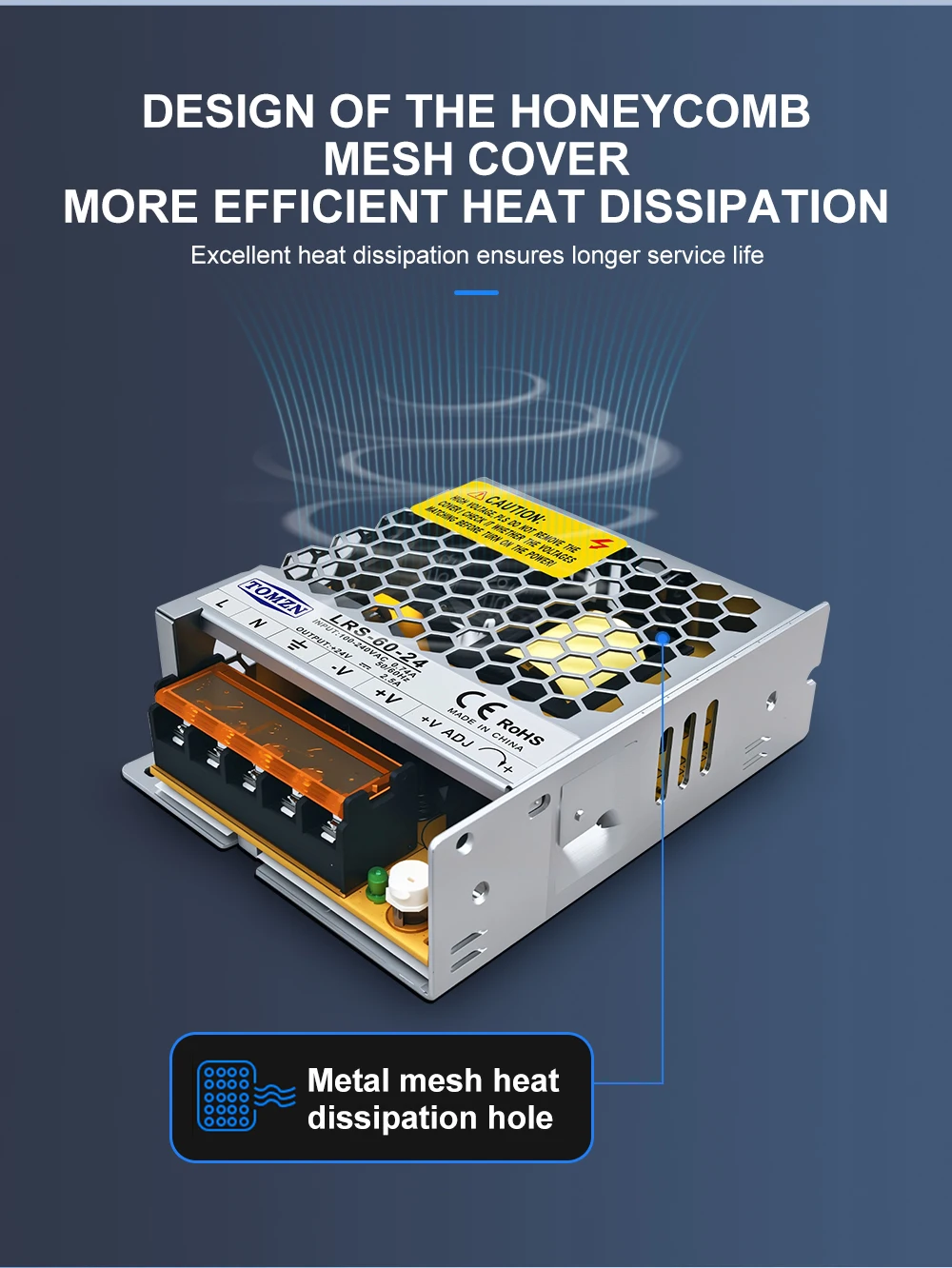

Cooling by free air convection.
(Not suggest for use in bathroom)

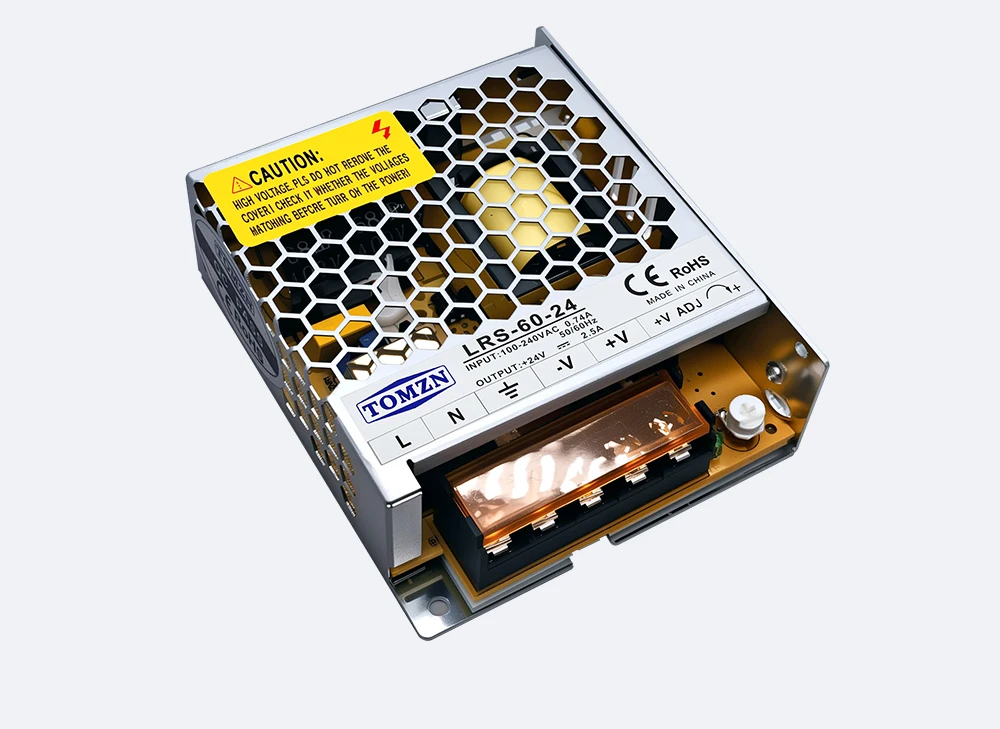

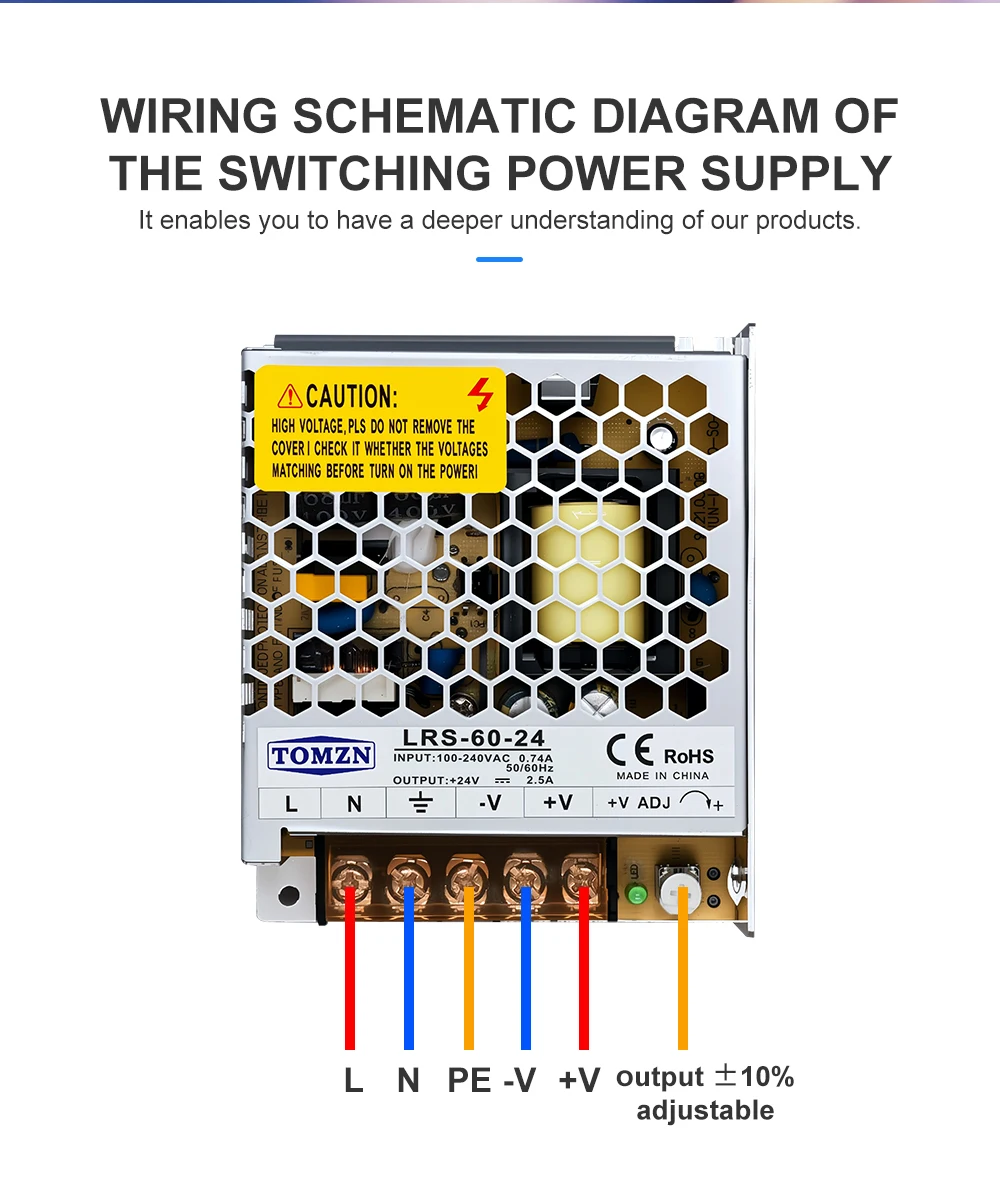

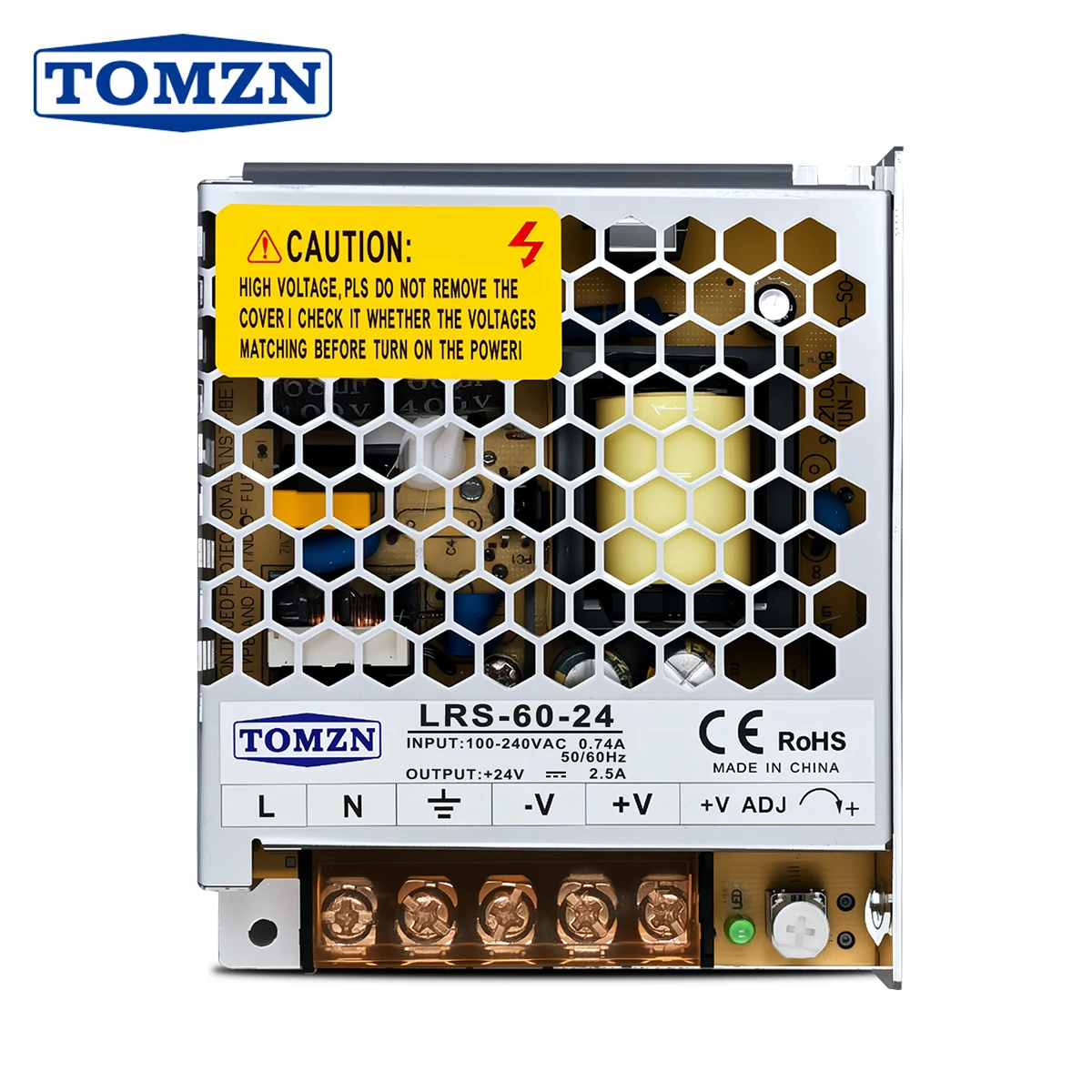

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
