TOMZN 150W AC-DC SMPS Single Output Switching power supply input 110-240V output 5V 12V 15V 24V 36V 48V adjustable for LED
Thomson (TOMZN) This 150 watt AC-DC switching power supply is specially designed for LED lamps. Its input voltage range is 110-240 volts, which can be adapted to the power grid in different regions. The single output design is simple and efficient, and the output voltage is adjustable from 5 volts to 48 volts, which can meet the electricity demand of various LED lamps. With stable performance and accurate voltage regulation, it provides reliable power support for LED lighting system.
- Overview
- Recommended Products
Function: LRS-150 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.

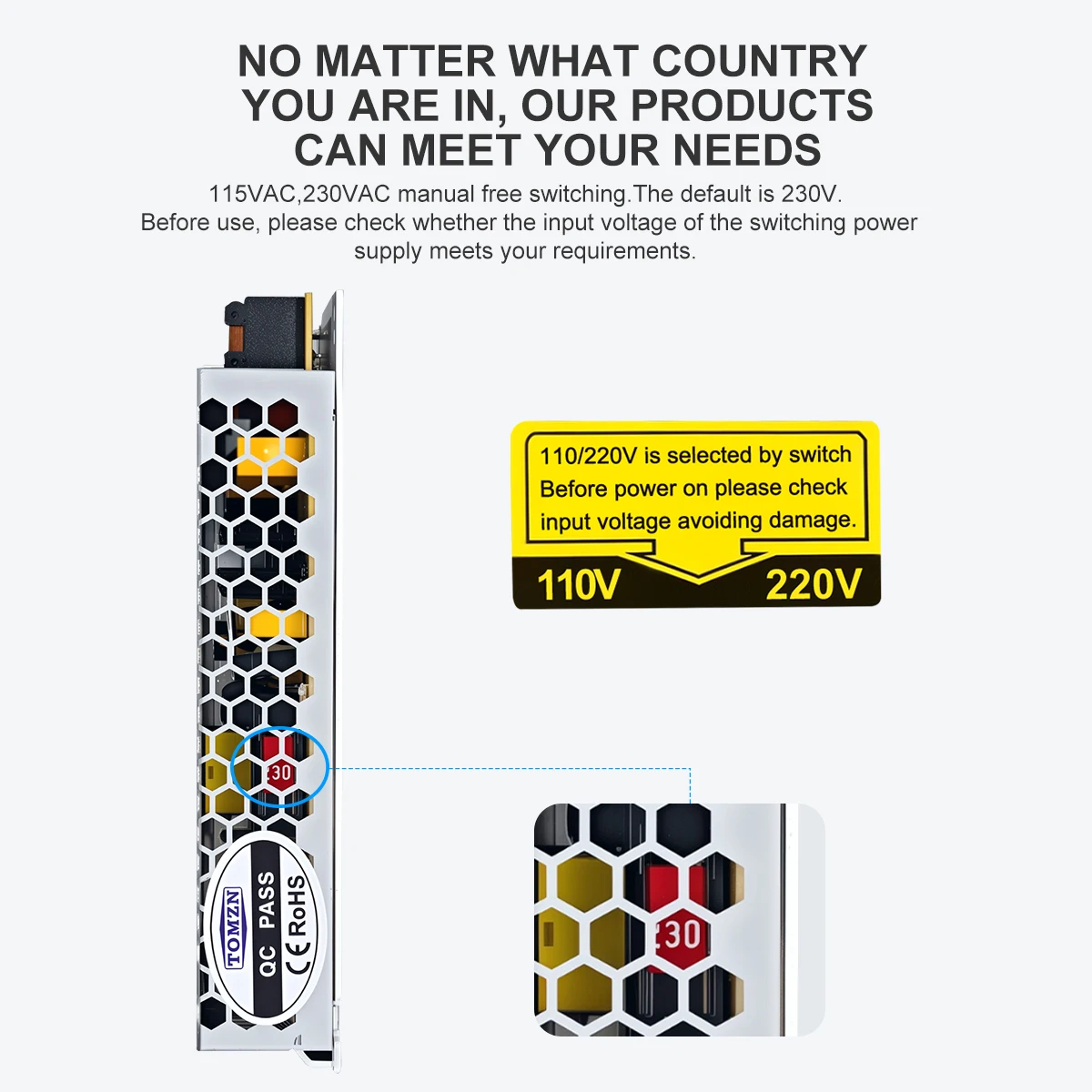

Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
