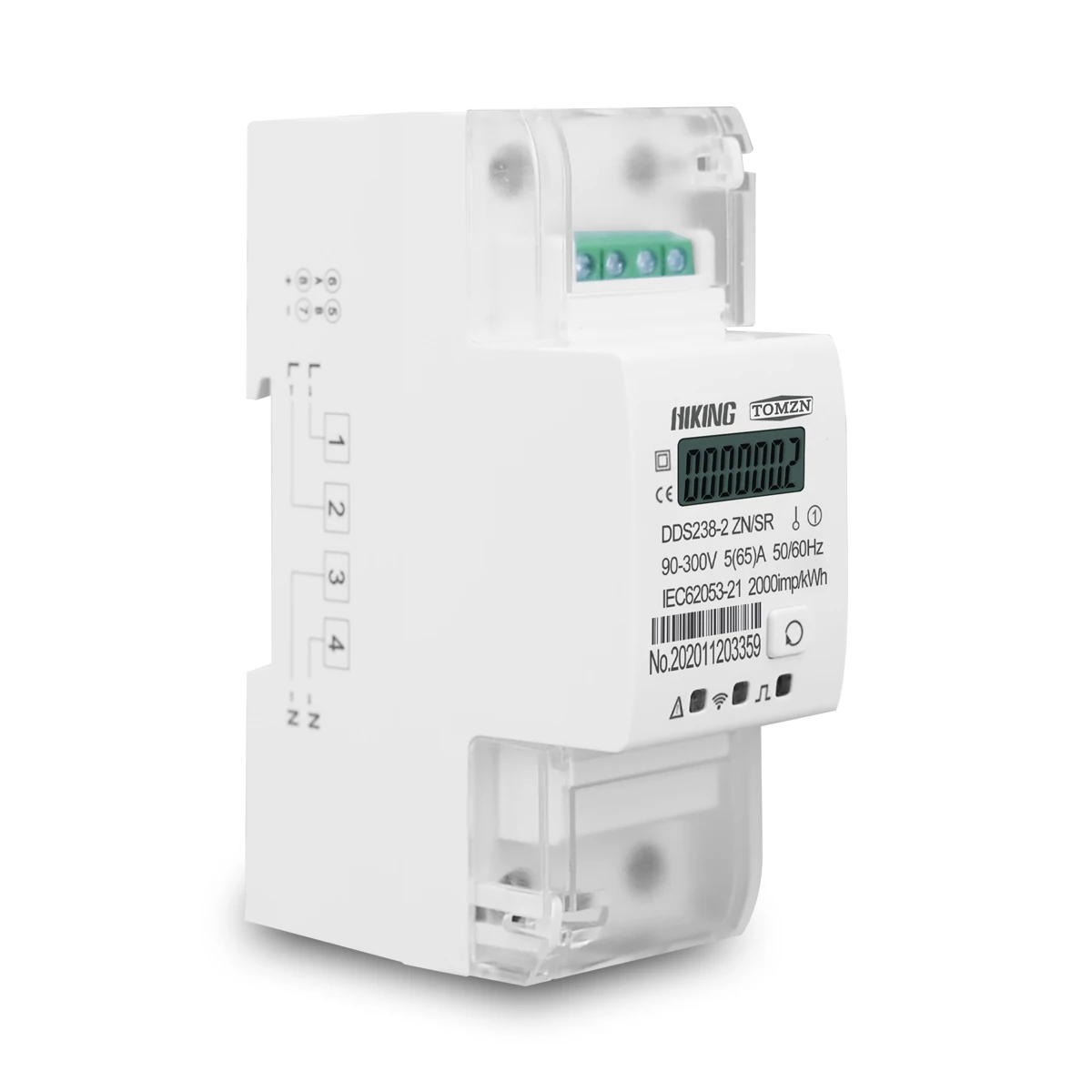

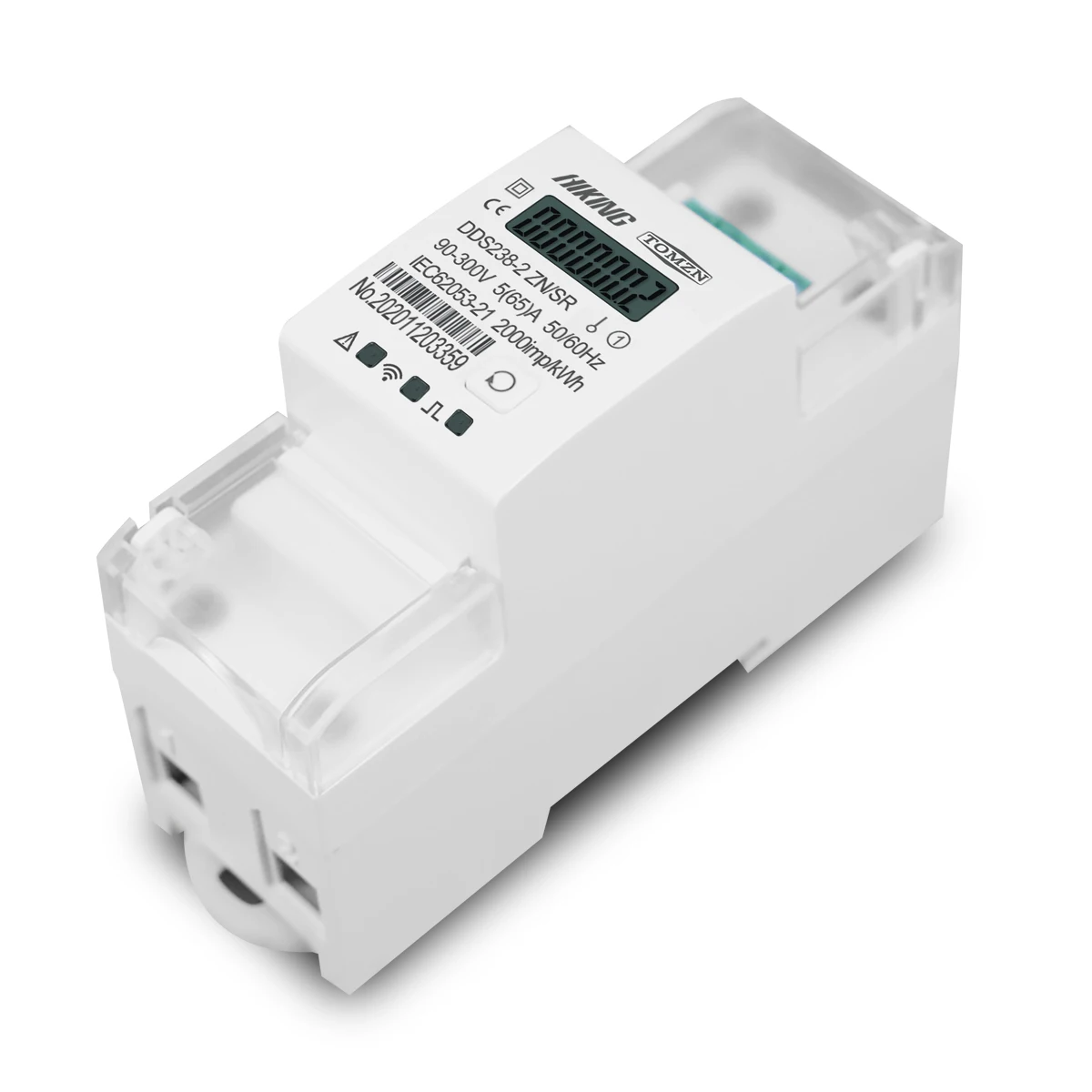

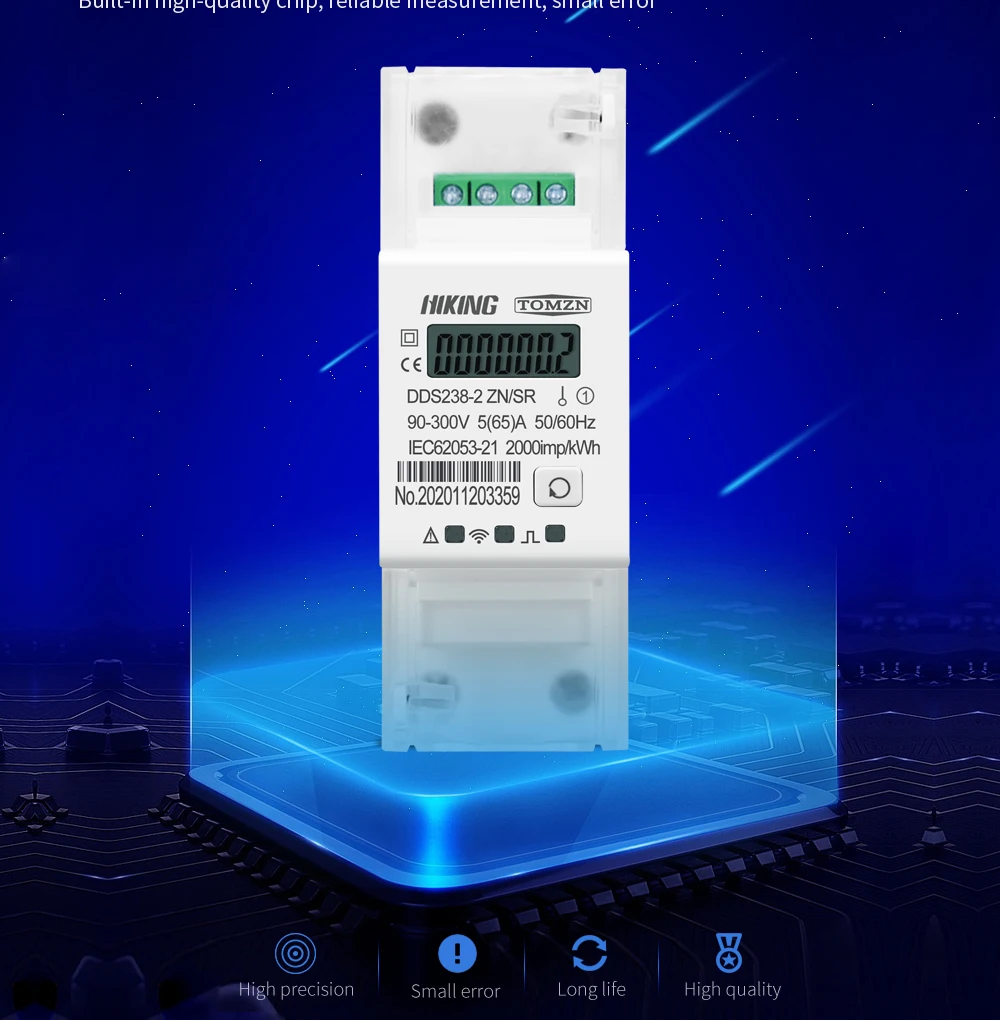

Din Rail Single Phase Multi Function Energy Meter 90-300V Kwh MODBUS-RUT Watt Hour Meter Remote Control ON/OFF by Rs485 65A
This kind of single phase multifunctional energy meter has important advantages. Its voltage application range is 90-300V, can adapt to a variety of electricity environment. Accurate visualization of power data: kilowatt metering capabilities. Compatible with MODBUS-RTU protocol, convenient access to various monitoring systems. Remote control, RS485 interface, flexible operation. The rated current is up to 65A, which can meet the needs of most single-phase power consumption scenarios.
- Overview
- Recommended Products

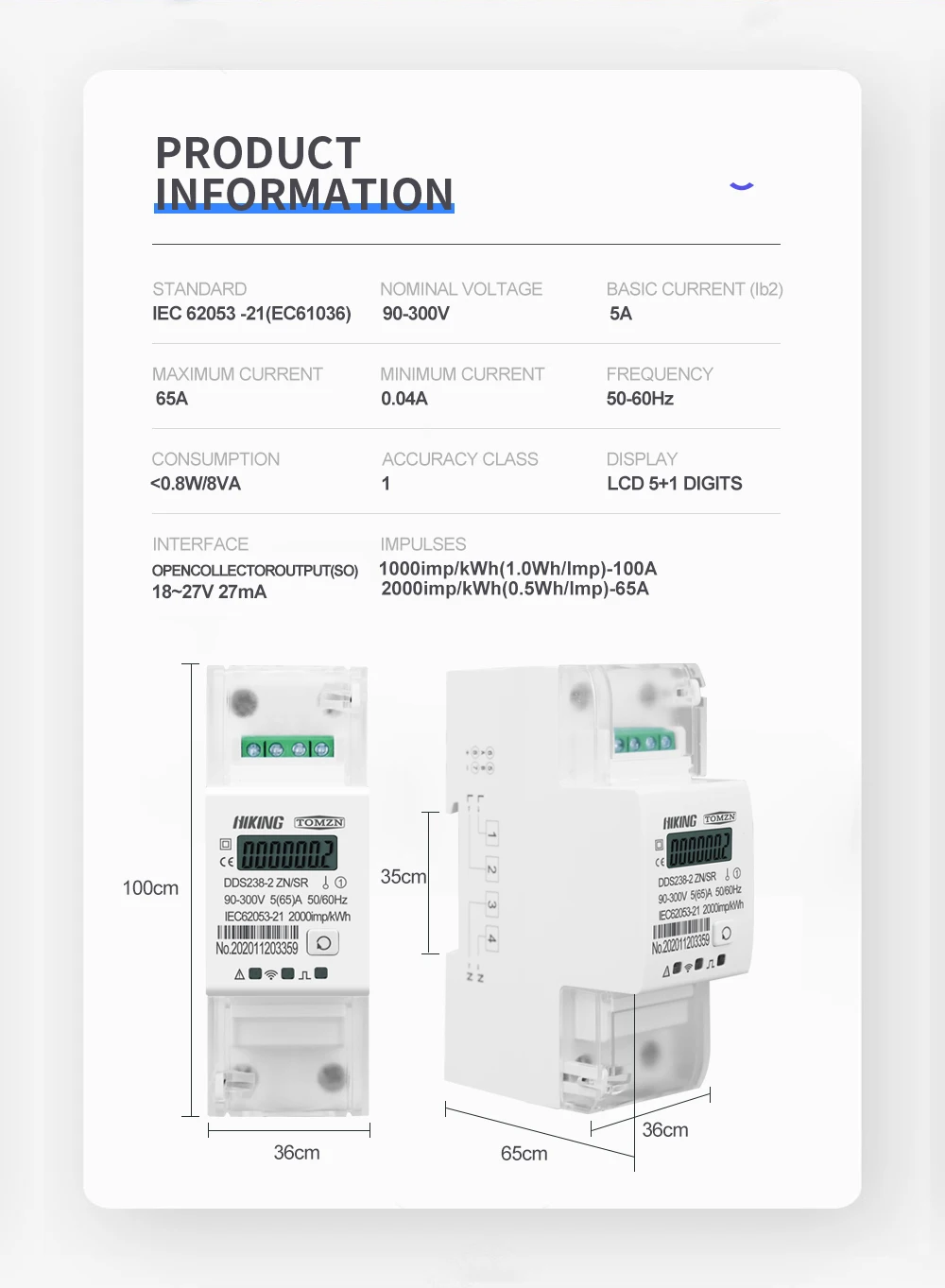

Technical specification

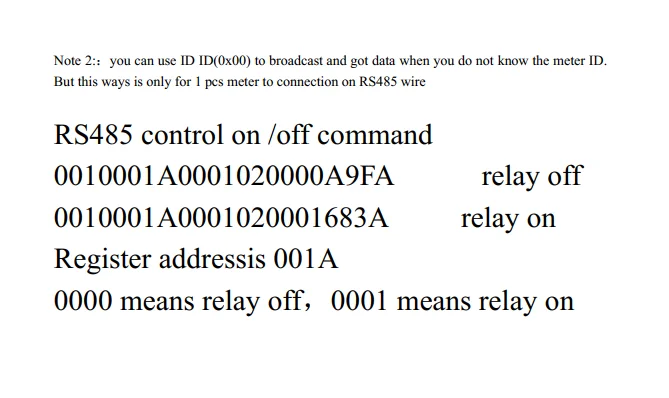

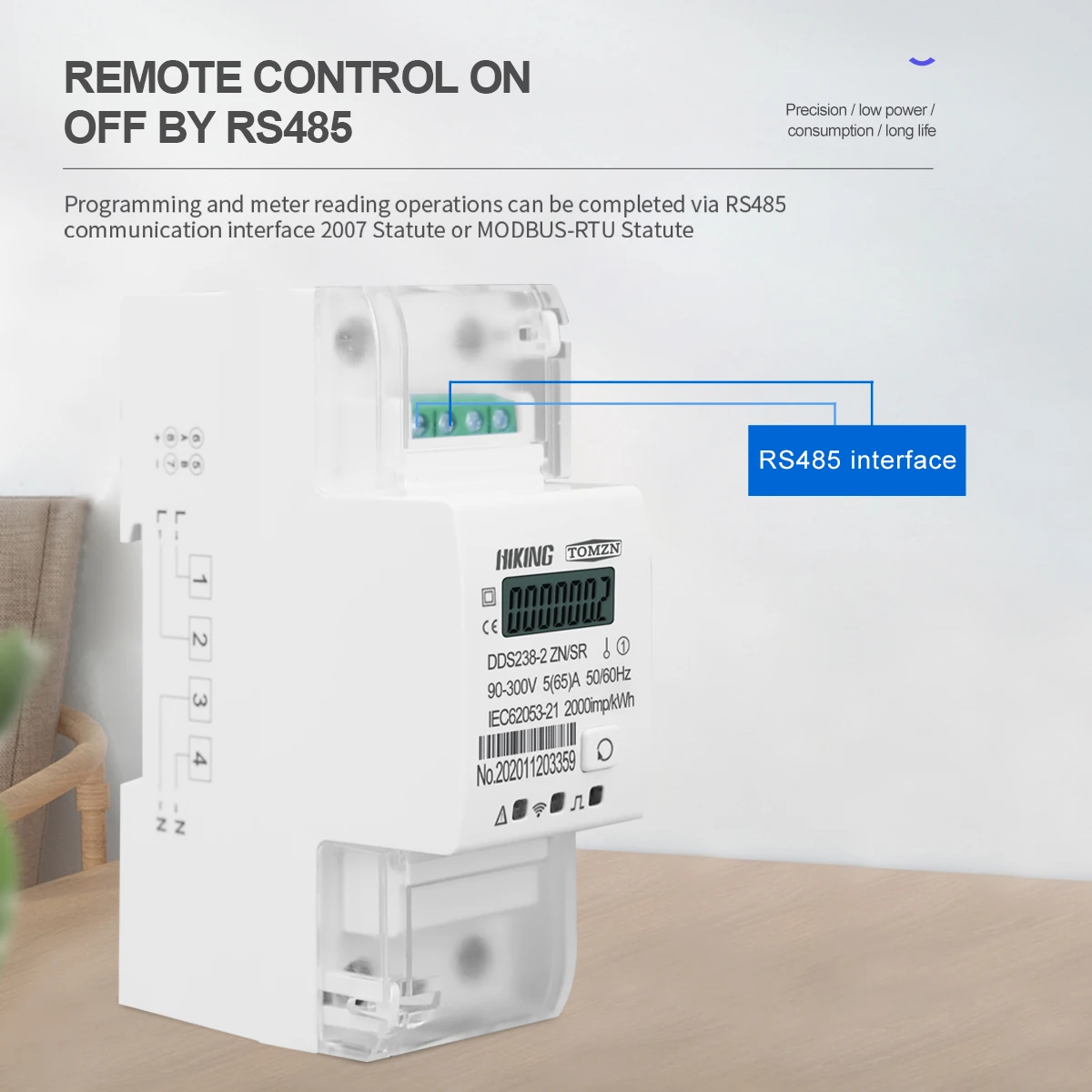

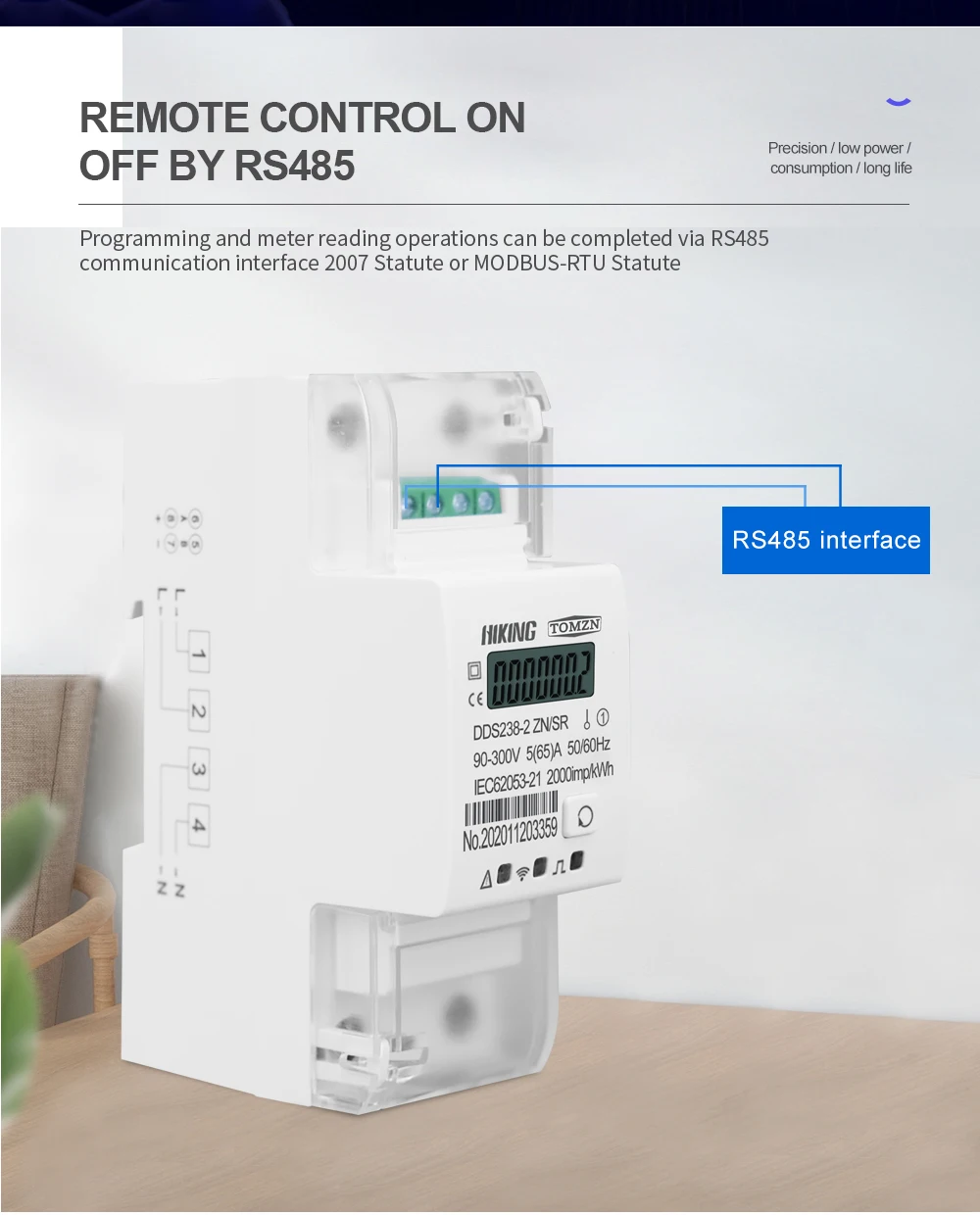

Remote control ON/OFF by Rs485(this meter don't have wifi function)
Working voltage: 90-300V 50/60Hz
Start current: 20mA
MAx current: 65A
Comsumption<2w/8VA
Isolation and withstand voltage: 450V
Accuracy class: 1

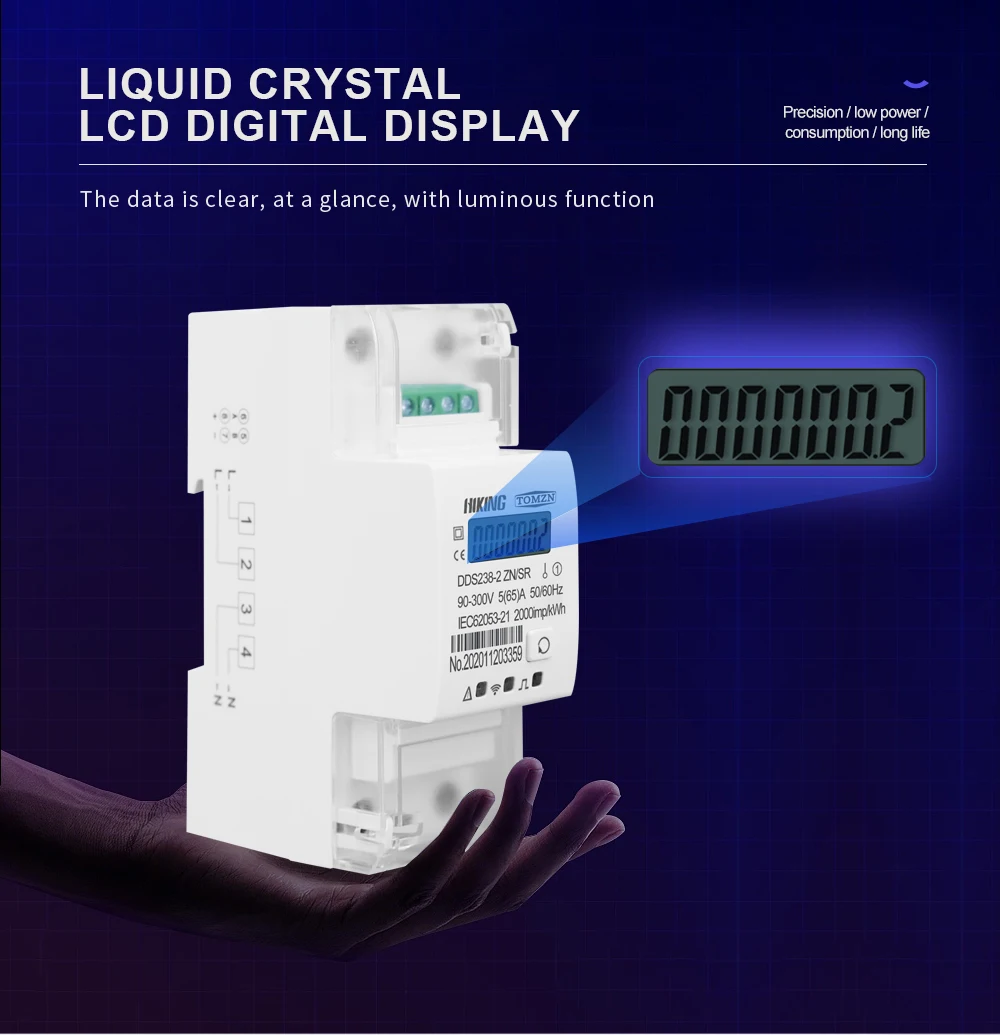

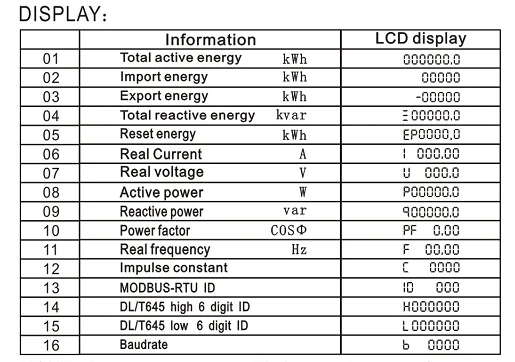

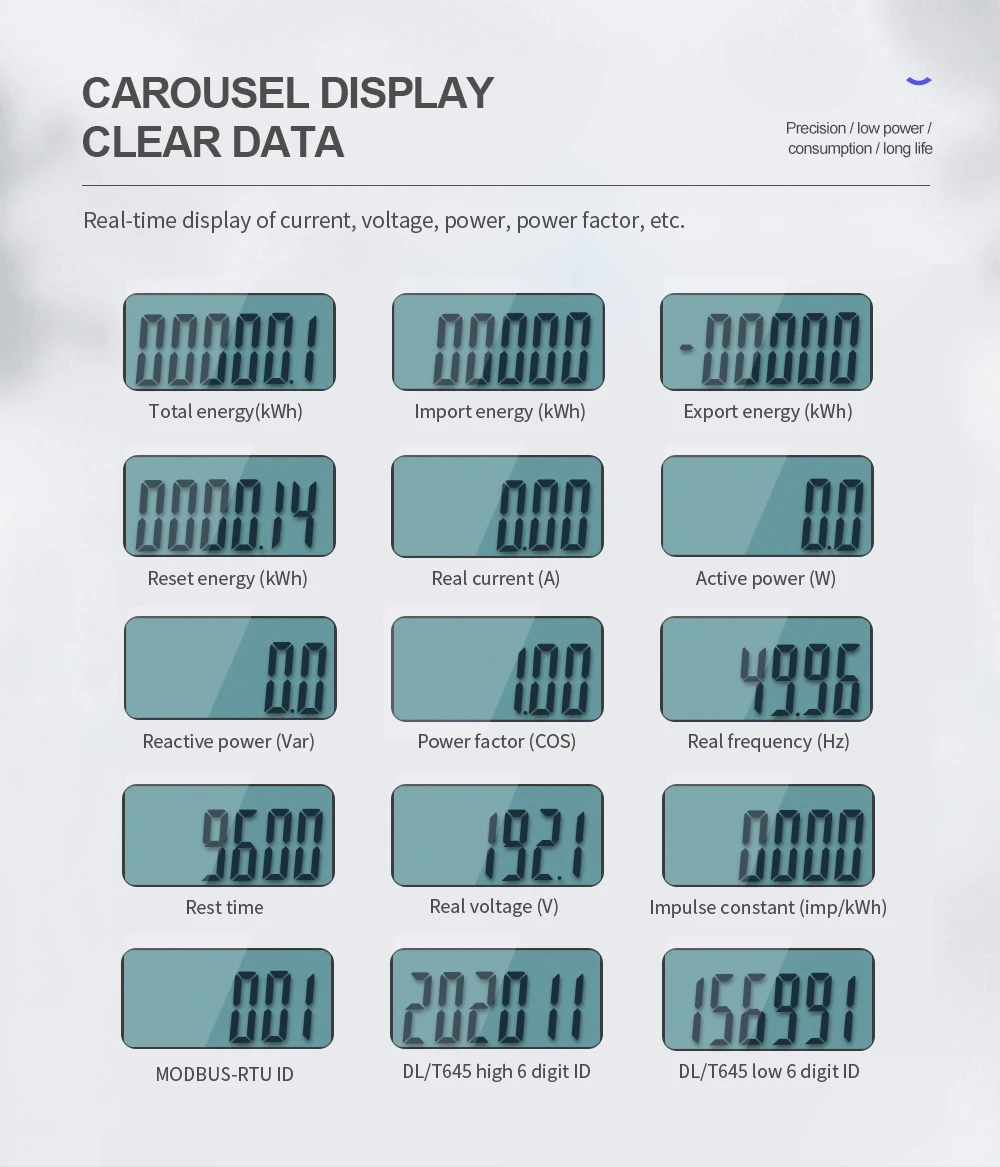

Display: LCD 6+1 digits
Interface OPEN COLLECTOR OUTPUT(S0) 18-27V 27mA
Impulses: 2000imp/kWh (0.5Wh/Imp)-65A
Working temperature: -25 to 70°c
PINK: Normal operation Flashing rate proportional to load

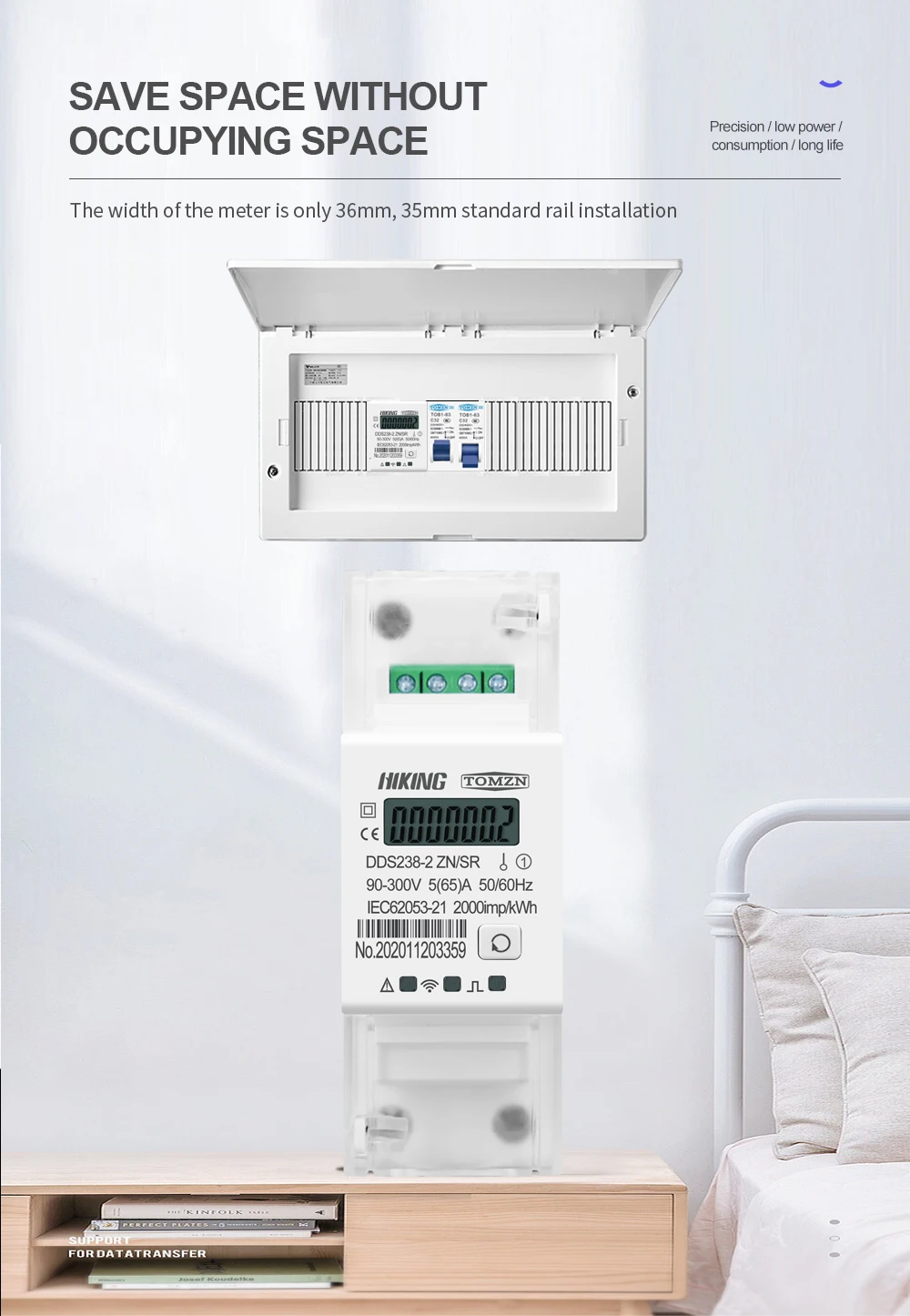

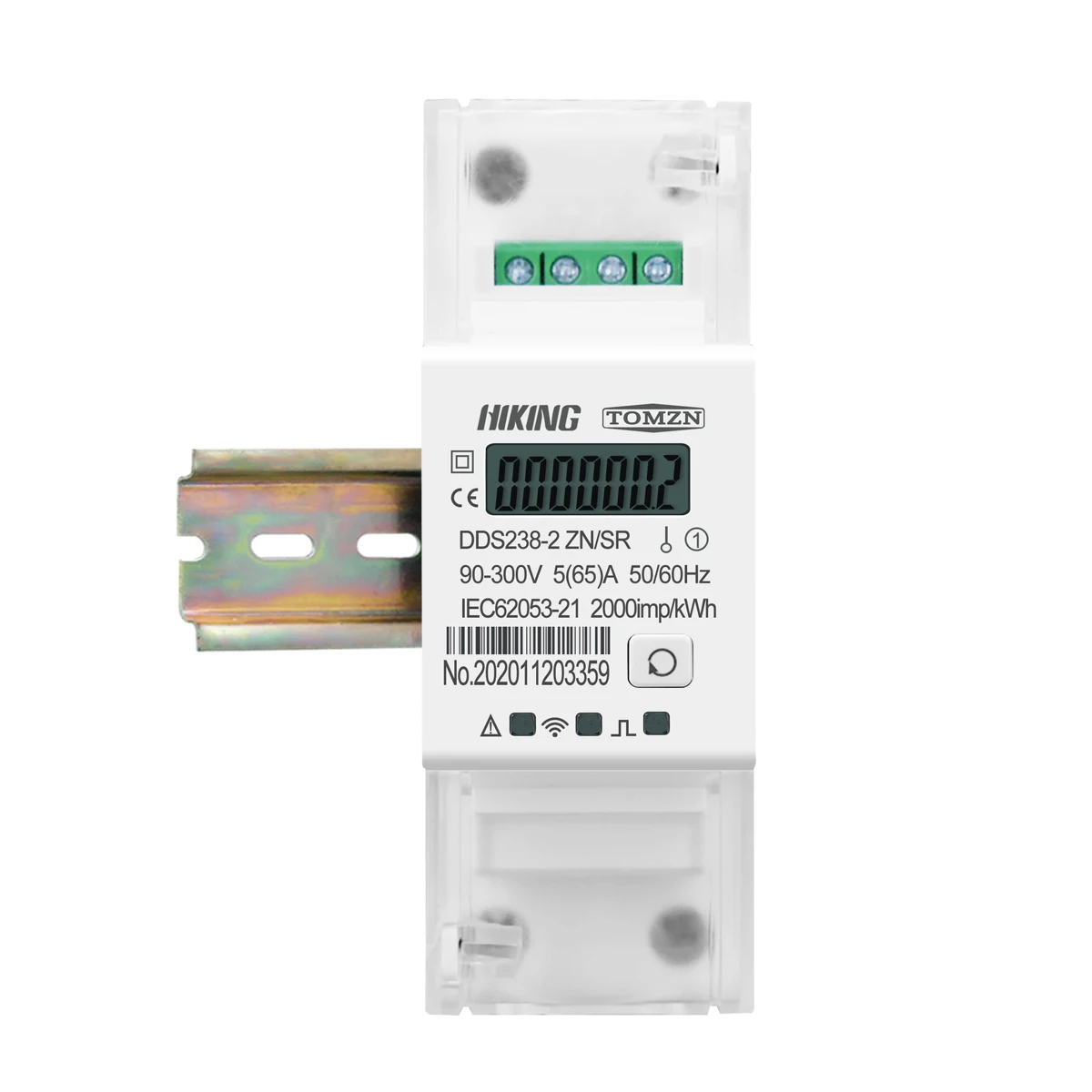

Installation: Din rail 35mm
Protection: IP20
