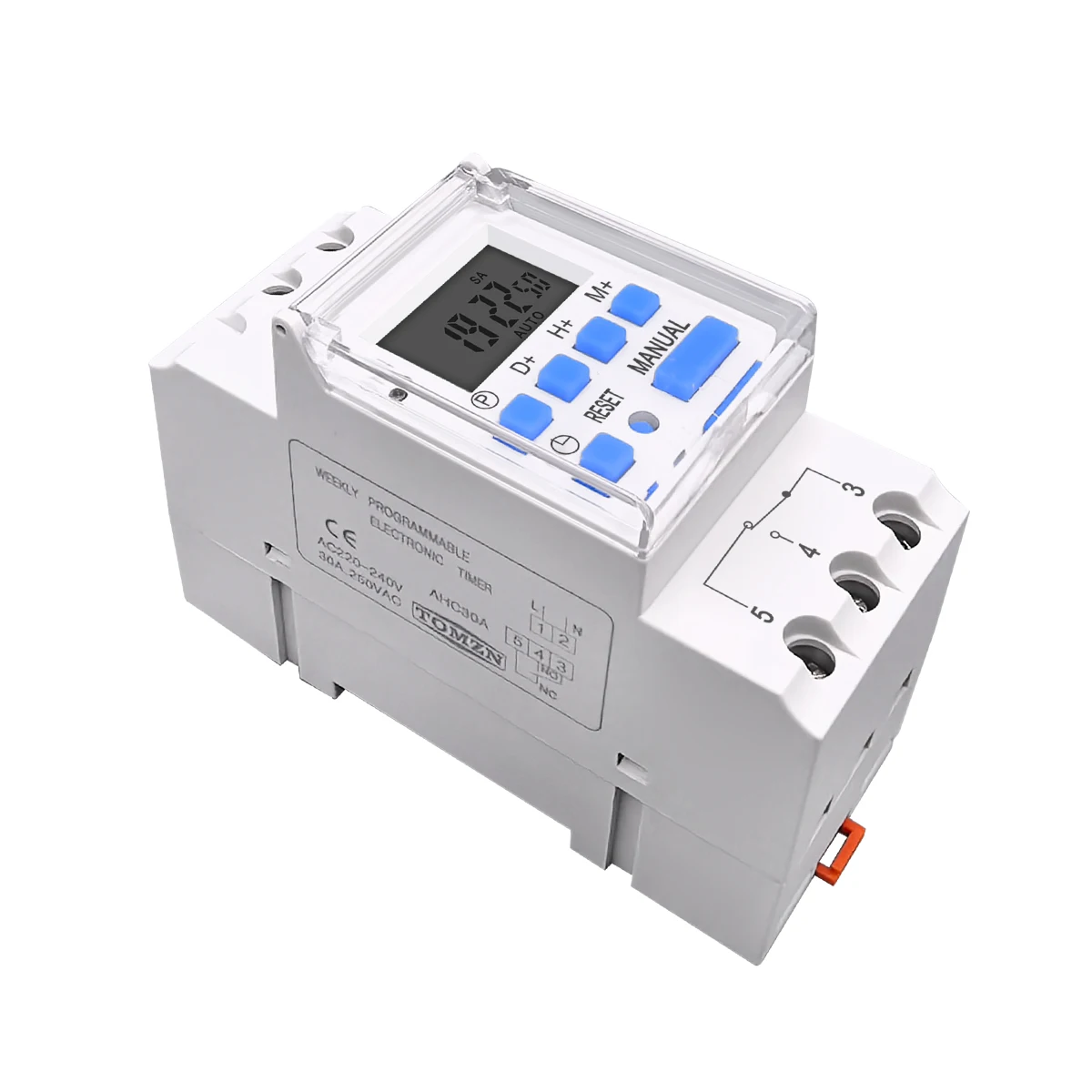

TOMZN 1NO 1NC Din Rail Single Phase Weekly 7 Days Programmable Digital TIME SWITCH Relay Timer AC 220V 230V 12V 24V 48V 16A

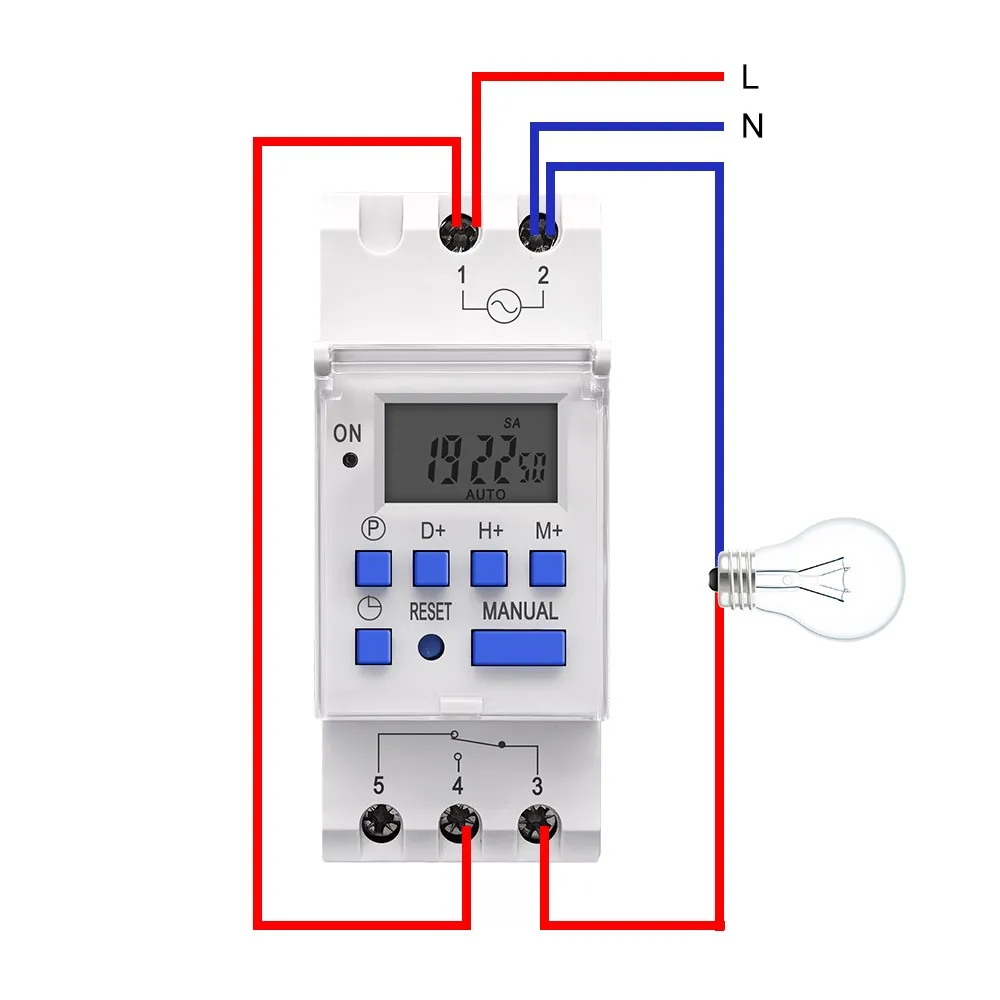

TOMZN rail type single-phase programmable digital time switch relay timer, versatile and practical. It has 1 normally open and 1 normally closed contact to meet the needs of different circuit control. Programming Settings 7 days a week, allowing users to flexibly plan equipment uptime. It can be adapted to 220V, 230V, 12V, 24V, 48V AC voltage, 16A rated current is more than enough to cope with common electrical loads, and is widely used in various scenarios.
- Overview
- Recommended Products
Product attributes
AC DC means the products can work with AC and DC current
AC means the products only work with AC current.
Panel mounted
Advanced pre-setting one week before
Digital electronic timer switch with daily and weekly programs

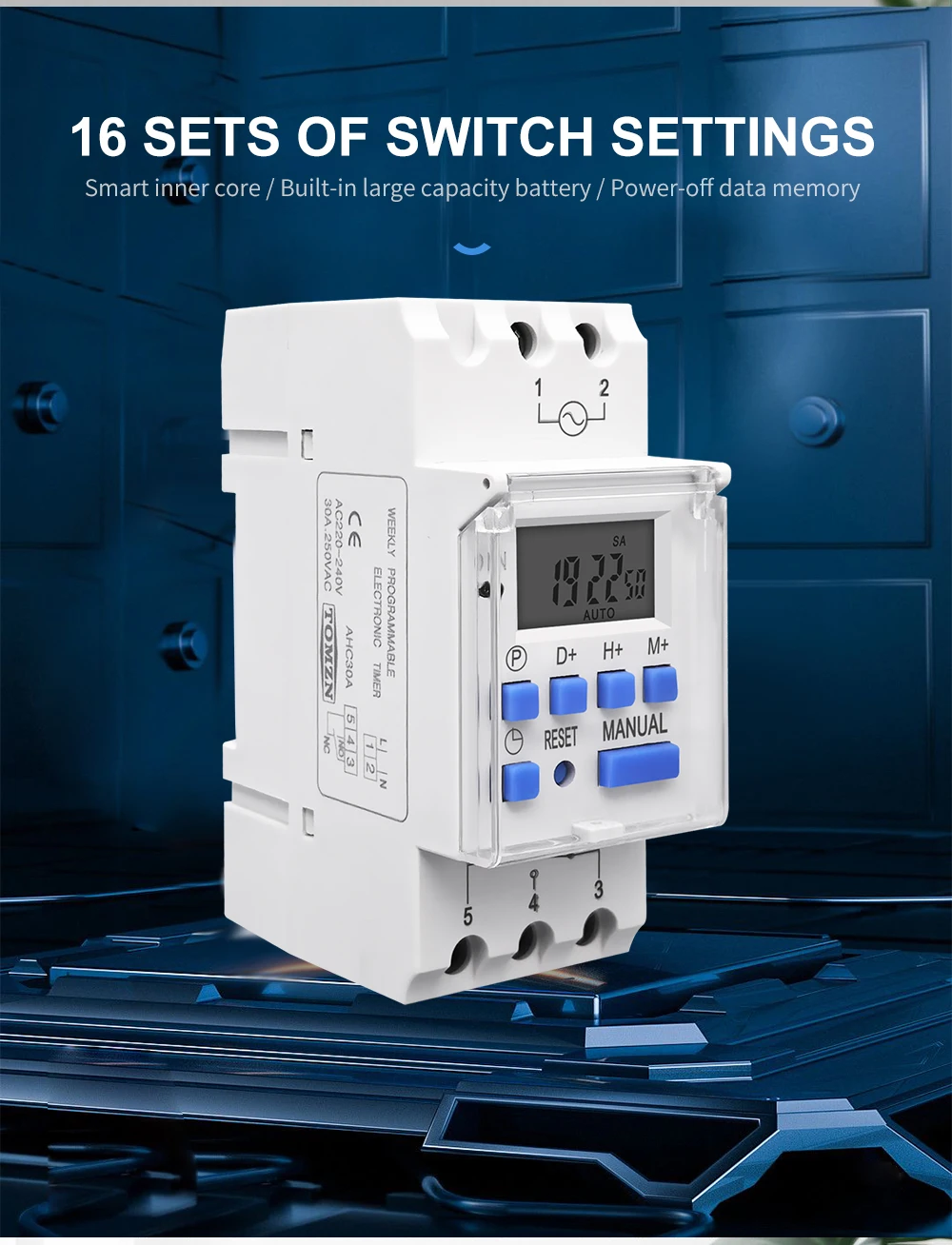

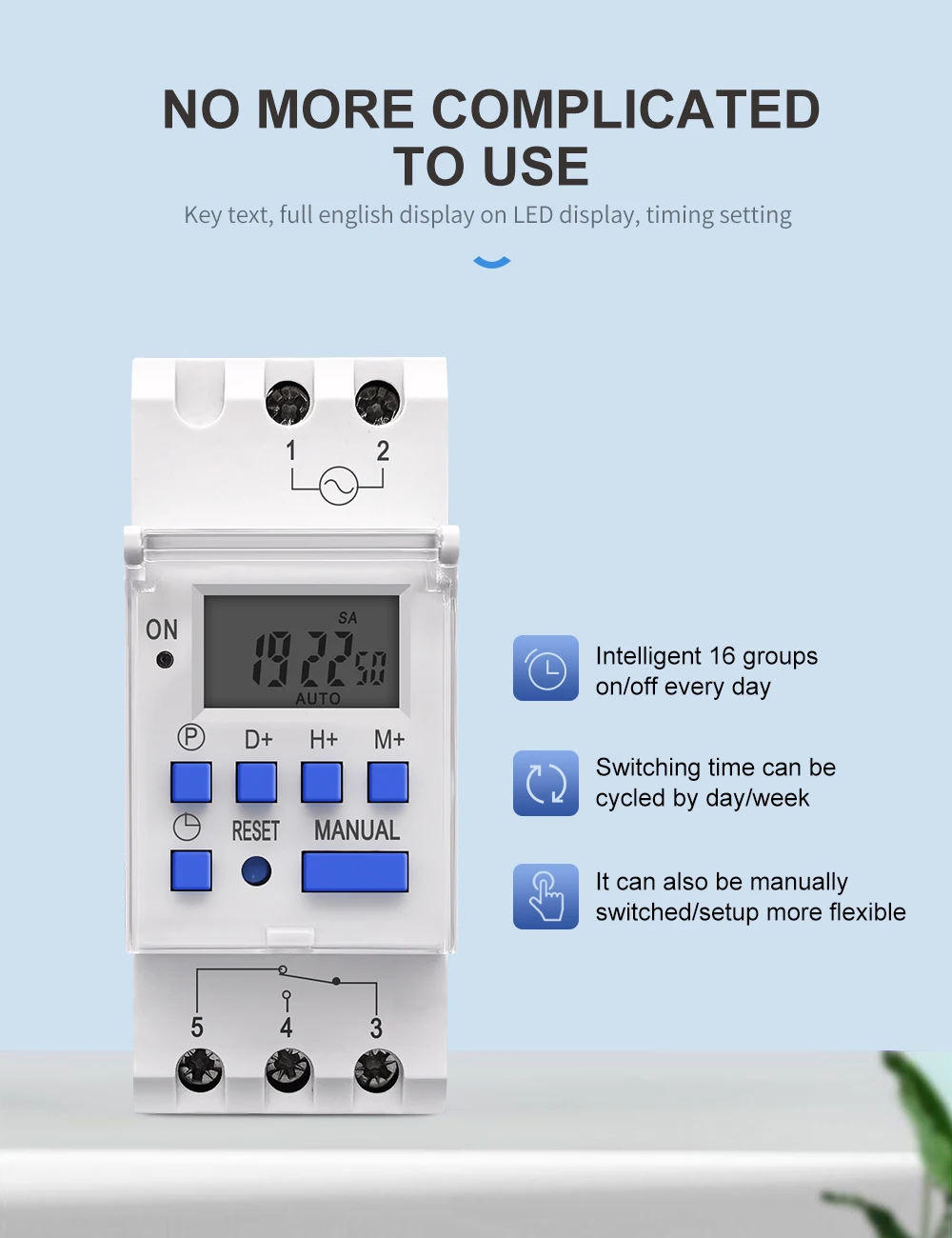

Repeat programs with 16 on/off setting and manual override

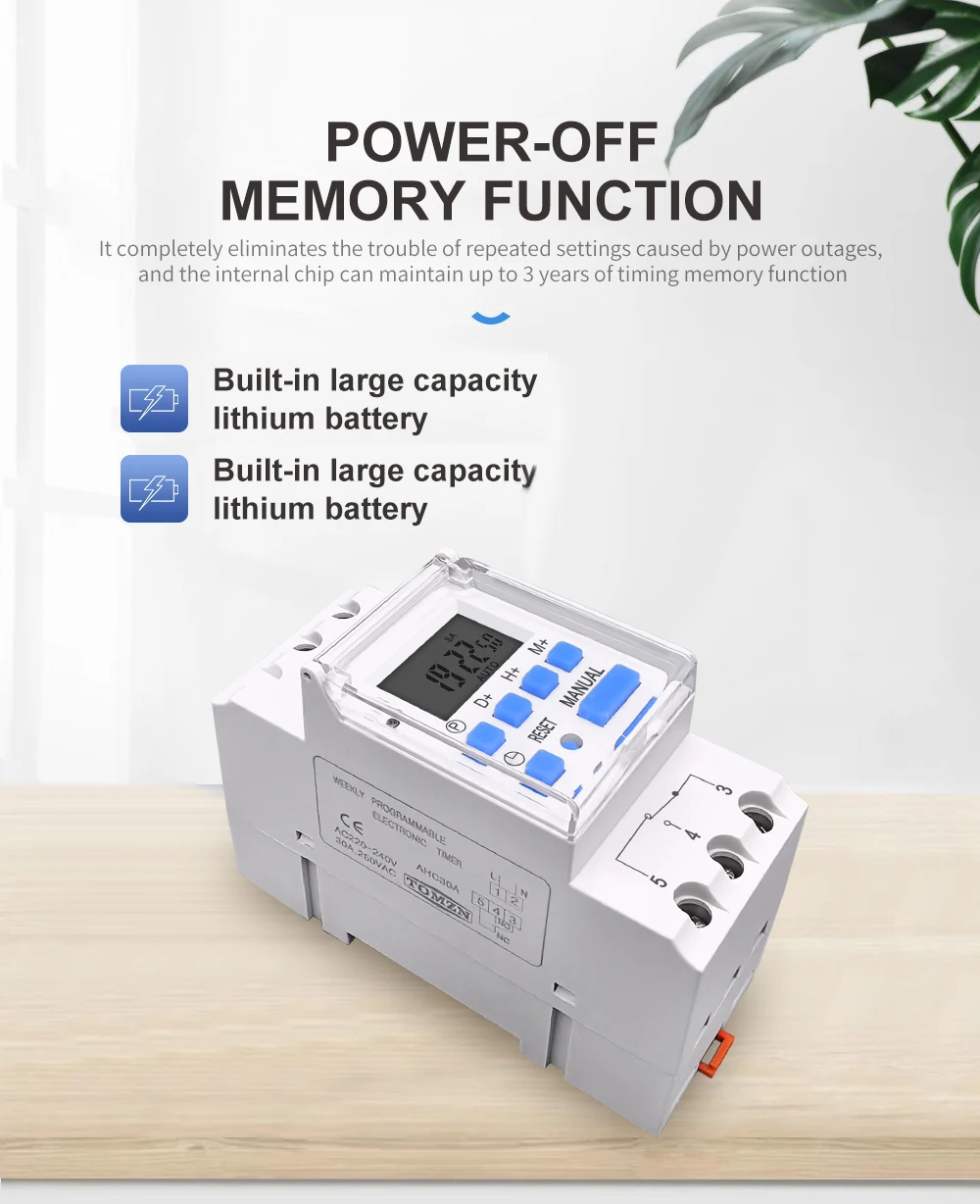

NiH battery power reserve when electric supply cut off

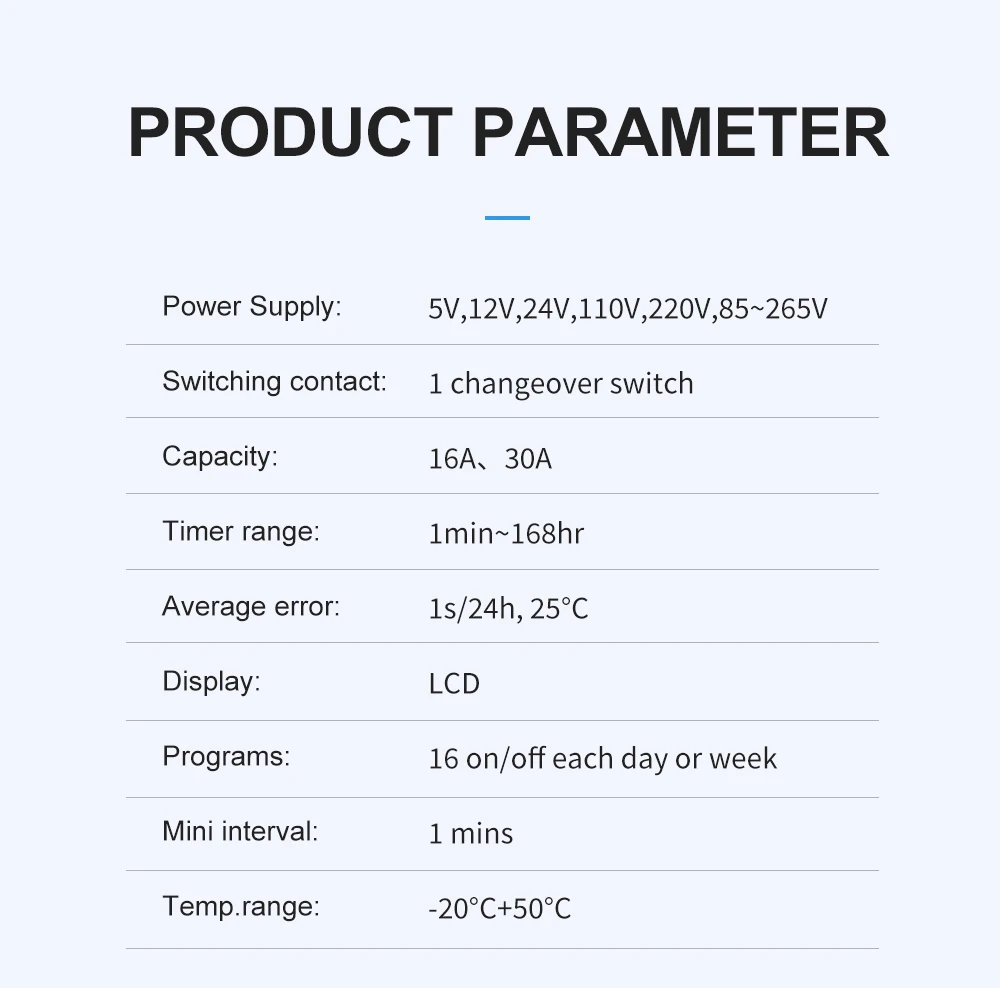

Technical Data:
Model |

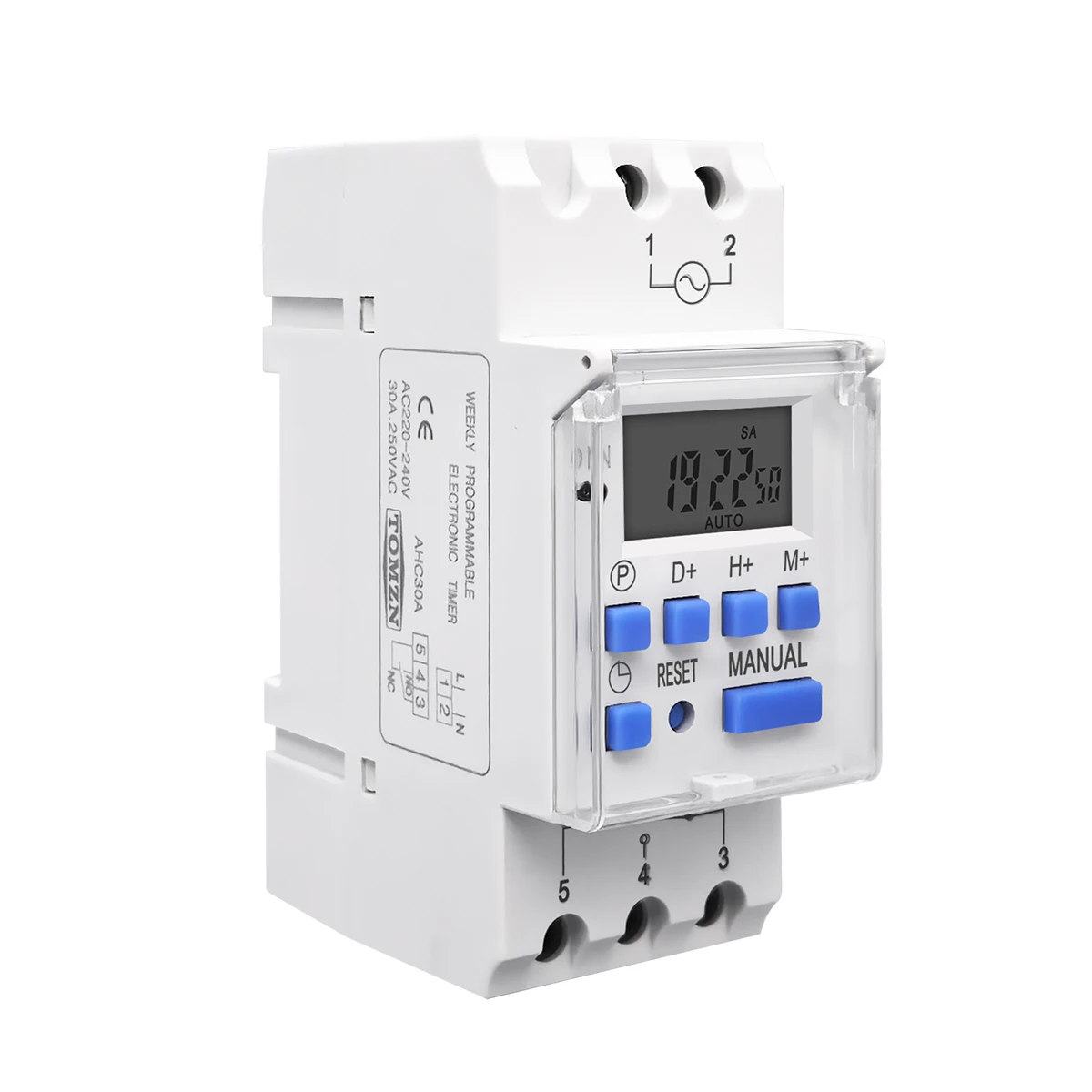

AHC15A, AHC30A |
Temp.range: -20°C+50°C |
Power Supply: accorind your order |
Power consumption 4.5 VA (MAX) |

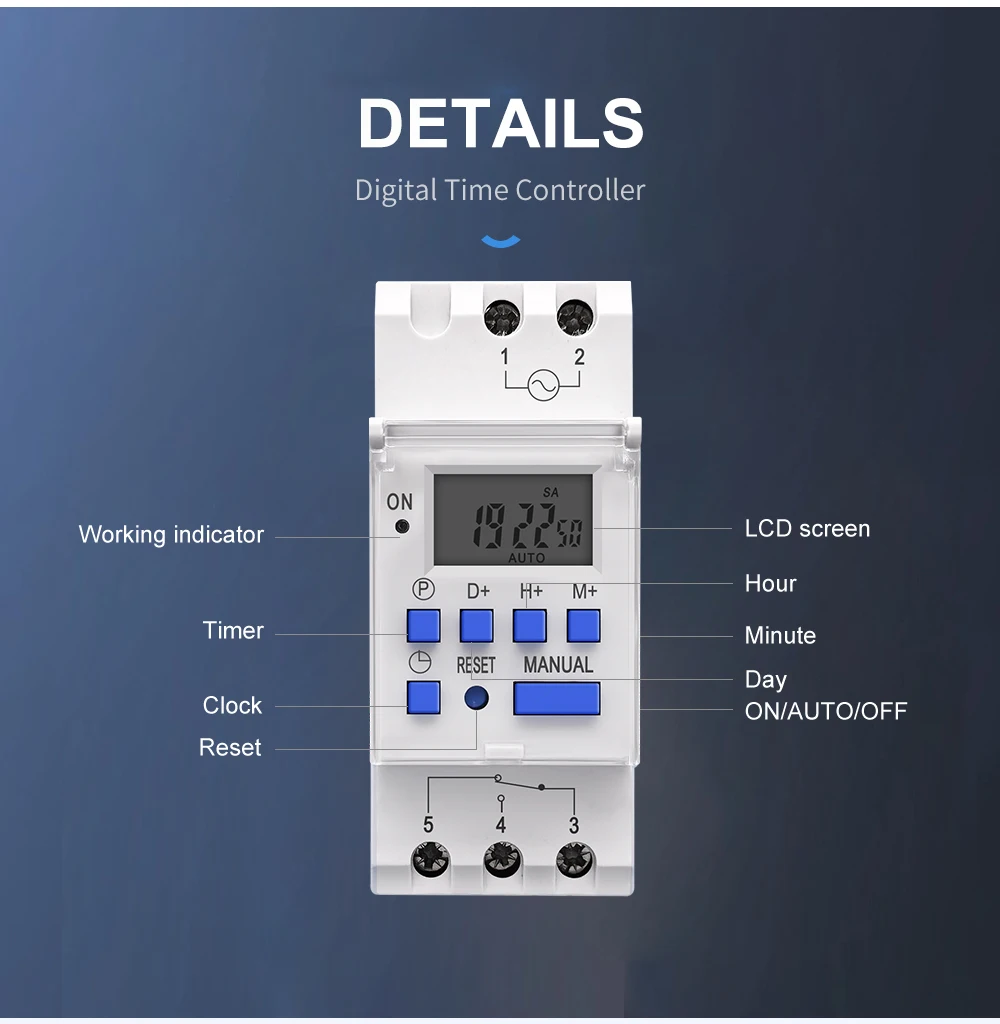

Display: LCD |
Switching contact: 1 changeover switch |
Programs:16 on/off each day or week |
Hysteresis 2 sec/day (25°C) |
Mini interval: 1min |
Capacity: 16(8) 250V AC |
Black-out: 60 days |
Timer range: 1min~168hr |
Recharge battery: 1.2V 40Ma |

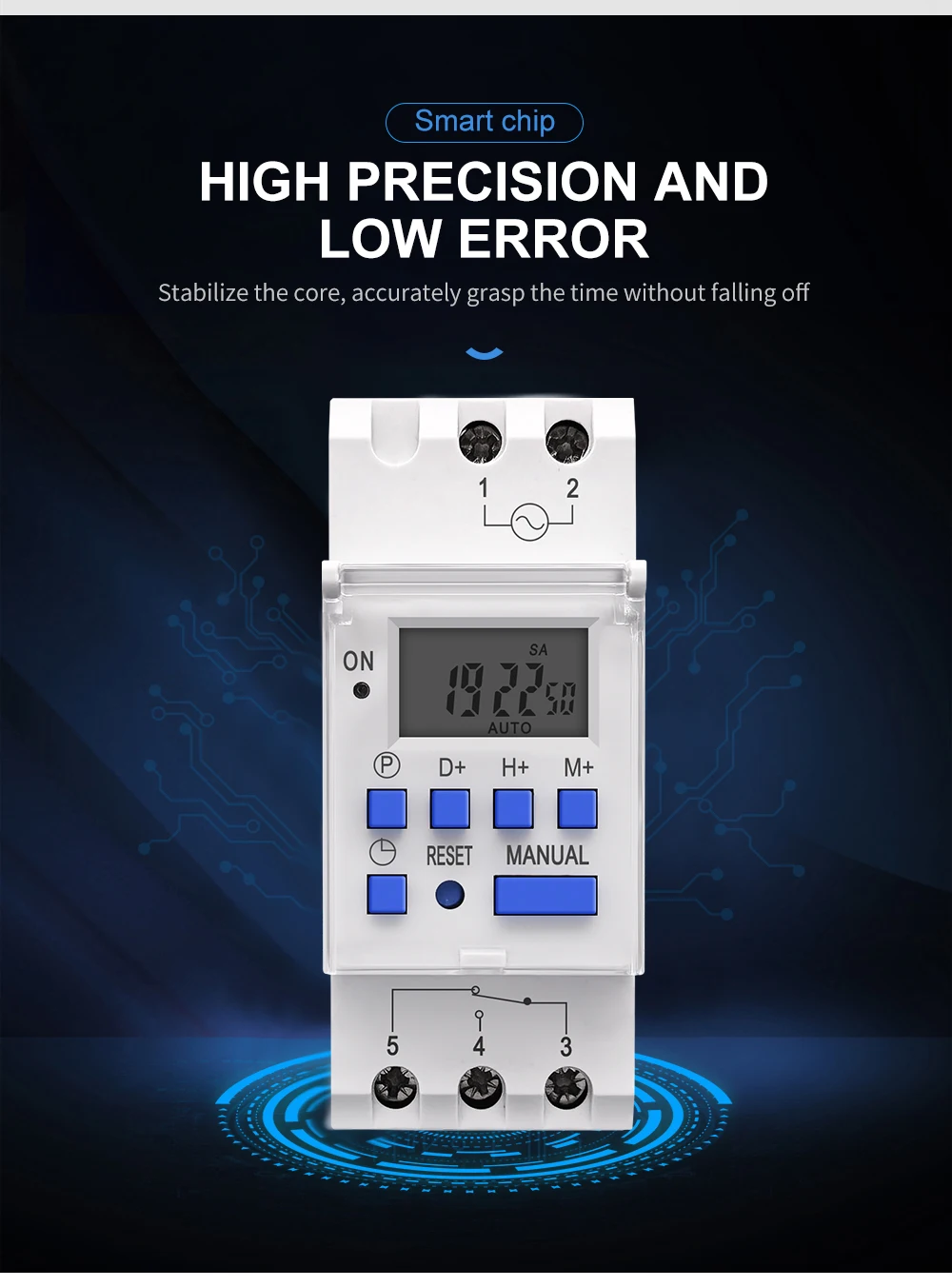

Average error: 1s/24h, 25°C |
Weight: 0.15kg |
Package Content:
1 x Digital Timer
1 x English Manual
