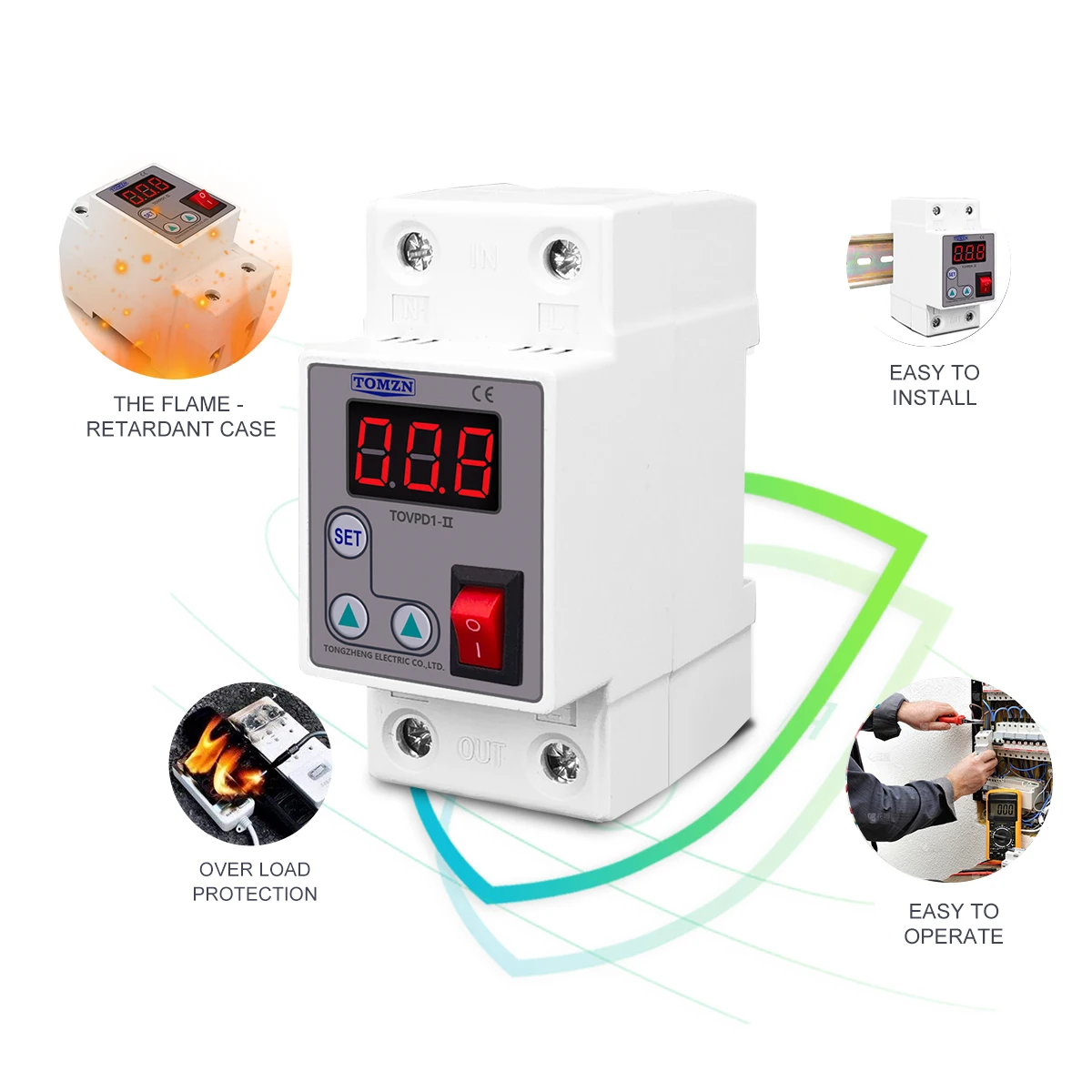

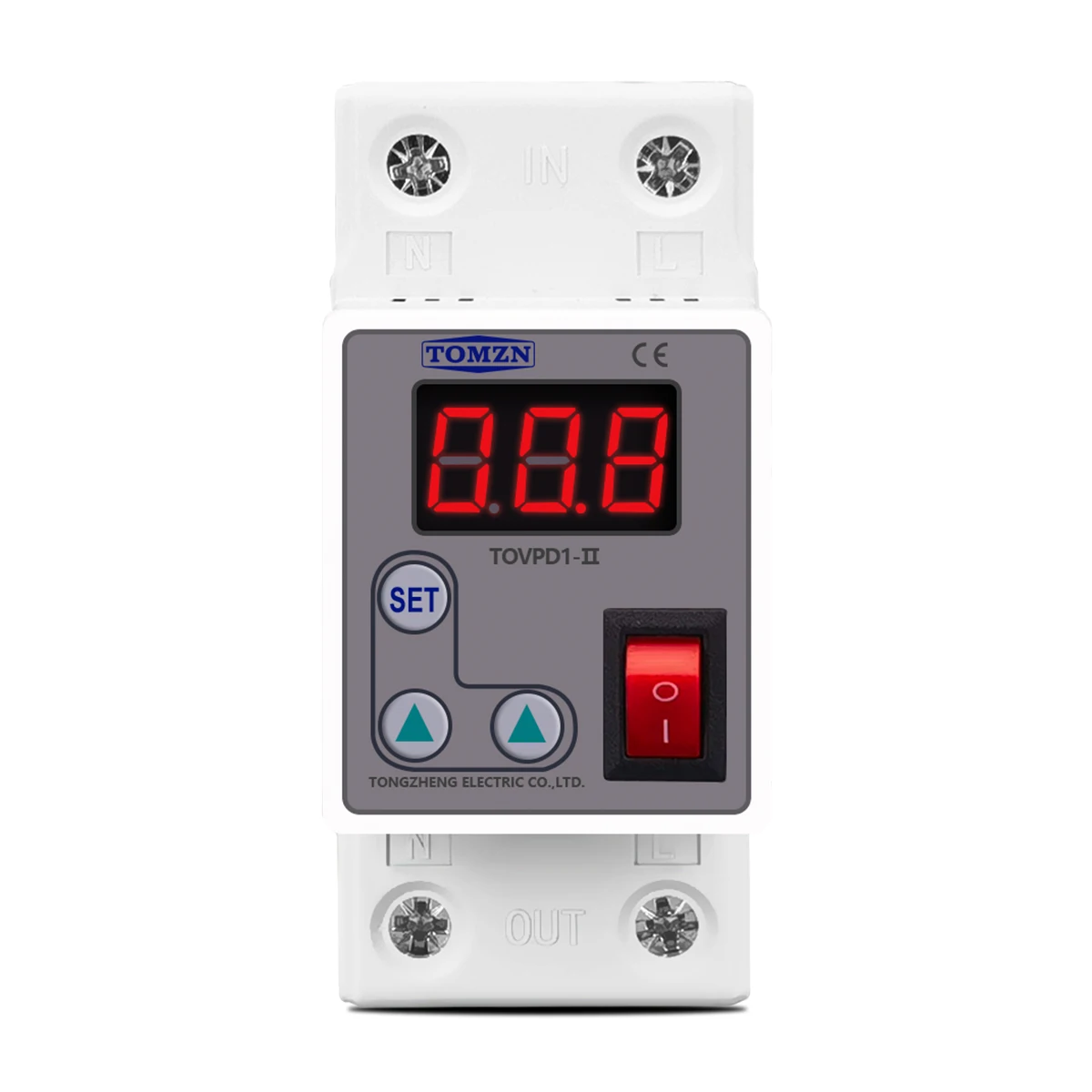

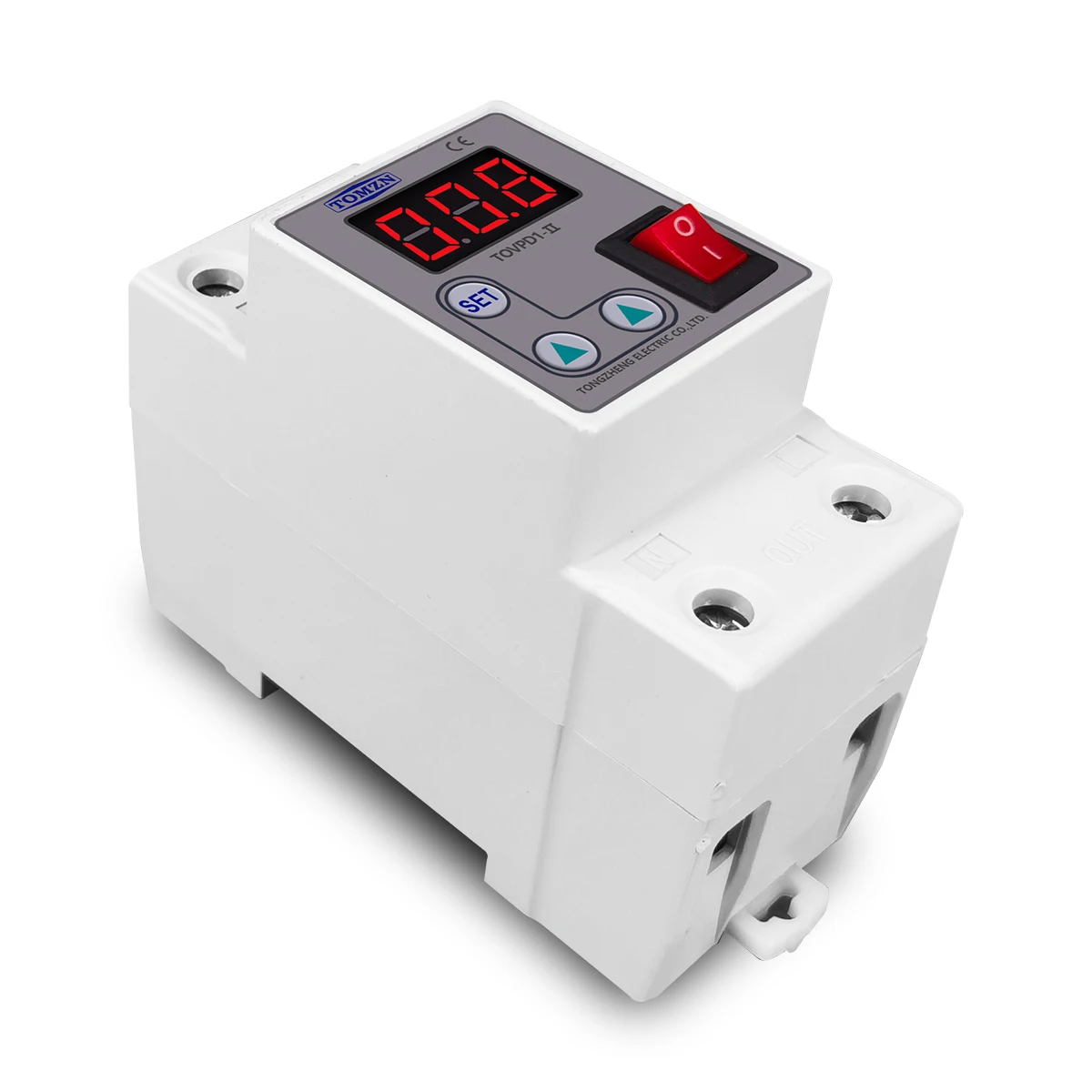

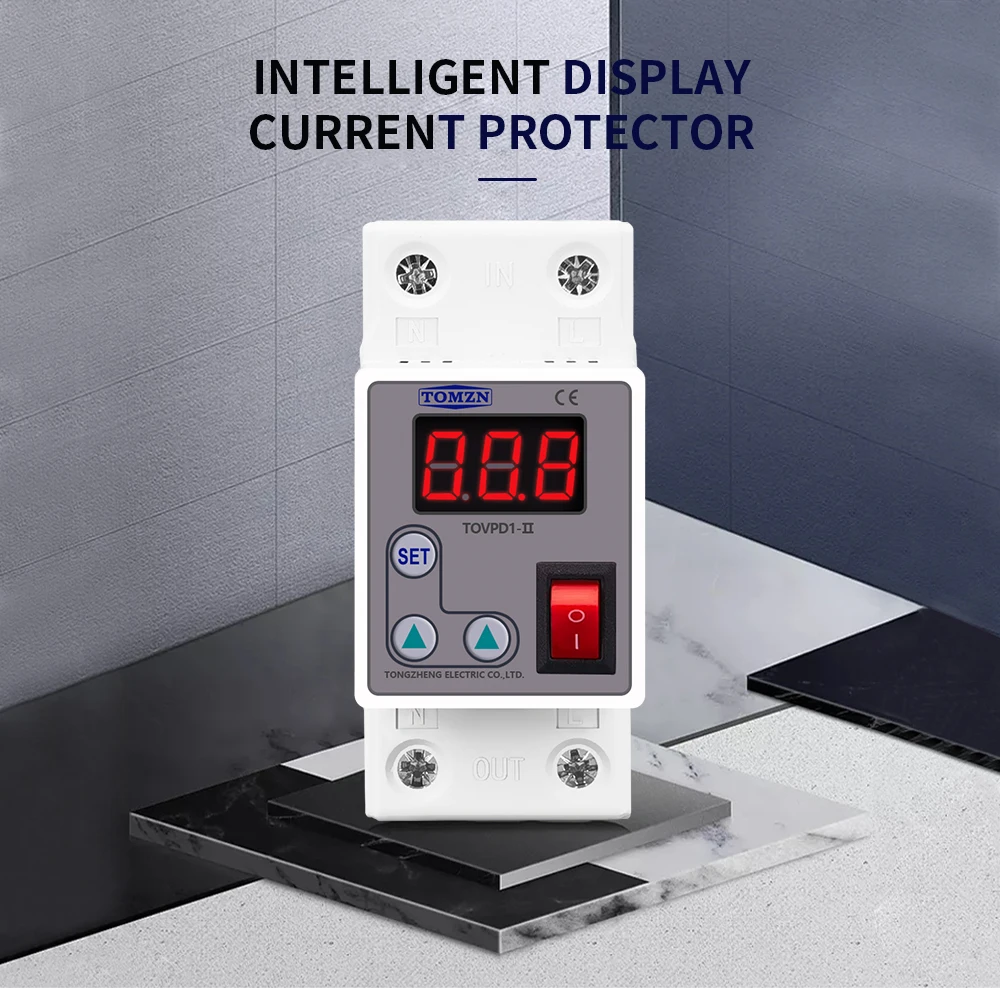

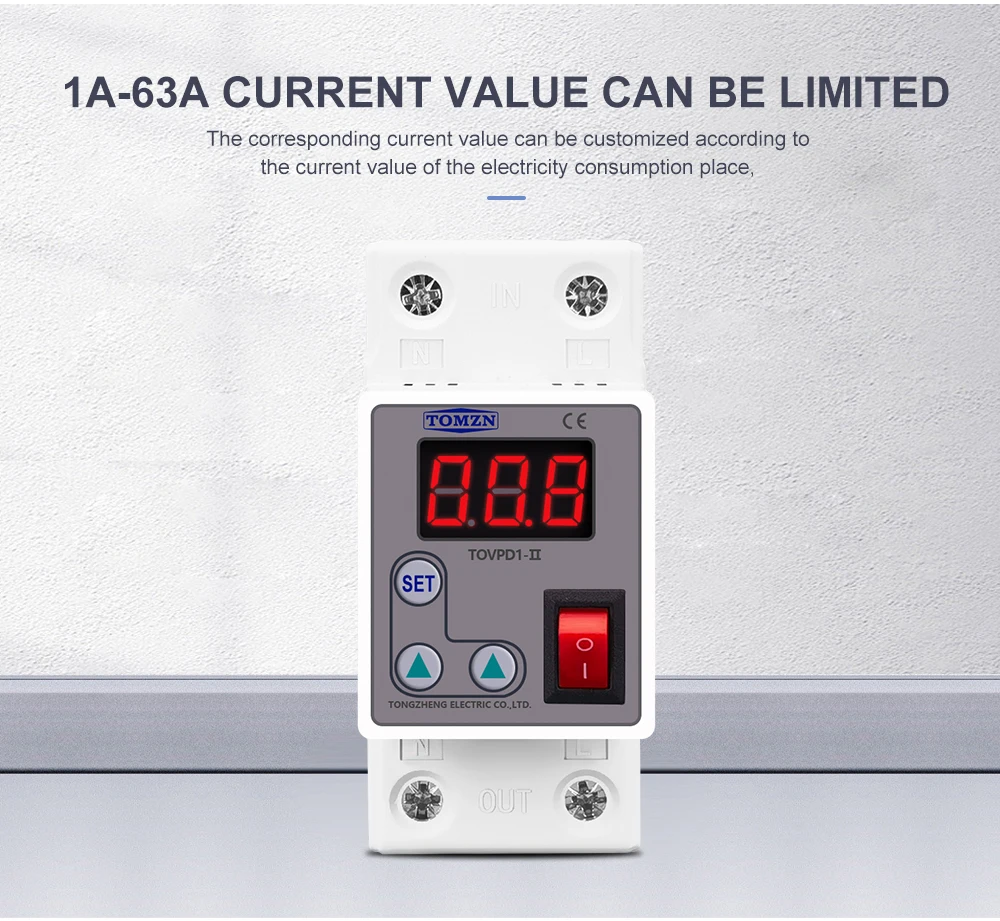

TOMZN Din Rail 230V 1-63A Adjustable Overcurrent Protective Device Protector Relay Monitor Current Limit
TOMZN 230V AC 1*1-63A Rail Type Overcurrent Protection Device, 10kA; 1; 63A type; Wide-range Application The overcurrent protection threshold can flexibly adapt to different electrical equipment. When the current is abnormal, the internal relay performs real-time monitoring of the current signal, then, quickly starts the current limiting mechanism to accurately protect the circuit, effectively avoids overcurrent caused equipment damage and safety risks, and is a reliable guardian of the power system.
- Overview
- Recommended Products

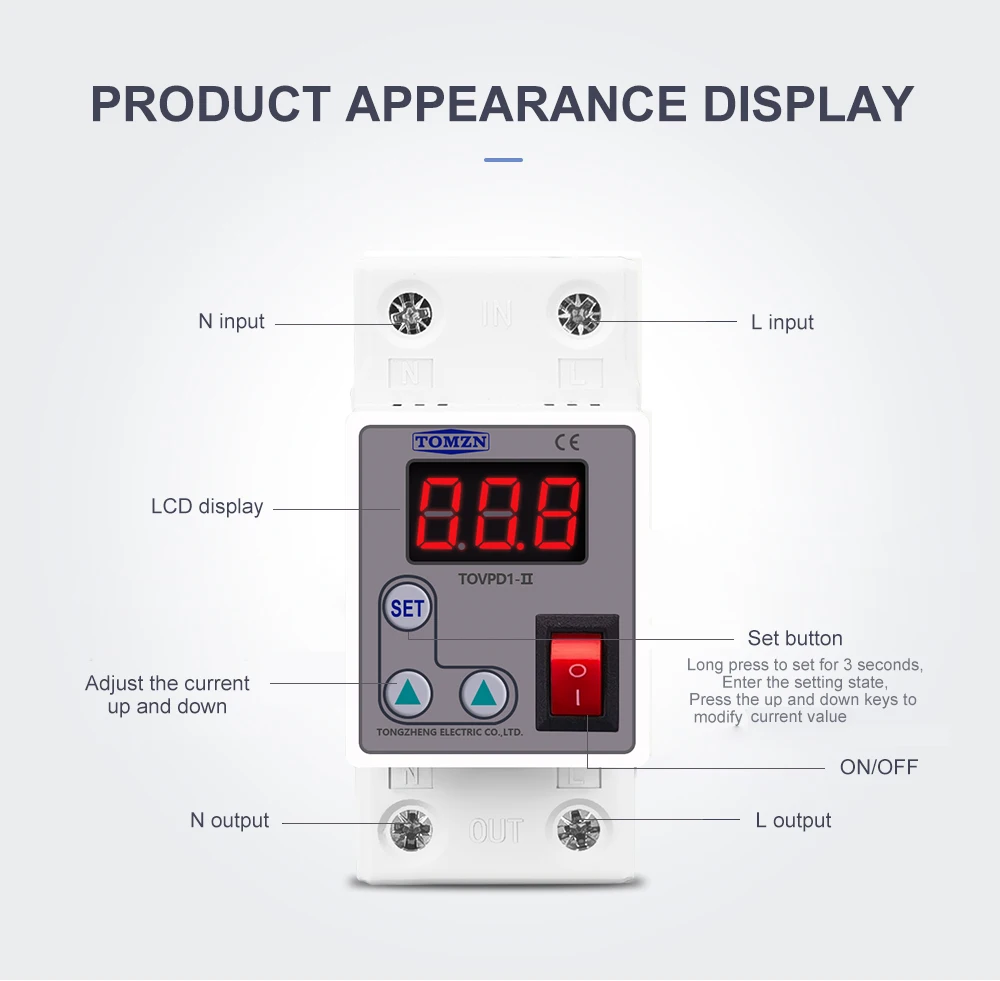

Functions:
1.Over-current protection
2.Automatic recovery

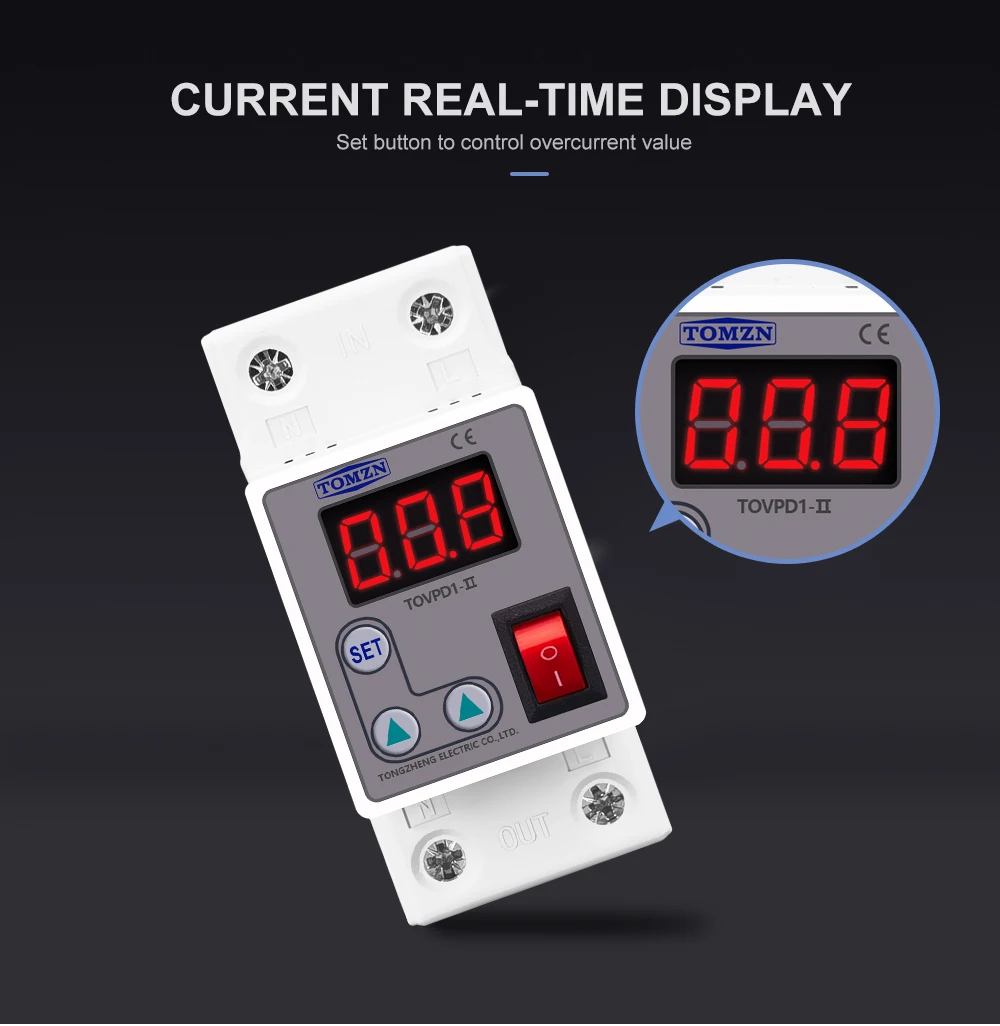

3.Current display (current measurement)
4.current calibration adjustable. A6

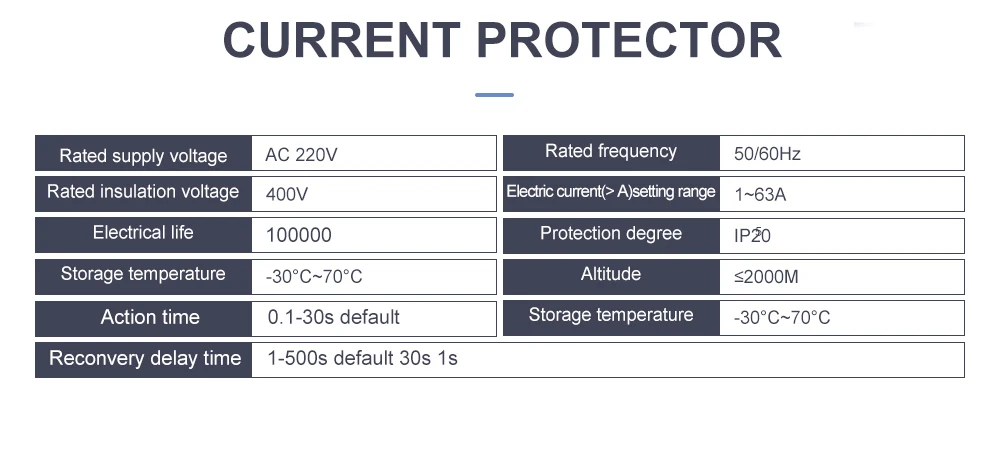

Product Parameters:
1.Model number:TOVPD1-II
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~63A Adjustable(default:63A)

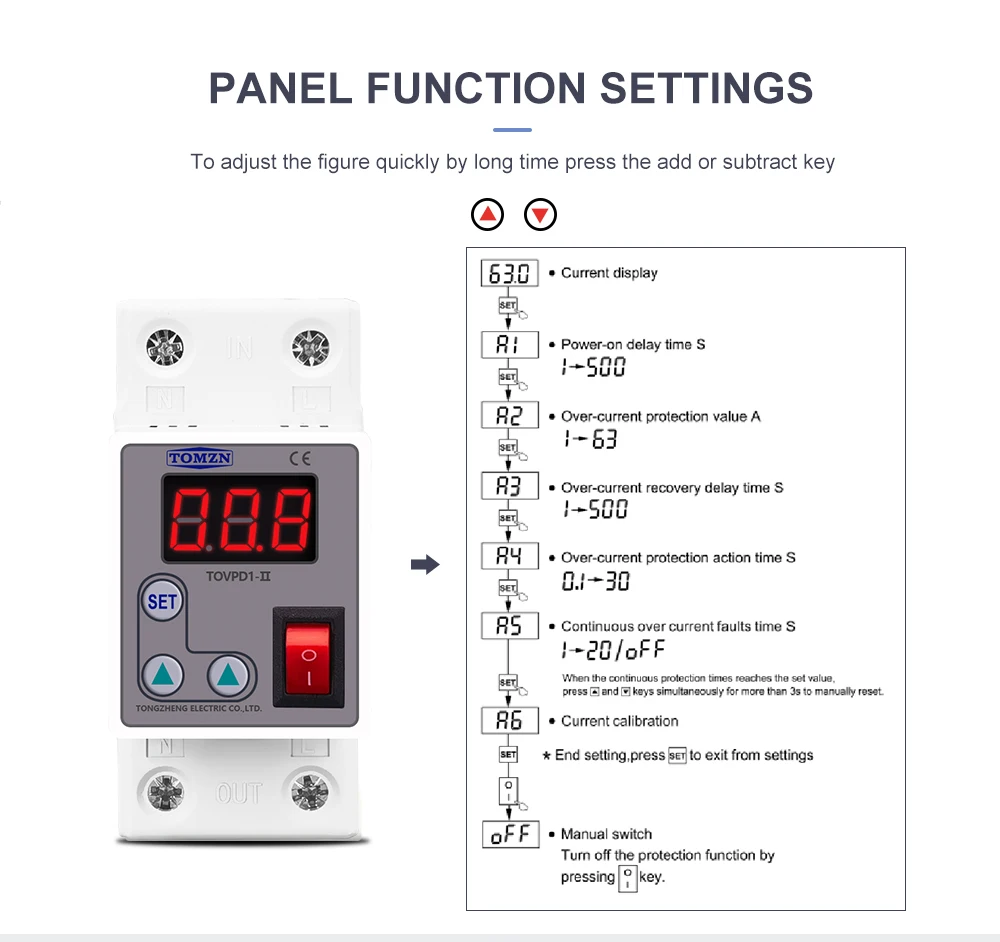

4.Continuous over current faults time S:1-20/OFF
When the continuous protection times reaches the set value,press "up" and "down" keys simultaneously for more than 3s to manually reset.
6.Over-current adjustment range:1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

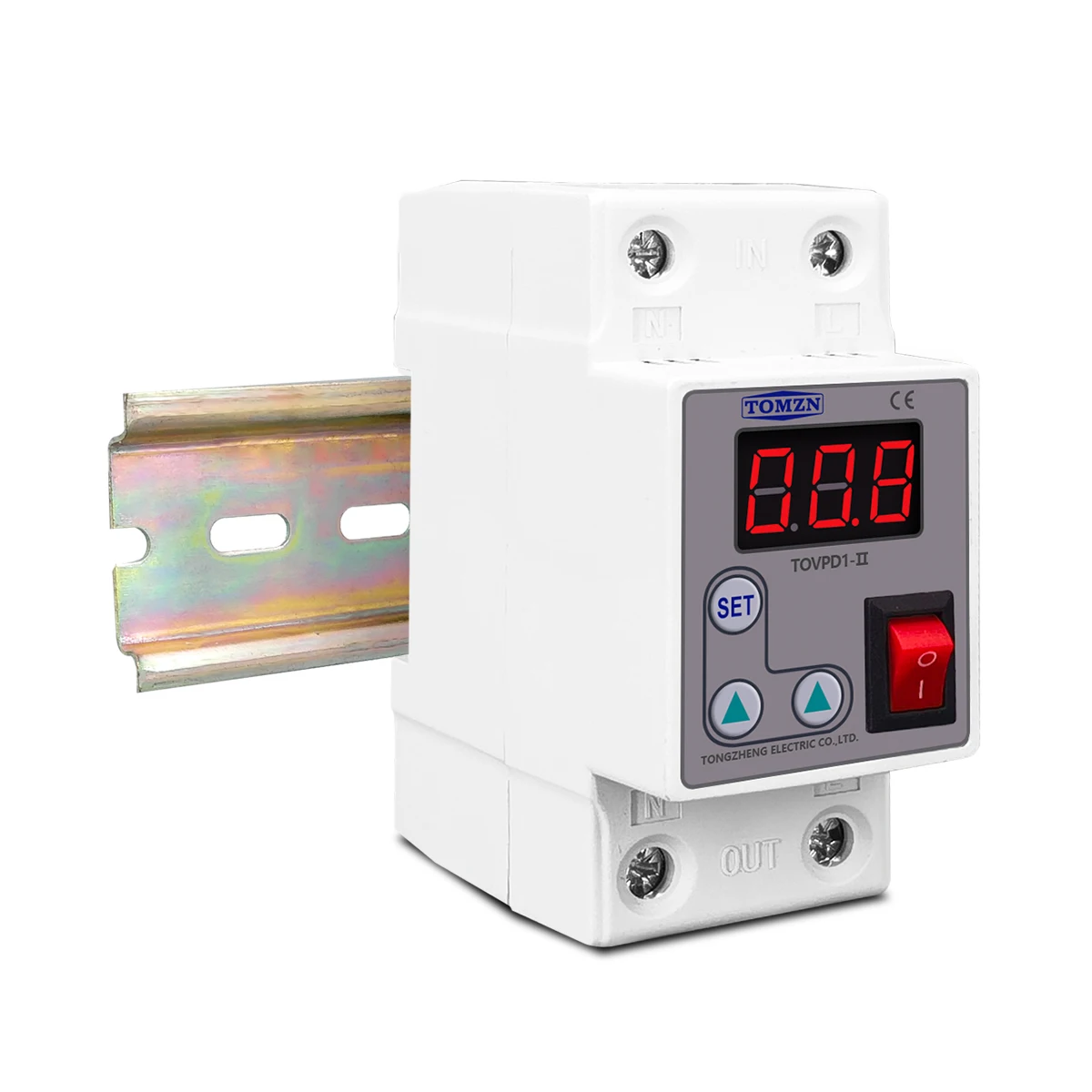

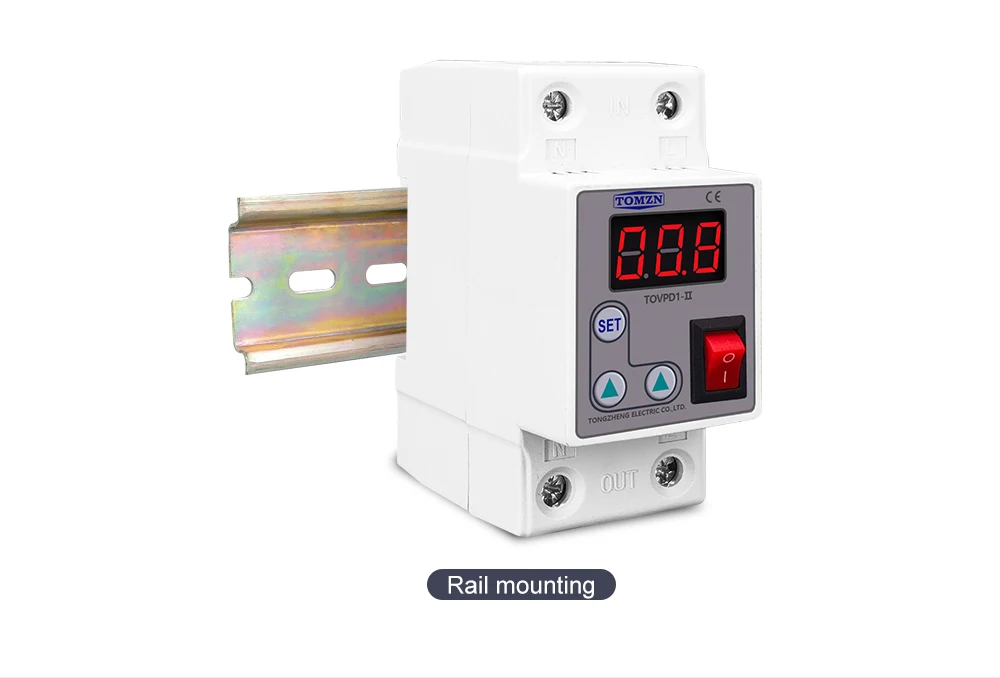

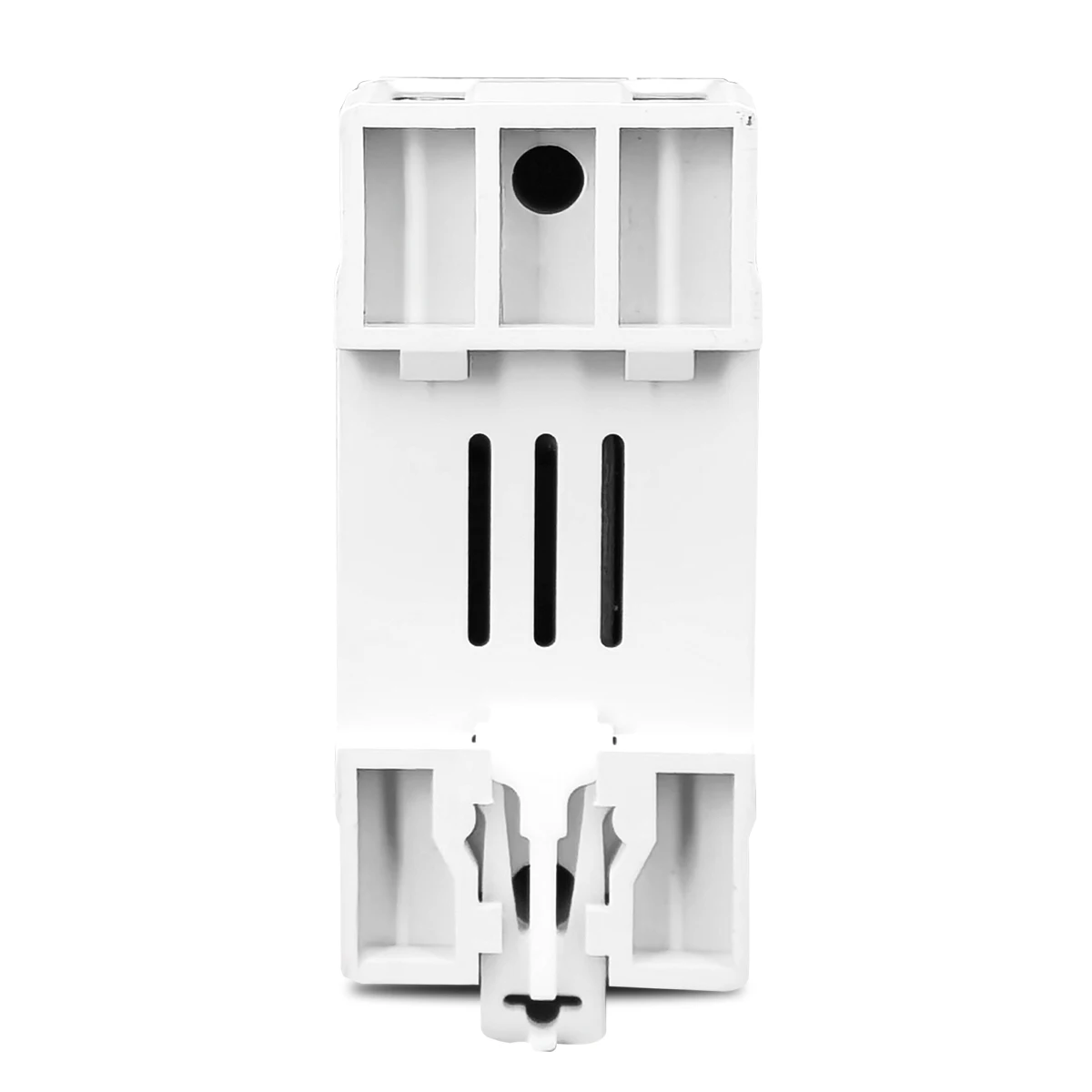

11.Installation:35mm DIN rail
