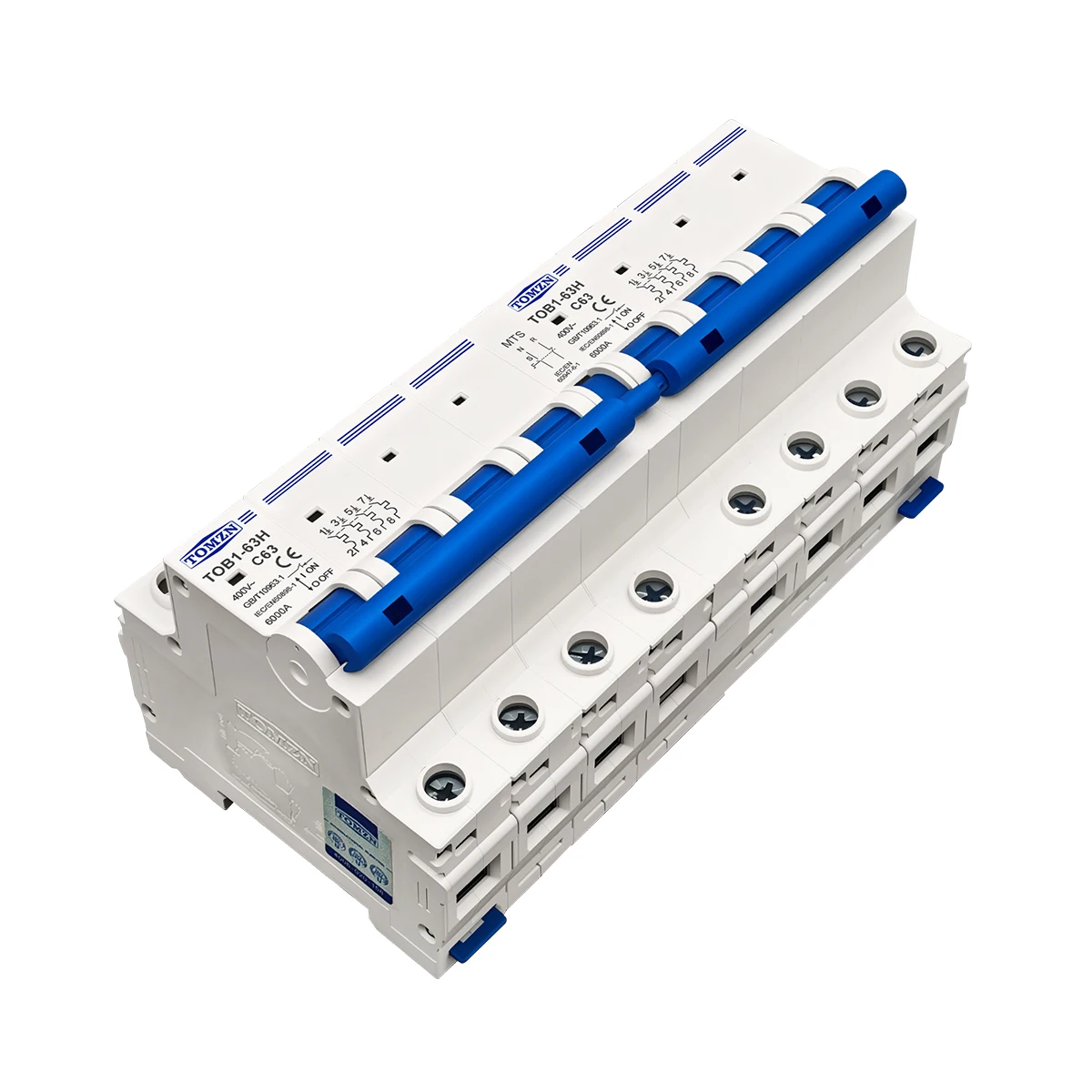

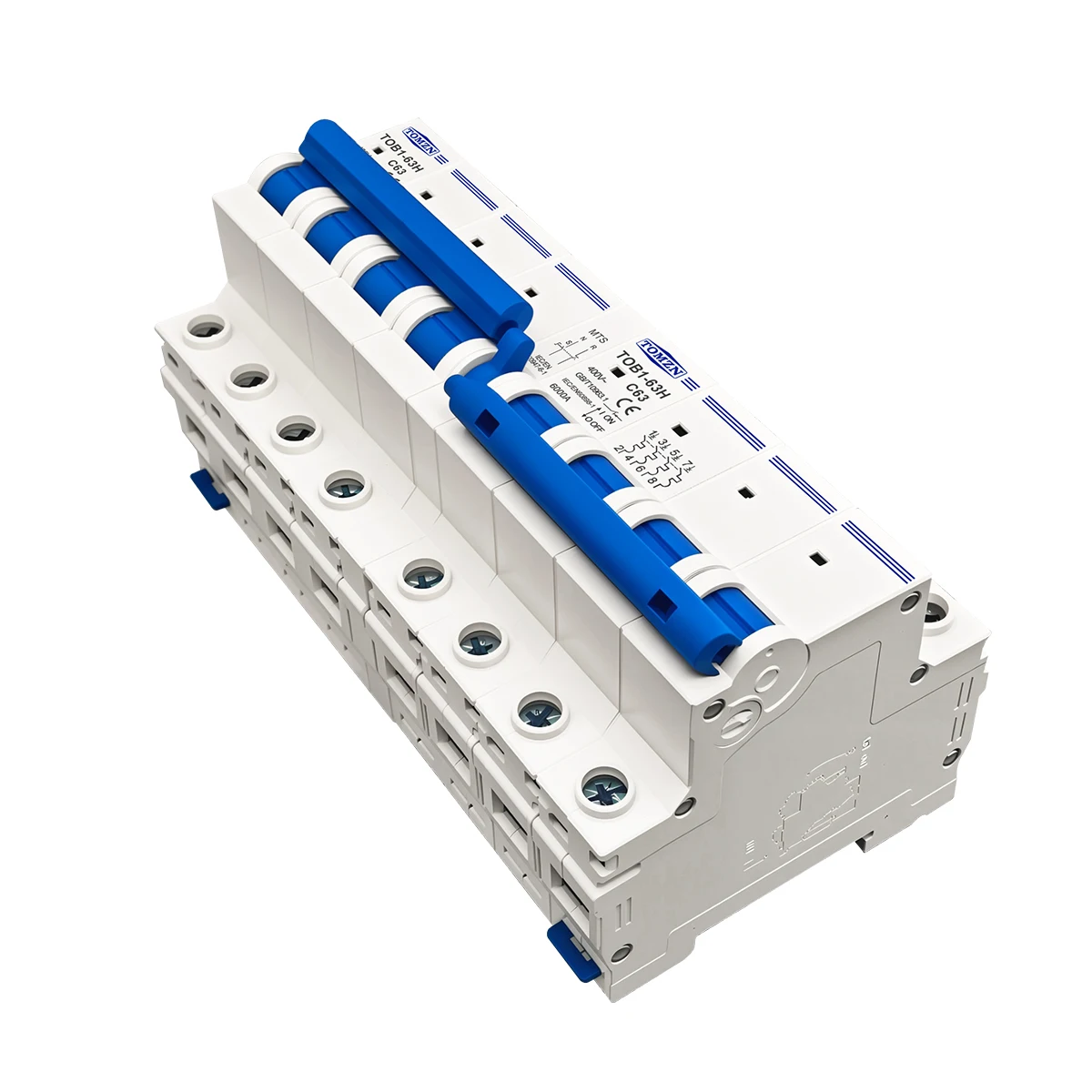

TOMZN 4P Plus 4P MTS AC Dual Power Manual Transfer Switch Circuit Breaker MCB 50HZ/60HZ 3 Phase

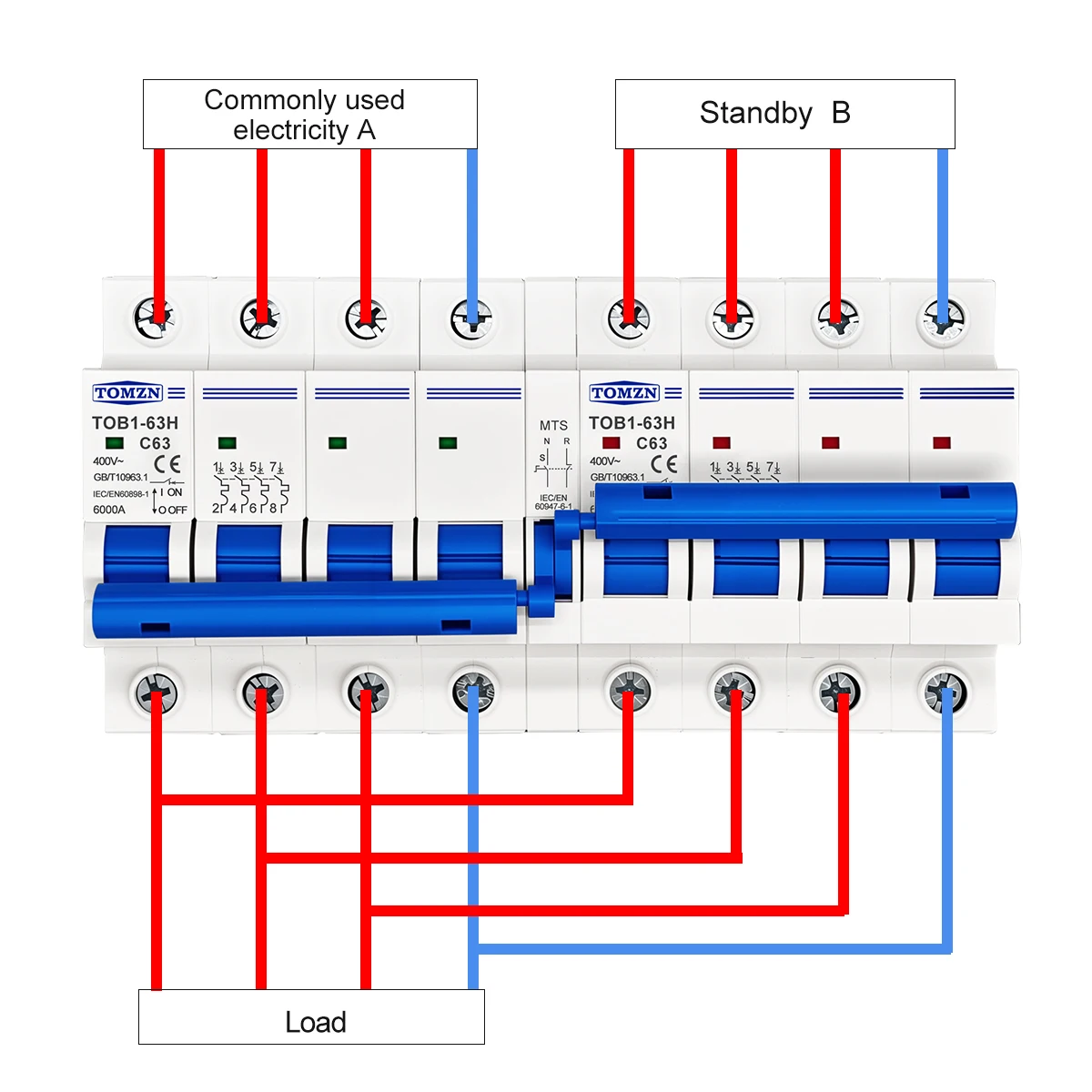

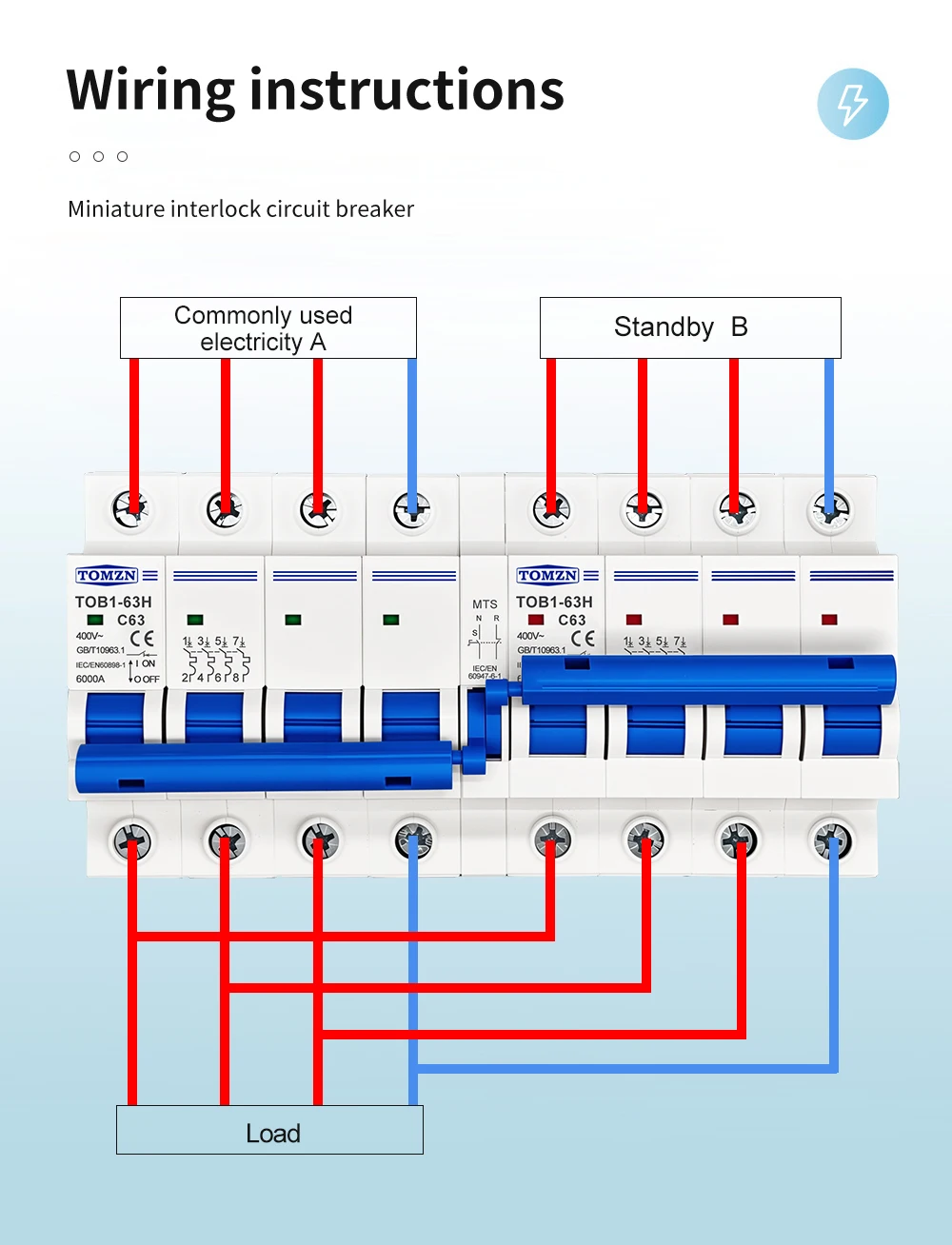

4P and 4P MTS AC dual power manual changeover switches with fusion circuit breaker (MCB) function are suitable for three-phase circuits. The power grid current of the power supply can accurately meet the requirements of 50Hz and 60Hz, and has excellent power grid operation stability in various three-phase power systems. It can flexibly switch the two power supplies through manual operation, effectively deal with sudden power outage, and provide continuous and reliable power protection for the equipment.
- Overview
- Recommended Products
TOB1-63H MTS manual transfer switch is suitable for two-path power supply system with AC 50 HZ/60HZ, rated working voltage 240V~400V, rated current from 6A ~ 125A. It can manually transfer power supply to reserve power or generator when common power occurring fault so as to guarantee the reliability and safe of supply power. TOB1-63H MTS has the protective function of overload, under-voltage, short circuit and lack phase which is especially suitable for using in the place where does not allow power supply failure, such as fire fighting, hospital, marketplace, military project, high-rise building, bank, TV station and so on.

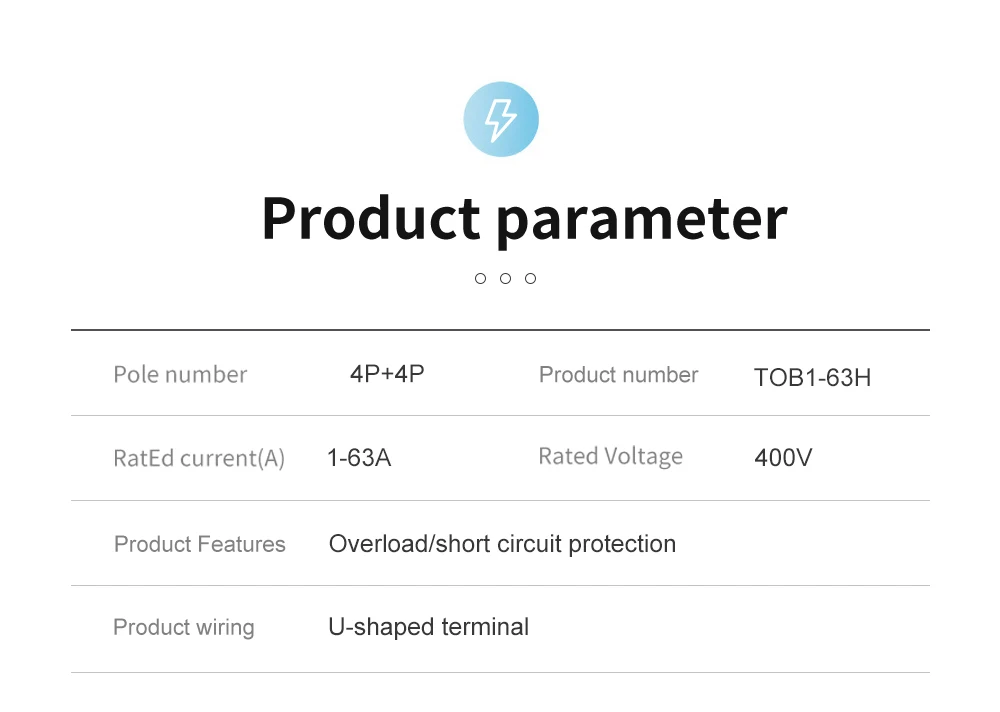

Rated voltage: 230V 50/60Hz
Breaking capacity: 6KA
Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
