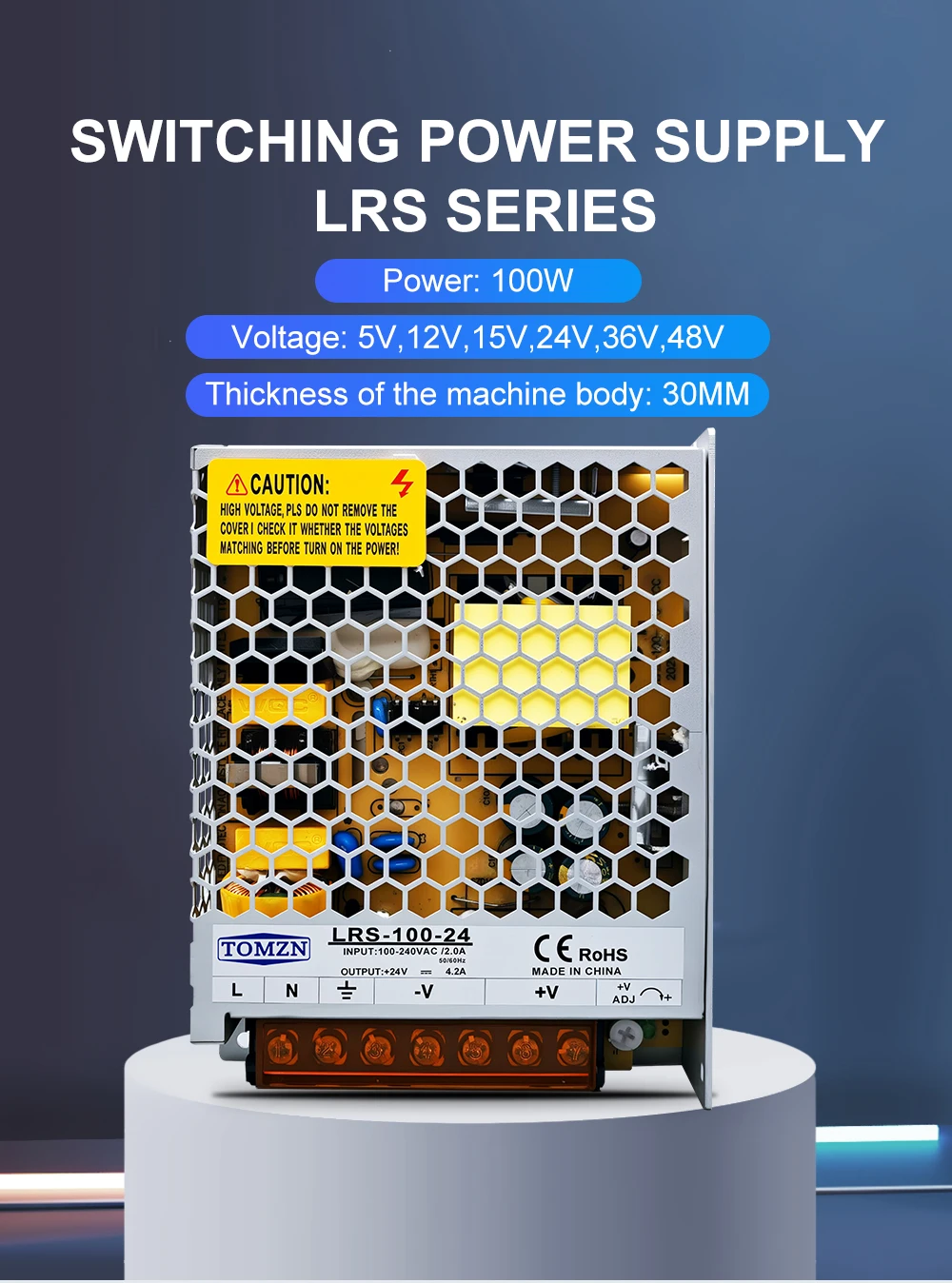

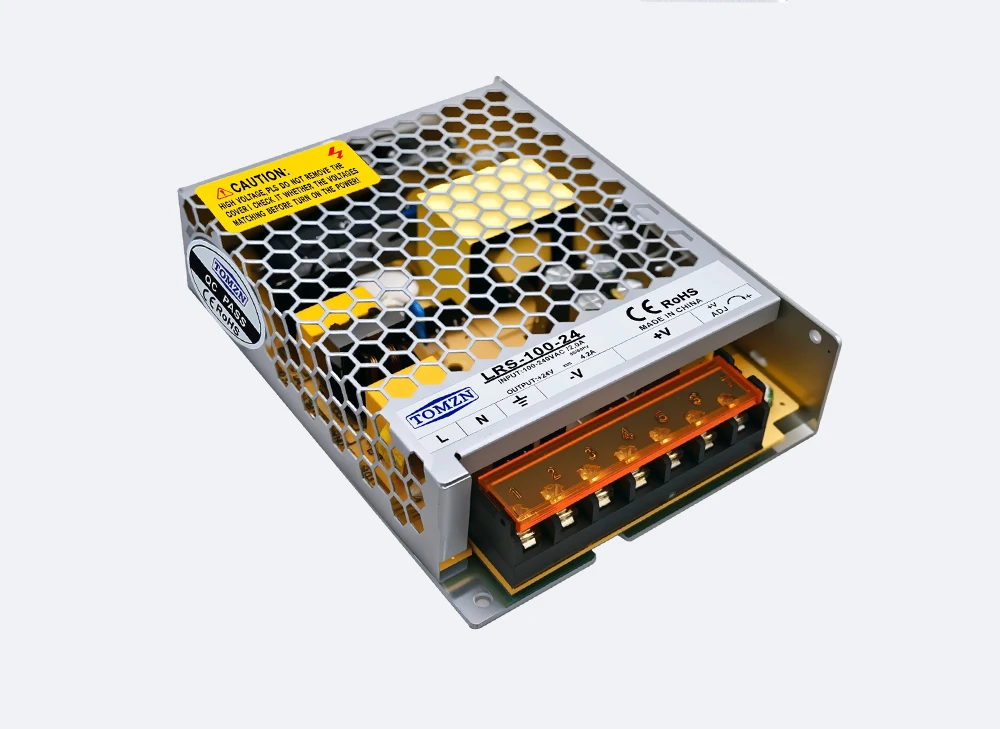

TOMZN 100W AC-DC SMPS Single Output Switching Power Supply Input 110-240V Output 5V 12V 15V 24V 36V 48V Adjustable for LED
Thomson (TOMZN) 100 watt AC-DC switching mode power supply, is a powerful power supply assistant for LED lamps. It is adaptable to the input voltage span of 110-240 volts. The single output is stable and efficient, and the output voltage of 5-48 volts can be flexibly adjusted to meet the power needs of different LED lamps. Whether it is a small decorative lamp or a large lighting device, it can ensure its stable light, helping to create a high-quality lighting environment.
- Overview
- Recommended Products
Function: LRS-100 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC

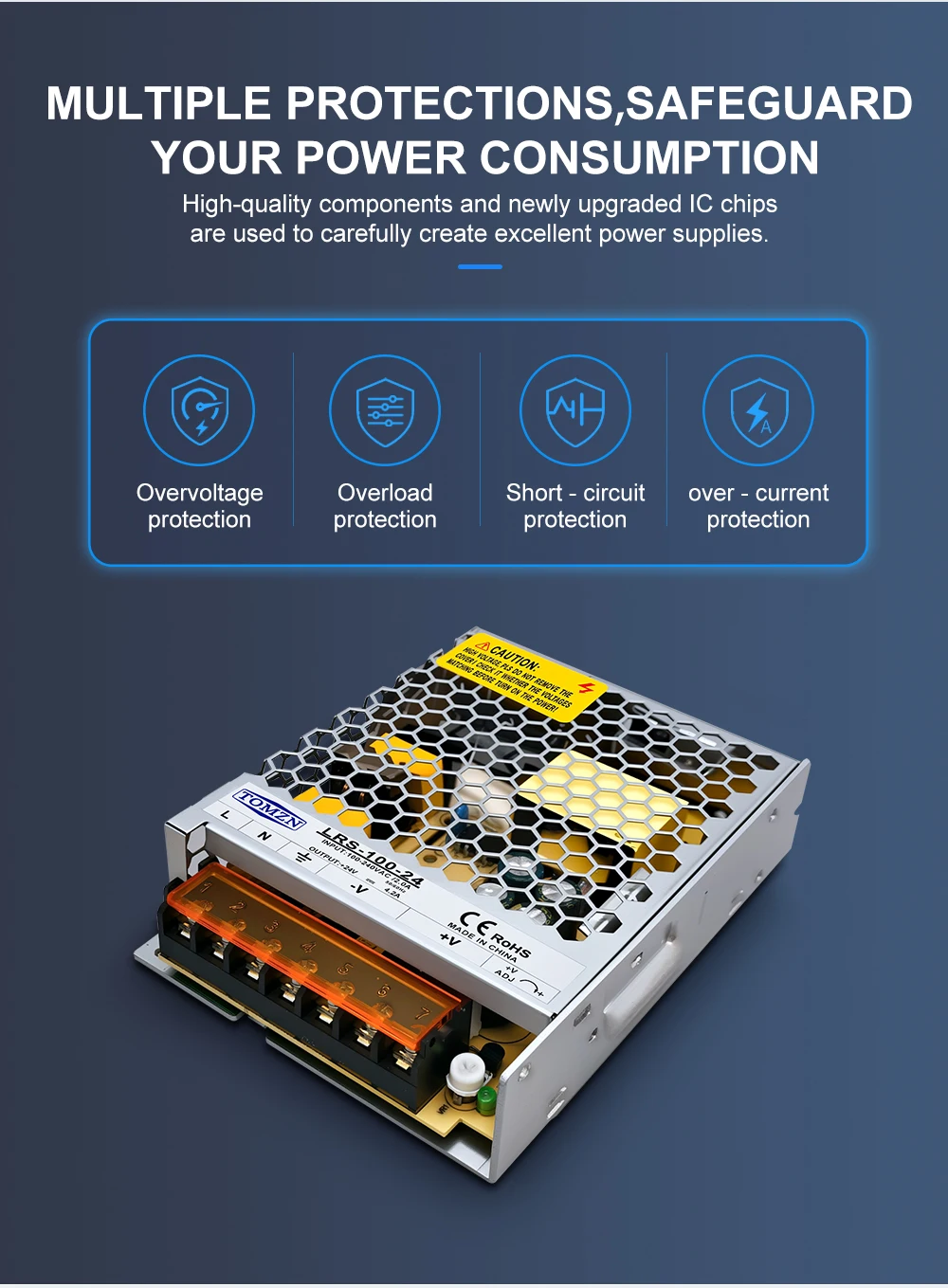

Protections: overload/ over voltage/ short circuit.

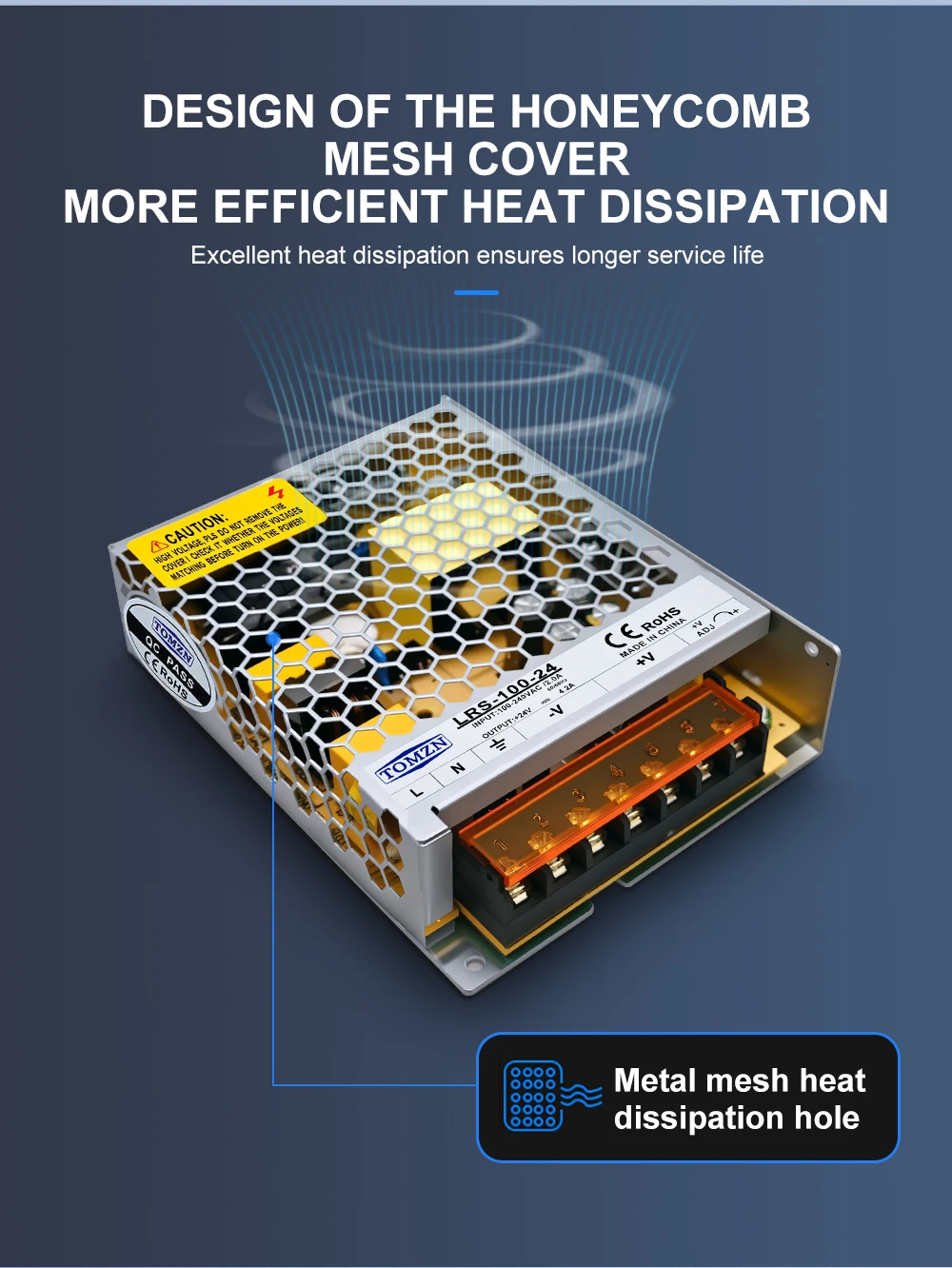

Cooling by free air convection.
(Not suggest for use in bathroom)

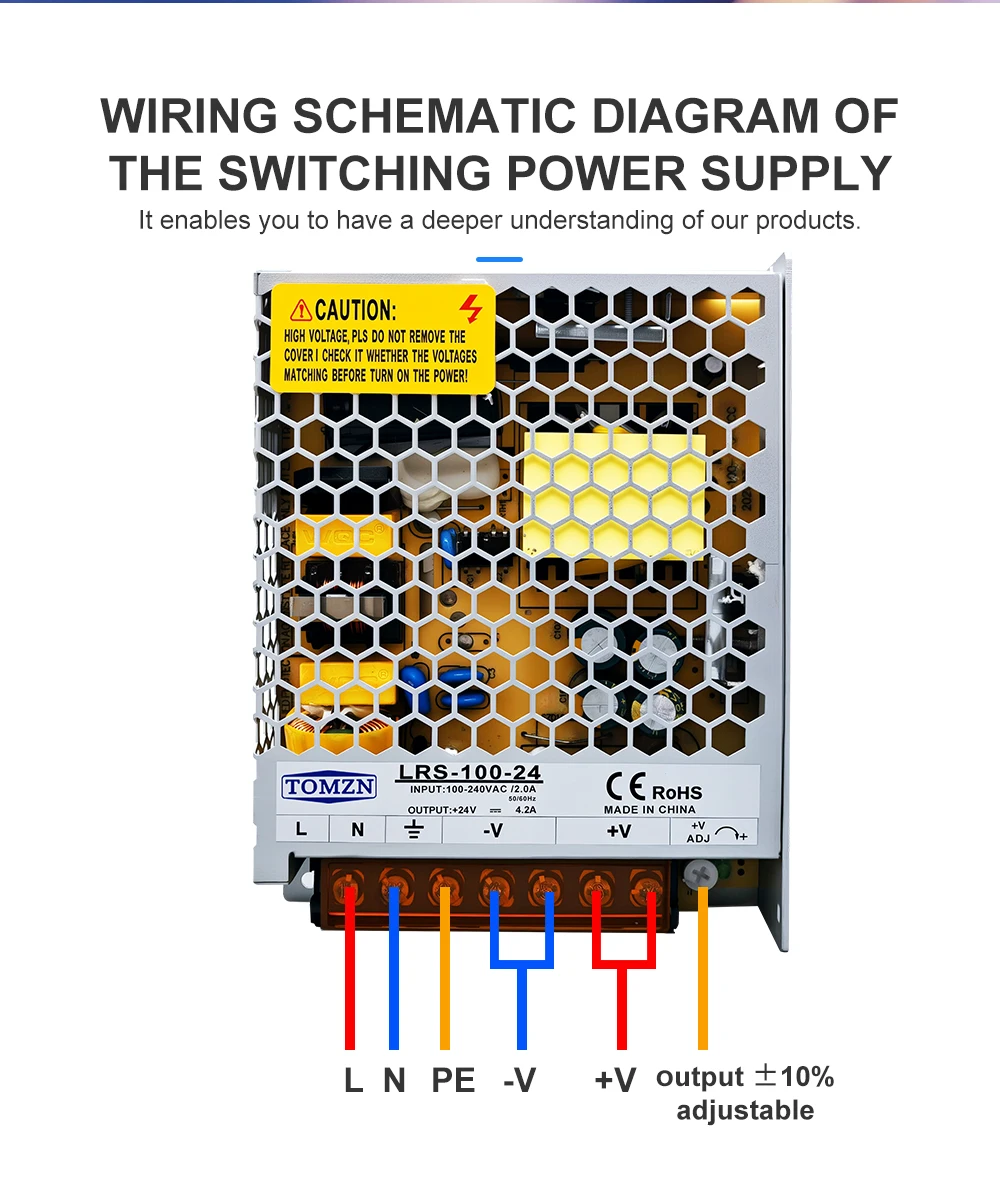

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
