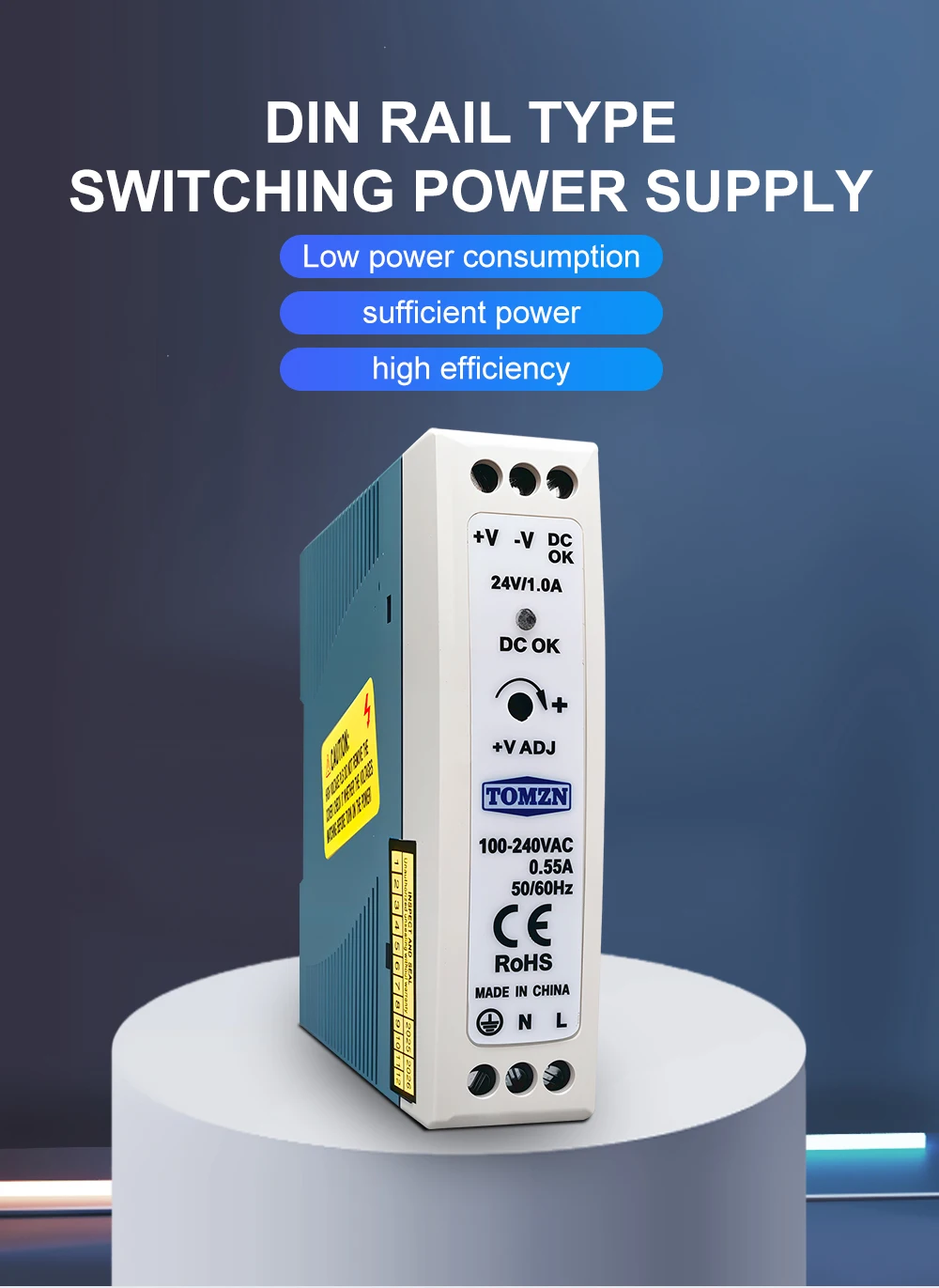

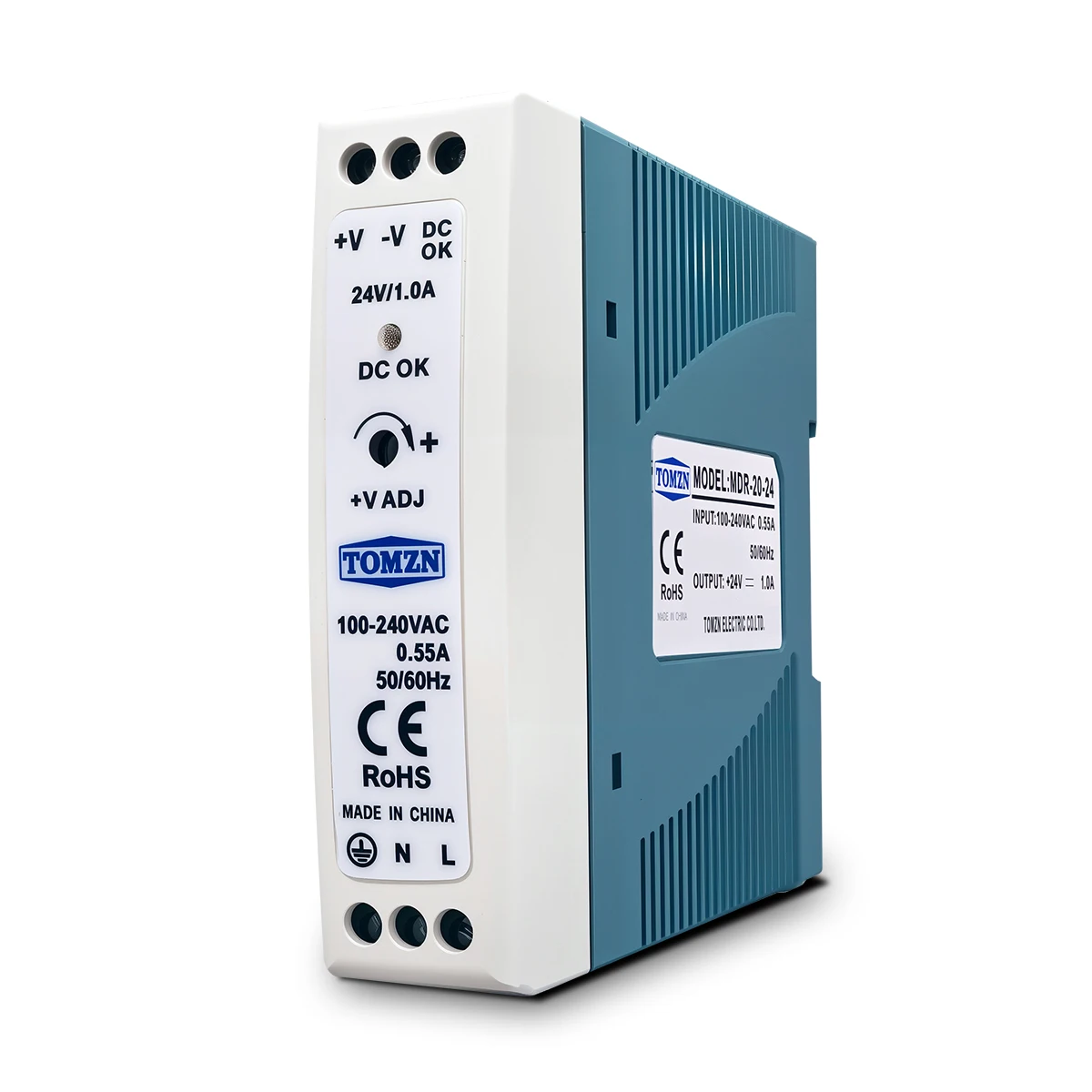

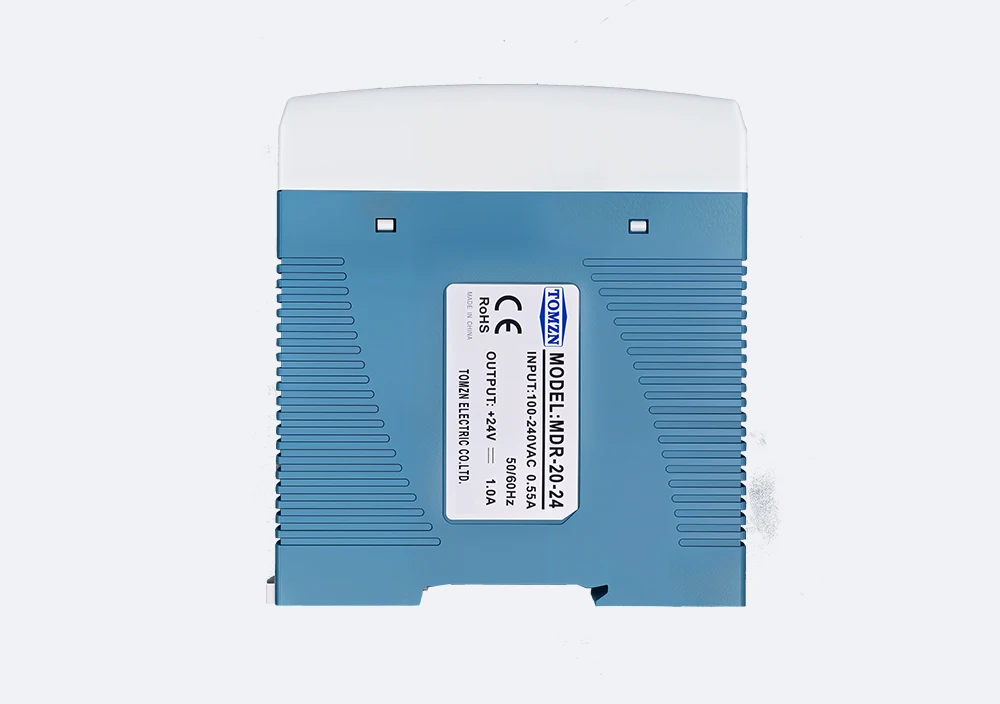

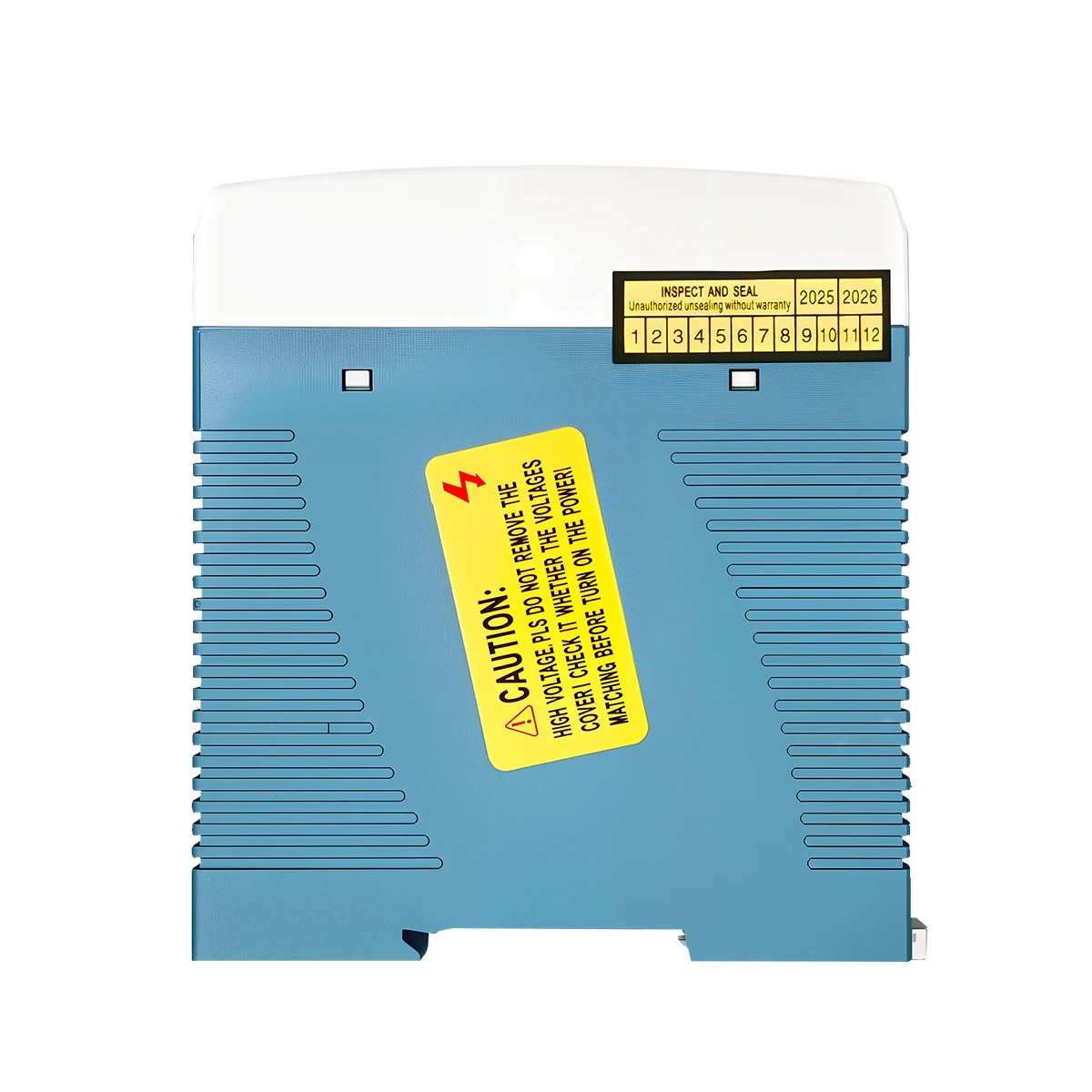

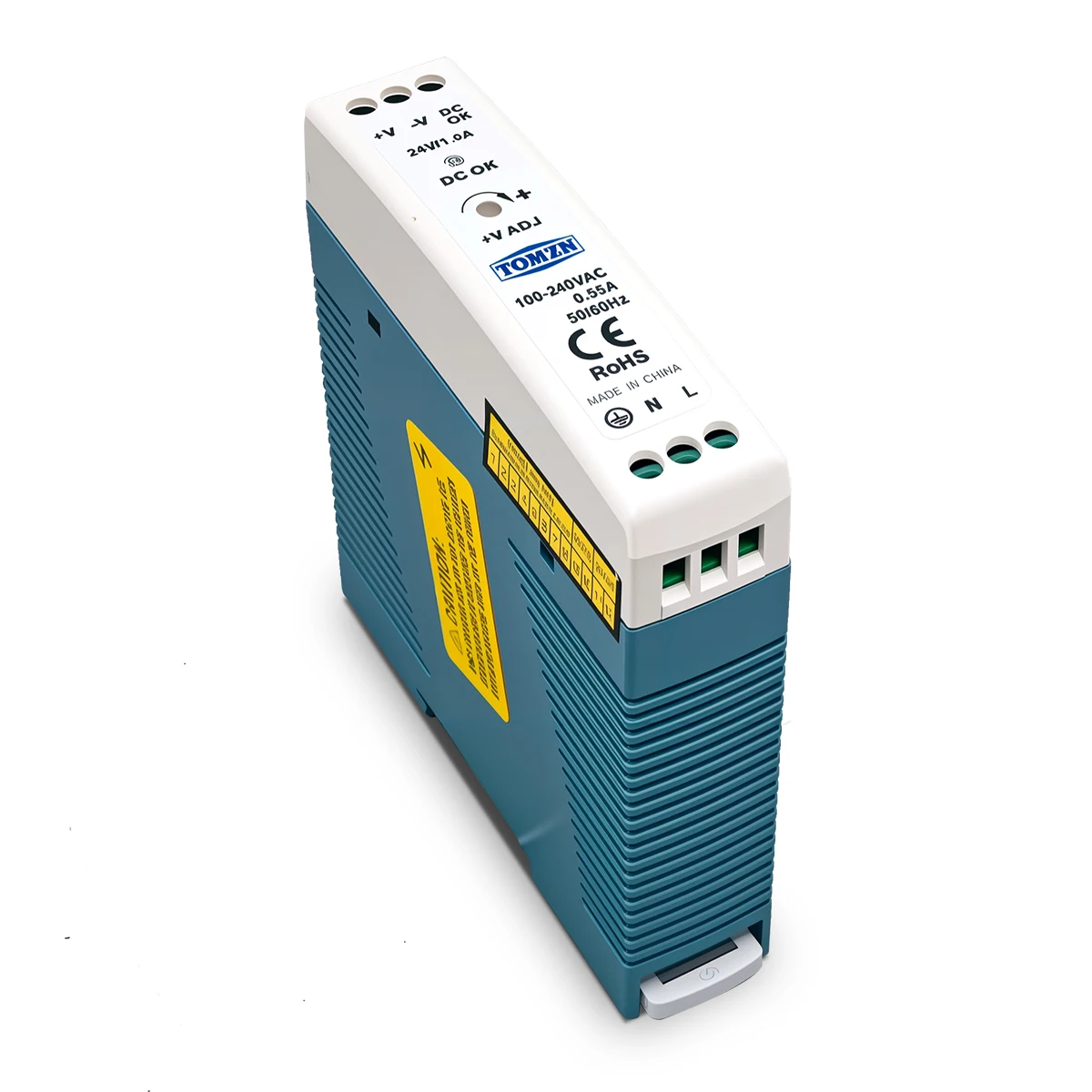

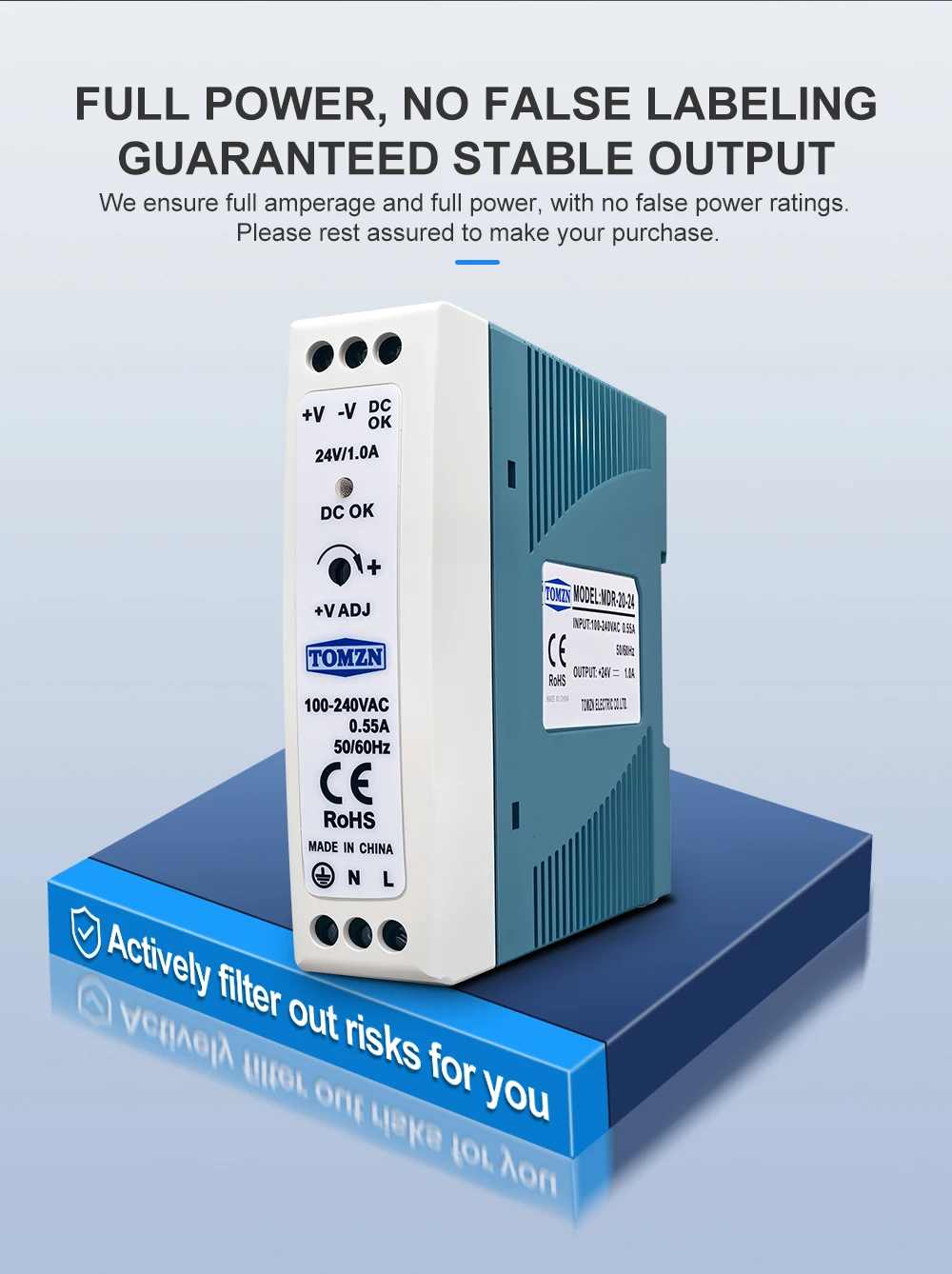

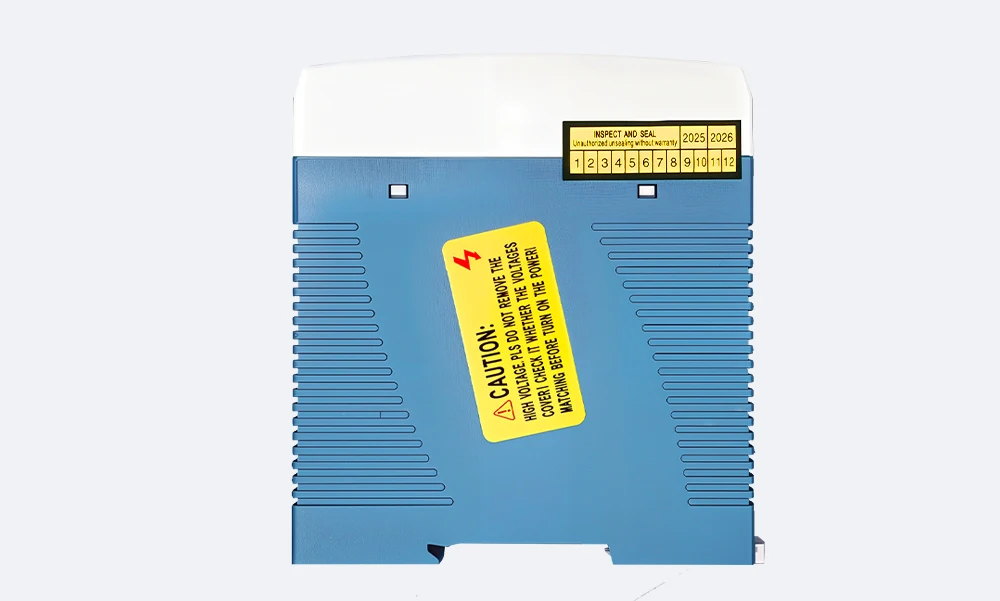

TOMZN DIN RAIL 20W AC-DC SMPS Single Output Switching Power Supply Input 110V 220V Output 5V 12V 15V 24V 36V 48V Adjustable
The TOMZN rail 20 watt AC-DC switching mode power supply is an excellent choice for powering small devices. It supports 110 V and 220 V input voltages, making it easy to adapt to common electrical environments. Single output design, the output voltage can be flexibly adjusted between 5-48 volts, which can accurately match the electricity demand of different small appliances. The rail installation is convenient and efficient, providing a compact and stable power solution for scenarios with limited space.
- Overview
- Recommended Products

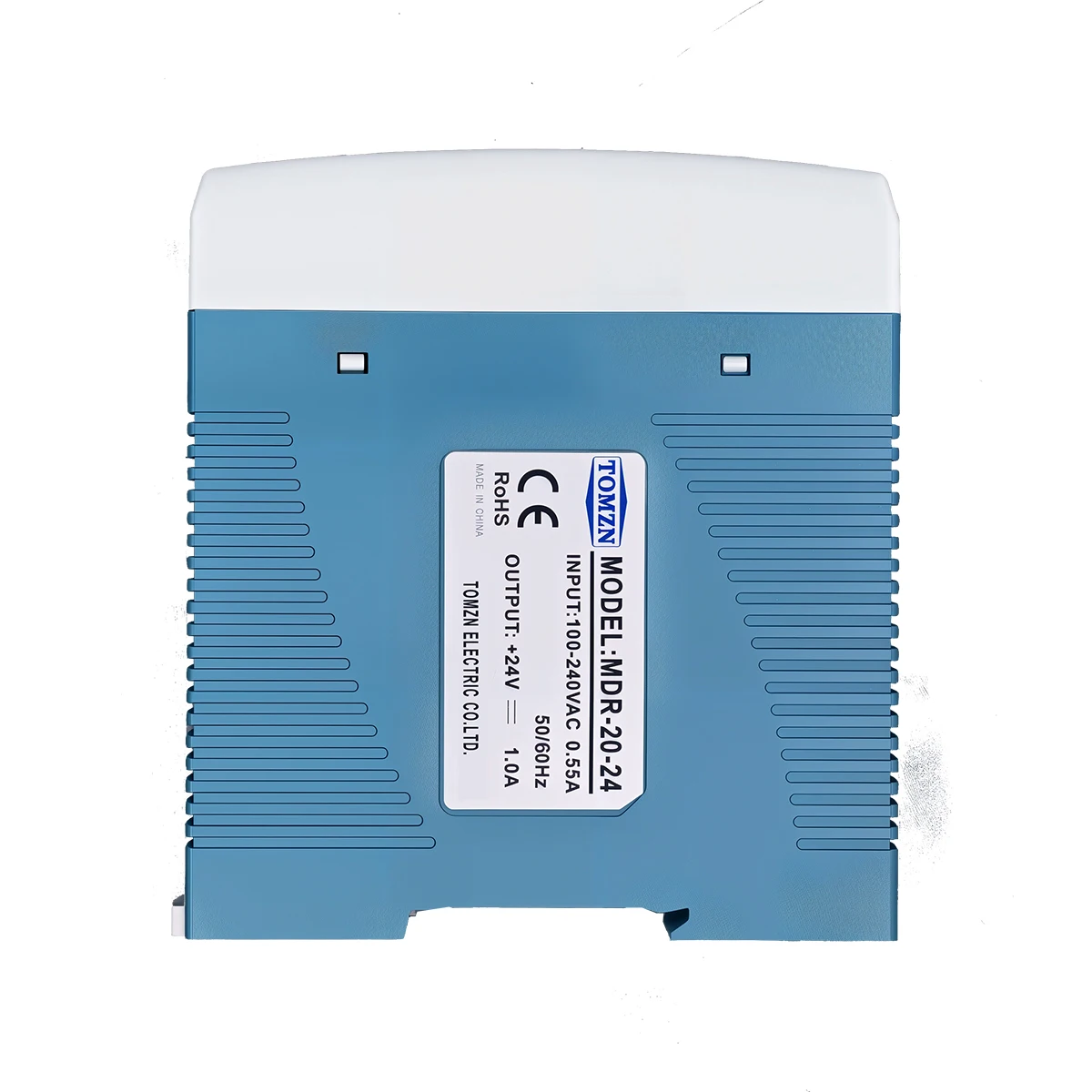

Function: MDR-20 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.

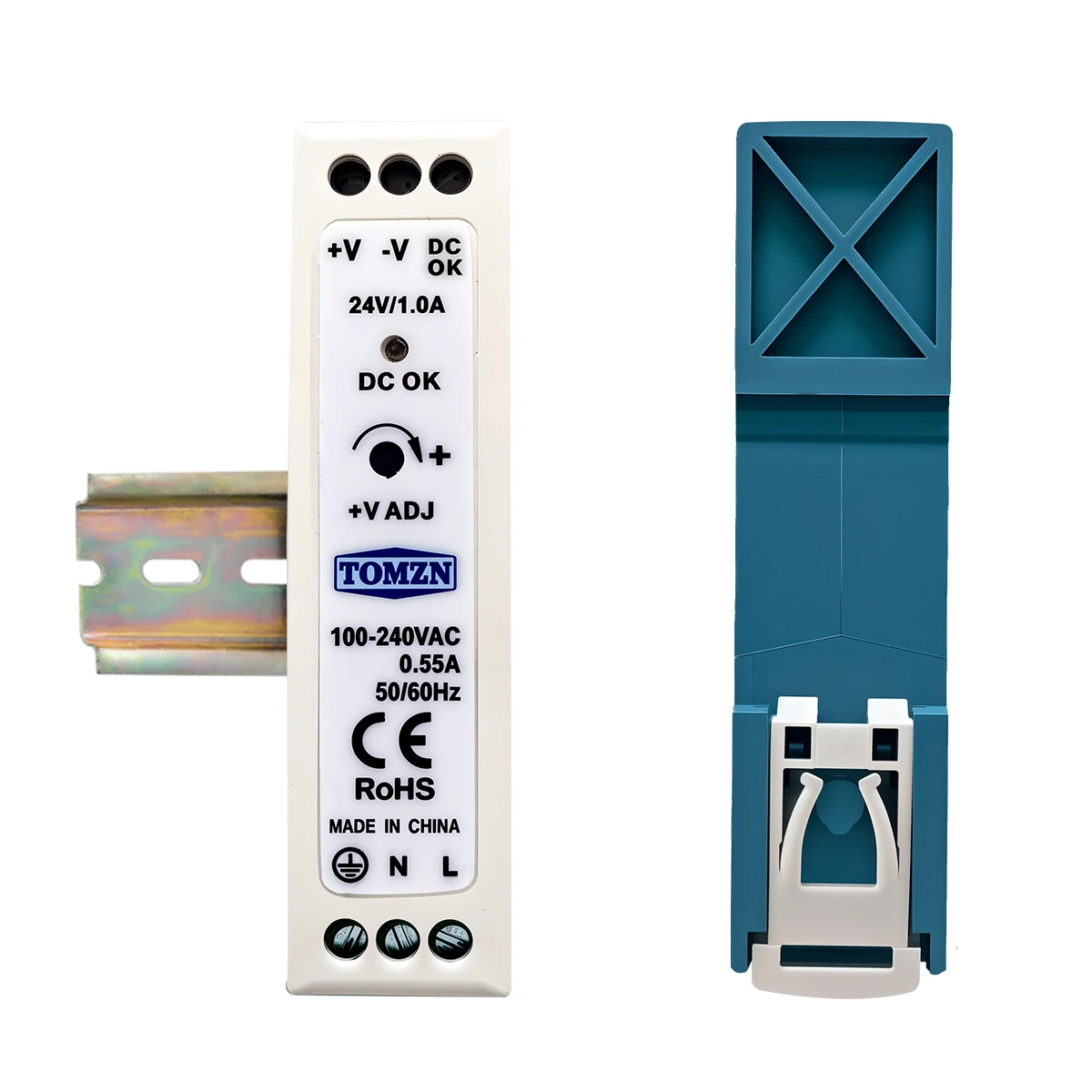

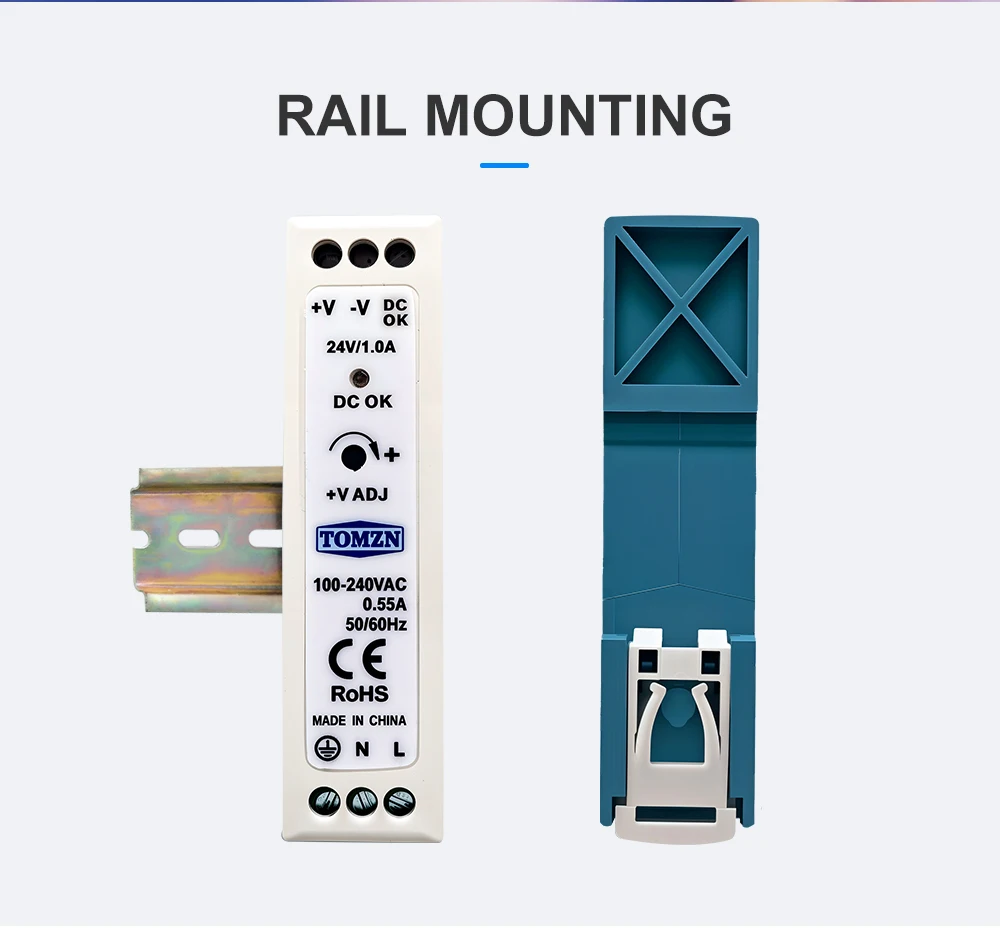

Rail type products, easy to install.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC

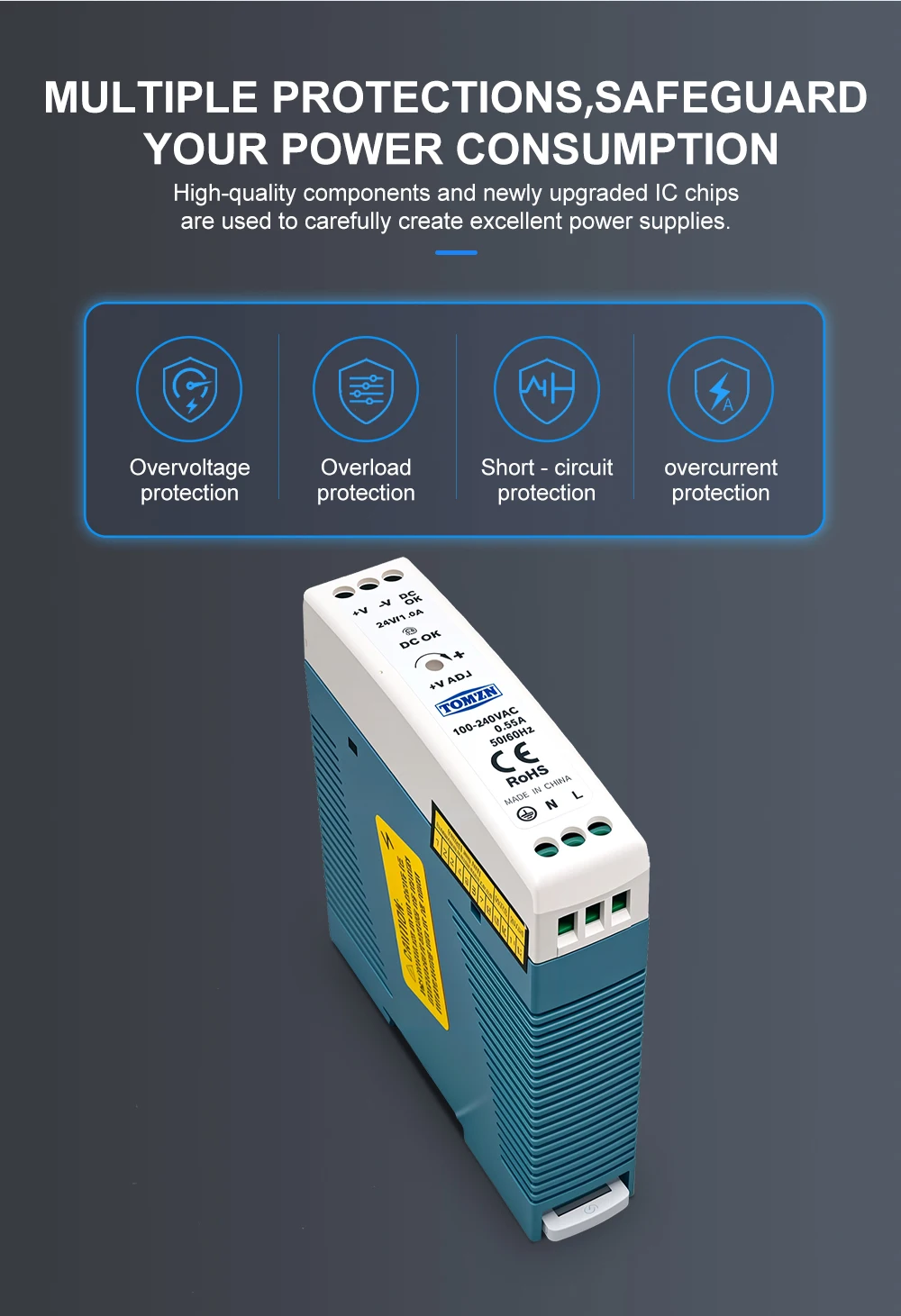

Protections: overload/ over voltage/ short circuit.

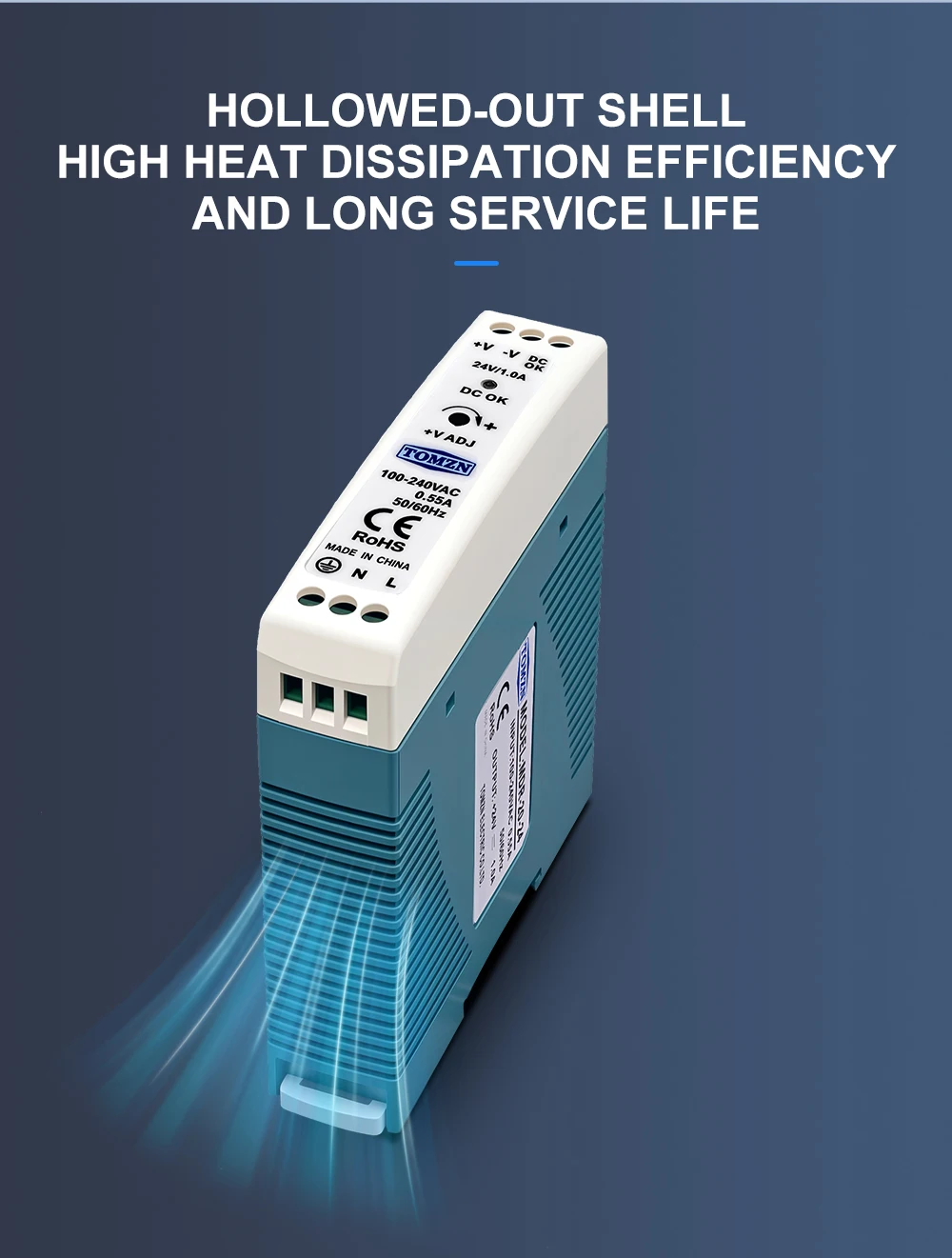

Cooling by free air convection.
(Not suggest for use in bathroom)

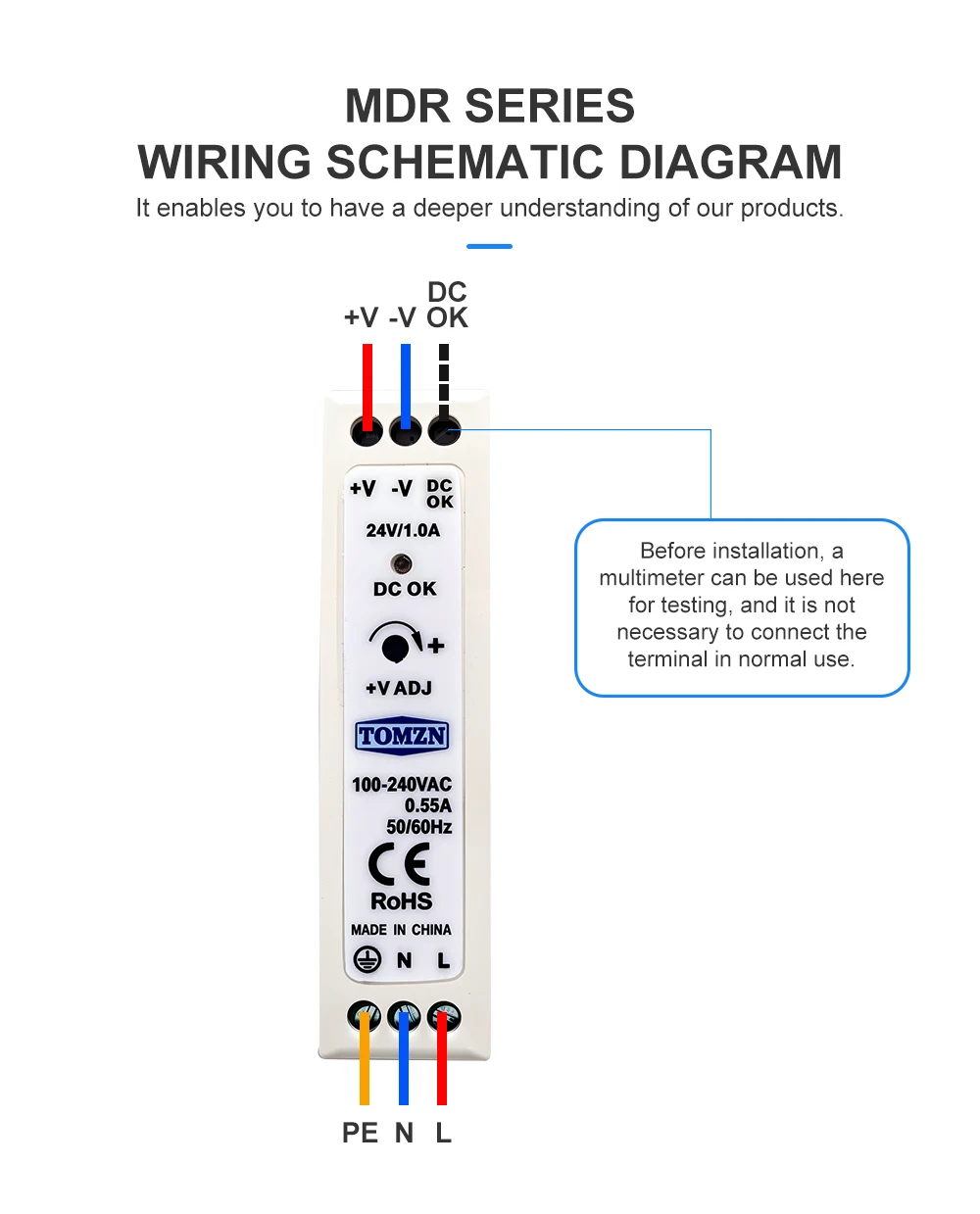

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
