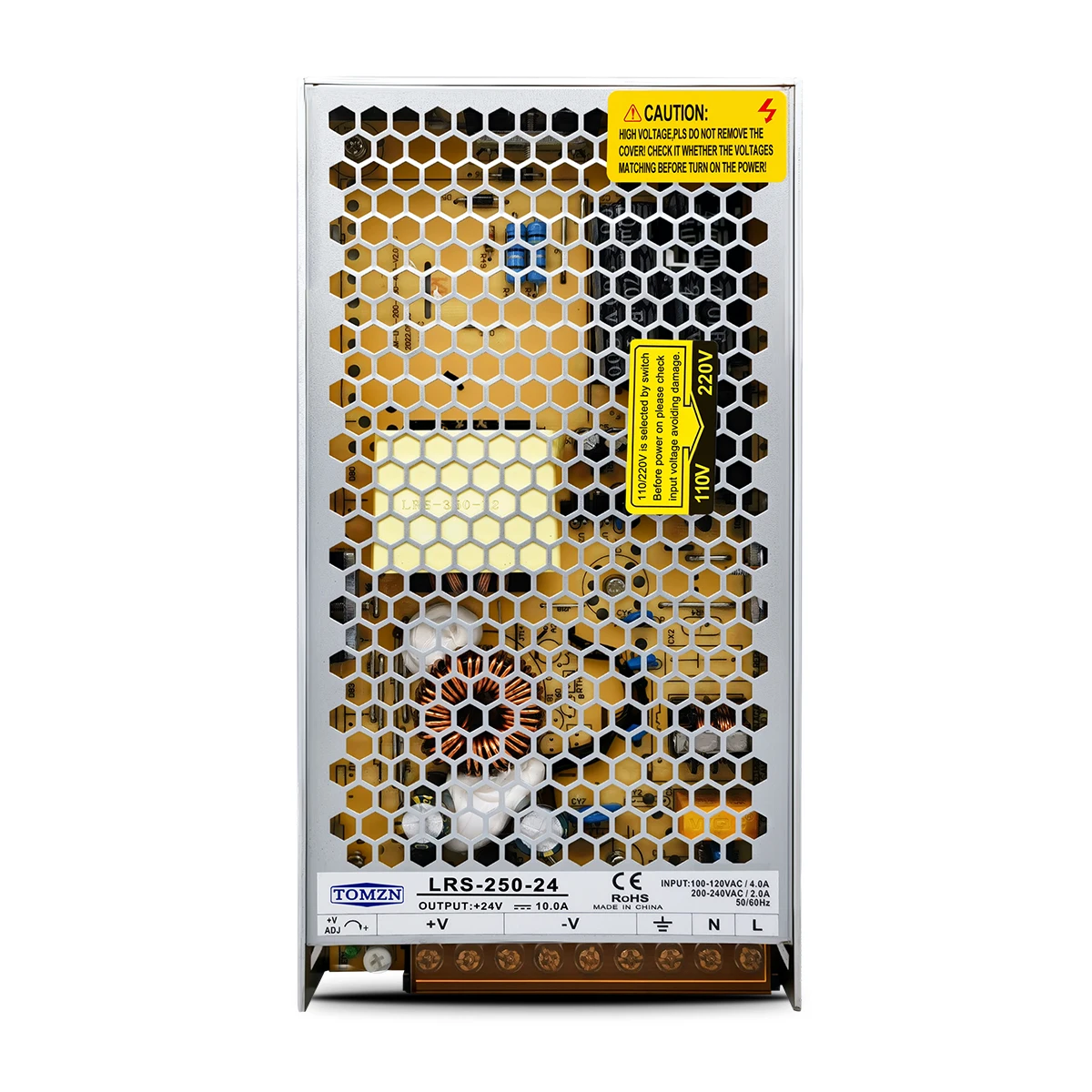

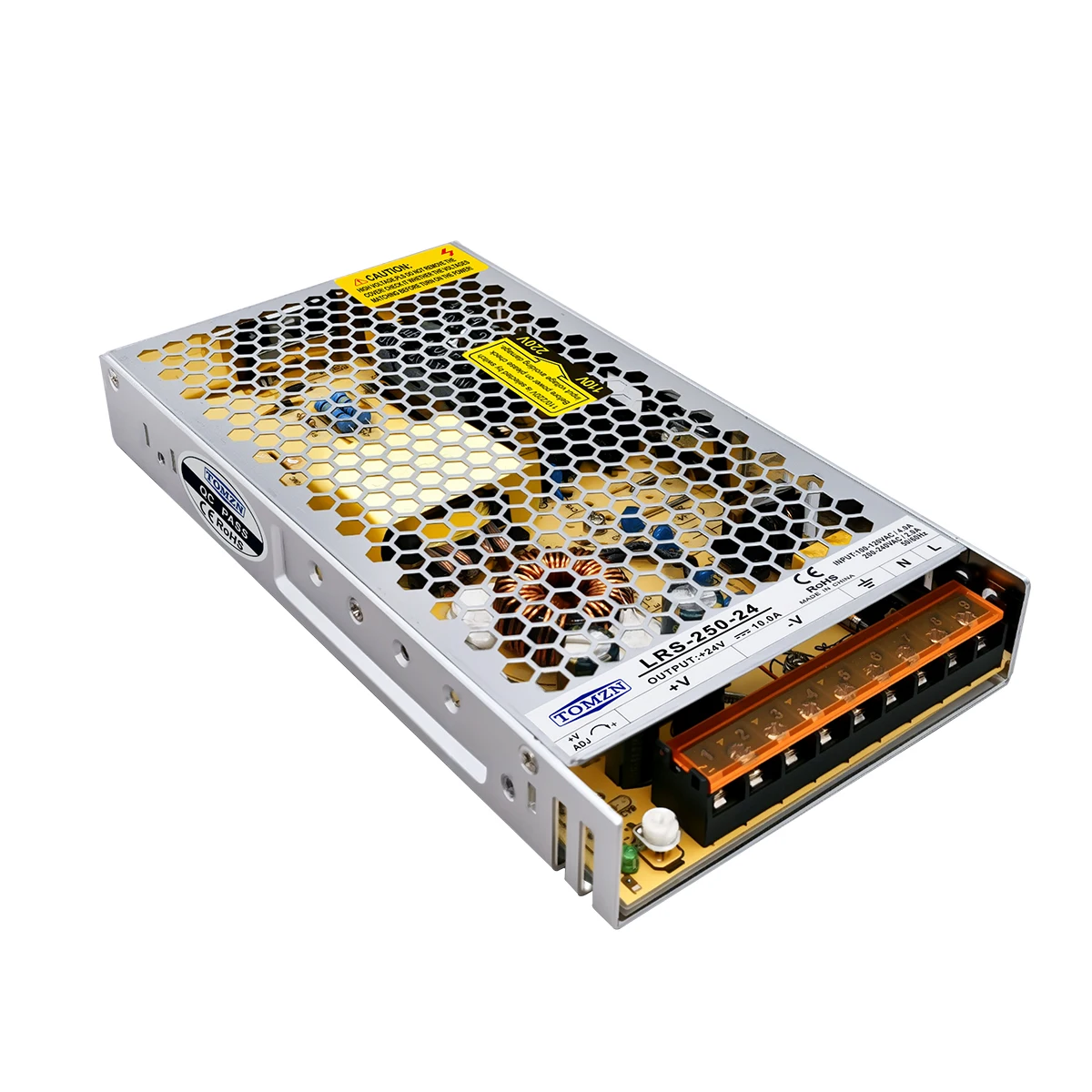

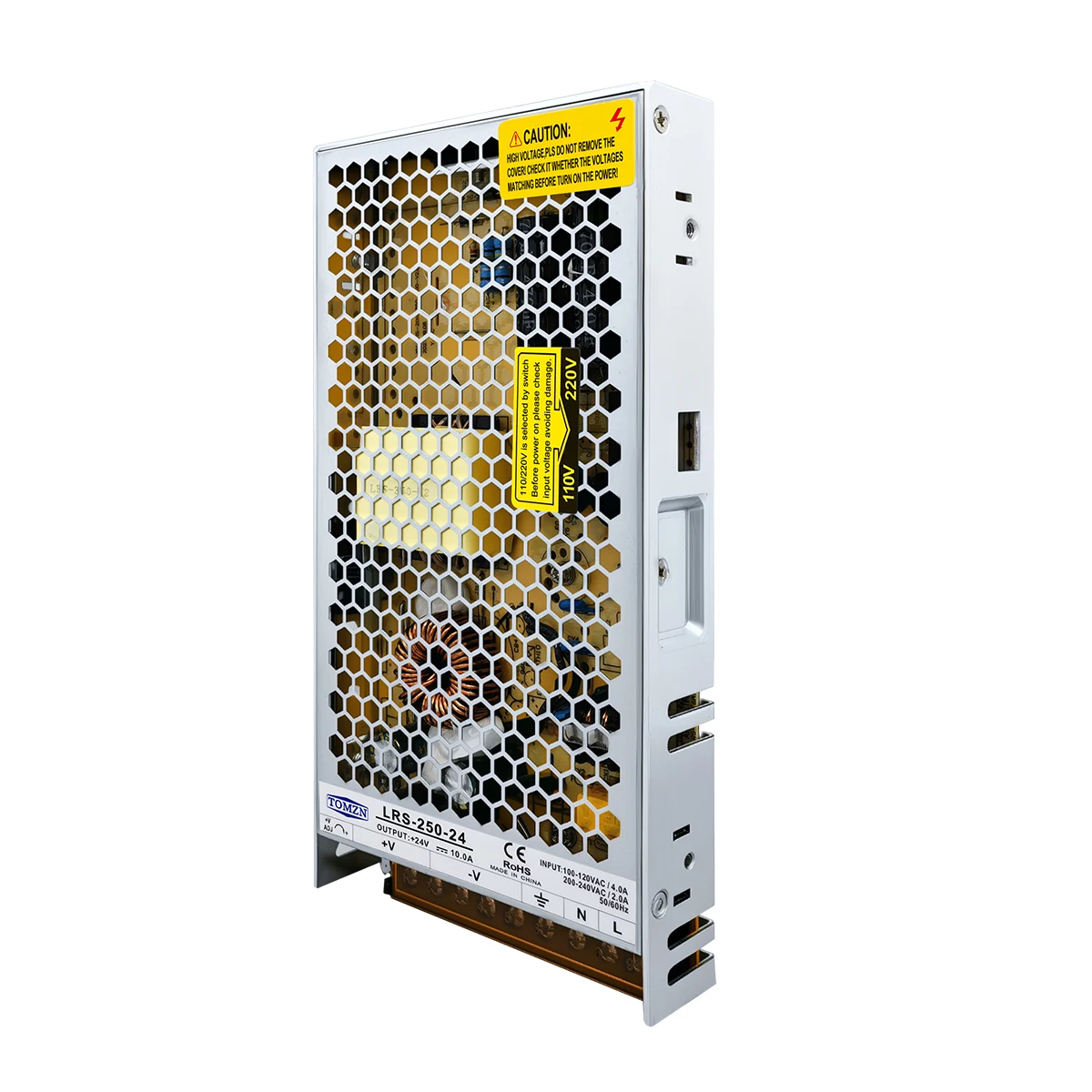

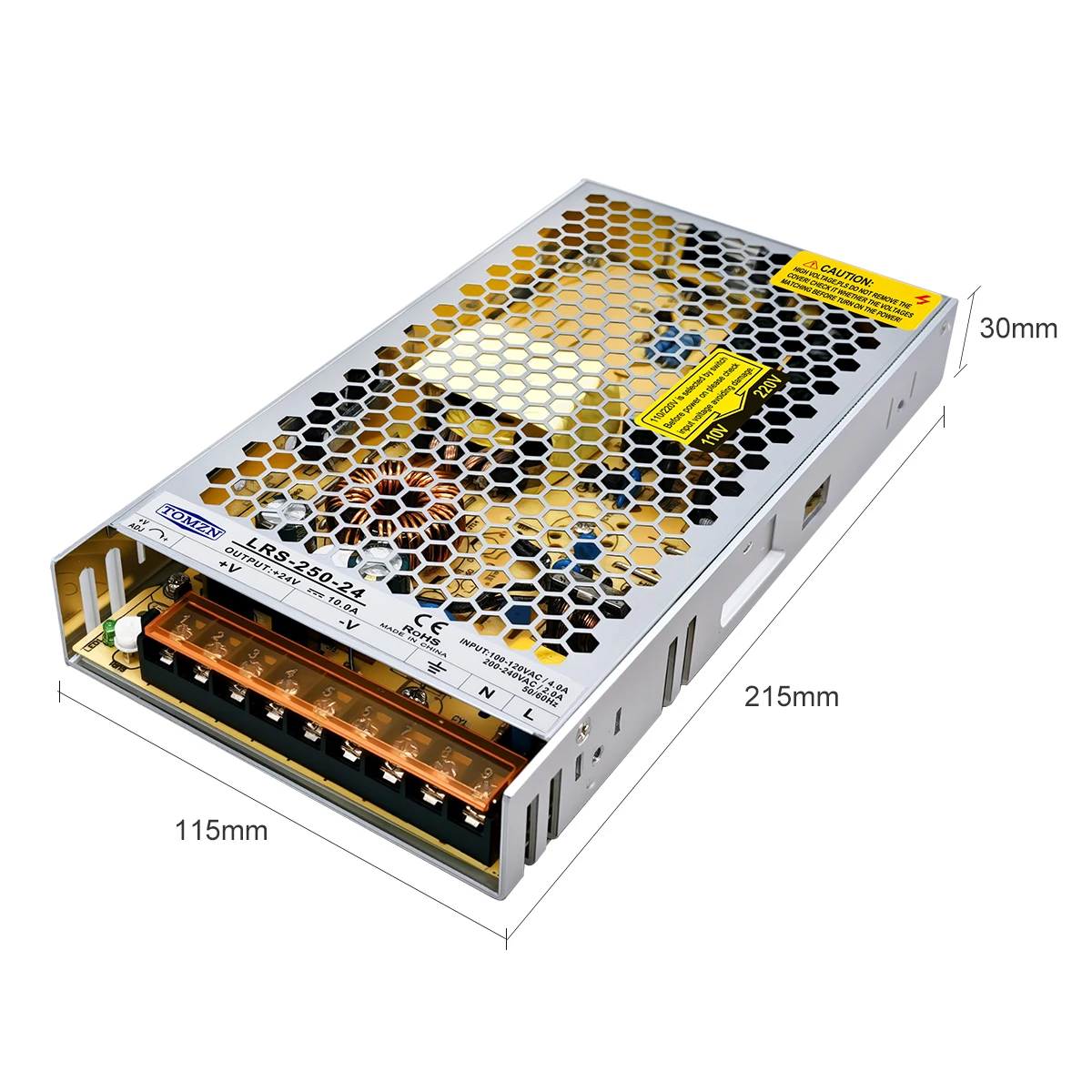

TOMZN 250W AC-DC SMPS Single Output Switching power supply input 110-240V output 5V 12V 15V 24V 36V 48V adjustable for LED
Thomson (TOMZN) 250W AC-DC switching power supply designed for LED lamps. 110-240V wide input, suitable for different regional power grids. Single output, 5-48V voltage adjustable, can accurately match the power needs of various LED lamps. Whether it is indoor LED lighting or outdoor LED display, it can provide stable power supply, ensure the efficient operation of LED lamps with strong power, and create excellent lighting effects.
- Overview
- Recommended Products
Function: LRS-250 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.

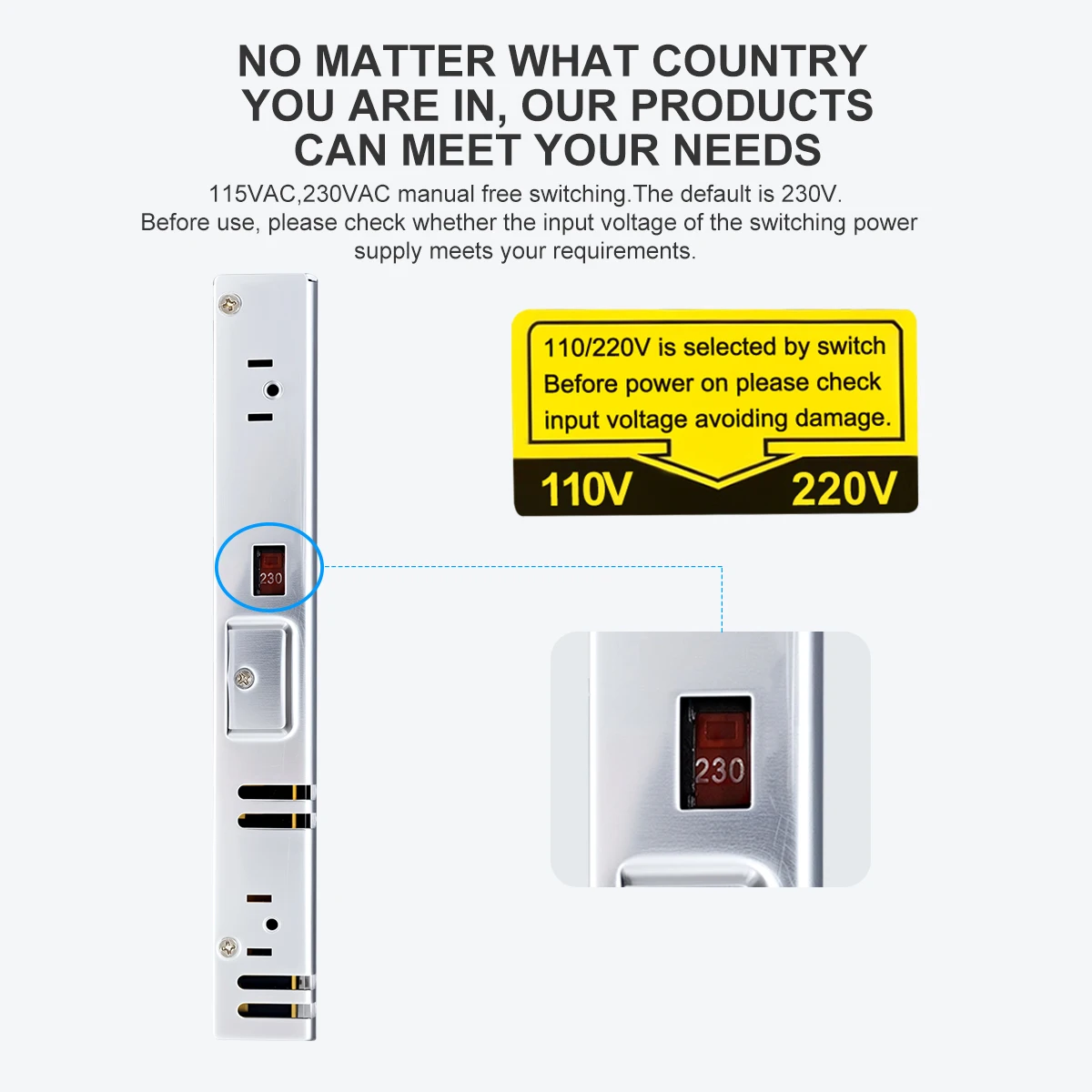

Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
