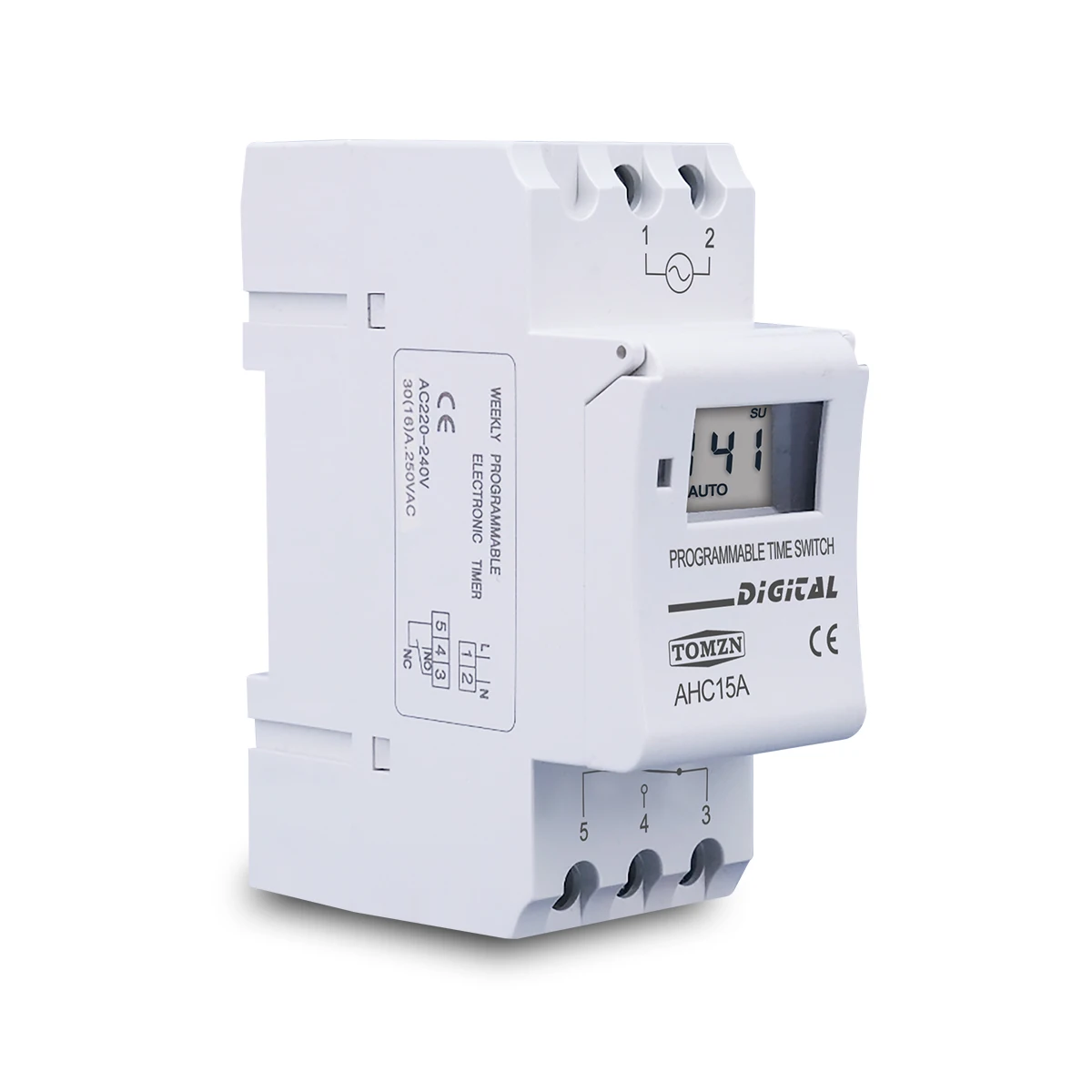

TOMZN Din Rail Weekly 7 Days Programmable Digital TIME SWITCH Relay Timer Control AC 220V 230V 12V 24V 48V 16A

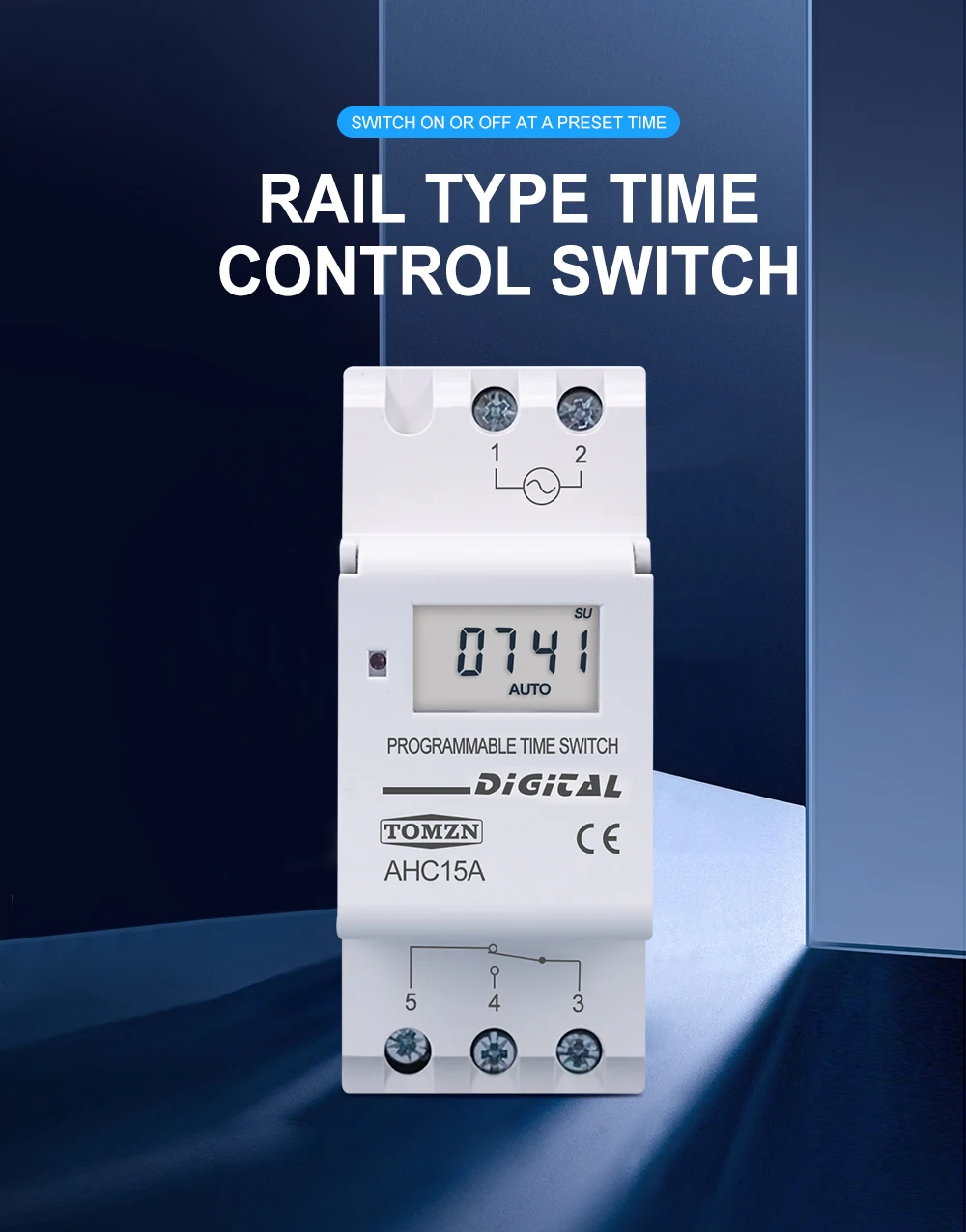

This is the TOMZN Rail Type Relay Timer Switch timer controller. Support for 7 days programming, and can flexibly set the switching time according to the actual needs. Widely used in various practical environment, adapt to 220V, 230V, 12V, 24V, 48V and other voltages. Most of the electrical equipment have a current rating not exceeding 16A. It uses a simple method to install the guideway designed in such a way for ease of maintenance, thus making it an attractive option for users who wish to automate power management and save energy.
- Overview
- Recommended Products
Product attributes
AC DC means the products can work with AC and DC current
AC means the products only work with AC current.
Panel mounted
Advanced pre-setting one week before
Digital electronic timer switch with daily and weekly programs

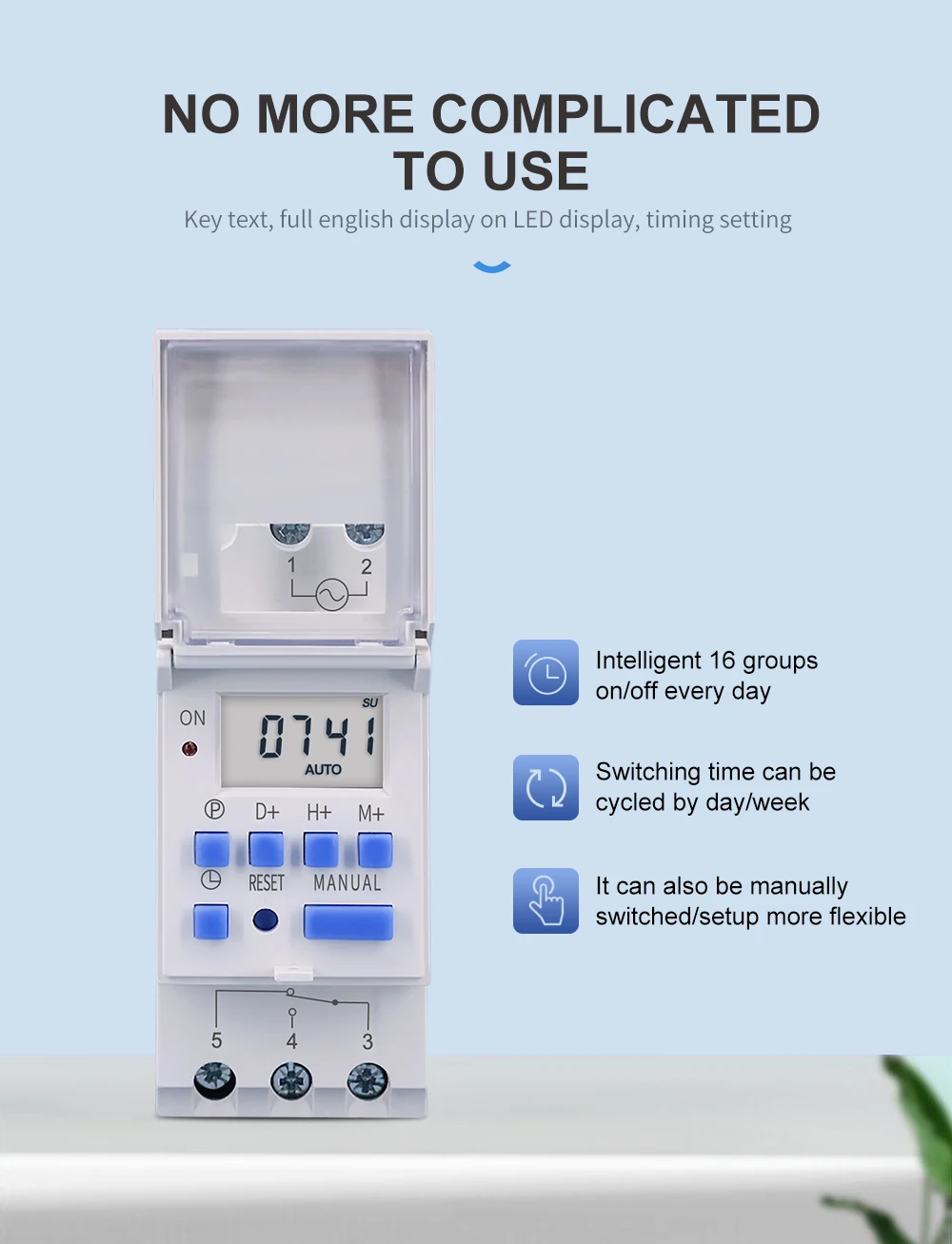

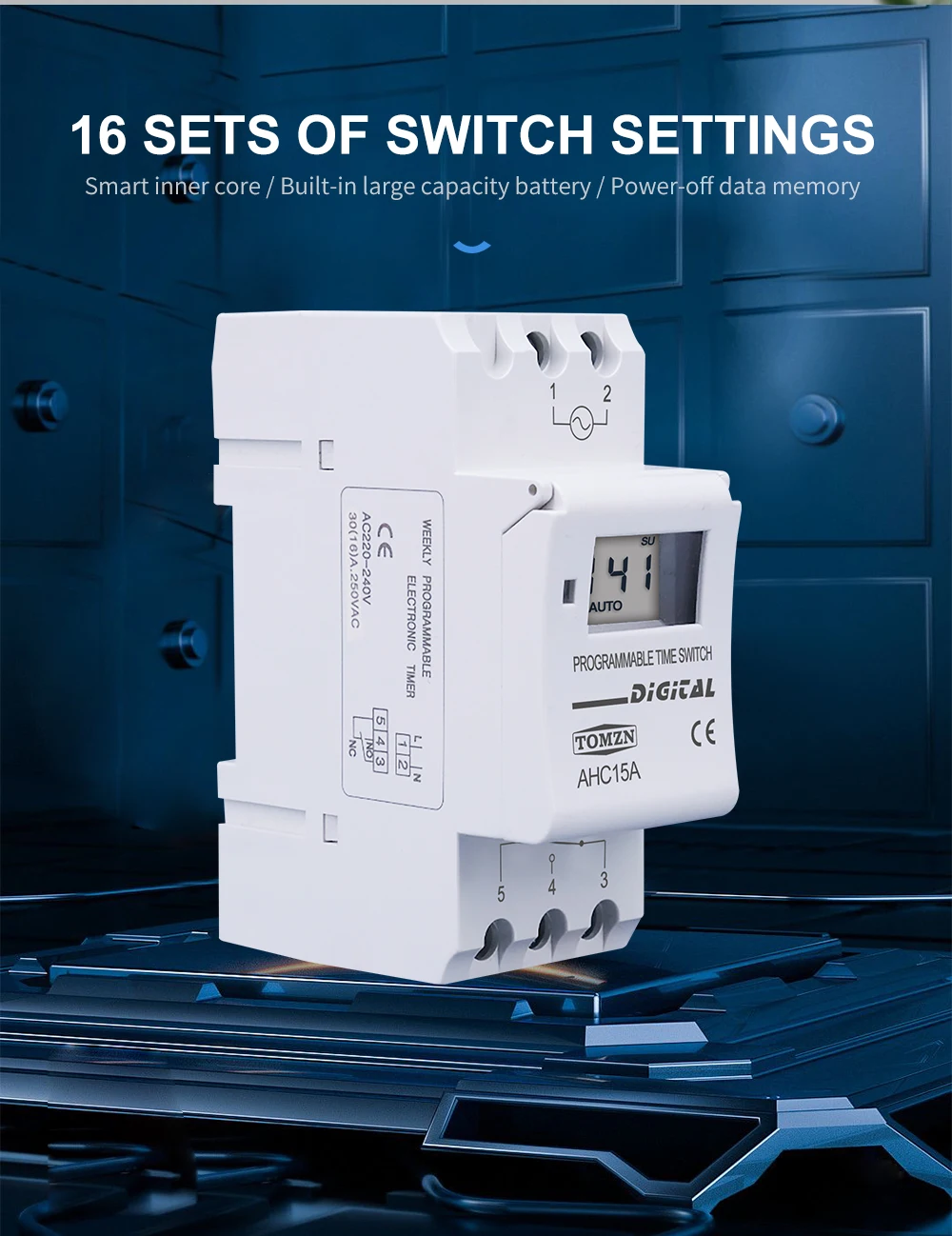

Repeat programs with 16 on/off setting and manual override

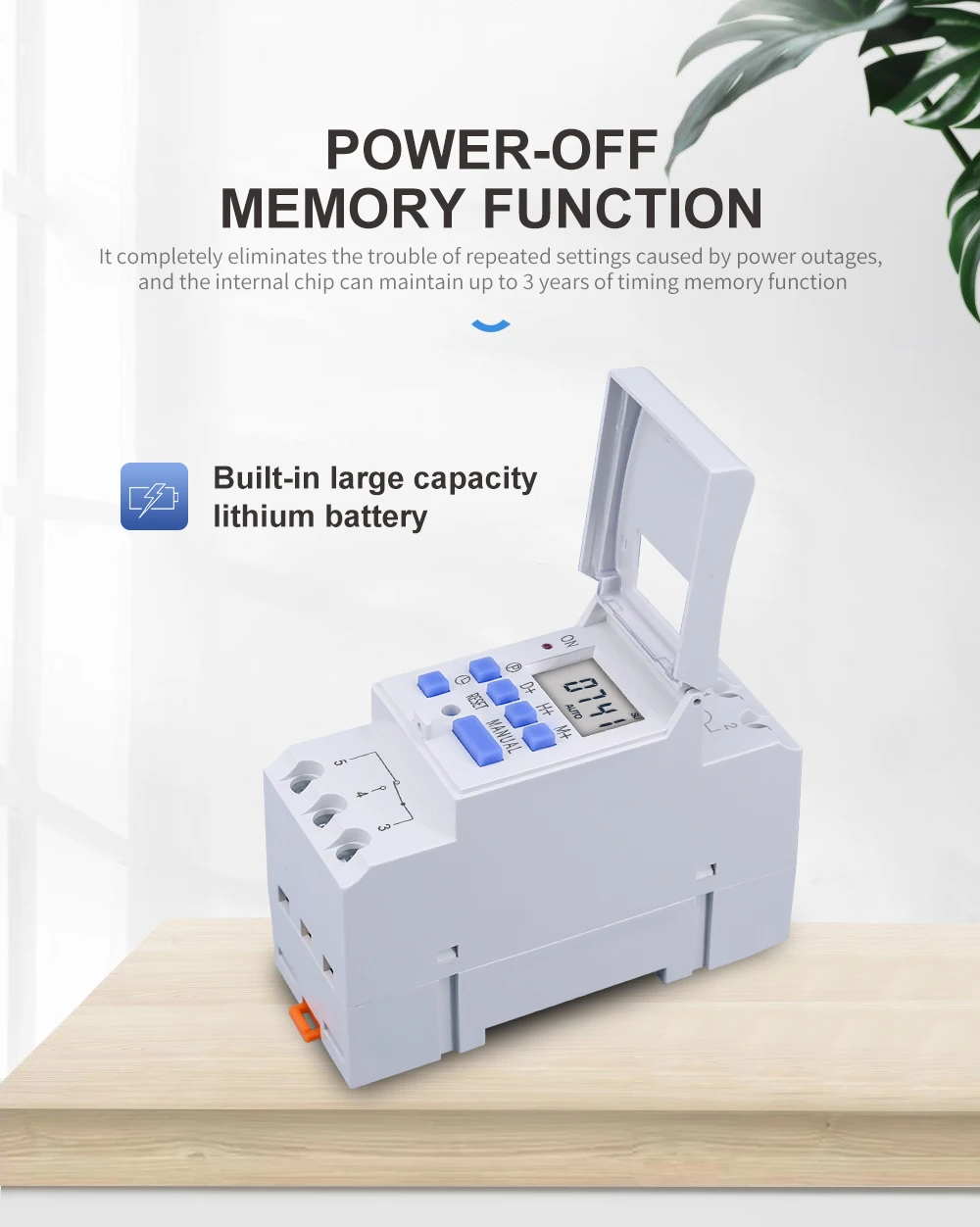

NiH battery power reserve when electric supply cut off

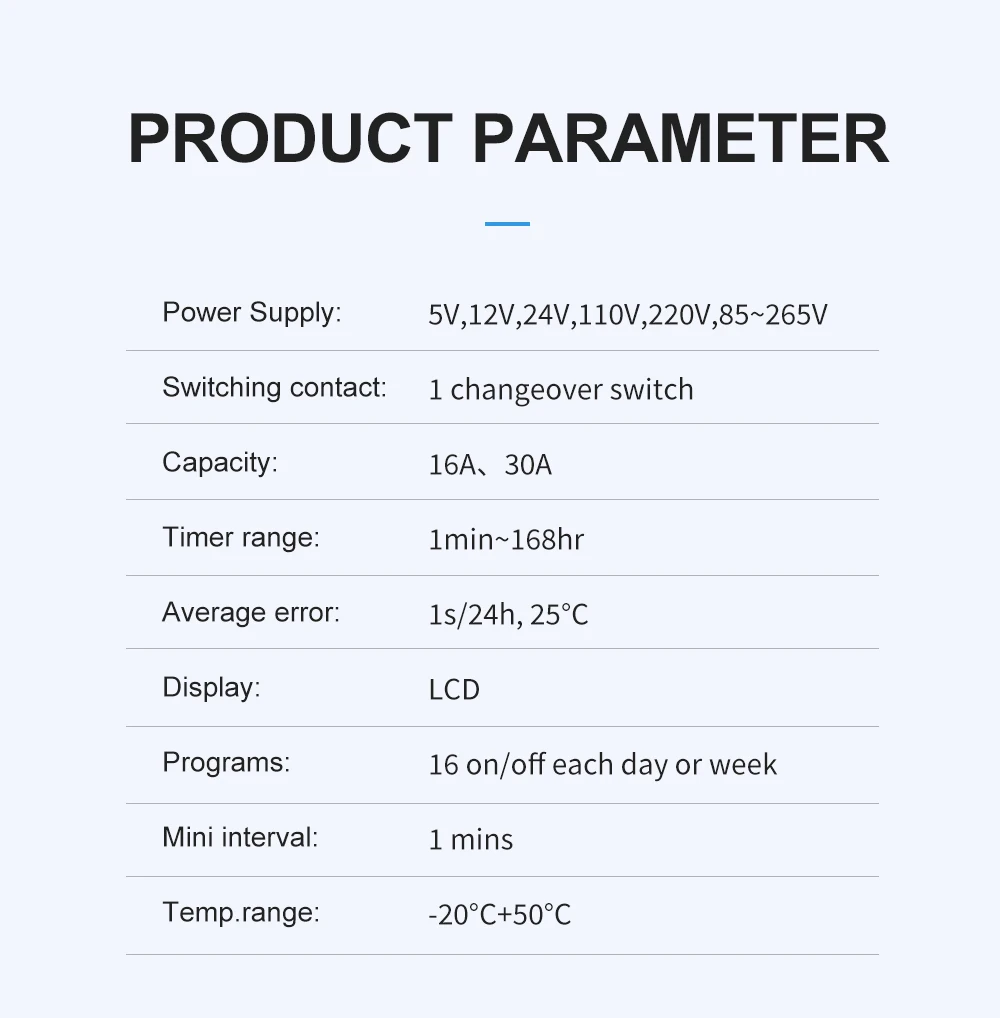

Technical Data:
Model |
AHC15A, AHC30A |
Temp.range: -20°C+50°C |
Power Supply: accorind your order |
Power consumption 4.5 VA (MAX) |
Display: LCD |
Switching contact: 1 changeover switch |
Programs:16 on/off each day or week |
Hysteresis 2 sec/day (25°C) |
Mini interval: 1min |
Capacity: 16(8) 250V AC |
Black-out: 60 days |
Timer range: 1min~168hr |
Recharge battery: 1.2V 40Ma |
Average error: 1s/24h, 25°C |
Weight: 0.15kg |
Package Content:
1 x Digital Timer
1 x English Manual
