TOMZN EDR-75 DIN RAIL 75W AC to DC SMPS Output Switching power supply input 100-240V output 5V 12V 15V 24V 36V 48V adjustable
The Thomson (TOMZN) EDR-75 rail switching power supply supplies the equipment with 75 watts of power. Its wide input voltage range of 100-240 volts is suitable for a variety of power grid environments. The output voltage is flexible and adjustable between 5 and 48 volts to meet the differentiated needs of different equipment for power supply. The guideway design is easy to install and provides a stable and convenient power solution for electrical systems in industrial and commercial scenarios.
- Overview
- Recommended Products
Function: EDR-75 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.

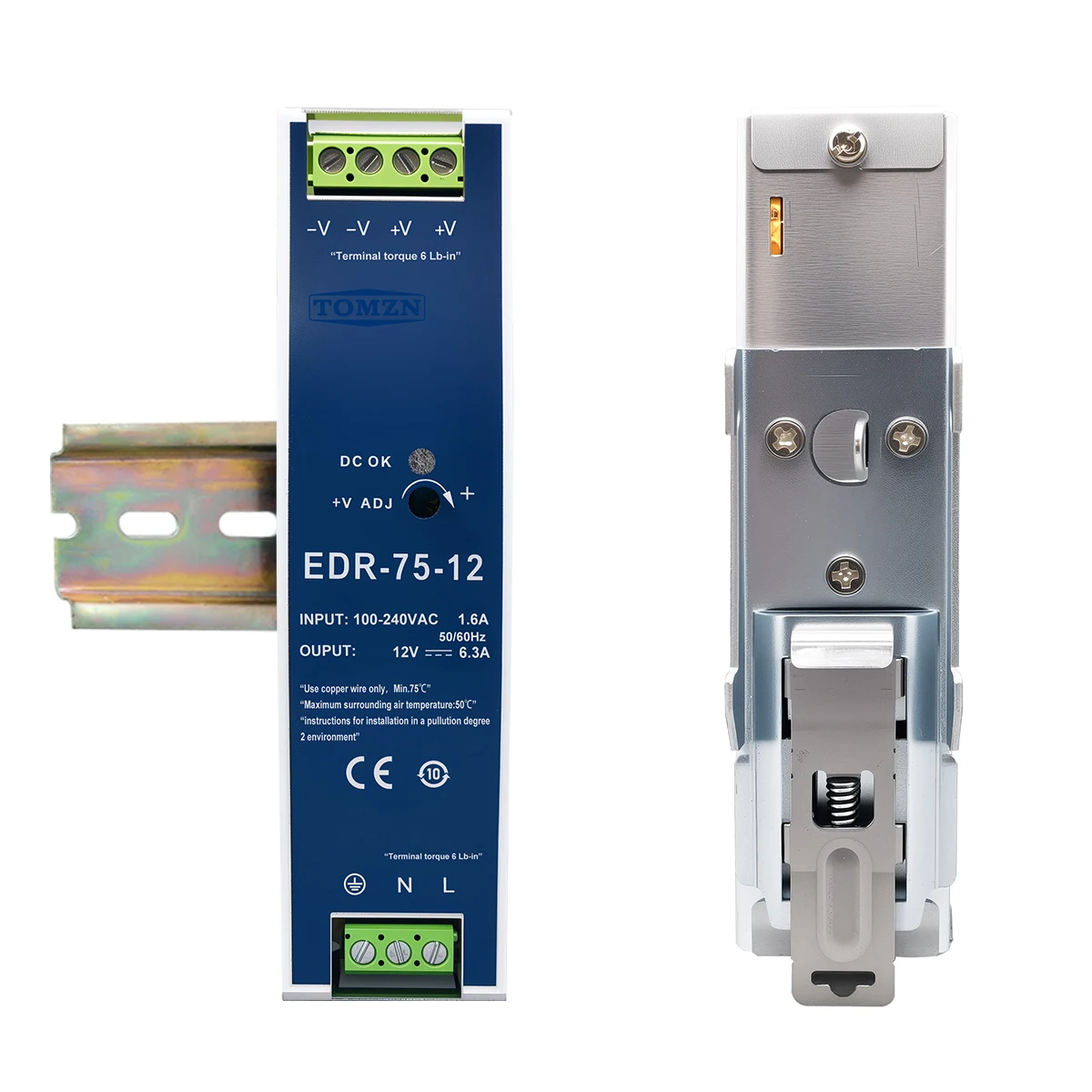

Rail type products, easy to install.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)

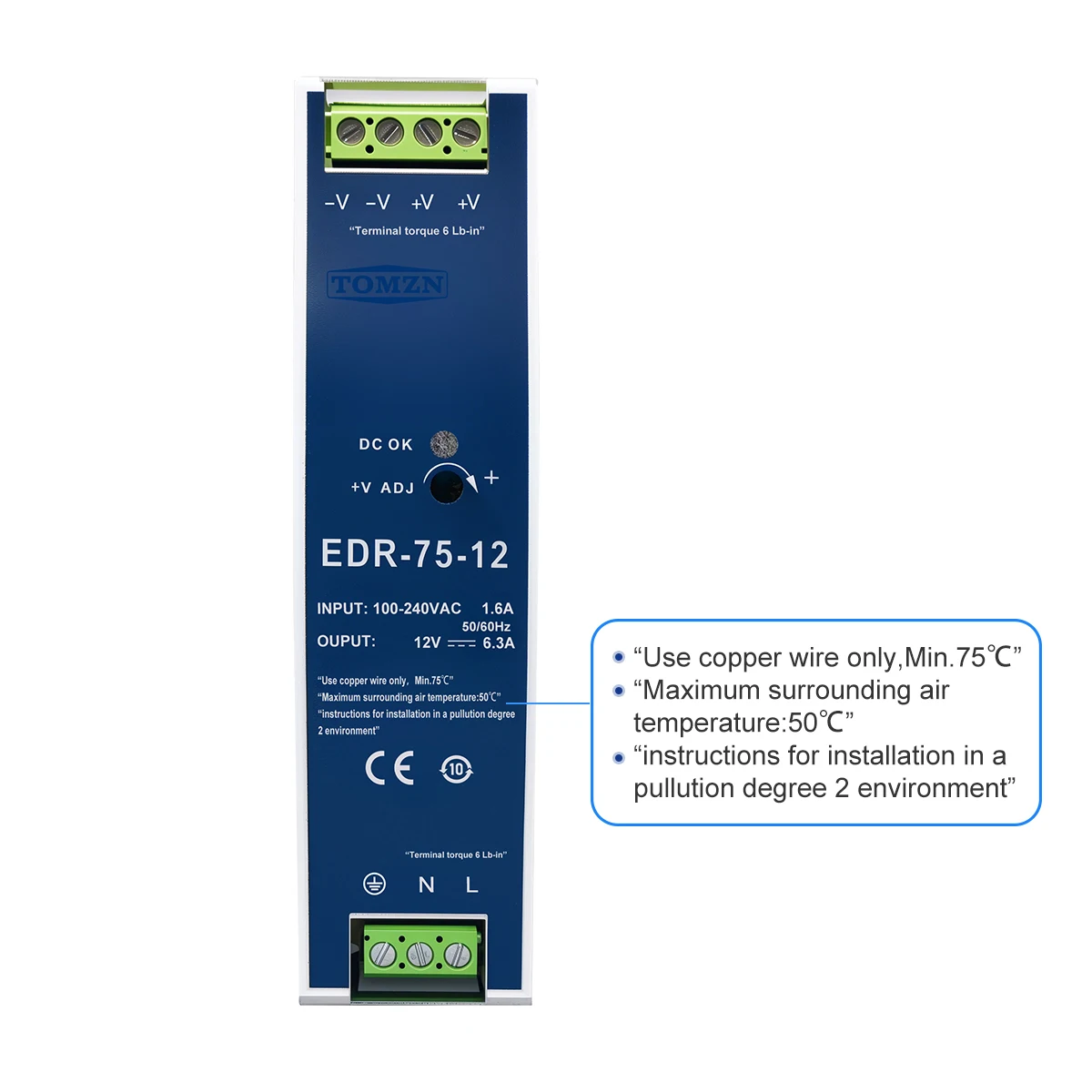

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
