Preventing AC MCB Tripping: 5 Common Causes & Solutions

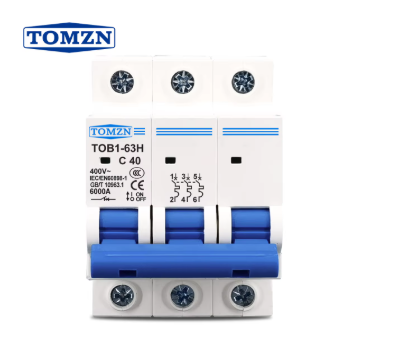

AC MCB (Miniature Circuit Breaker) tripping is a common issue that can leave you without cool air on hot days. An MCB is a safety device that shuts off power to your AC if it detects an electrical overload or fault, preventing damage to the unit or even fires. While it’s designed to protect you, frequent tripping is frustrating. Let’s look at the 5 most common causes of AC MCB tripping and how to fix them.
Overload Due to High Power Consumption
One of the main reasons an AC MCB trips is an overload—when the AC uses more electricity than the MCB can handle.
- Why it happens: AC units, especially window or split models with high cooling capacity (1.5 tons or more), draw a lot of power when starting up. If your MCB is rated too low (e.g., a 10-amp MCB for a 1.5-ton AC that needs 15 amps), it will trip to prevent overload. Other devices sharing the same circuit (like fans, lights, or refrigerators) can add to the load, pushing the MCB over its limit.
- Signs: The MCB trips shortly after turning on the AC, especially if other devices are running on the same circuit.
-
Solution:
- Check the AC’s power requirement (found in the user manual or on the unit’s label). It will say something like “15 amps” or “1.8 kW.”
- Ensure the MCB rating matches or is slightly higher than the AC’s requirement (e.g., a 16-amp MCB for a 15-amp AC).
- Avoid connecting other high-power devices (like microwaves or irons) to the same circuit as the AC. Use a separate circuit if possible.
Upgrading to a correctly rated MCB or separating the AC onto its own circuit often fixes this issue.
Short Circuit in the AC Wiring
A short circuit occurs when live wires touch neutral or ground wires, creating a sudden surge of electricity that trips the MCB.
- Why it happens: Over time, AC wires can get damaged—insulation wears out, rodents chew through wires, or water seeps into connections (common in window ACs placed near rain). This causes live and neutral wires to touch, triggering a short circuit.
- Signs: The MCB trips immediately when the AC is turned on, or even when the AC is off but plugged in. You might smell burning plastic or see sparks near the AC plug or wiring.
-
Solution:
- Turn off the main power and unplug the AC.
- Check the power cord for cuts, frays, or damage. If the cord is damaged, replace it with a new one (matching the AC’s power rating).
- Inspect the AC’s internal wiring (if you’re comfortable) or call a technician. Look for loose connections, burnt wires, or signs of rodent damage.
- Ensure the AC’s plug and socket are clean and dry—moisture can cause short circuits. Use a waterproof cover for outdoor sockets.
A technician can test the wiring with a multimeter to find hidden short circuits.
Faulty Compressor or Motor
The compressor (the heart of the AC) and fan motor are high-power parts. If they malfunction, they can draw excess current and trip the MCB.
- Why it happens: The compressor uses a motor to pump refrigerant. If the motor is dirty, overheats, or has worn-out parts (like bearings), it struggles to run and draws more electricity than normal. Similarly, a faulty fan motor (in the indoor or outdoor unit) can cause a power surge.
- Signs: The MCB trips after the AC runs for a few minutes. The AC might make strange noises (grinding, buzzing) before tripping, or it might blow warm air.
-
Solution:
- Clean the outdoor unit: Dirt, leaves, and debris block airflow, causing the compressor to overheat. Use a hose to gently clean the fins (turn off the AC first).
- Check for refrigerant leaks: Low refrigerant makes the compressor work harder. A technician can test for leaks and refill the refrigerant.
- Repair or replace faulty motors: If cleaning doesn’t work, a technician will check the compressor and fan motors. Worn parts can be replaced, but a severely damaged compressor may need to be replaced entirely.
Regular maintenance (like cleaning and refrigerant checks) can prevent motor issues.
Loose or Corroded Connections
Loose or corroded electrical connections in the AC or MCB box can cause resistance, leading to heat buildup and tripping.
- Why it happens: Over time, wires in the MCB box, AC plug, or internal terminals can loosen due to vibrations (from the AC running) or poor installation. Corrosion (from moisture or humidity) forms on metal connections, making them conduct electricity poorly. This resistance creates heat, which triggers the MCB’s safety mechanism.
- Signs: The MCB trips intermittently, especially when the AC is running. You might feel warm spots near the plug or MCB box.
-
Solution:
- Turn off the power and tighten all connections: Check the MCB terminals, the AC’s power plug, and the wires connecting the AC to the main supply. Use a screwdriver to tighten loose screws.
- Clean corroded parts: Use sandpaper to gently remove corrosion from metal connections. Apply a thin layer of electrical grease to prevent future corrosion.
- Replace damaged plugs or sockets: If the plug is cracked or the socket is loose, replace them with new ones rated for the AC’s power.
Tight, clean connections reduce resistance and prevent unnecessary tripping.
Voltage Fluctuations
High or low voltage in your home’s electrical supply can cause the AC to draw irregular current, tripping the MCB.
- Why it happens: In areas with unstable power grids, voltage can spike (surge) or drop suddenly. A voltage spike can overload the AC’s circuits, while a drop makes the AC’s motor draw more current to compensate—both trigger the MCB.
- Signs: The MCB trips during storms, at peak usage times (morning/evening), or when other large appliances (like pumps) turn on. Lights might flicker before the trip.
-
Solution:
- Install a voltage stabilizer: A stabilizer regulates the voltage, ensuring the AC gets a steady supply (most ACs need 220-240V). Choose a stabilizer rated for your AC’s capacity (e.g., a 2-ton AC needs a 3kVA stabilizer).
- Use a surge protector: This shields the AC from sudden voltage spikes (common during lightning storms).
- Contact your electricity provider: If fluctuations are frequent, report the issue—they may need to repair local power lines.
A voltage stabilizer is the most effective way to protect the AC and prevent MCB trips from unstable power.
FAQ
How do I know if my AC MCB is rated correctly?
Check the AC’s power label (look for “current rating” or “amps”). Your MCB should be 1-2 amps higher than this number. For example, a 15-amp AC needs a 16-amp MCB.
Can a dirty AC filter cause MCB tripping?
Yes, indirectly. A dirty filter blocks airflow, making the AC work harder and overheat, which can cause the motor to draw more current and trip the MCB. Clean filters monthly.
Why does my AC MCB trip only at night?
Nighttime often brings higher humidity or voltage fluctuations (as more people use electricity). It could also be that other devices (like fans, TVs) are on the same circuit, increasing the load.
Is it safe to reset the MCB after it trips?
Yes, but only once. If it trips again immediately, there’s a problem—don’t keep resetting it, as this can damage the AC or cause a fire. Find and fix the cause first.
Do split ACs trip MCBs more than window ACs?
No, both can trip MCBs for the same reasons (overload, short circuits, etc.). Split ACs have more wiring (indoor to outdoor unit), so loose connections in that wiring are a common cause.
