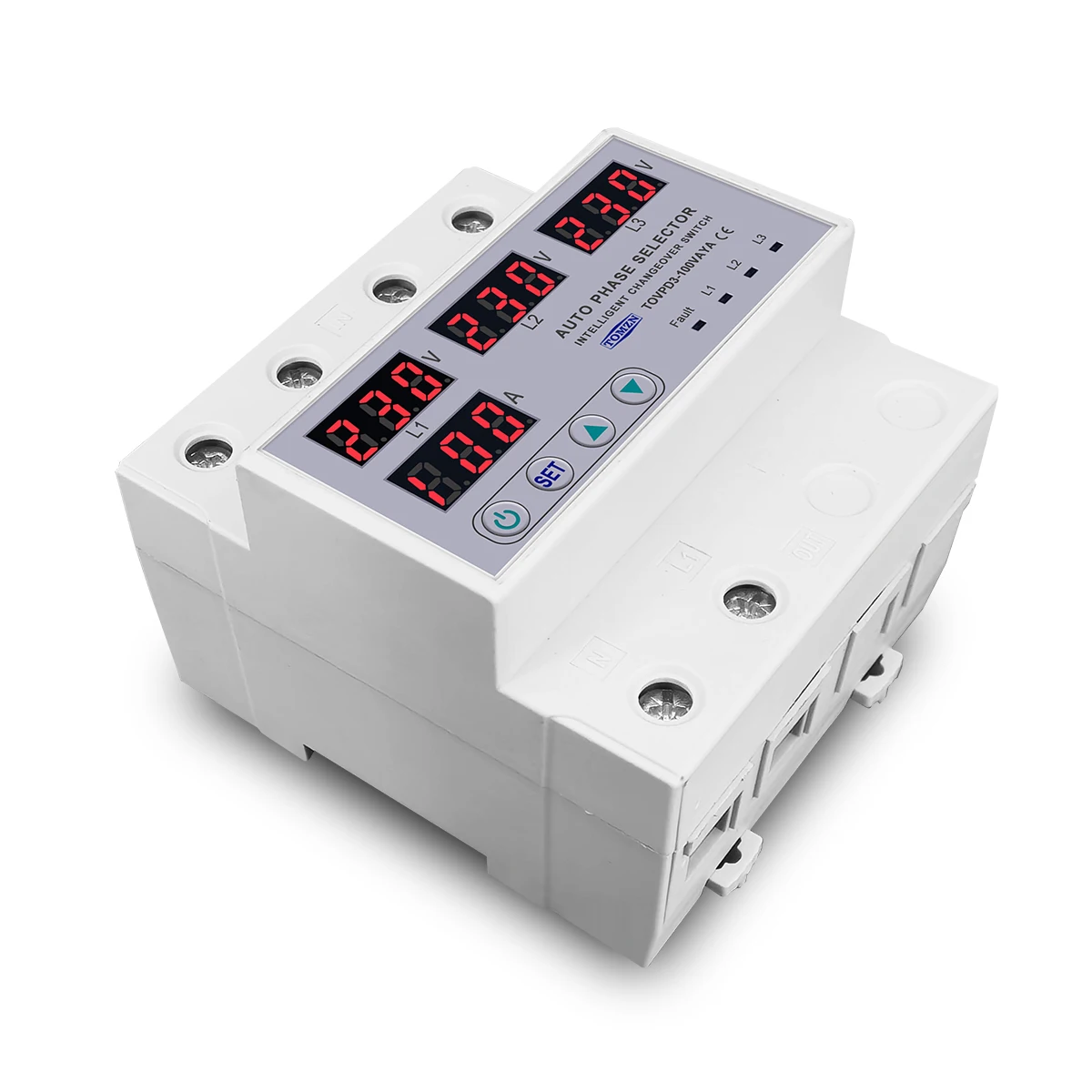

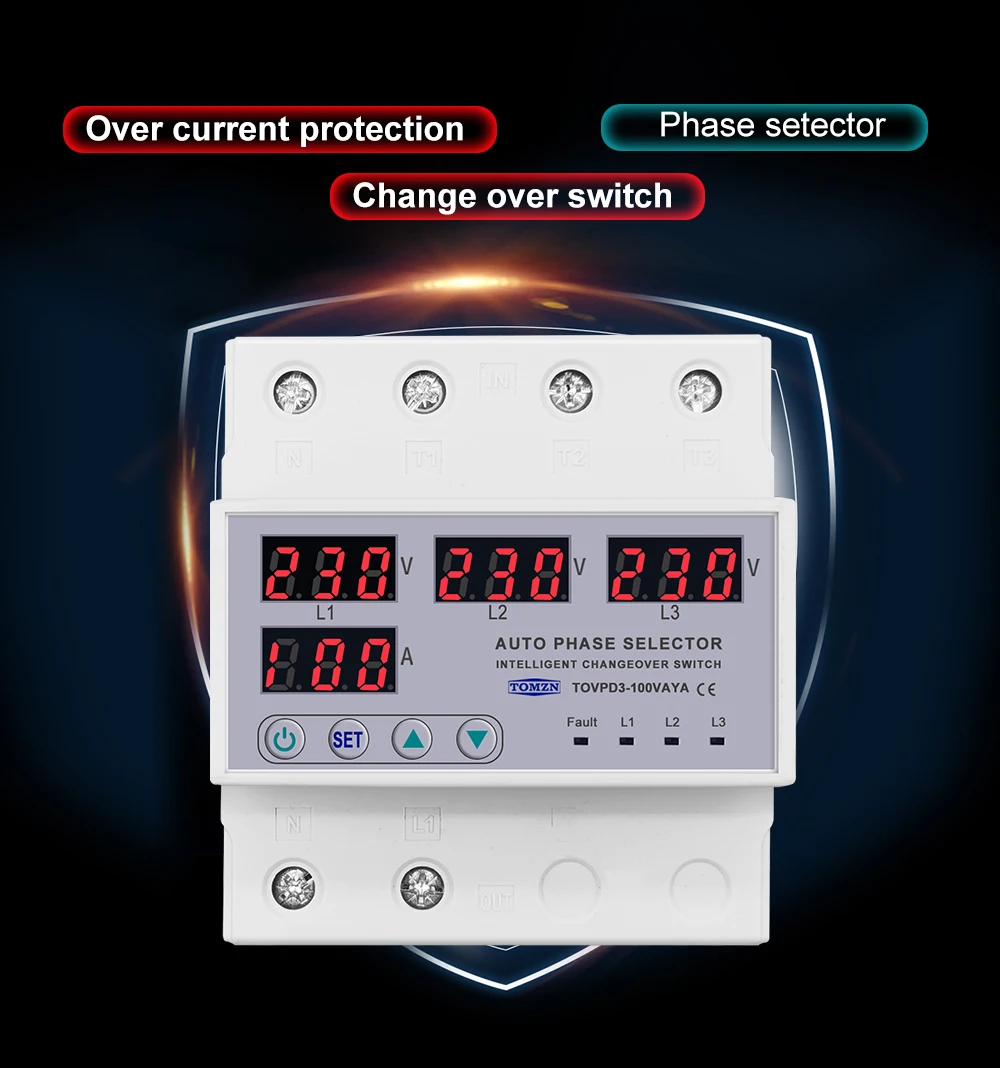

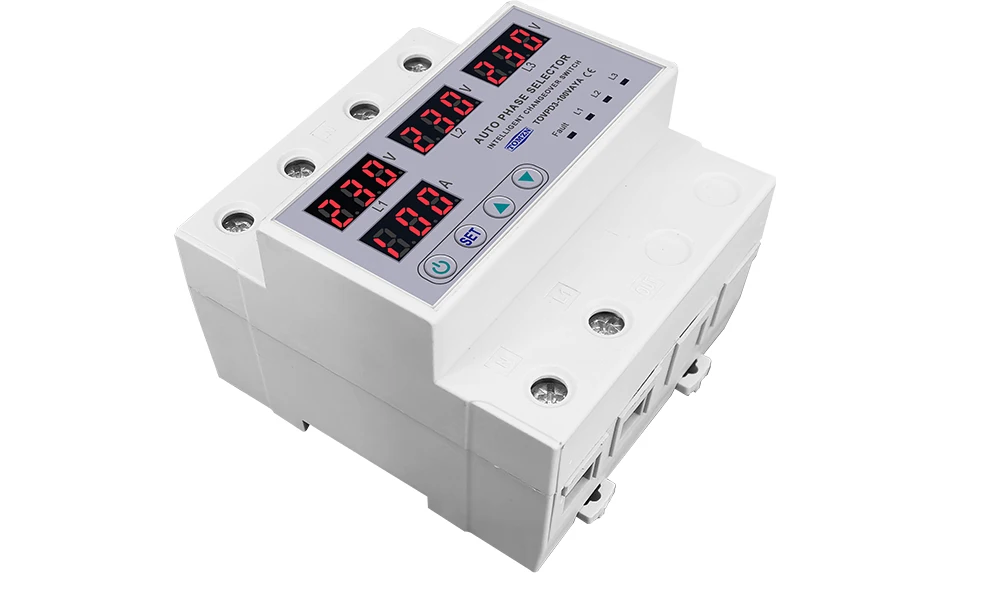

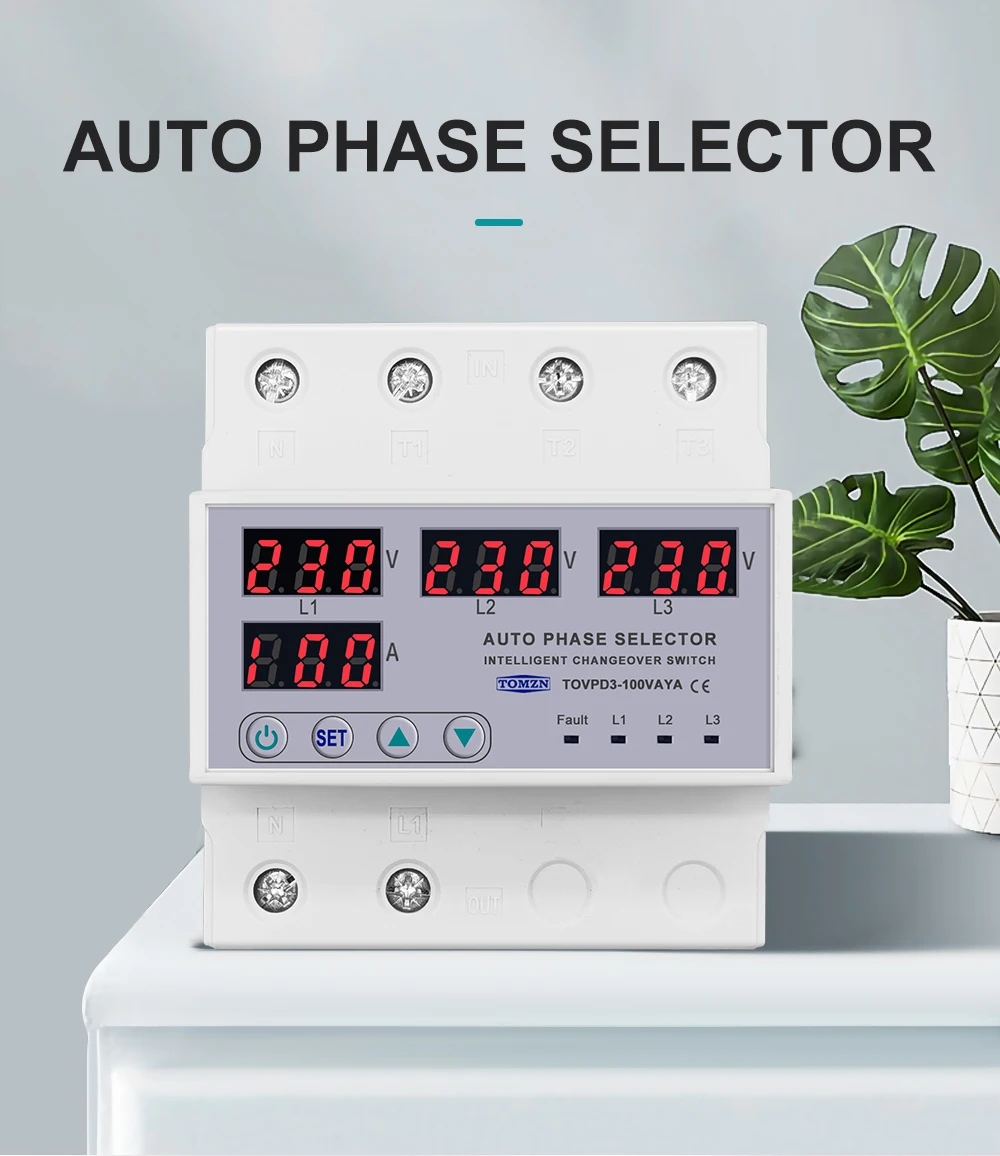

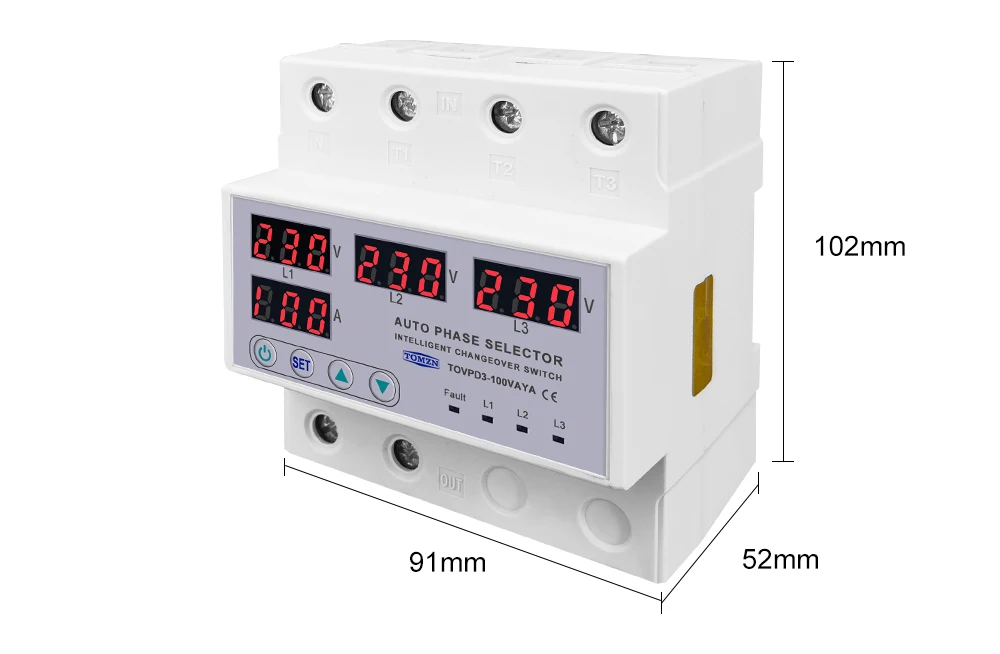

100A TOMZN 3 Phase 3P+N Din Rail Phase Selector Adjustable Over and Under Voltage Current protection Monitor Relays Protector

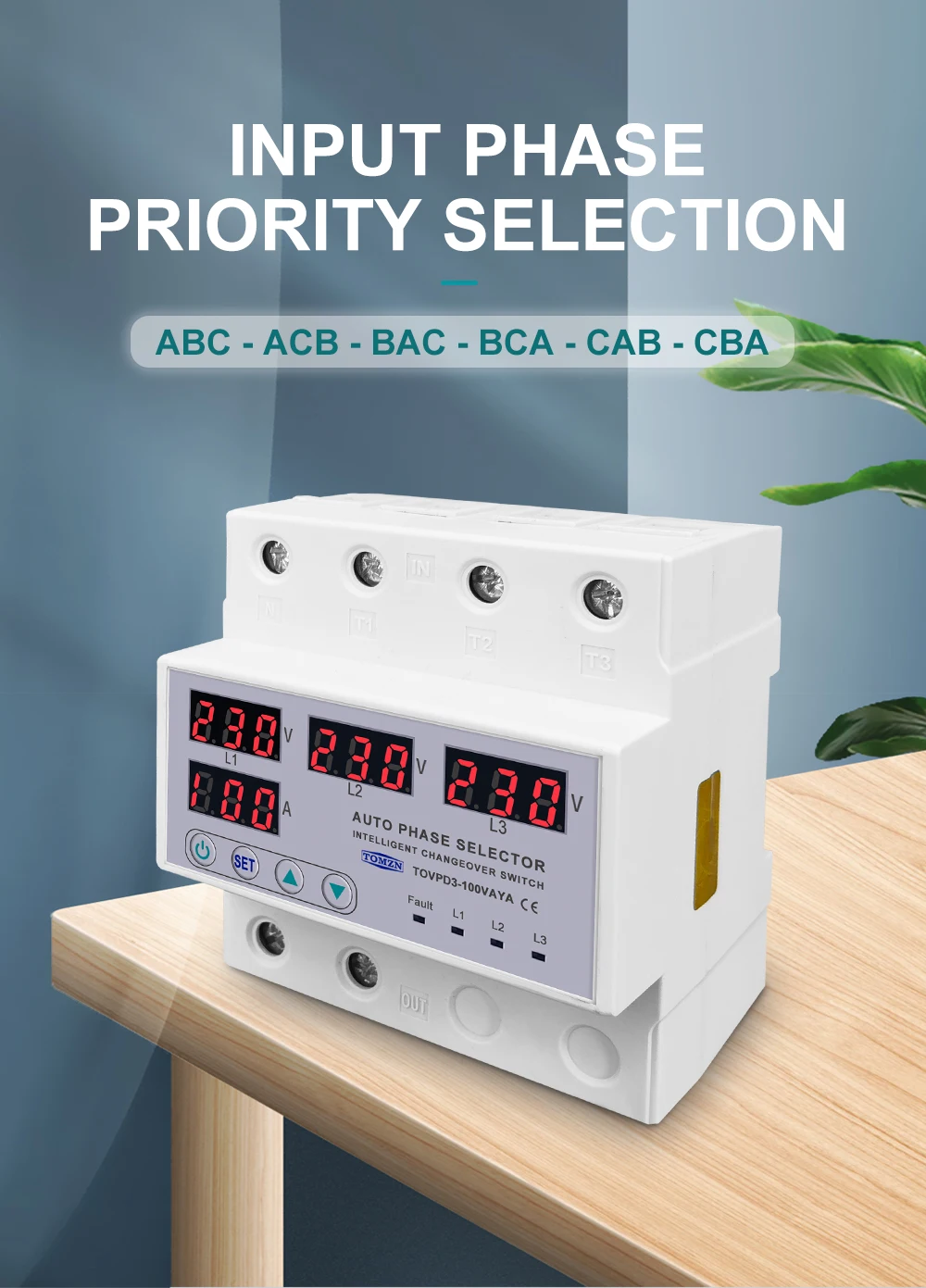

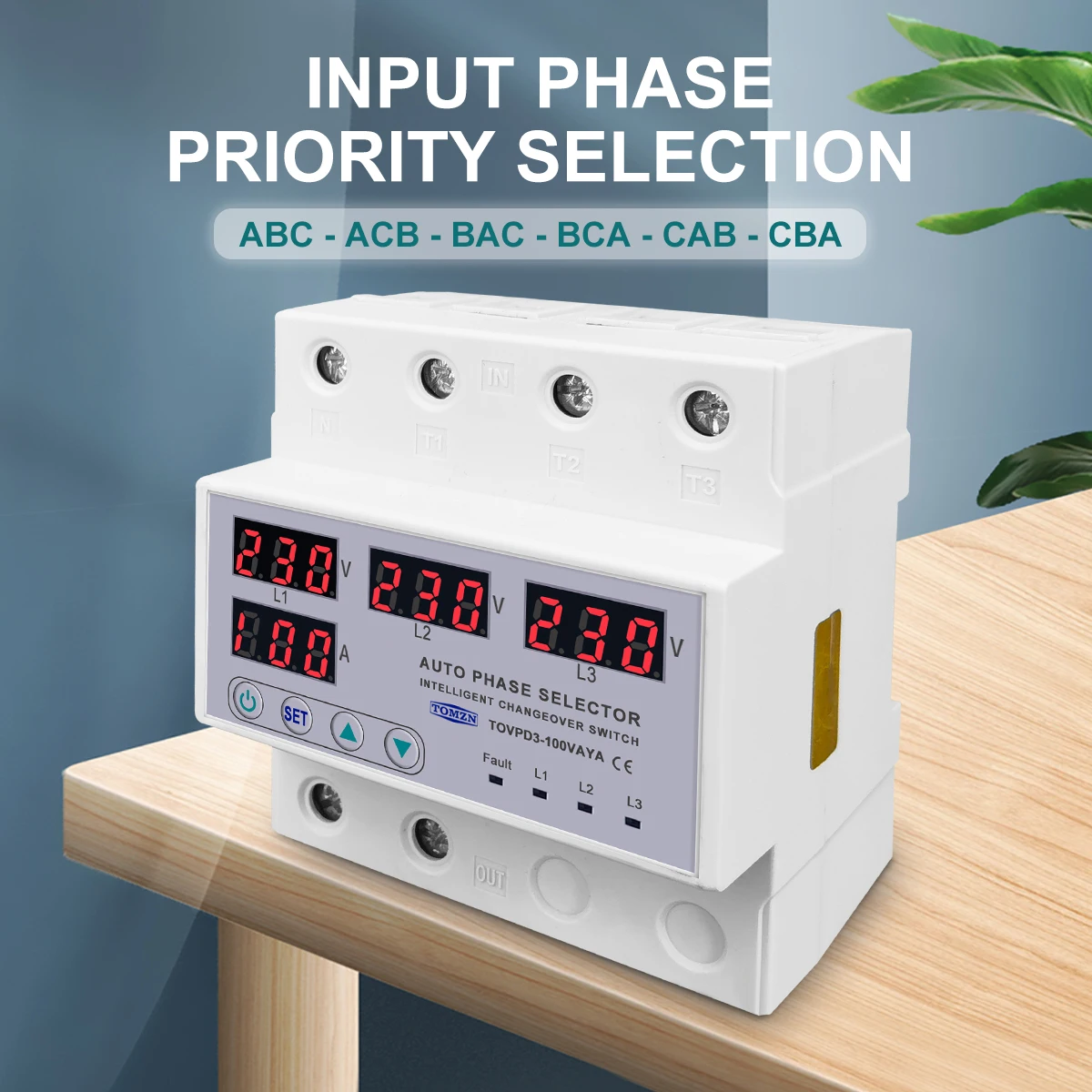

100A 3P+N rail phase selector with monitoring relay protector is reliable guarantee for power system. TOMZN. It is capable of correct selection of phase sequence and real-time monitoring of three-phase circuits. Overvoltage, undervoltage and current protection function adjustable, can flexibly set the protection threshold according to actual needs. Once the voltage or current is abnormal, through the fast action to cut off the circuit, to achieve the effective avoidance of equipment damage to the industrial and commercial electricity is stable protection.
- Overview
- Recommended Products
Rated supply voltage: AC 3*220V
Max load current: 100A

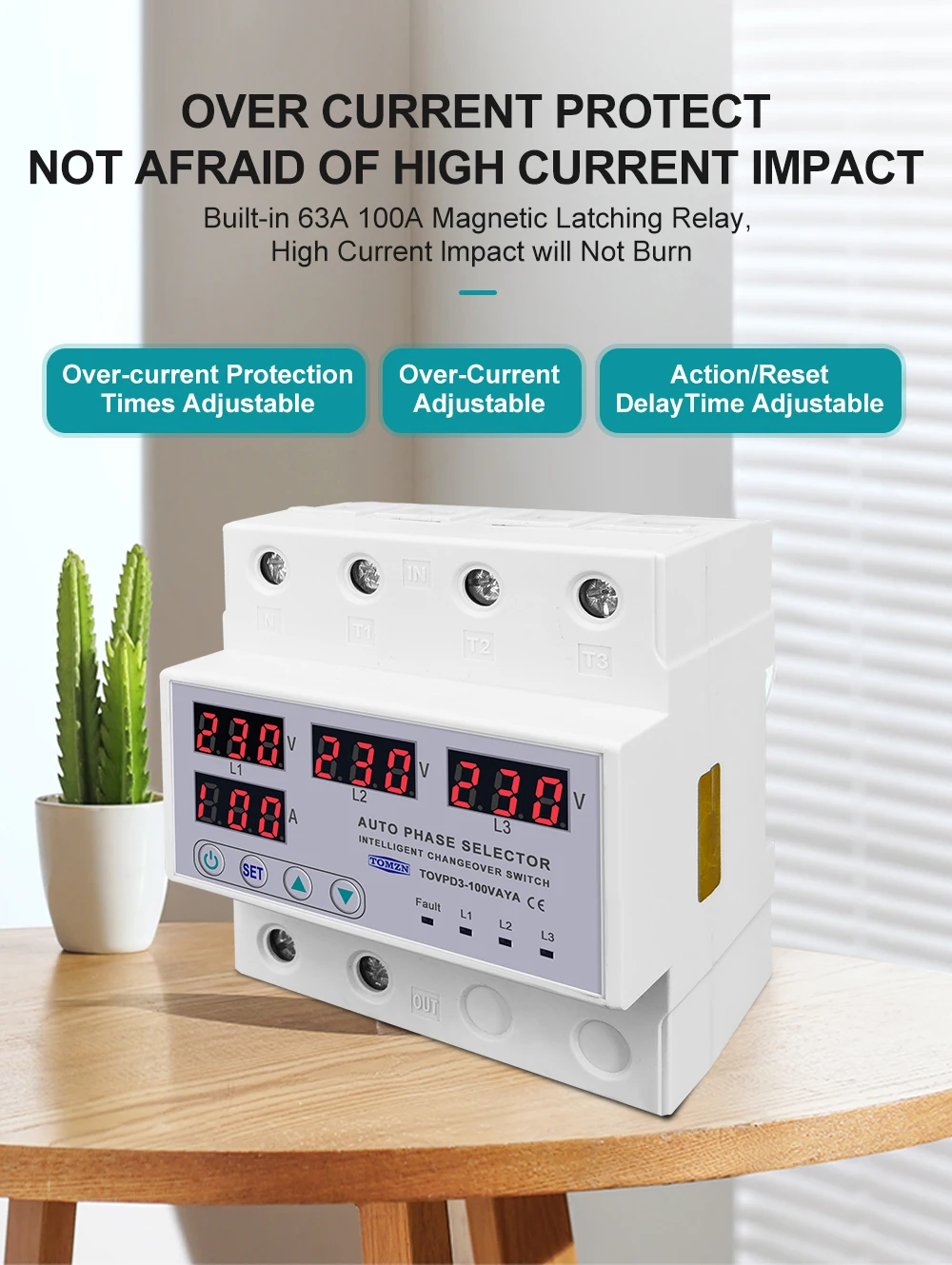

Current protection:1-100A adjustable
Operation voltage range: AC140V-300V
Rated frequency:50/60Hz
Hysteresis:Over voltage and asymmetry:5V, Under voltage:3V
Asymmetry trip delay: 10s
Voltage measurement accuracy: ≤1%(over the whole range)
Rated insulation voltage: 450V
Output contact: 1NO
Electrical life:100000
Mechanical life: 100000
Protection degree: IP20
Pollution degree: 3
Altitude: ≤2000m
Humidity: <50% at 40'C(without condensation)
