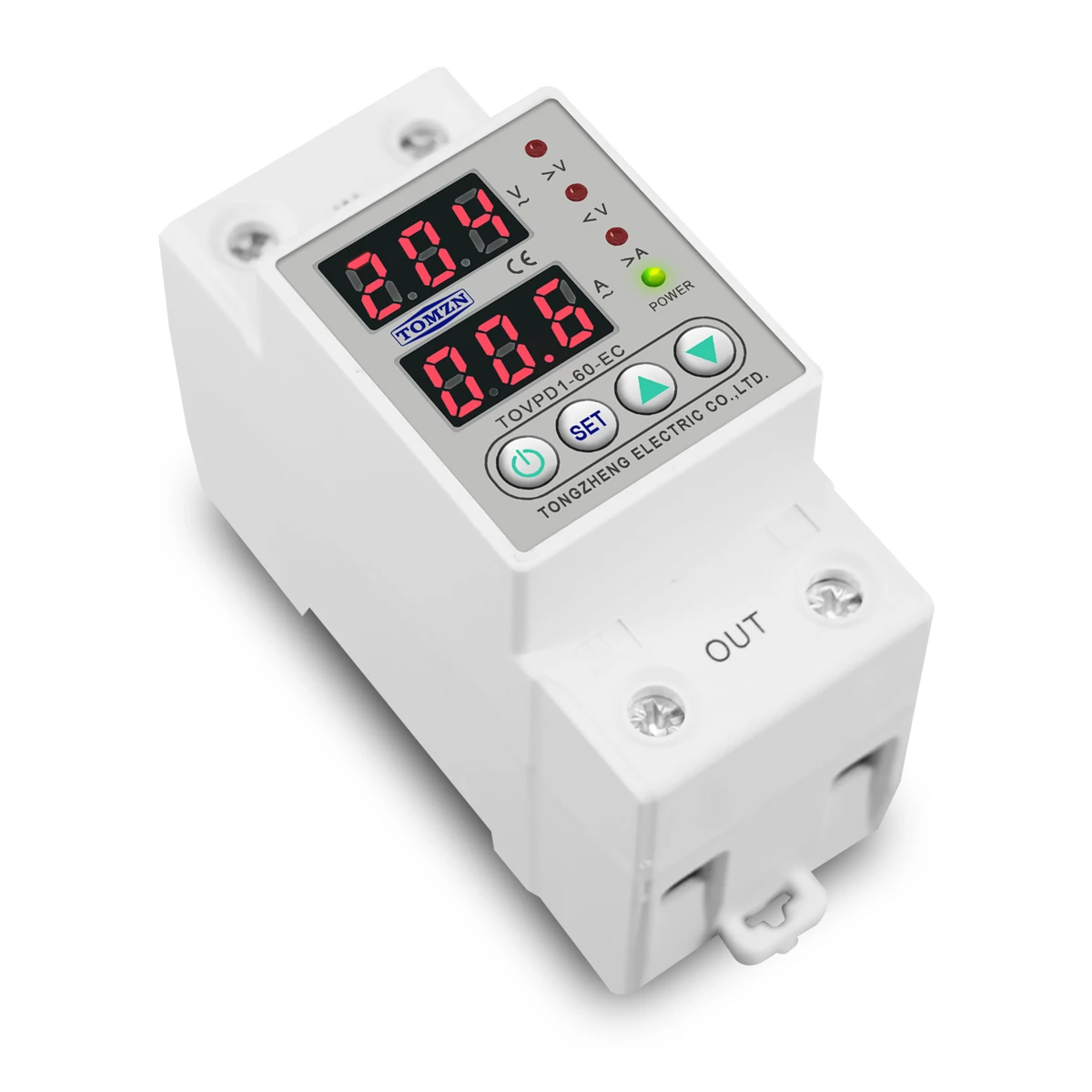

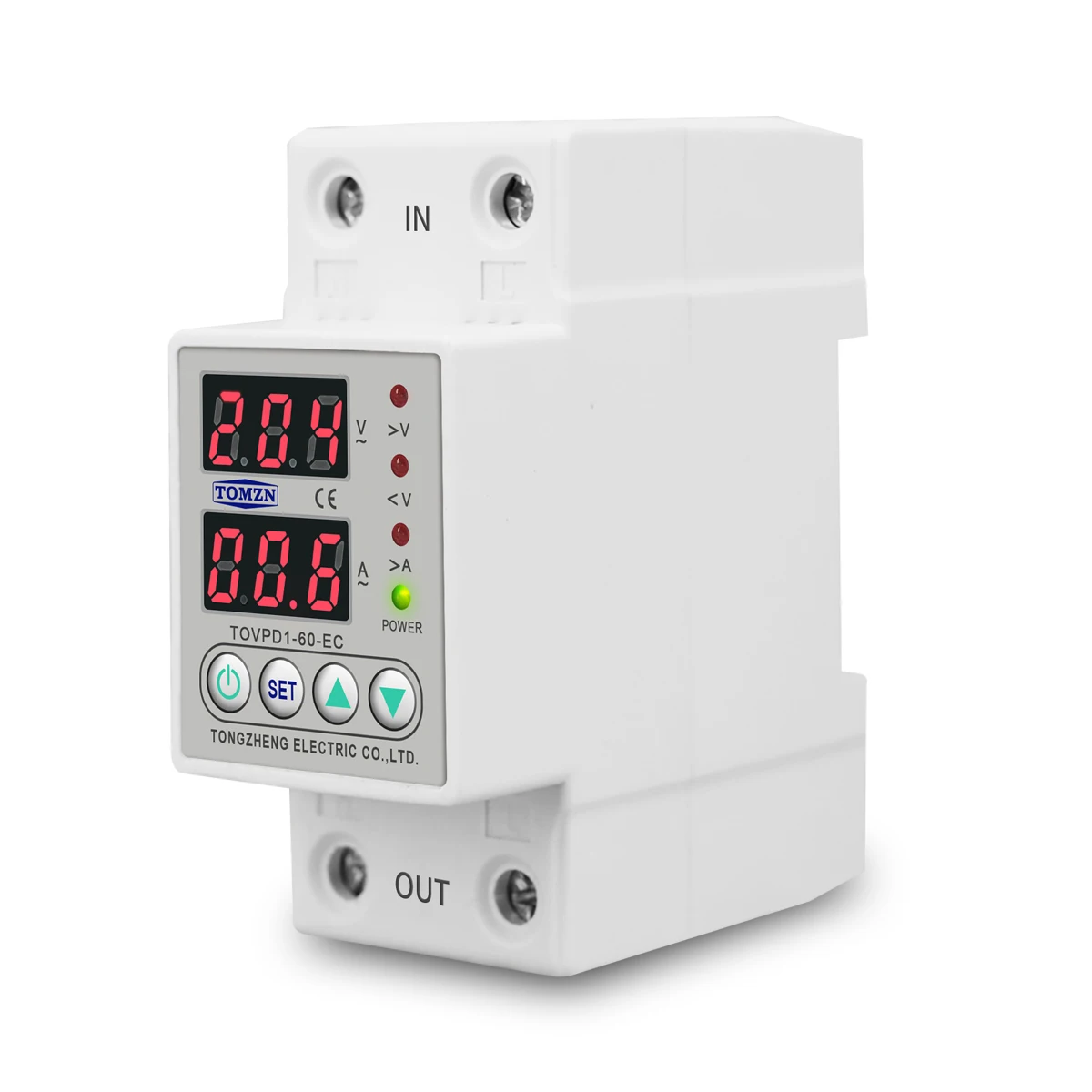

60A Din Rail 230V Adjustable Over Voltage and Under Voltage Protective Device Protector Relay TOMZN TOVPD1-63-EC

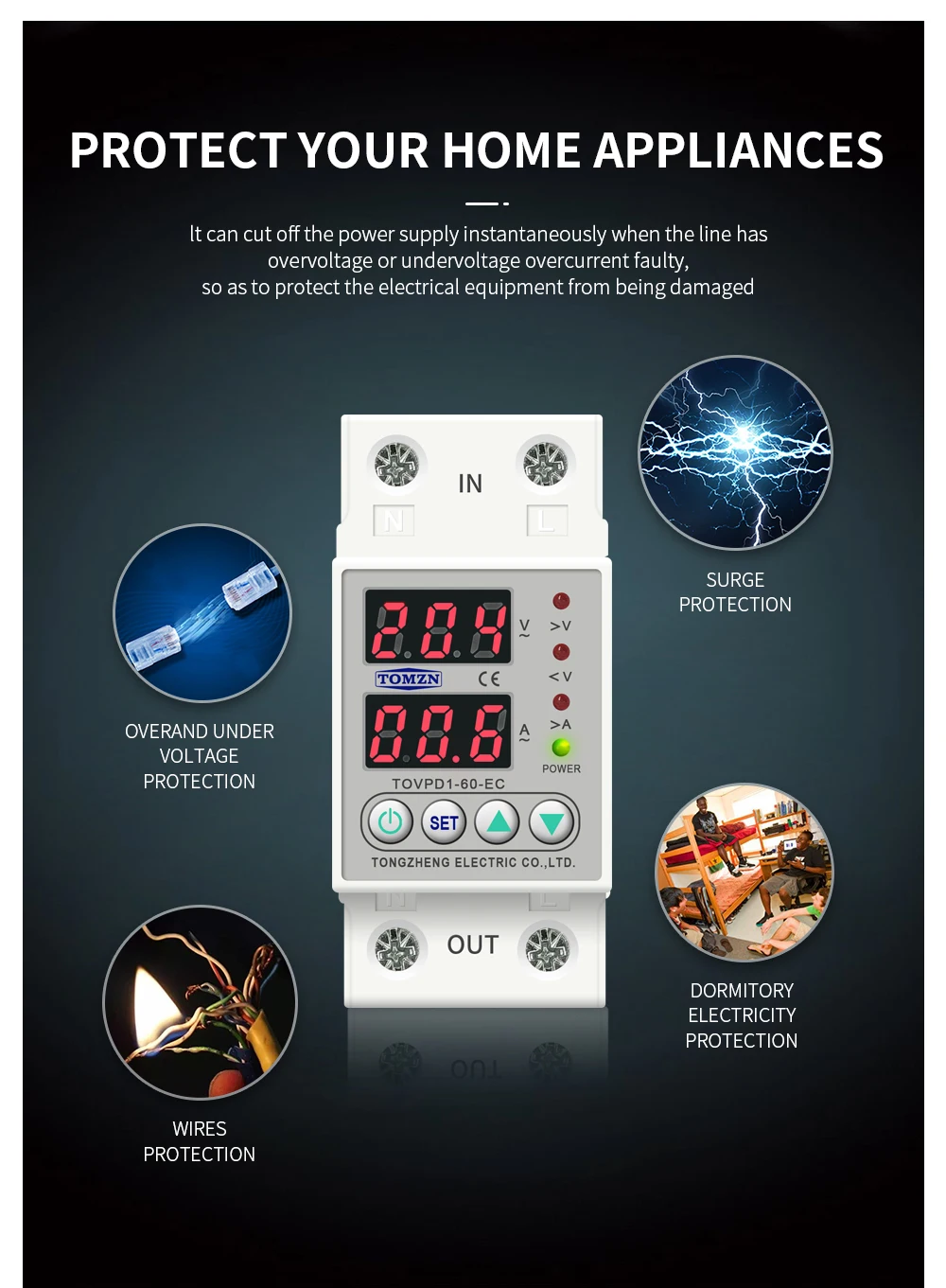

Our TOVPD1-63-EC protection device can be used for the safety of the circuit circuit. Rated current 60A, ADAPTS 230V voltage, guideway design, easy installation. The advantage is that the anti-embarrassment of electrical shock is adjustable, And can set the different electricity environment flexibly. Out of abnormal voltage, rapid protection response, stable and reliable, for general electrical equipment to create a safe, stable operating environment, trustworthy.
- Overview
- Recommended Products
Functions:
1.Over-voltage protection
2.Under-voltage protection

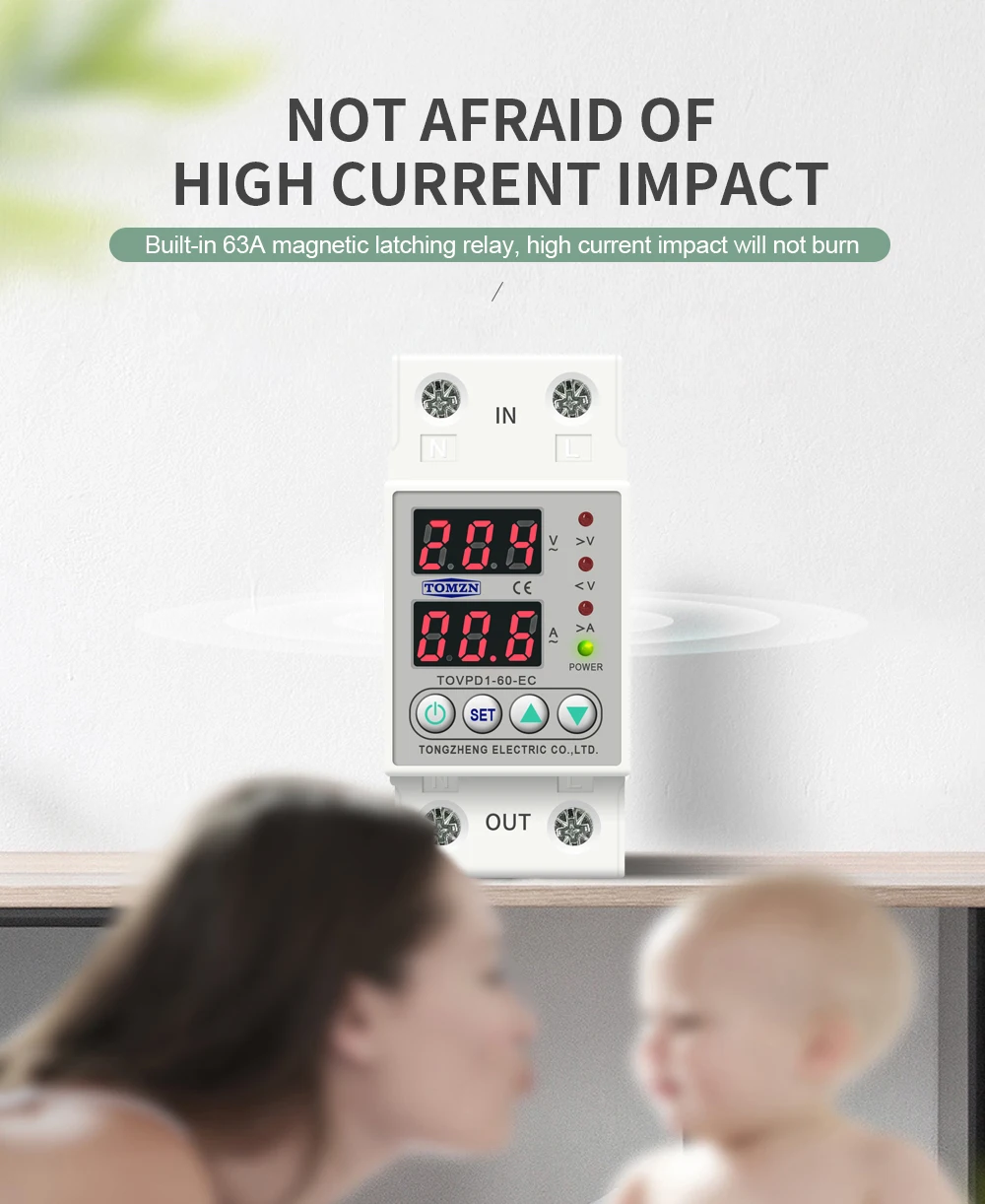

3.Over-current protection
4.Automatic recovery

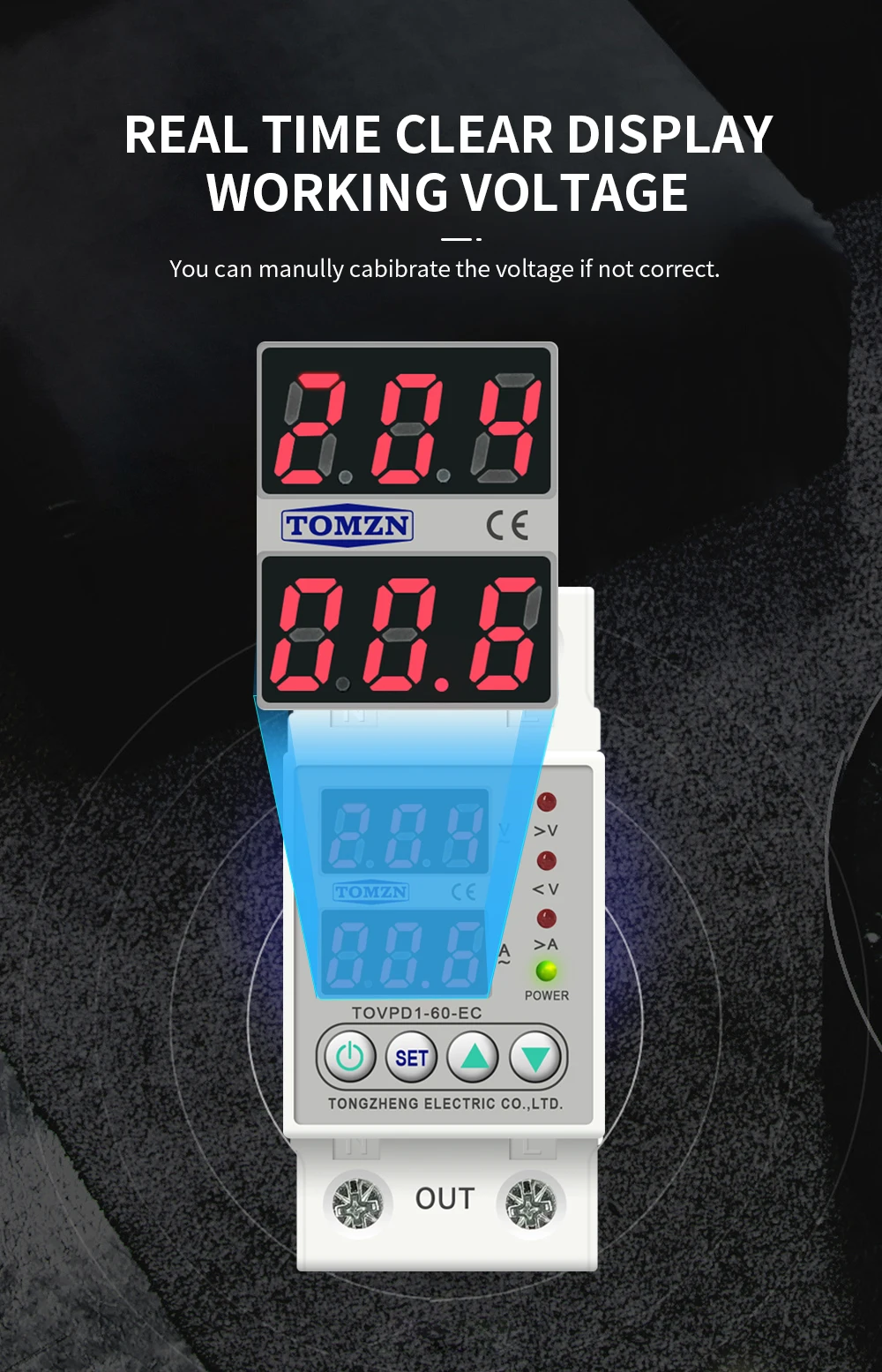

5.Voltage display(voltage measurement)
6.Current display (current measurement)

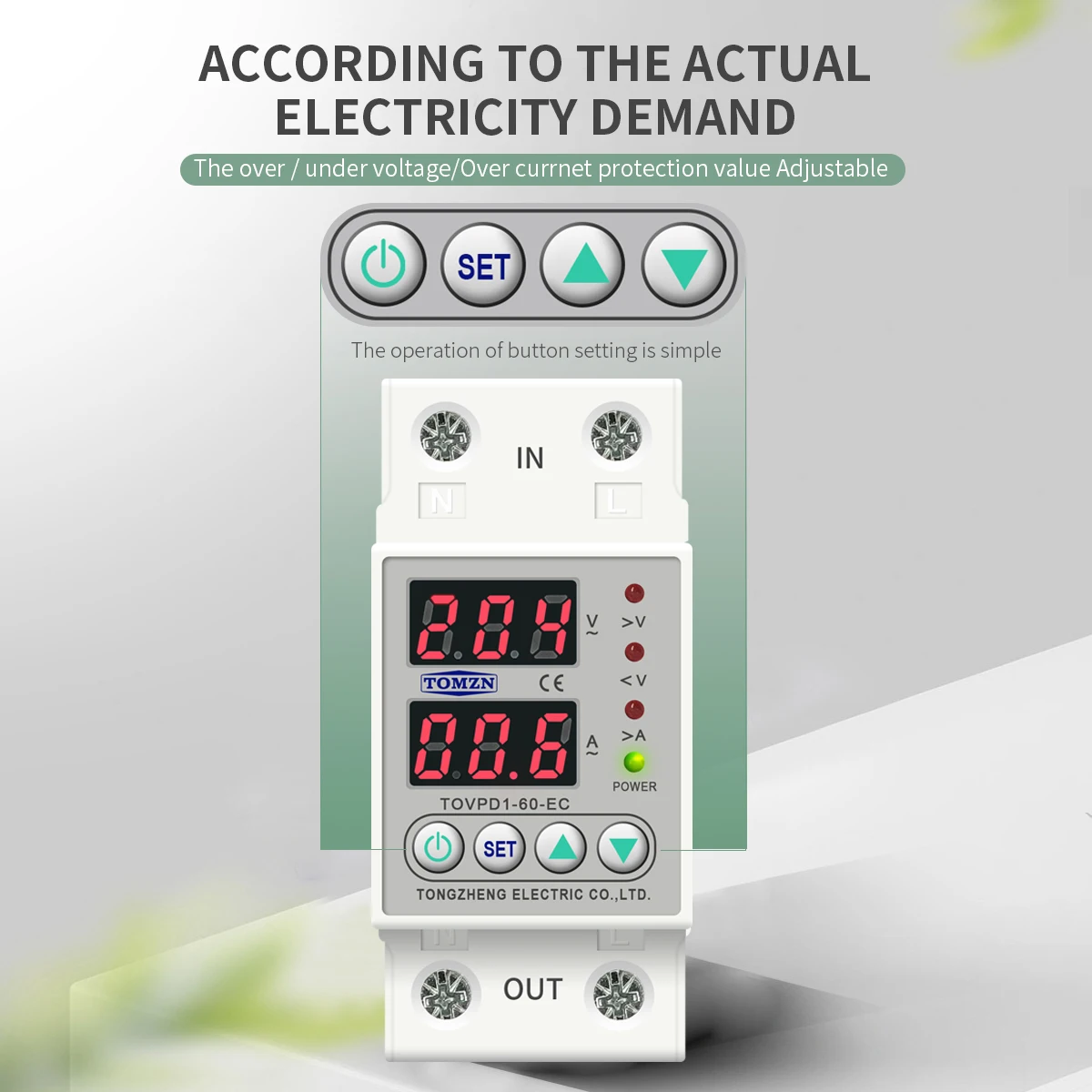

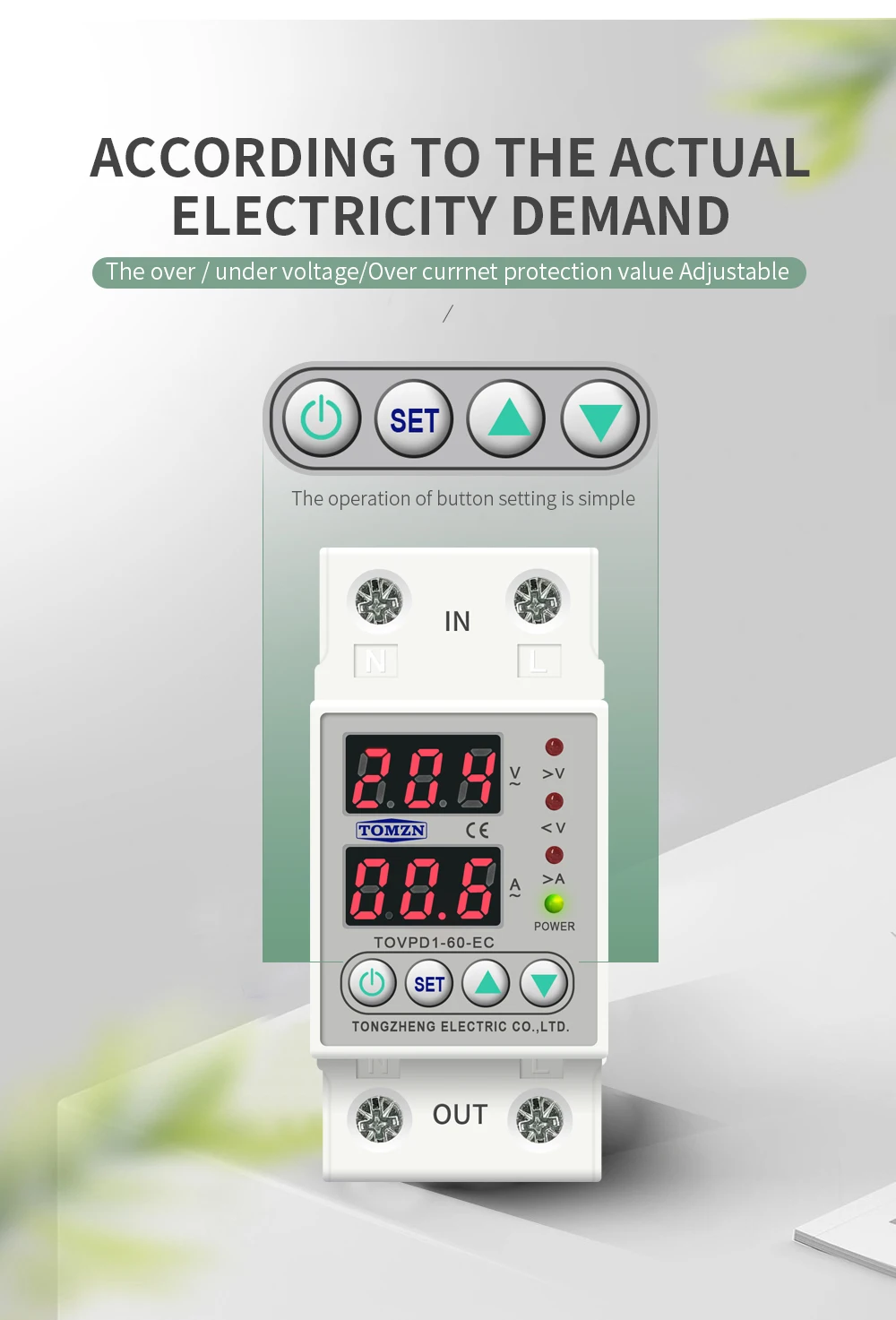

7. Voltage calibration: Voltage +-10% adjustable. A13

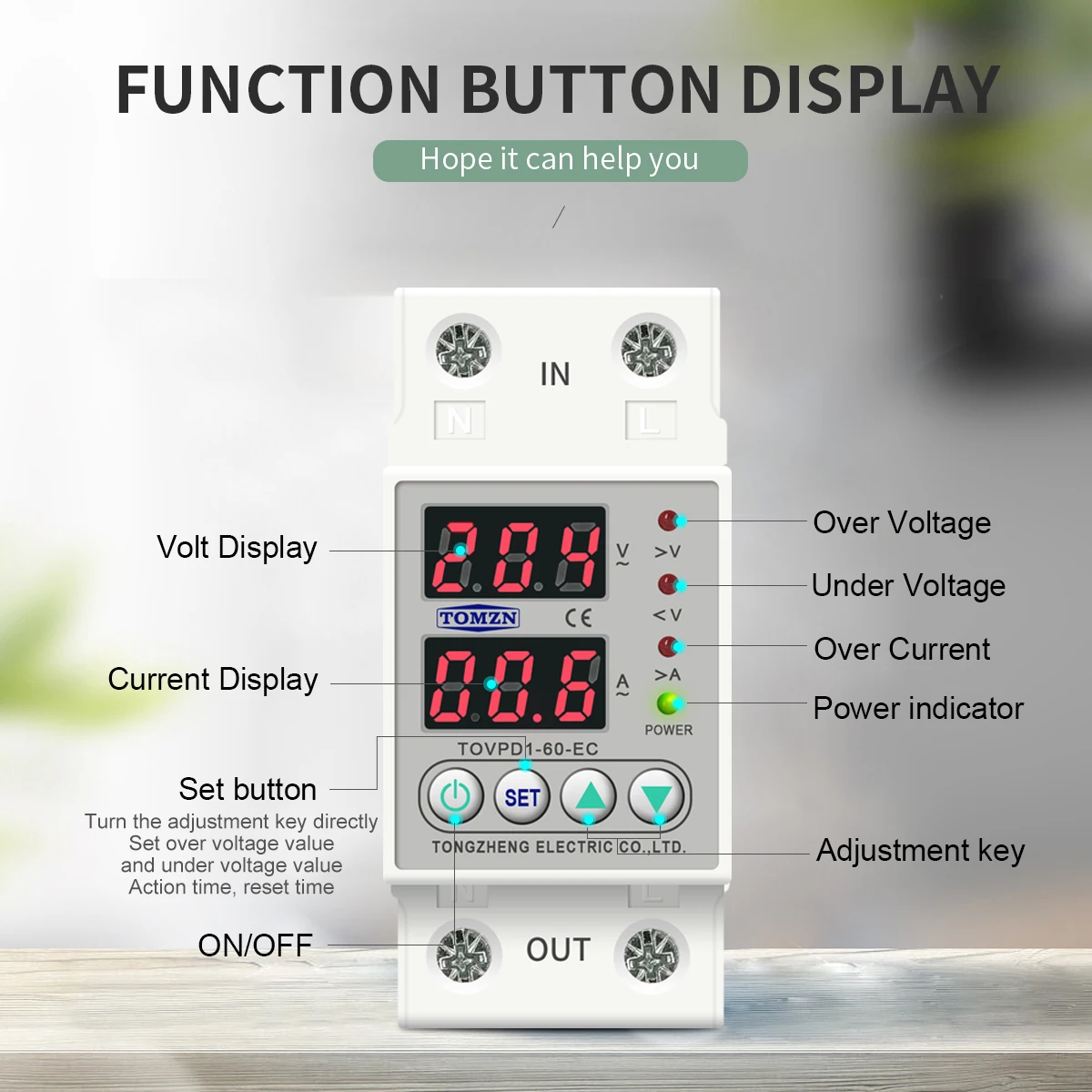

8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S

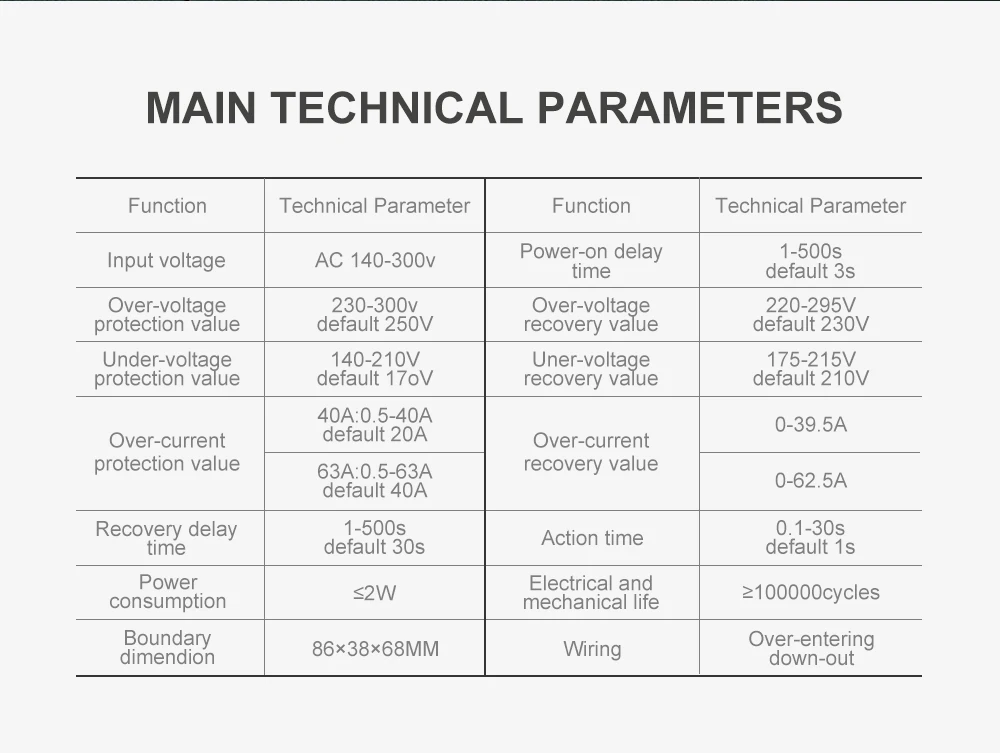

Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
1~63A Adjustable(default:63A)

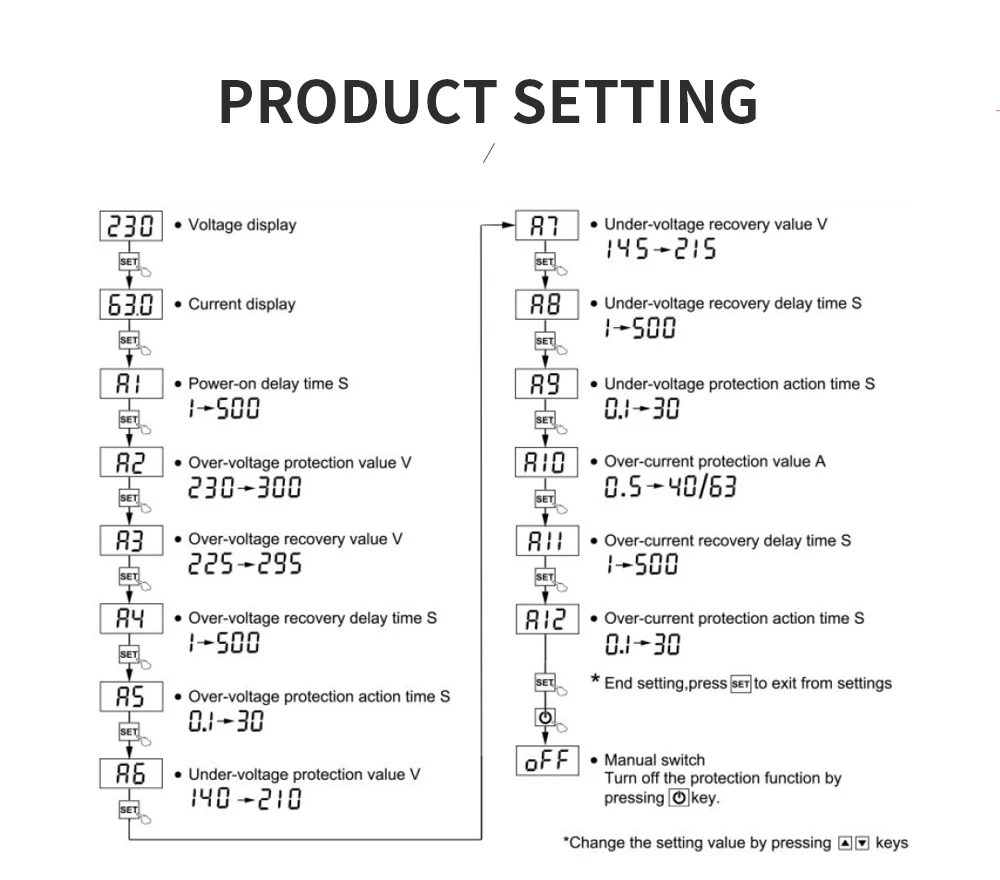

4.Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

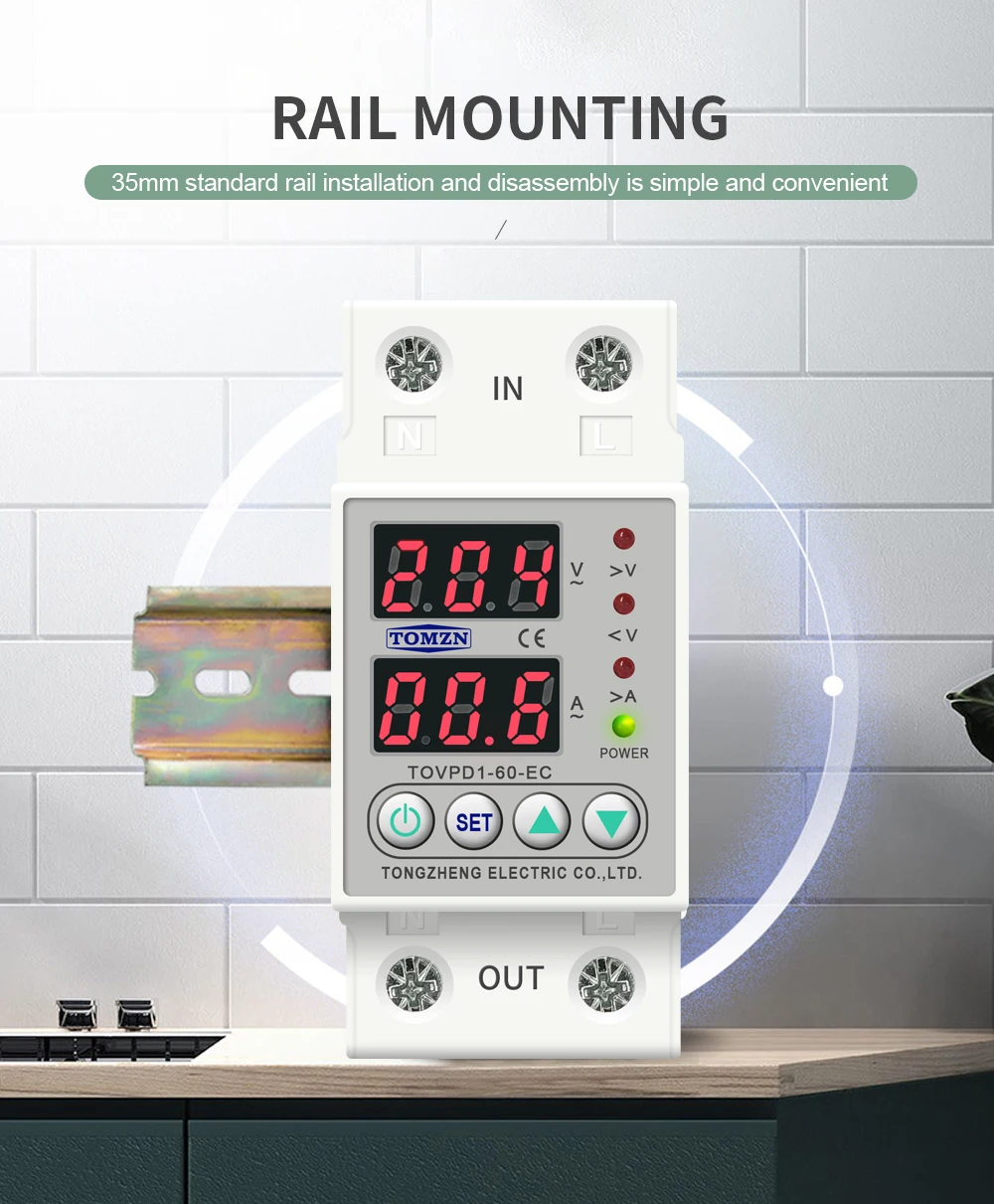

11.Installation:35mm DIN rail
A13 Voltage adjustble +-%9.5
A14 Current limit times: 1-20 times (default off)
Restore factory settings: Press the down button for more than 12s
Fault inquiry: Press the UP button for more than 12S
