TOMZN 1000W AC-DC SMPS AS series Switching power supply input 180-260V output 12V 15V 24V 36V 48V 60W adjustable CCCV for LED
TOMZN's 1000W AC-DC SMPS AS series switching power supply is a powerful power source for LED lamps. Its input voltage covers 180-260 volts, which is suitable for most grid environments. Output voltage from 12 volts to 60 volts can be adjusted on demand, with CCCV function, whether it is a small LED spotlight, or a large LED display, can provide stable and accurate adaptation of current and voltage, to ensure that LED lamps durable and efficient light.
- Overview
- Recommended Products
Function: AS-1000 series can convert AC180-260V voltage to DC12V/15V/24V/36V/48V/60V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC180-260V 50/60Hz.
Output: 12VDC,24VDC,36VDC,48VDC,60VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)

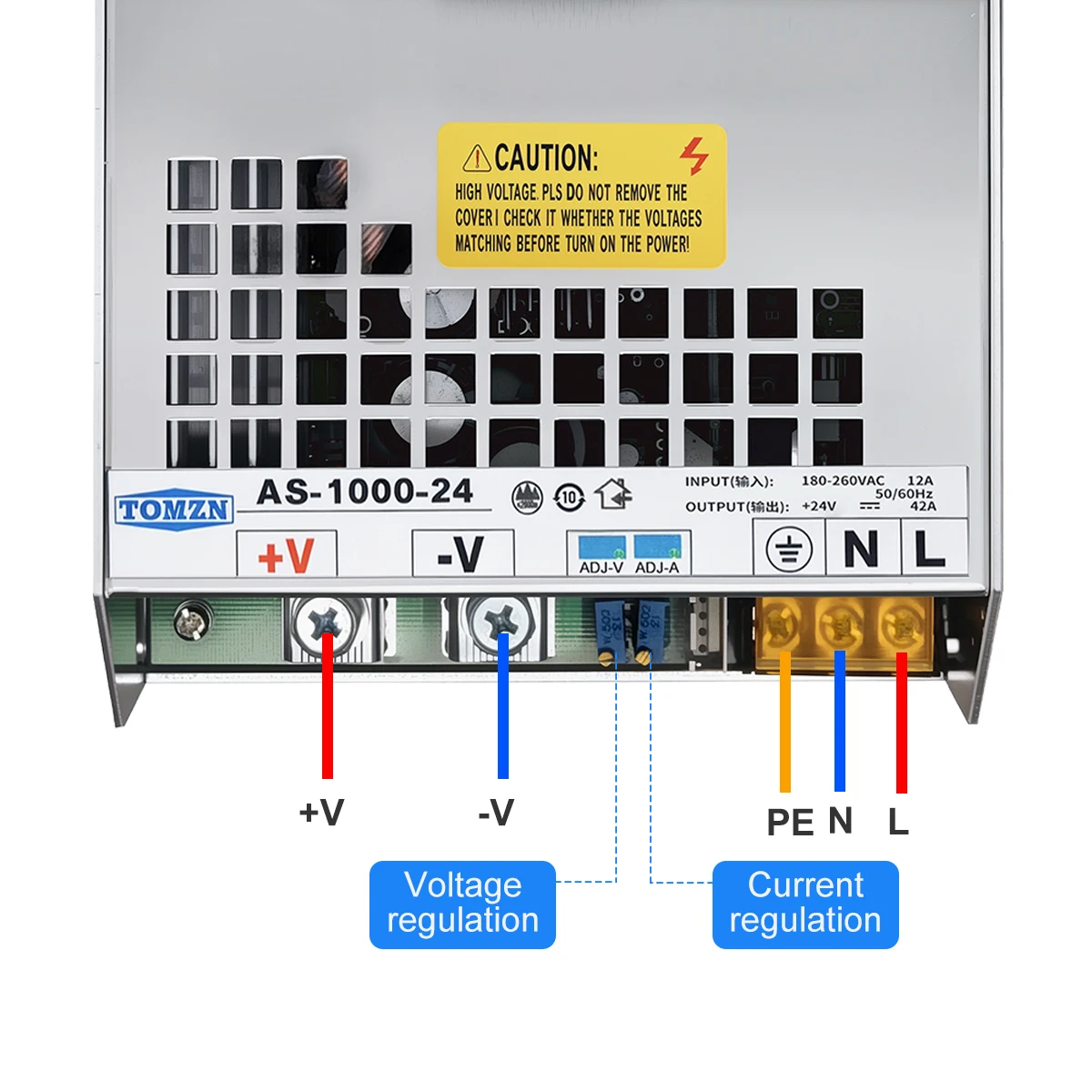

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
