TOMZN 100W AC-DC SMPS Single Output Switching power supply input 110-240V output 5V 12V 15V 24V 36V 48V adjustable for LED
The TOMZN 100W AC-DC single-output switching power supply is the perfect companion for LED lighting. It has a wide mains adaptability ranging from 110-240V, and the output voltage can be flexibly set and adjusted in a range of 5V-48V. Therefore, it can face the different specifications of LED lamps for stable power supply and accurate power output, ensure that the LED lamps generate efficient stable light, so as to create high-quality lighting experience.
- Overview
- Recommended Products
Function: LRS-100 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)

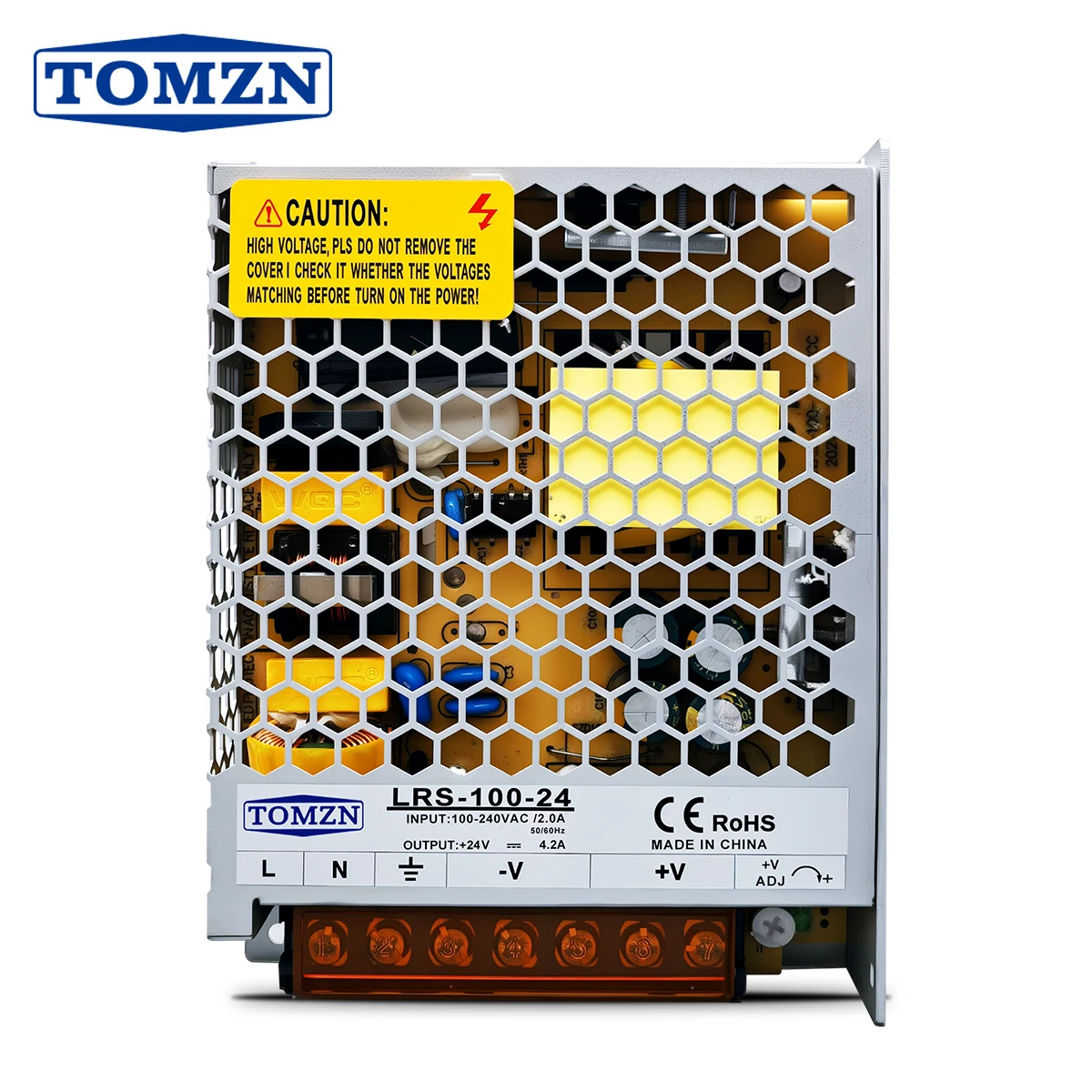

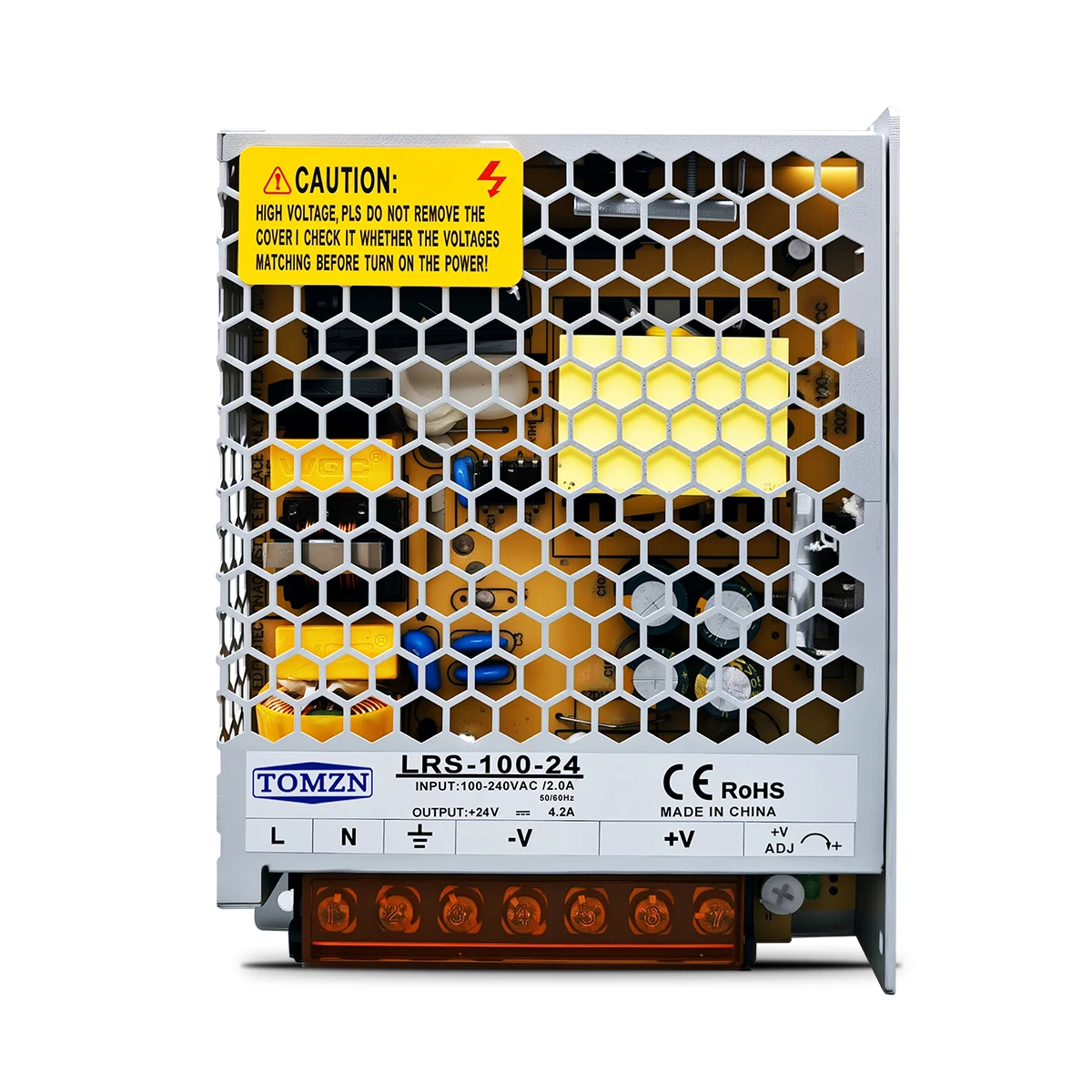

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
