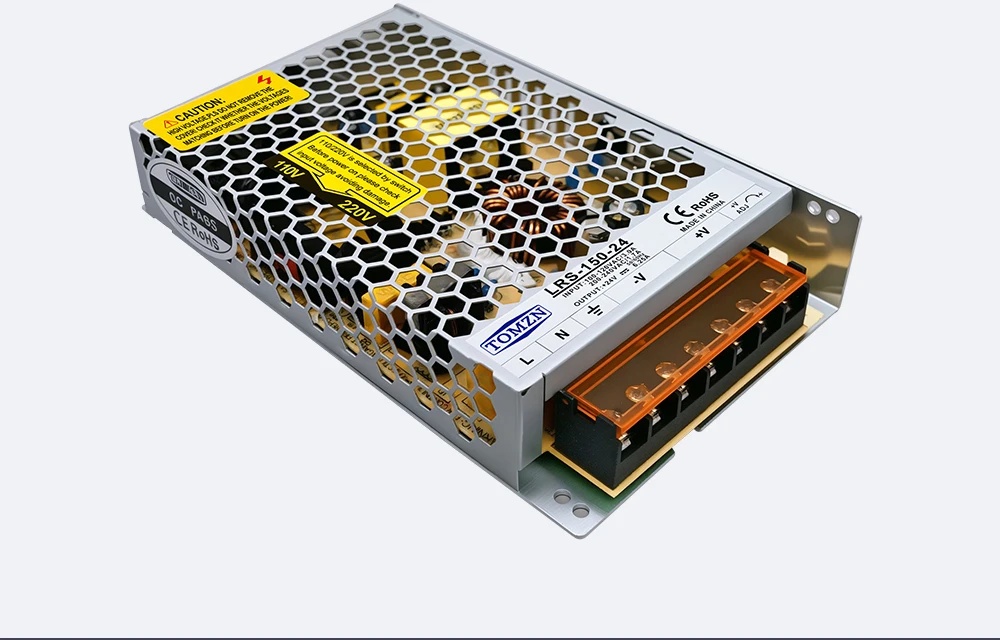

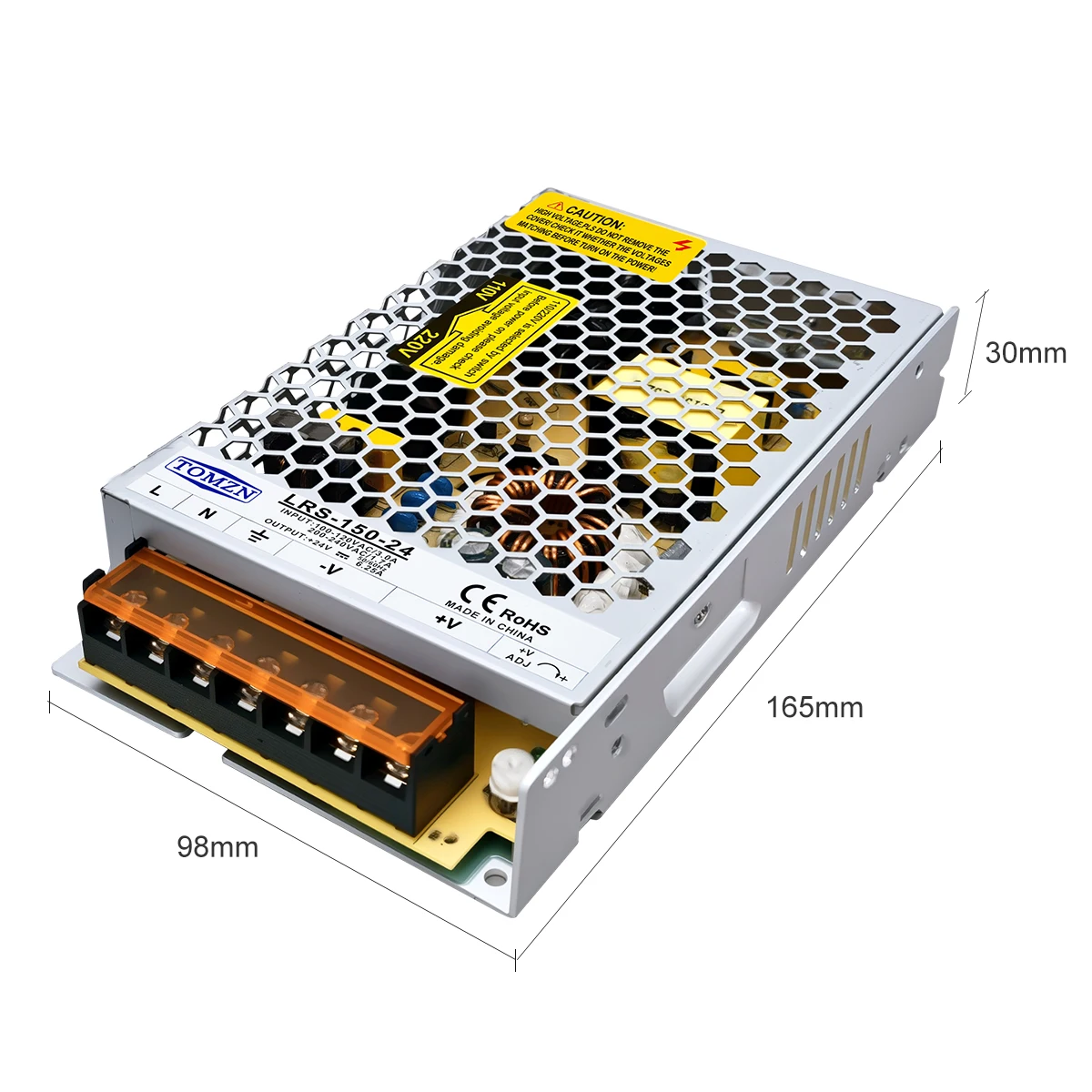

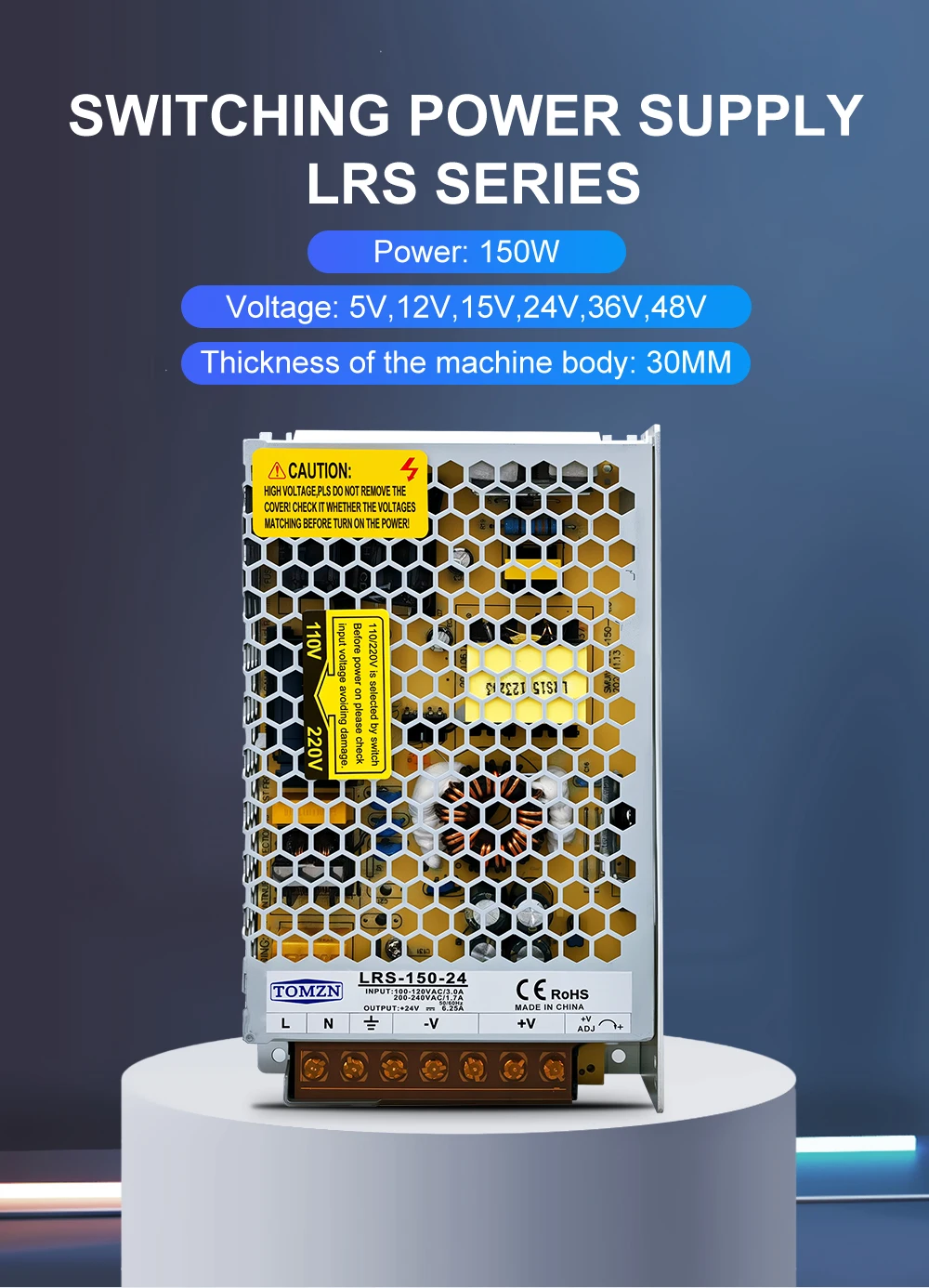

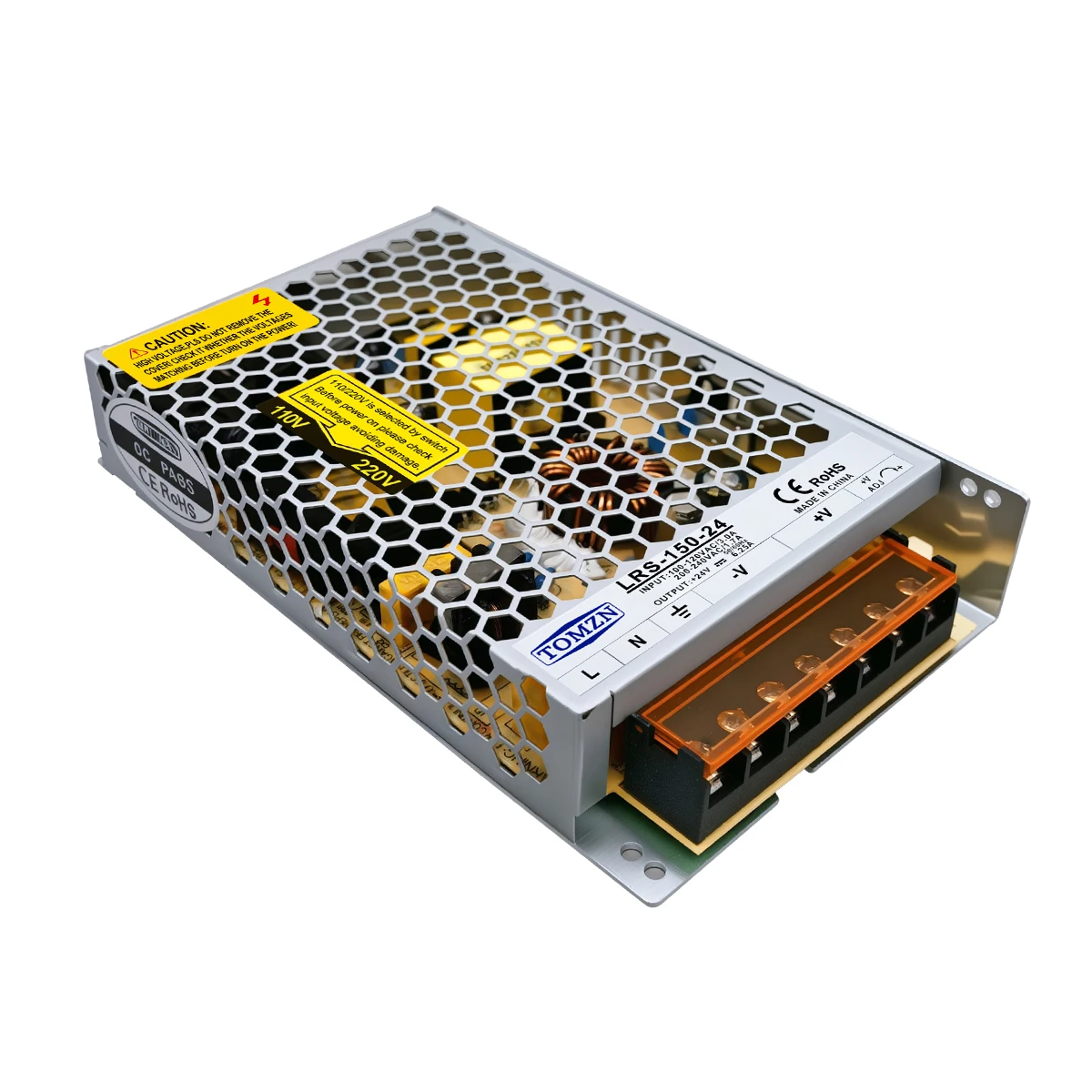

TOMZN 150W AC-DC SMPS Single Output Switching Power Supply Input 110-240V Output 5V 12V 15V 24V 36V 48V Adjustable for LED
TOMZN's 150 watt AC-DC switching mode power supply is the ideal power supply partner for LED lamps. It has a wide input voltage range of 110-240 volts, which can be adapted to different electrical environments. The single output design is simple and efficient, and the output voltage can be flexibly adjusted at 5-48 volts, which can meet the diversified needs of various types of LED lamps and provide reliable guarantee for its stable and lasting light.
- Overview
- Recommended Products

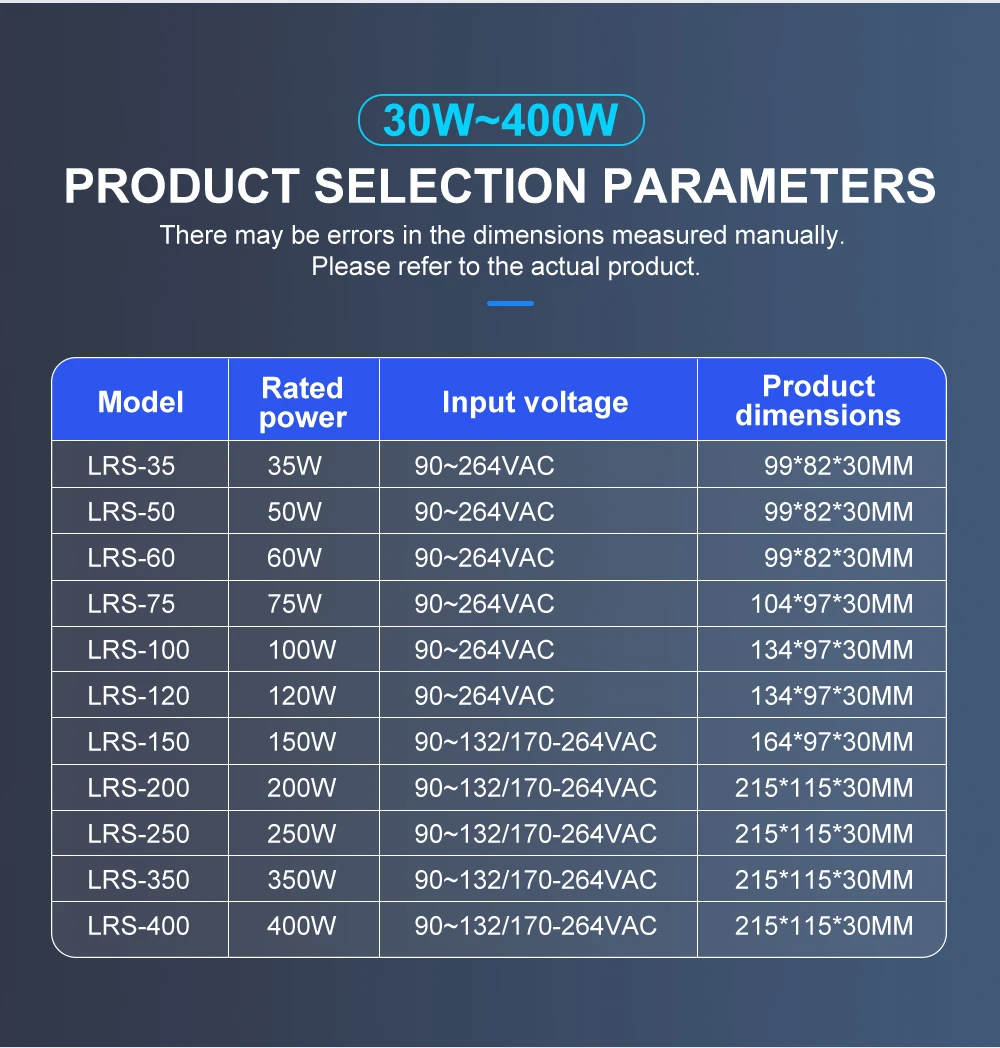

Function: LRS-150 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.

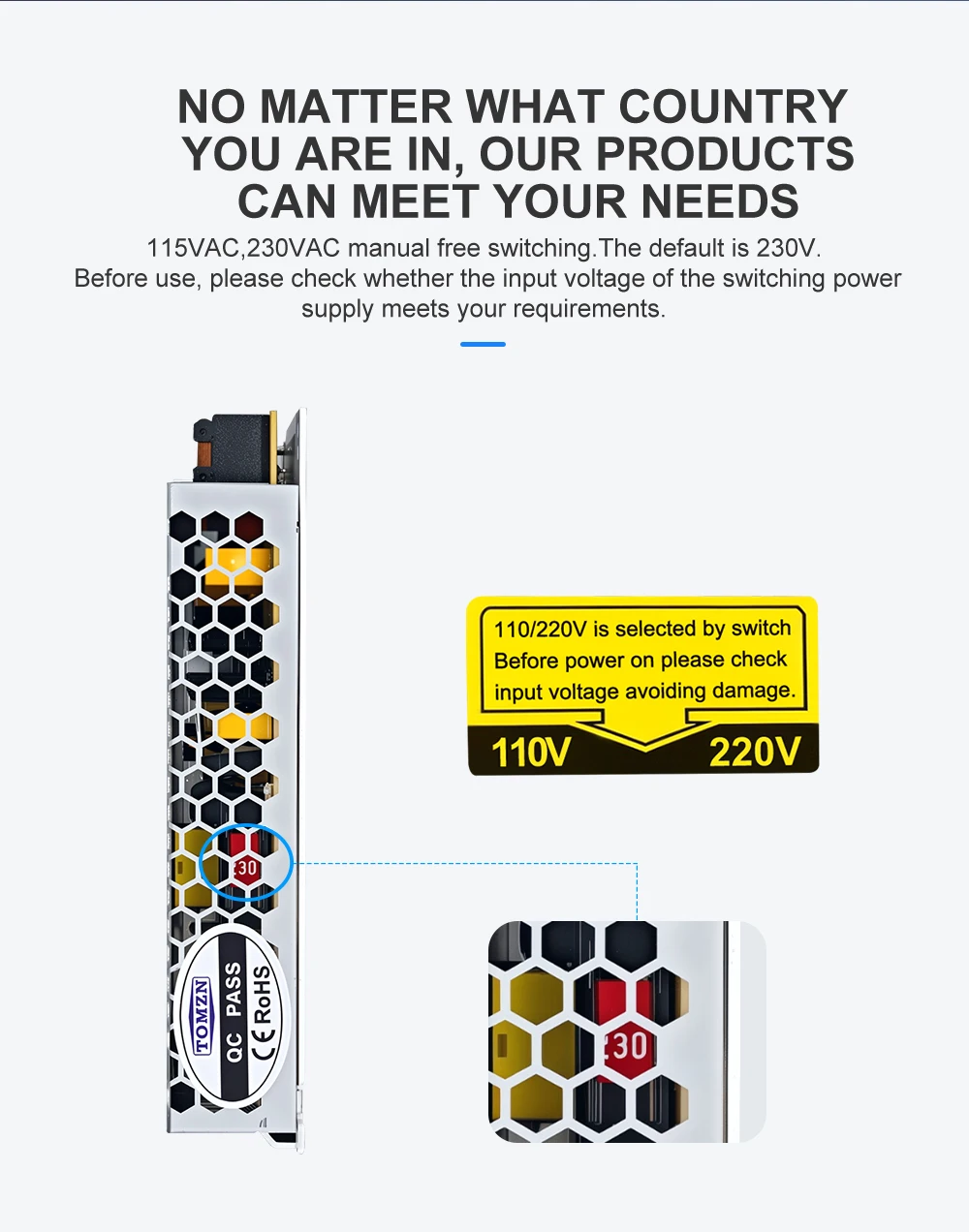

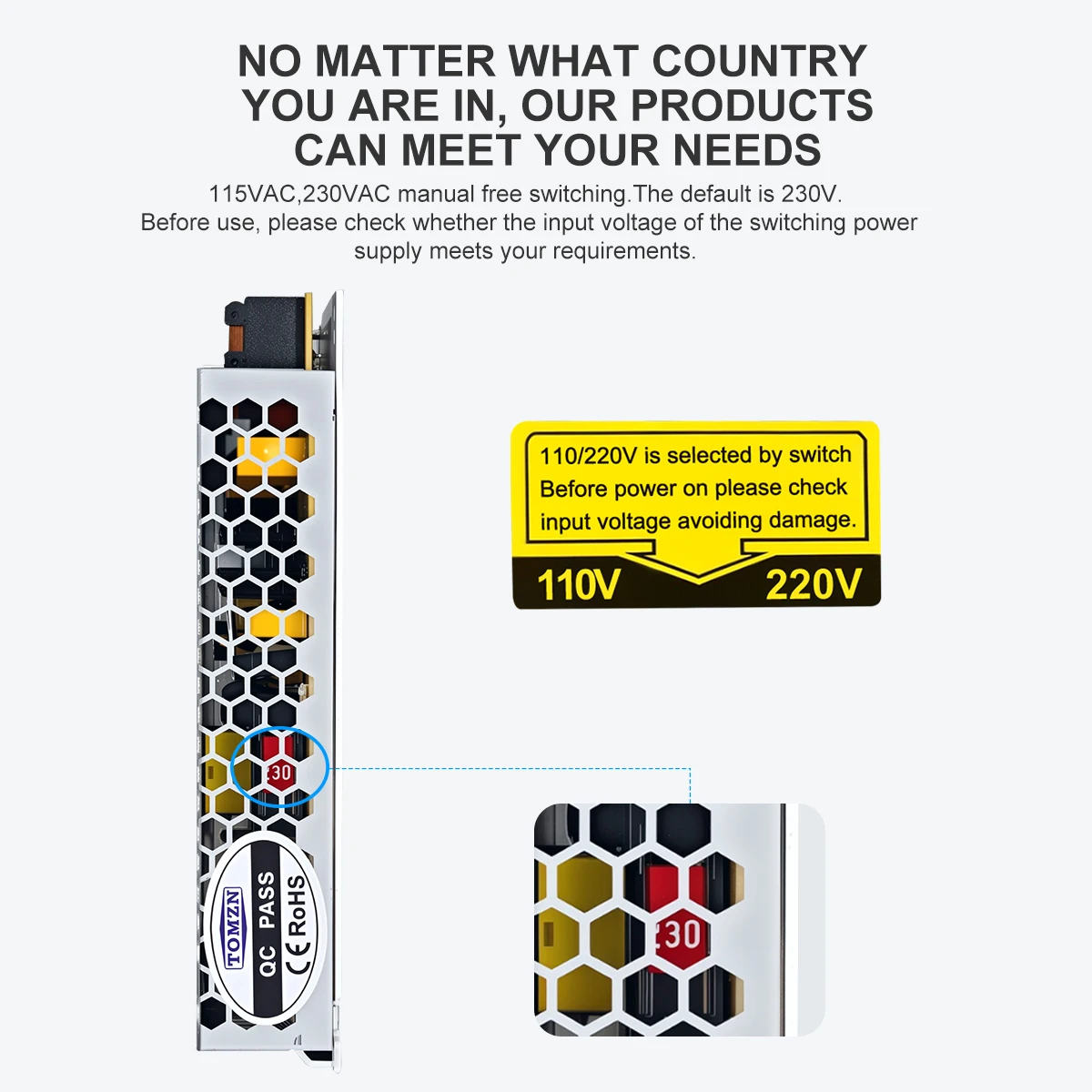

Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.

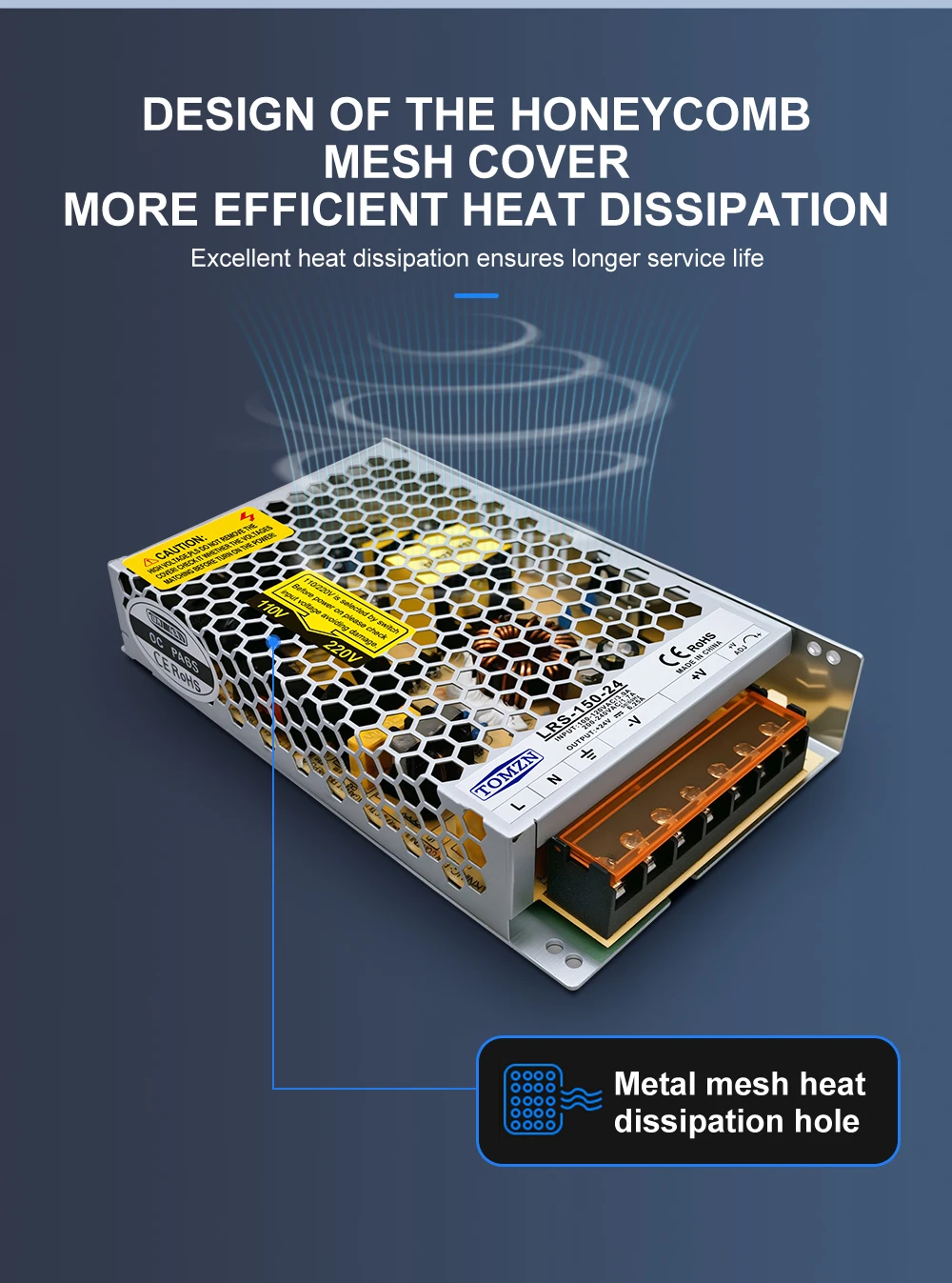

Cooling by free air convection.
(Not suggest for use in bathroom)

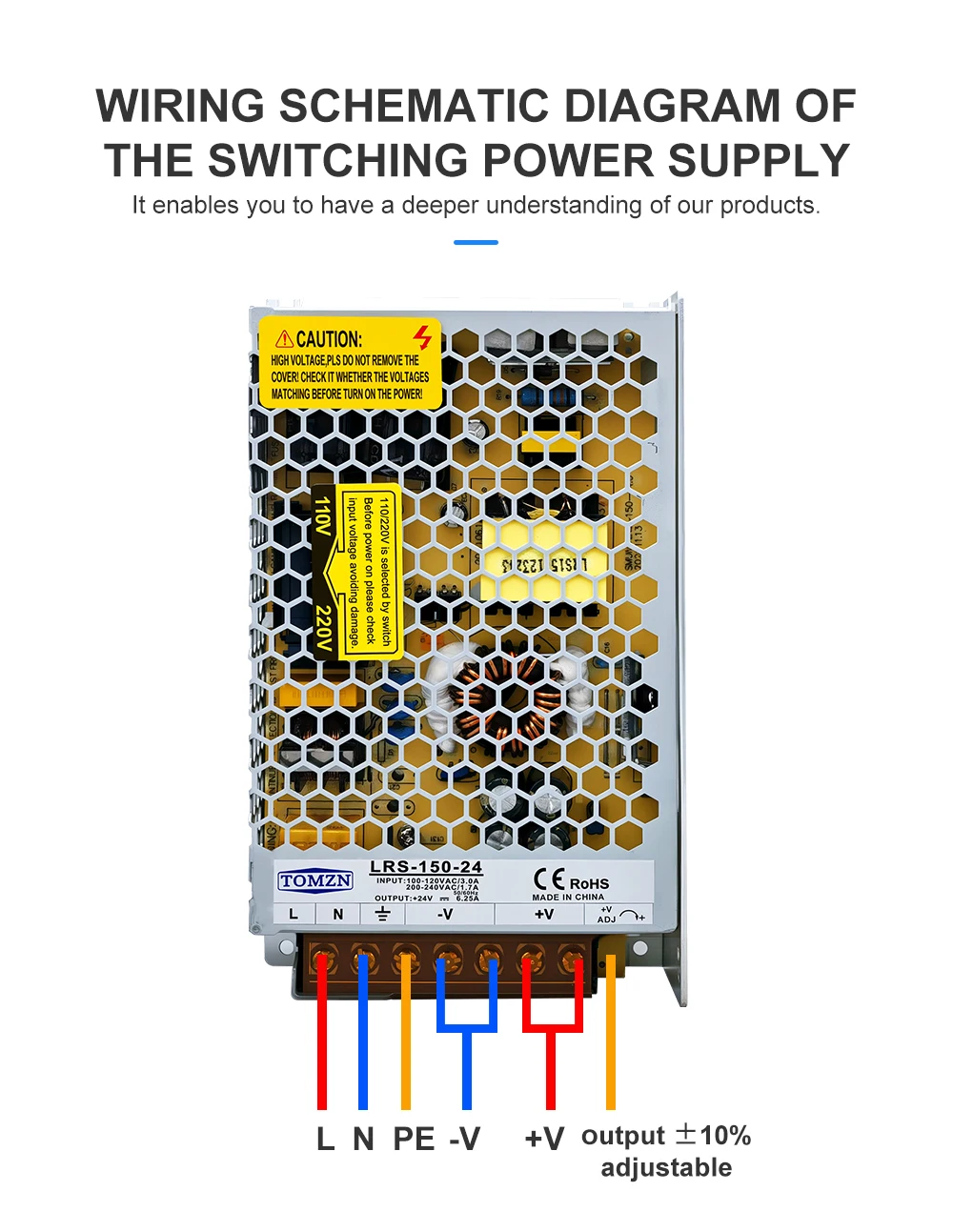

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards

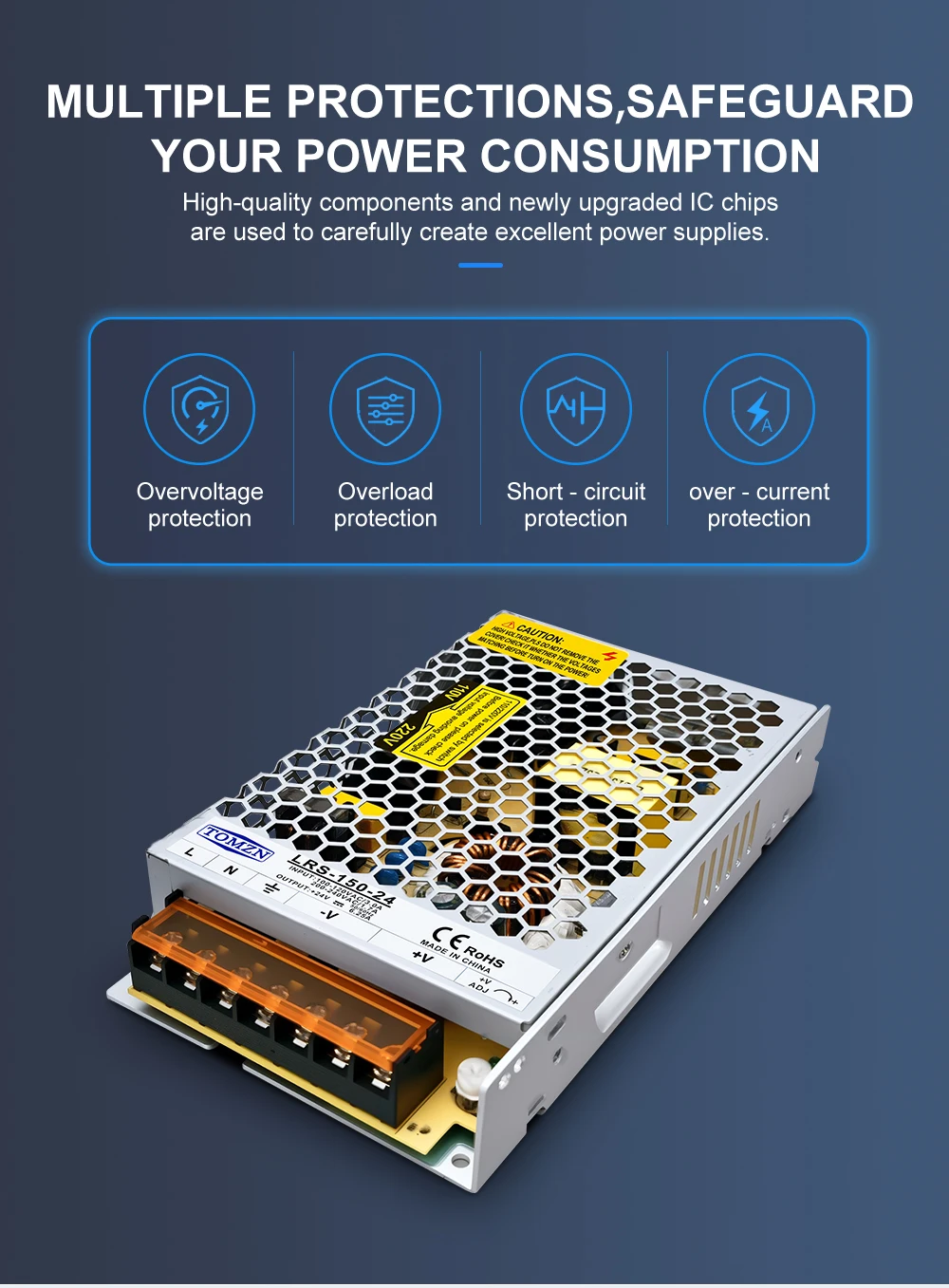

Built-in over voltage, over current, and short circuit protection
