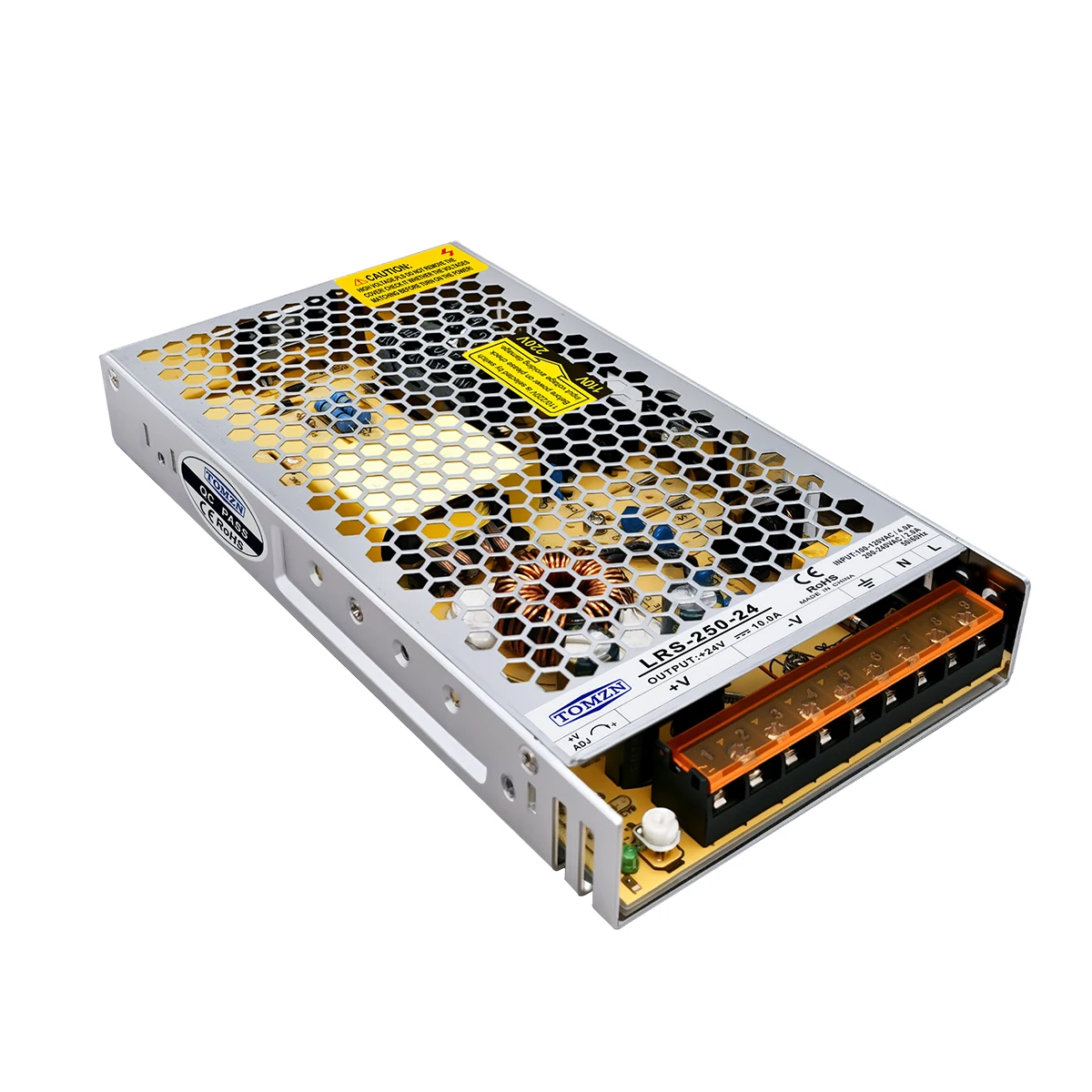

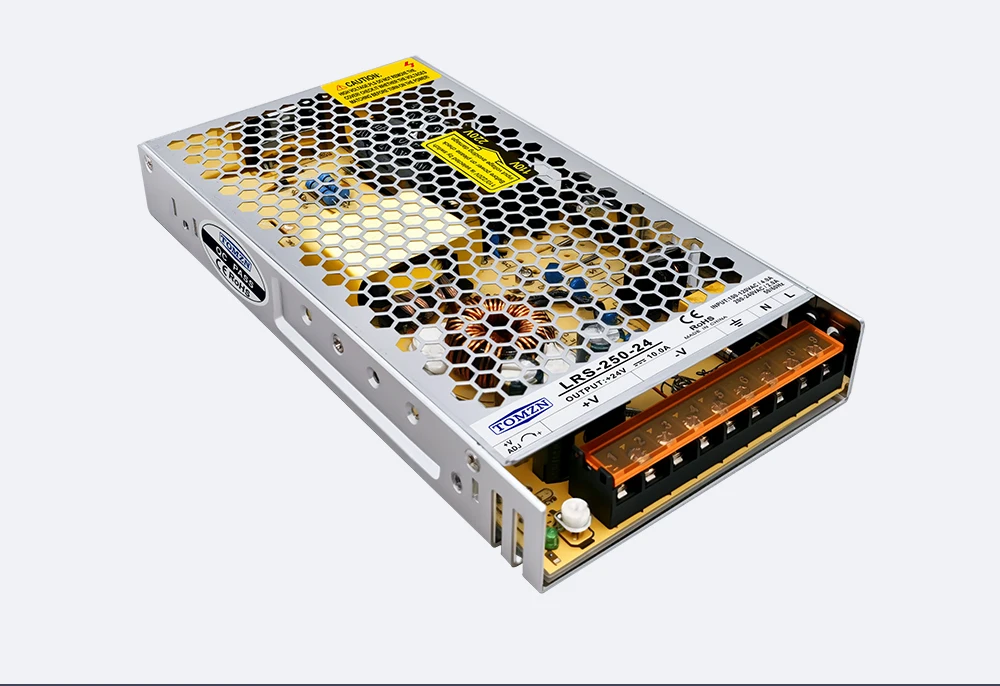

TOMZN 250W AC-DC SMPS Single Output Switching Power Supply Input 110-240V Output 5V 12V 15V 24V 36V 48V Adjustable for LED
This 250 watt AC-DC switching mode power supply from TOMZN is designed to power LED lamps. It can adapt to the wide input voltage of 110-240 volts, flexible output of 5 volts to 48 volts of a variety of voltages, and can be adjusted on demand. The single output mode is stable and efficient, providing suitable and reliable power support for LED lamps, effectively guaranteeing the normal operation and long life of the lamps.
- Overview
- Recommended Products
Function: LRS-250 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC

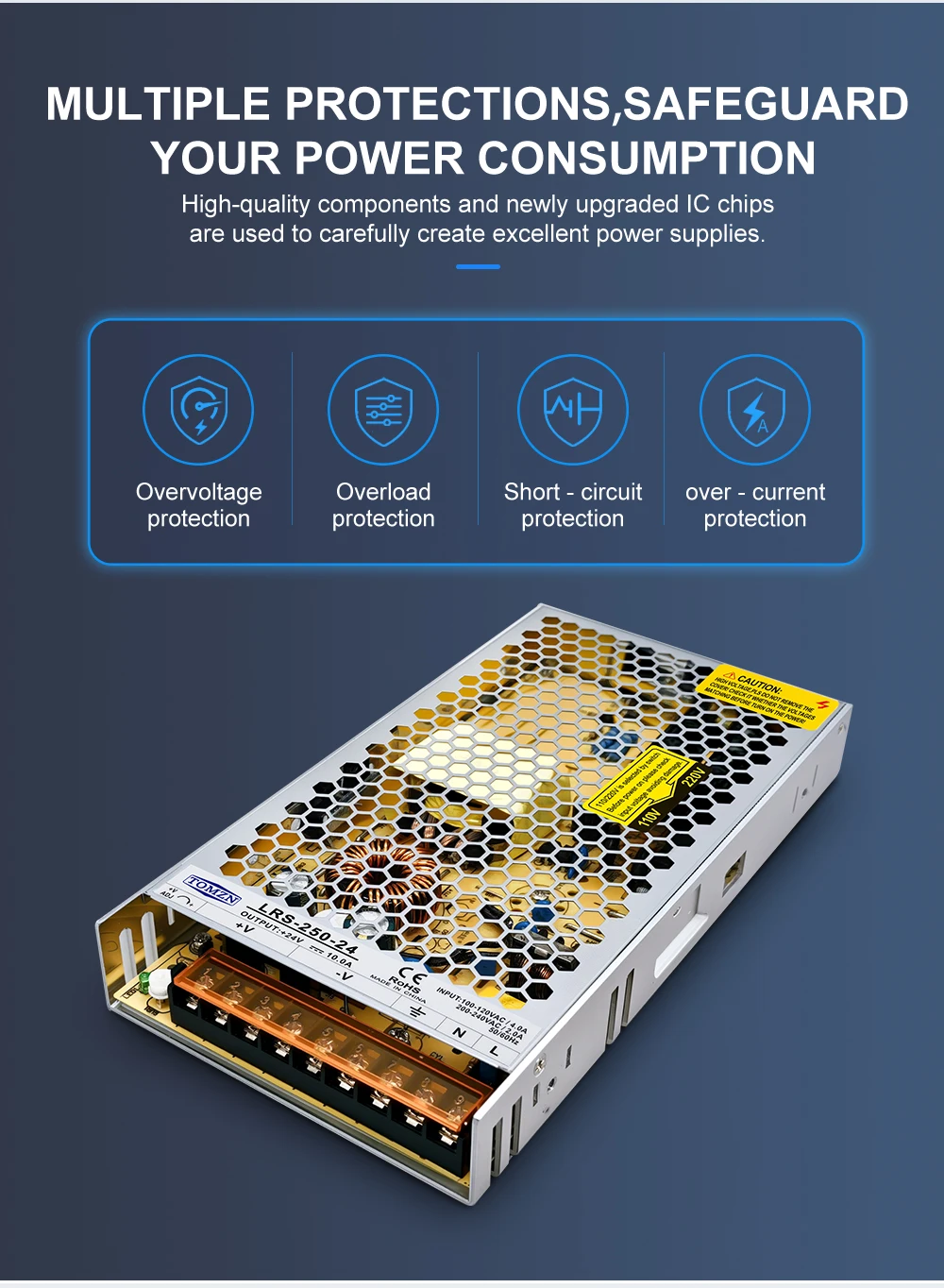

Protections: overload/ over voltage/ short circuit.

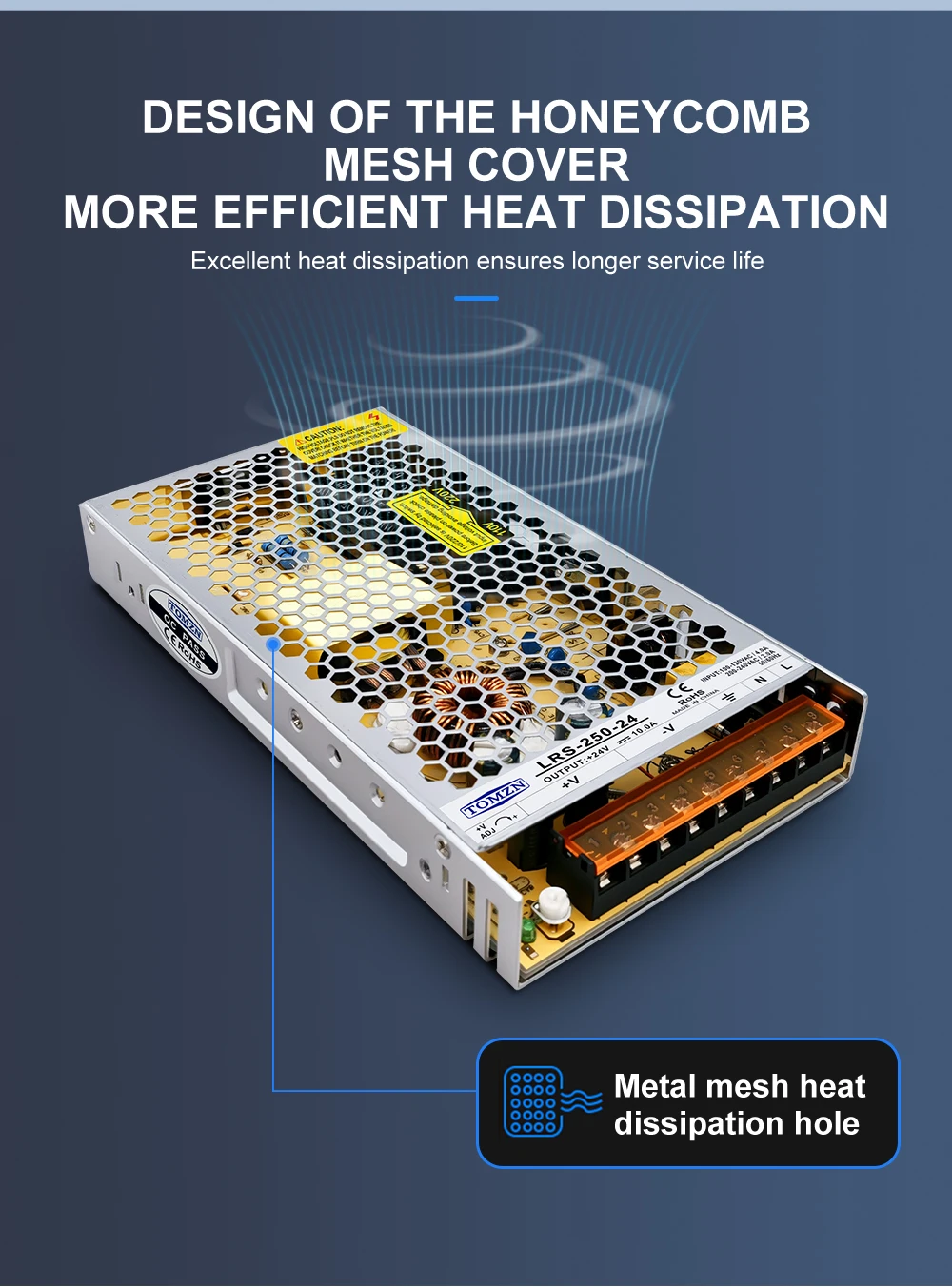

Cooling by free air convection.
(Not suggest for use in bathroom)

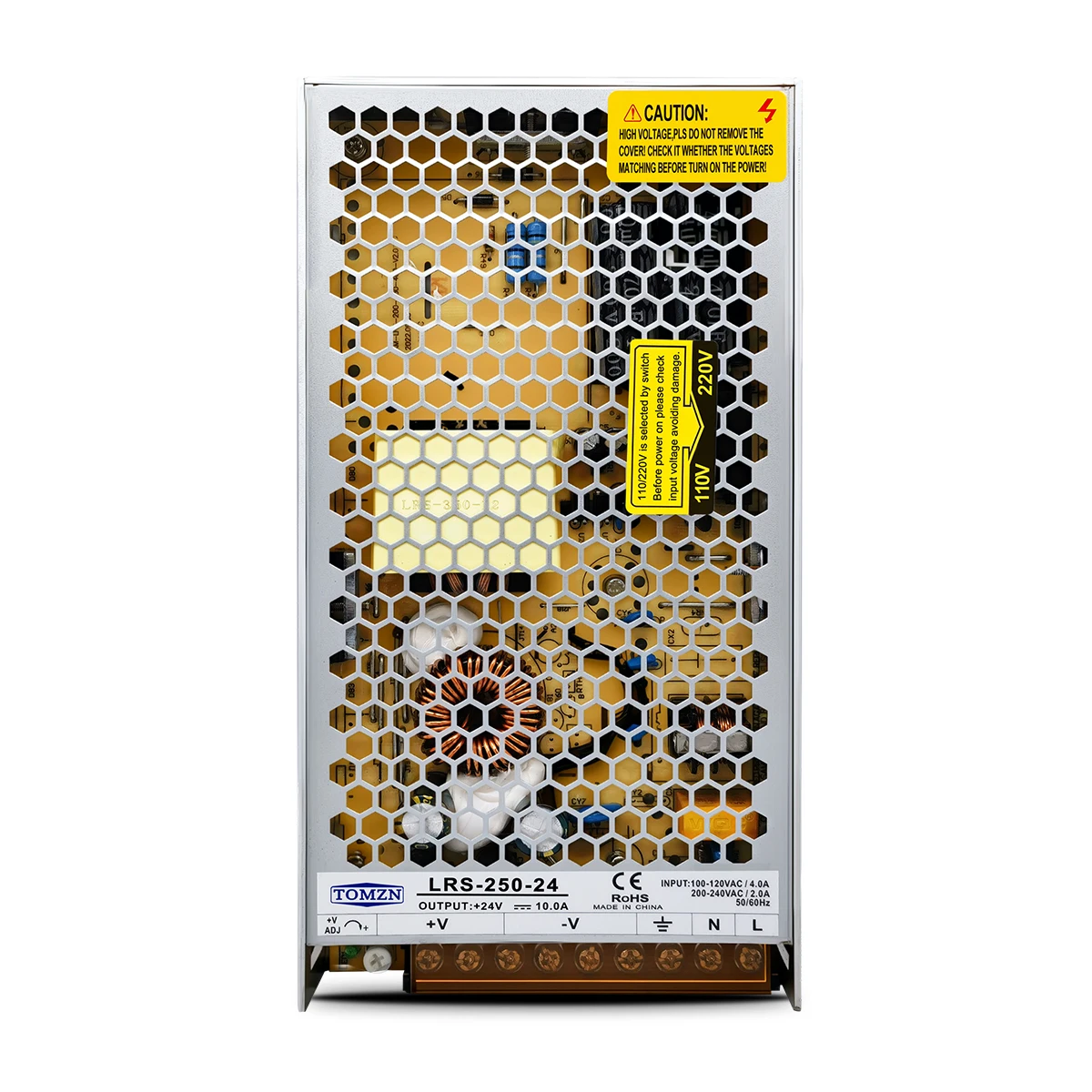

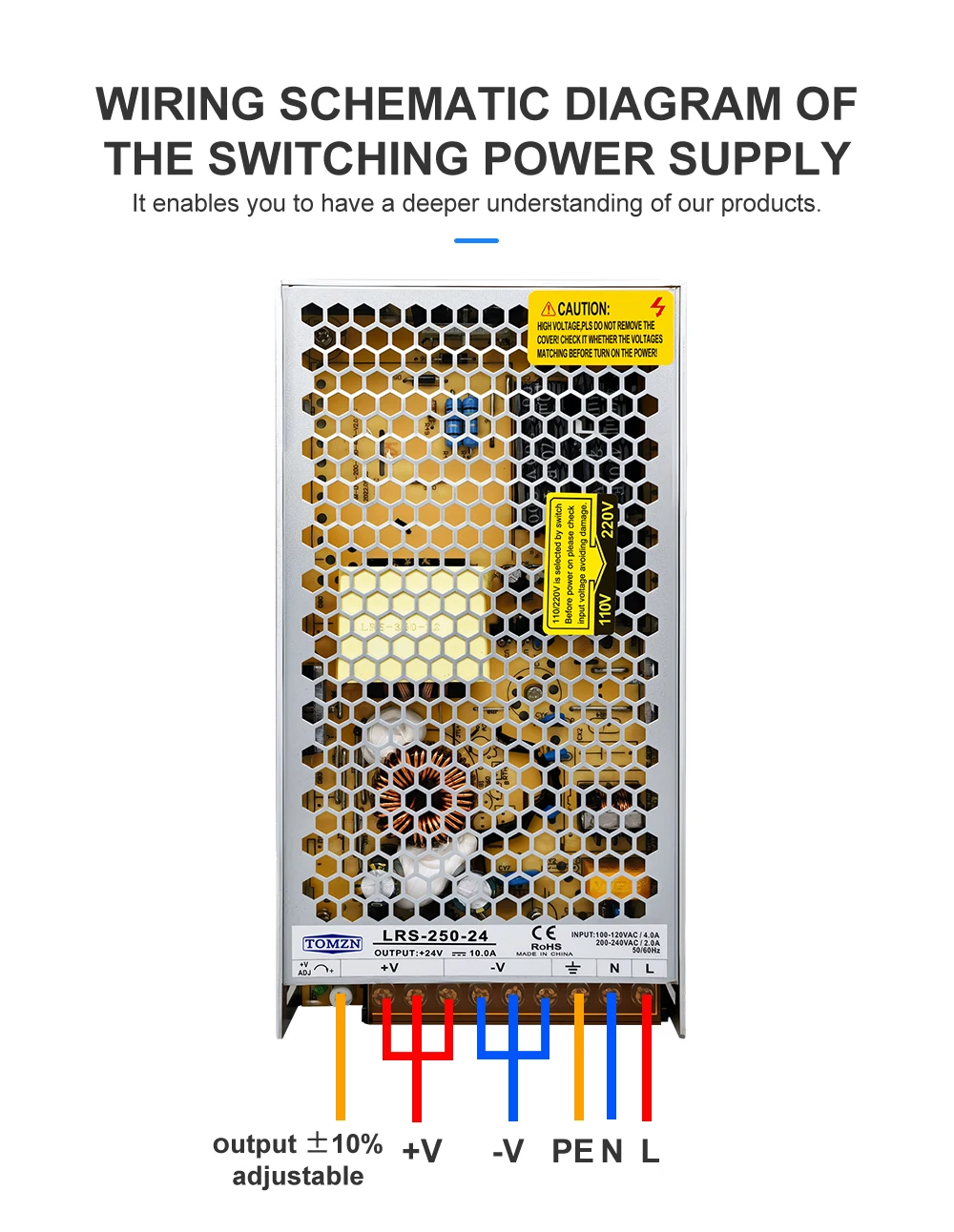

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
