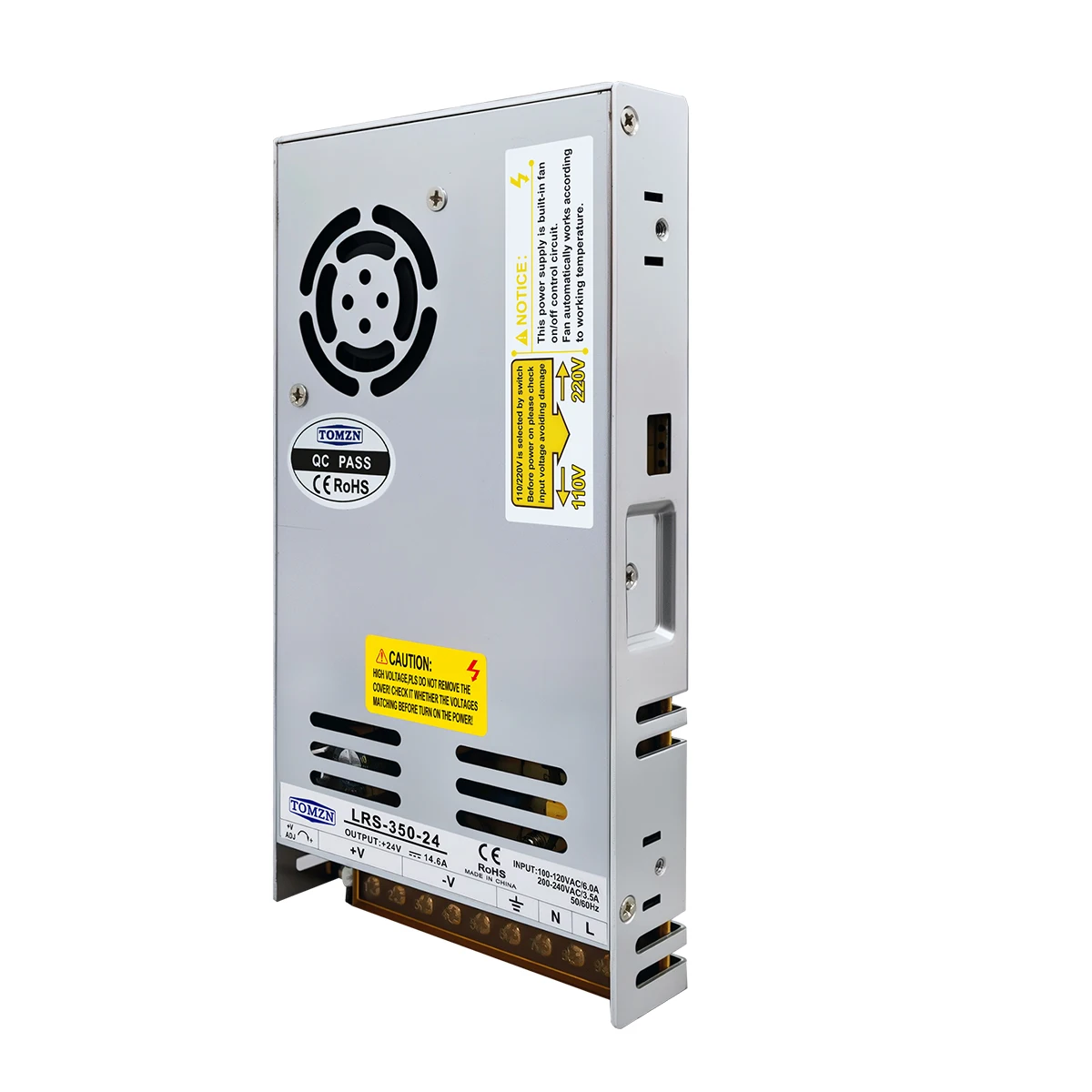

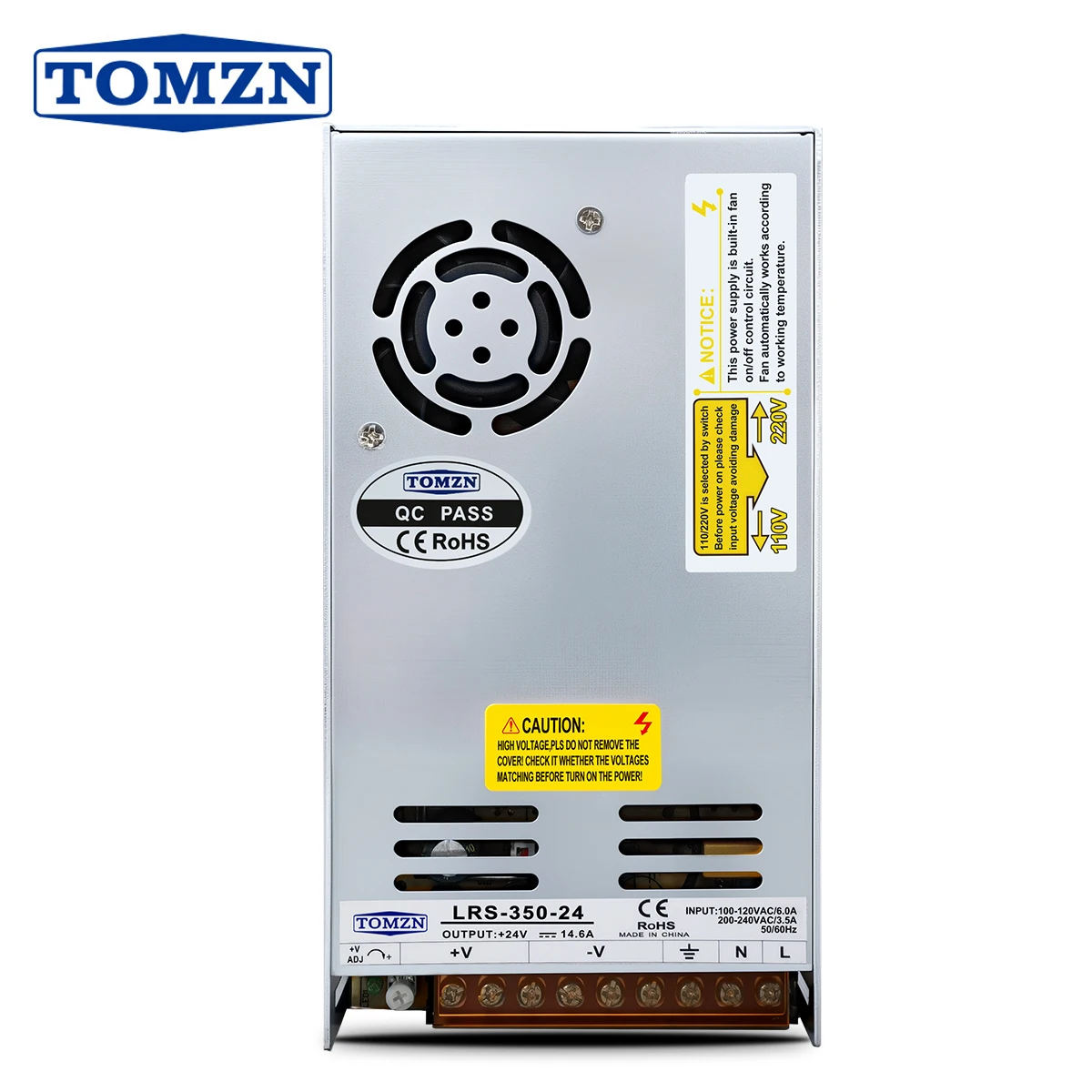

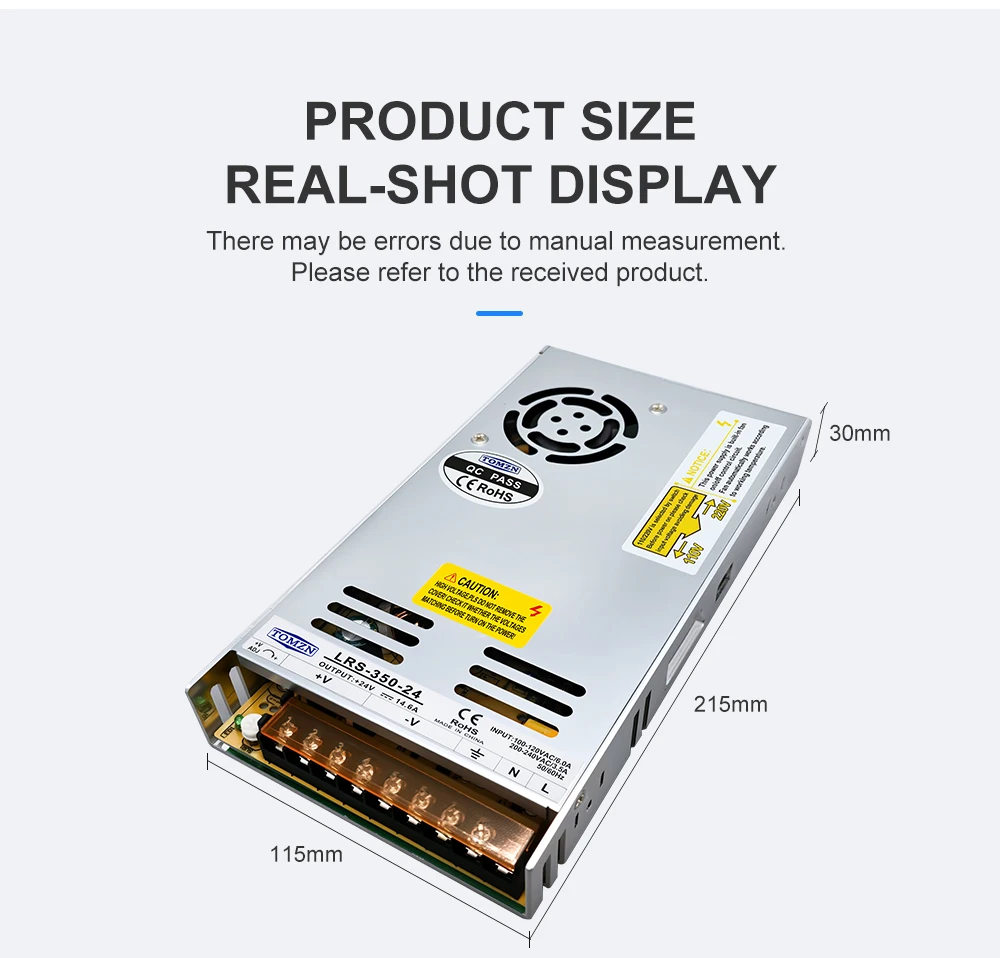

TOMZN 350W AC-DC SMPS Single Output Switching Power Supply Input 110-240V Output 5V 12V 15V 24V 36V 48V Adjustable for LED
So we designed a 350 Watt AC-DC switching mode power supply, TOMZN, for the difficult task of powering LED lamps! It also folds from the input voltage from 110 to 240 volts, and the single output is stable and reliable. A wide range of output voltage from 5 volts to 48 volts, but also to adjust according to the needs, can easily adapt to different power and specifications of LED lamps, fully guarantee the efficient and lasting operation of LED lighting system.
- Overview
- Recommended Products

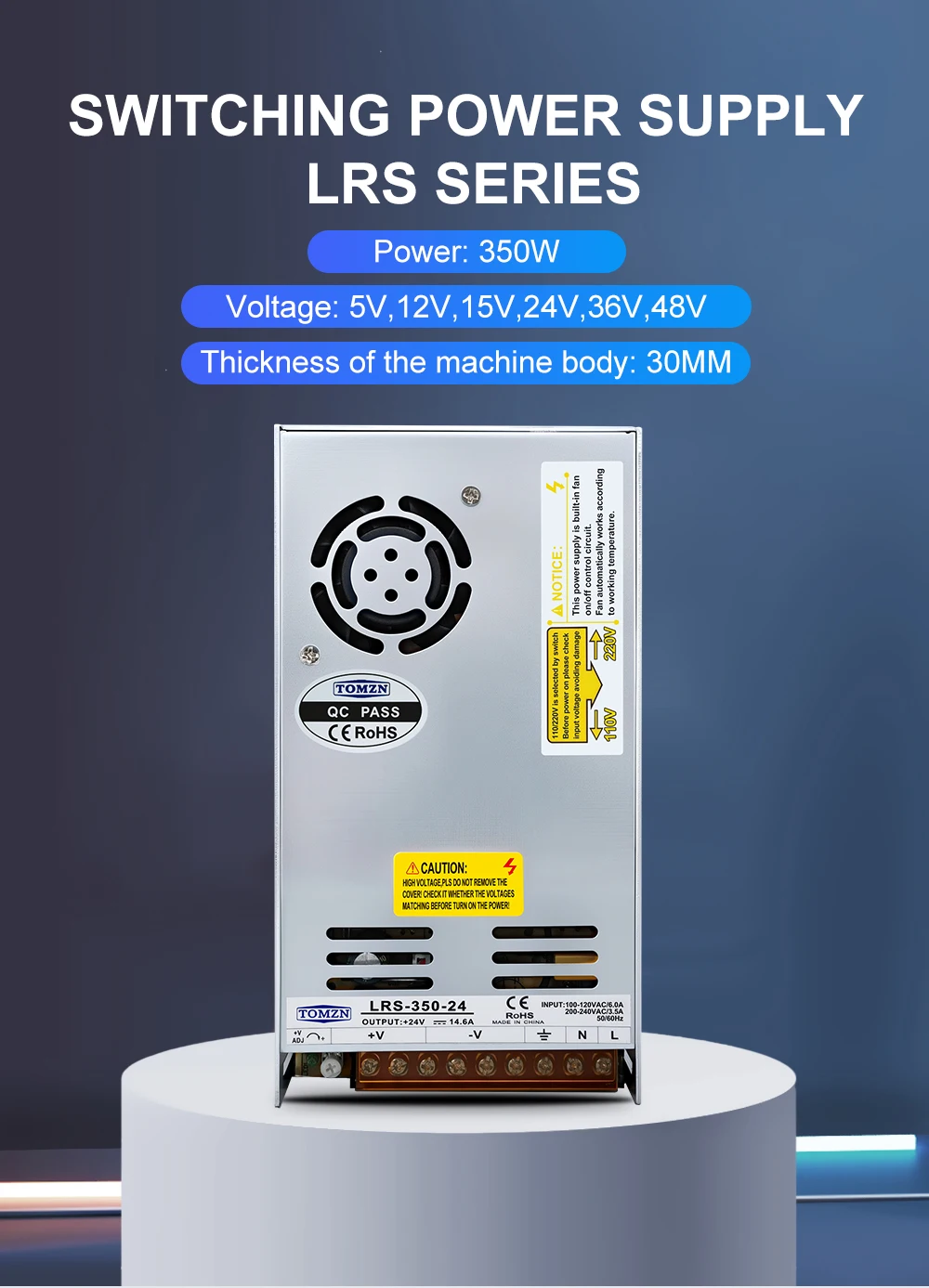

Function: LRS-350 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.

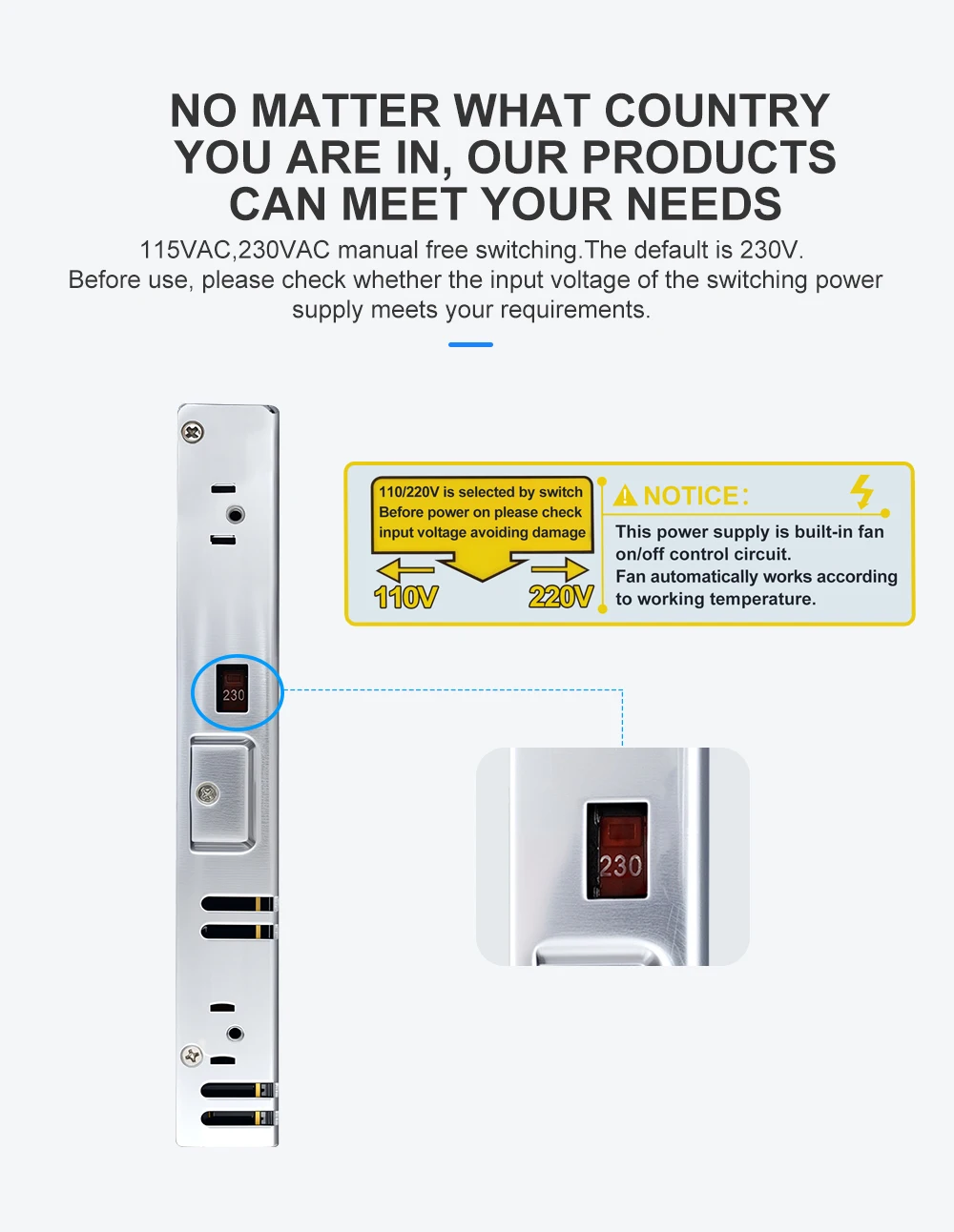

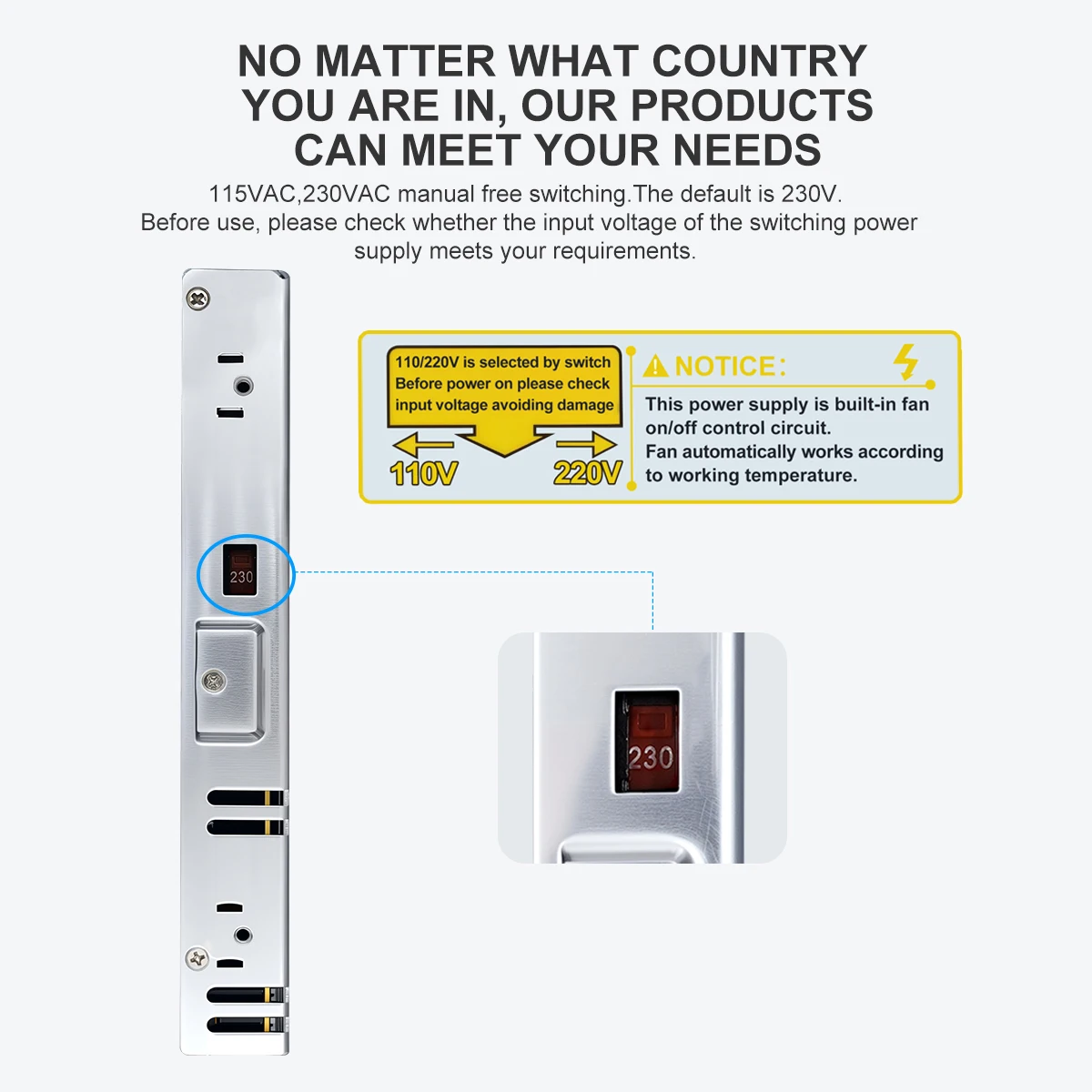

Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC

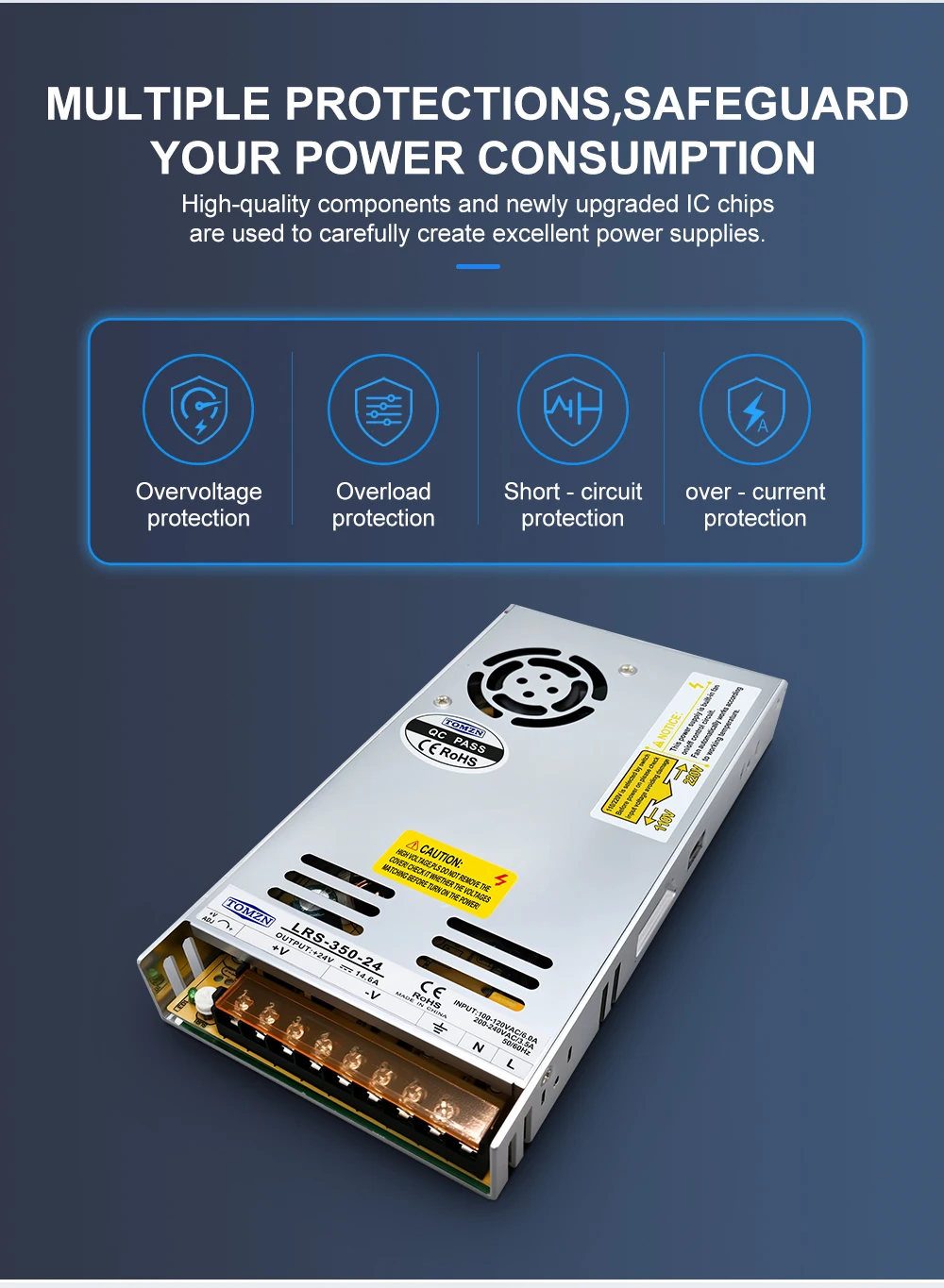

Protections: overload/ over voltage/ short circuit.

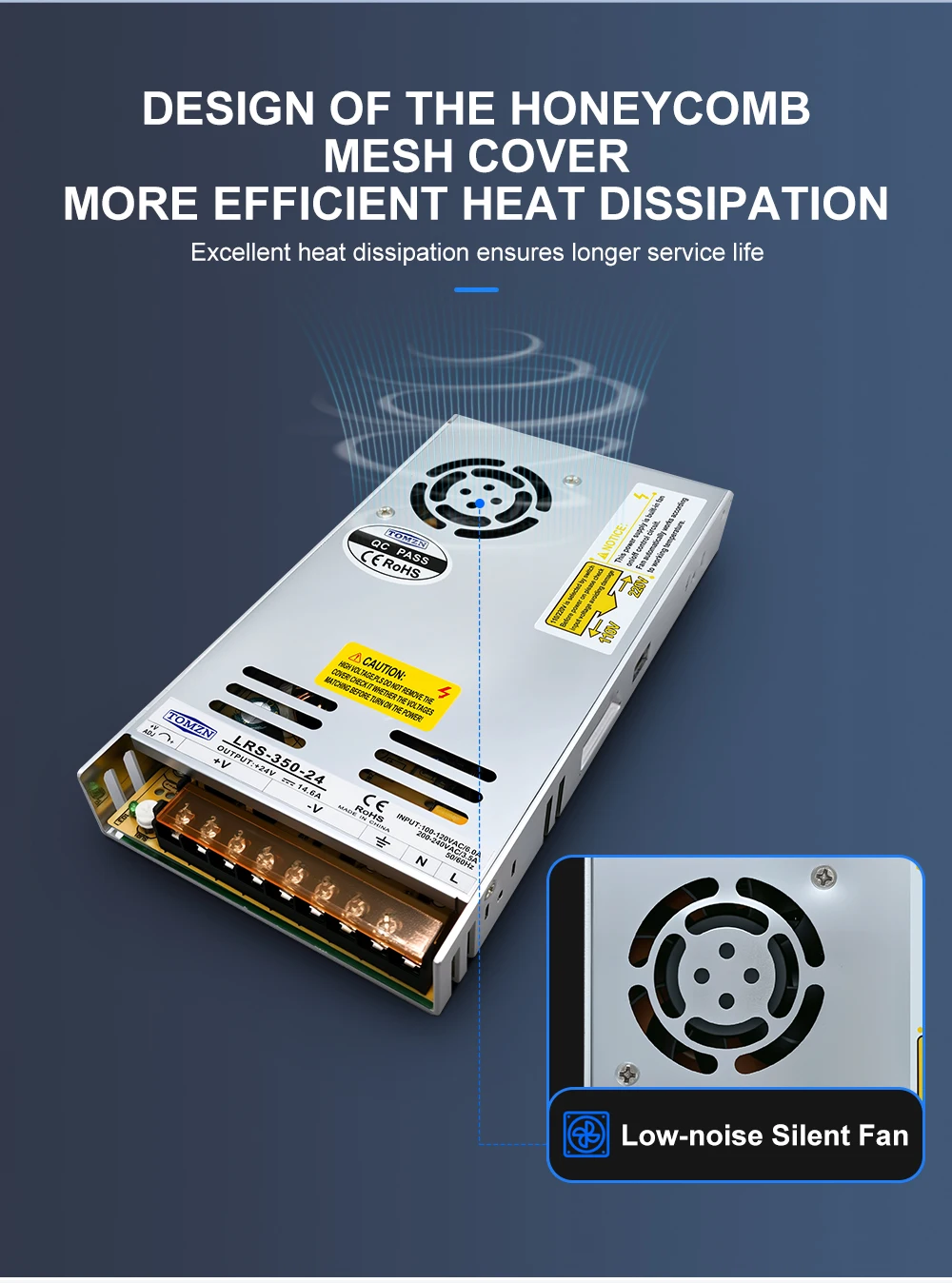

Cooling by free air convection.
(Not suggest for use in bathroom)

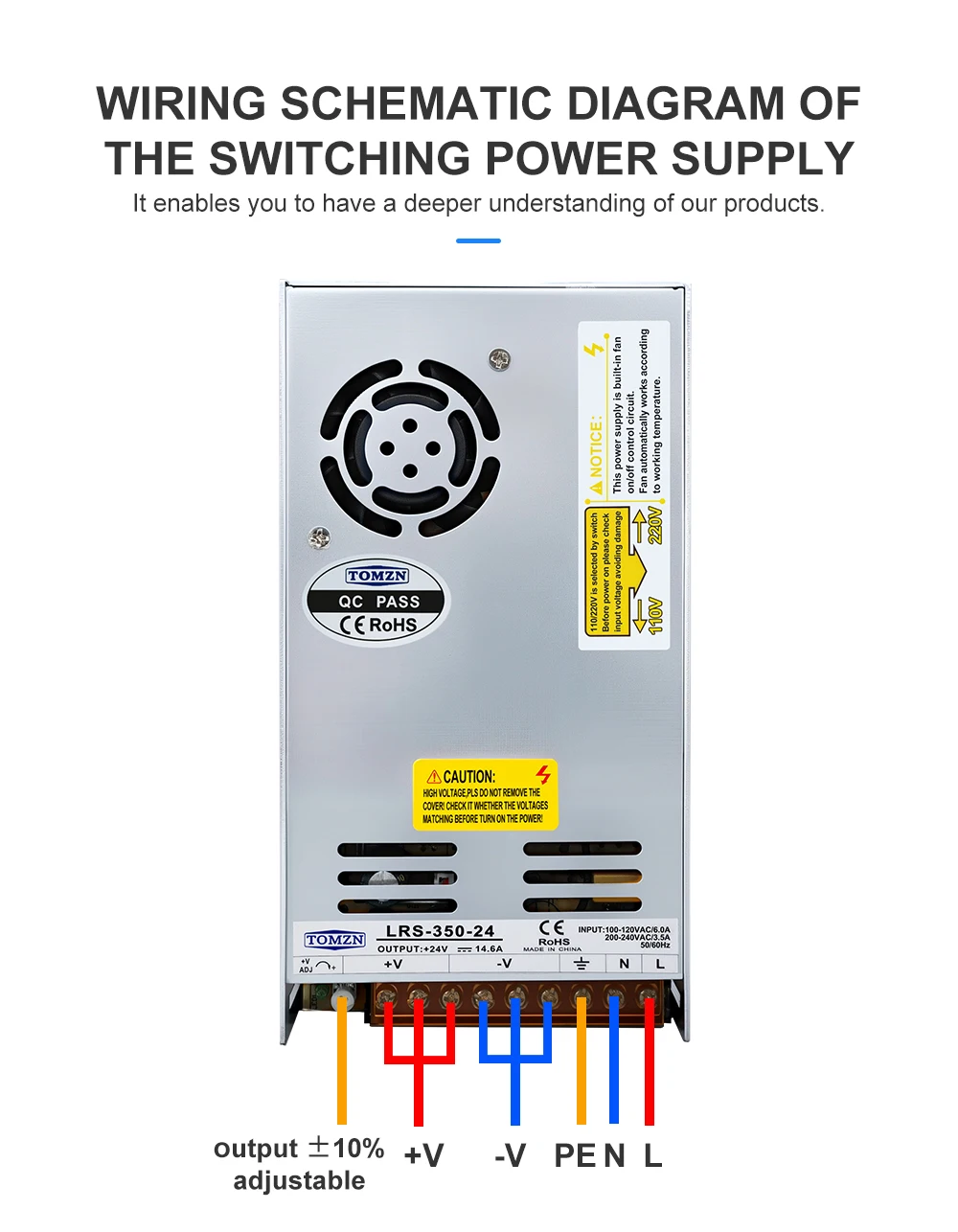

Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
