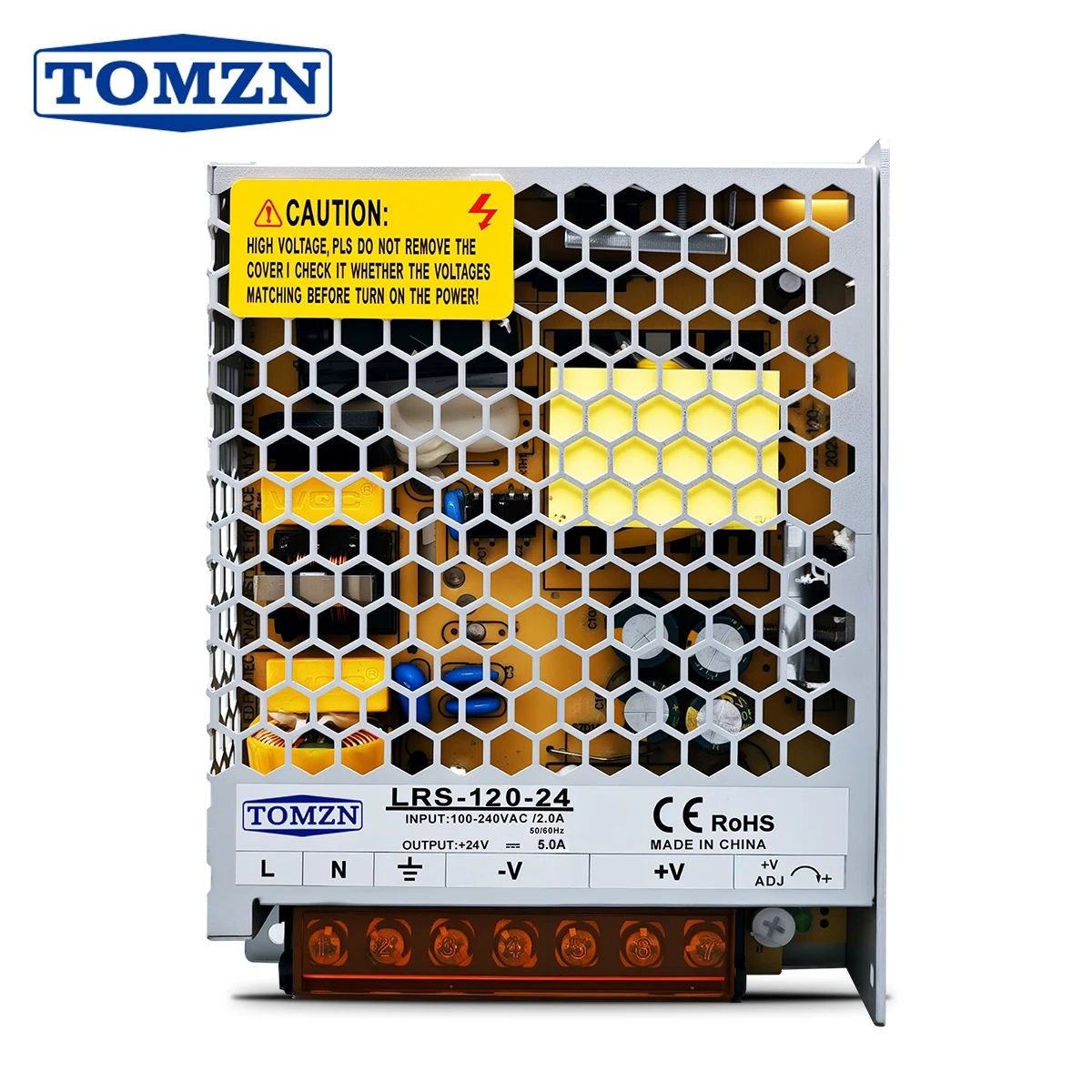

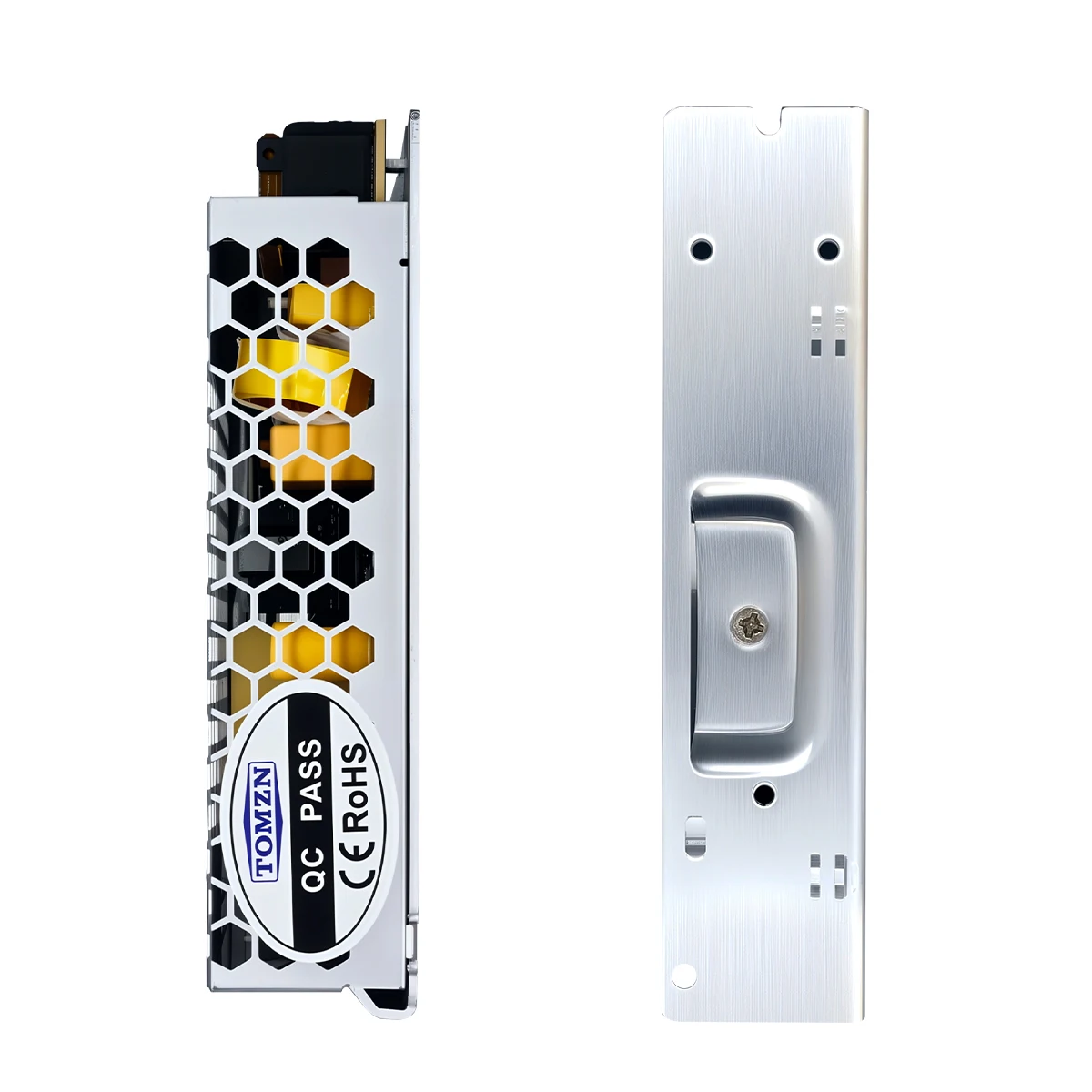

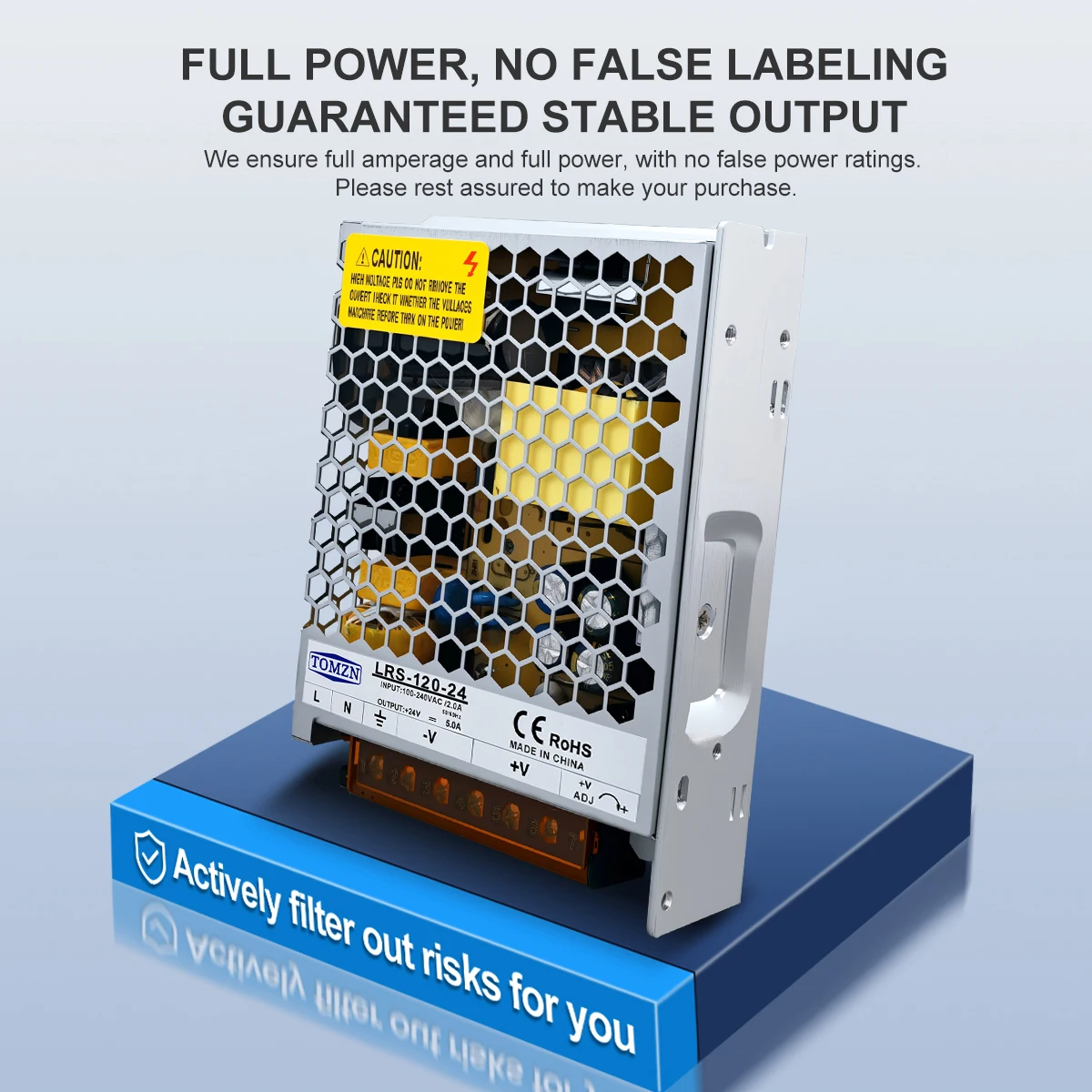

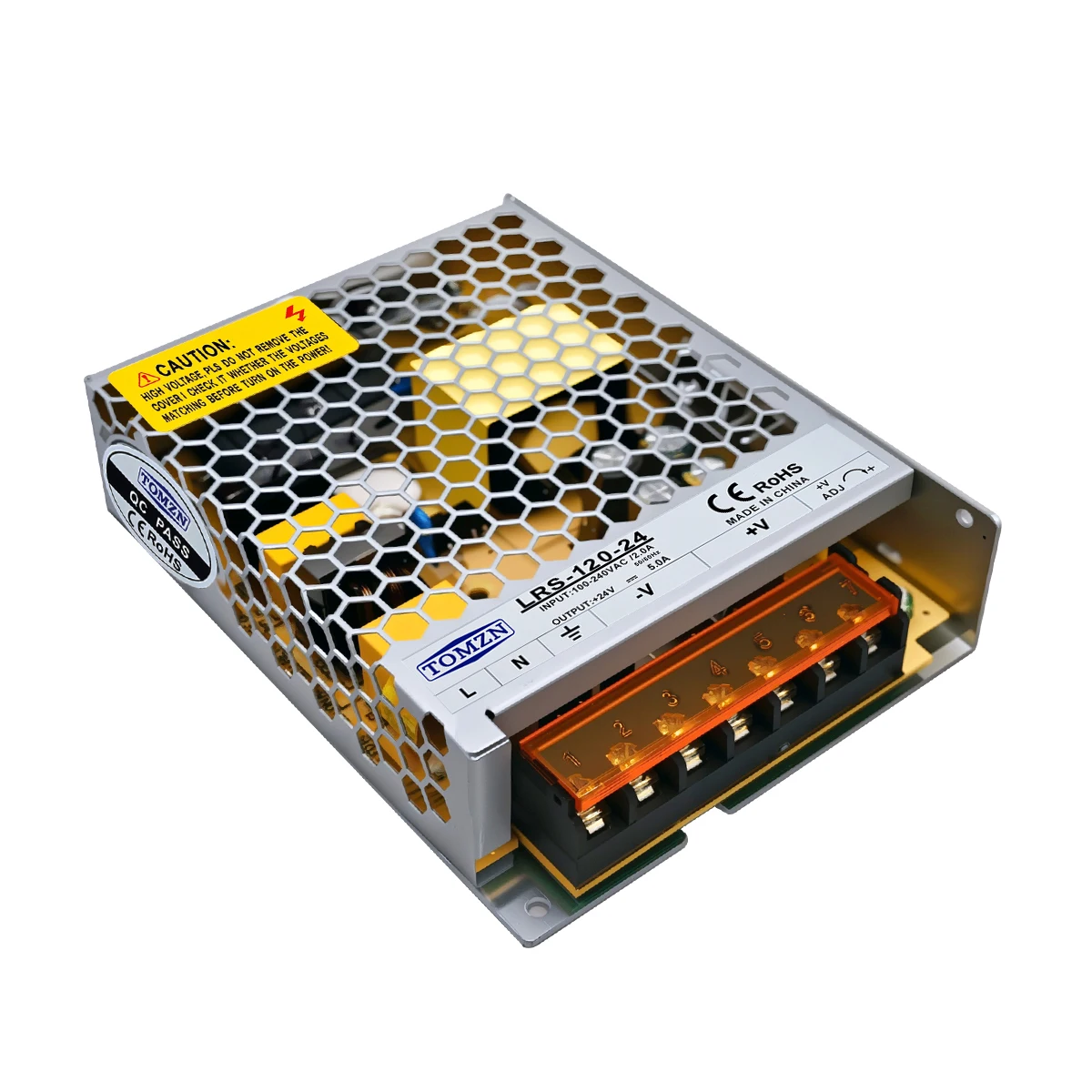

TOMZN AC to DC 120W SMPS Single Output Switching power supply input 110-240V output 5V 12V 15V 24V 36V 48V 3-48A adjustable
Thomson (TOMZN) this 120 watt AC to DC switching power supply, very good performance. 110240 volts wide input, compatible with a range of utility environments globally. Single output design, 548V,currents 3~48A adjustable,can be widely used in the host, industrial automation, electronic test equipment, communications equipment, and so on. It can offer stable and reliable power support whether it is a small electronic device or industrial equipment requiring strict power.
- Overview
- Recommended Products
Function: LRS-120 series can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.
Specifications:
100% full load burn-in test.
Universal AC input / full range.
It's good quality & high performance.
Input: AC110-220V 50/60Hz.
Output: 5VDC,12VDC,24VDC,36VDC,48VDC
Protections: overload/ over voltage/ short circuit.
Cooling by free air convection.
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: DC power output "-"
-V: DC power output "-"
+V: DC power output "+"
ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Storage Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
