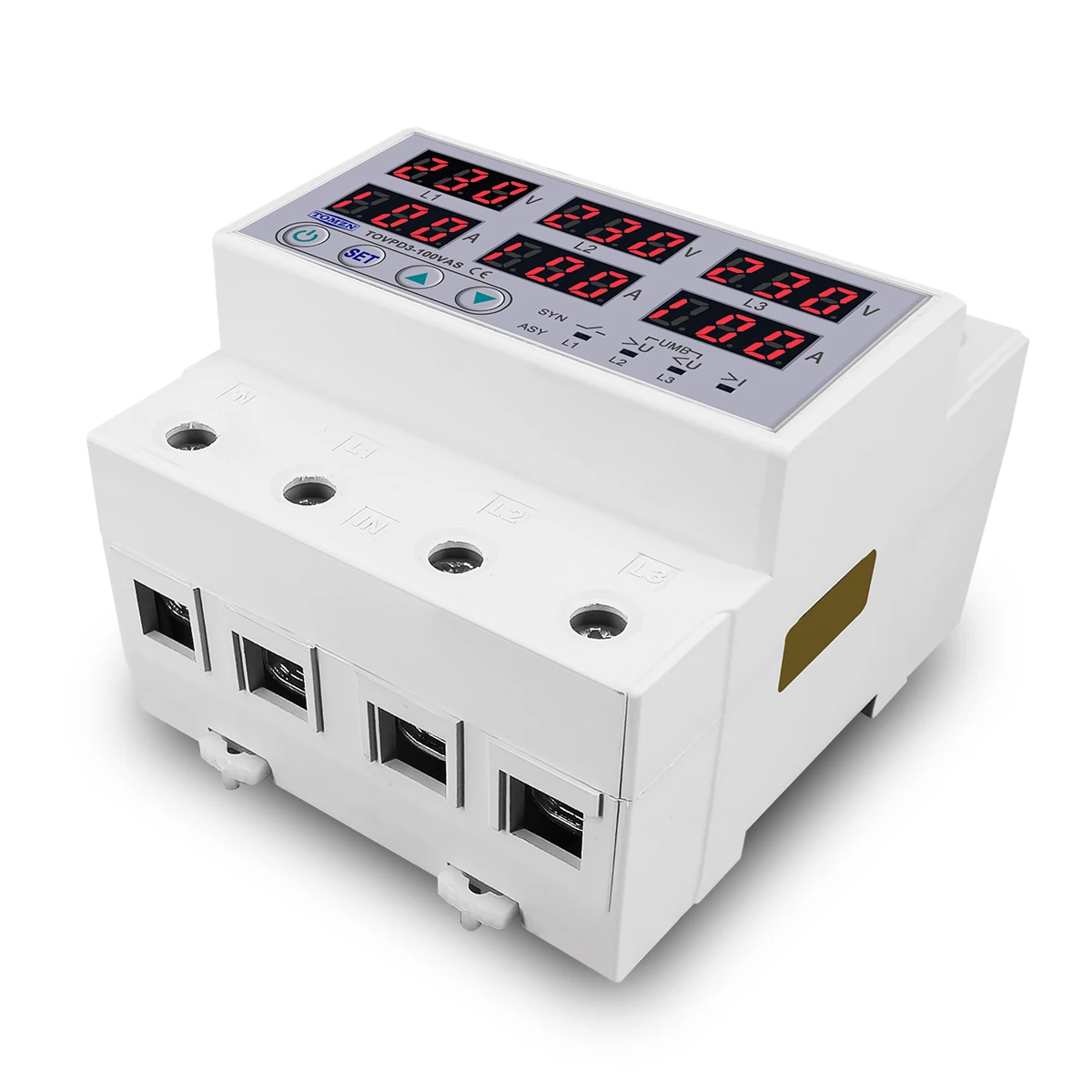

3 Phase 100A Din rail adjustable Over Under Voltage current limit protection Relay Protector SYN ASYNC Synchronous Asynchronous

TOMZN hree phase Voltage Current Relay Protector 63A 60A 100A 220V 3P+N Over Under Voltage Relay Current limiter adjustable

three phase Voltage Current Relay Protector 63A 60A 100A 220V 3P+N Over Under Voltage Relay Current limiter adjustable

ASY+SYN Two Work Mode

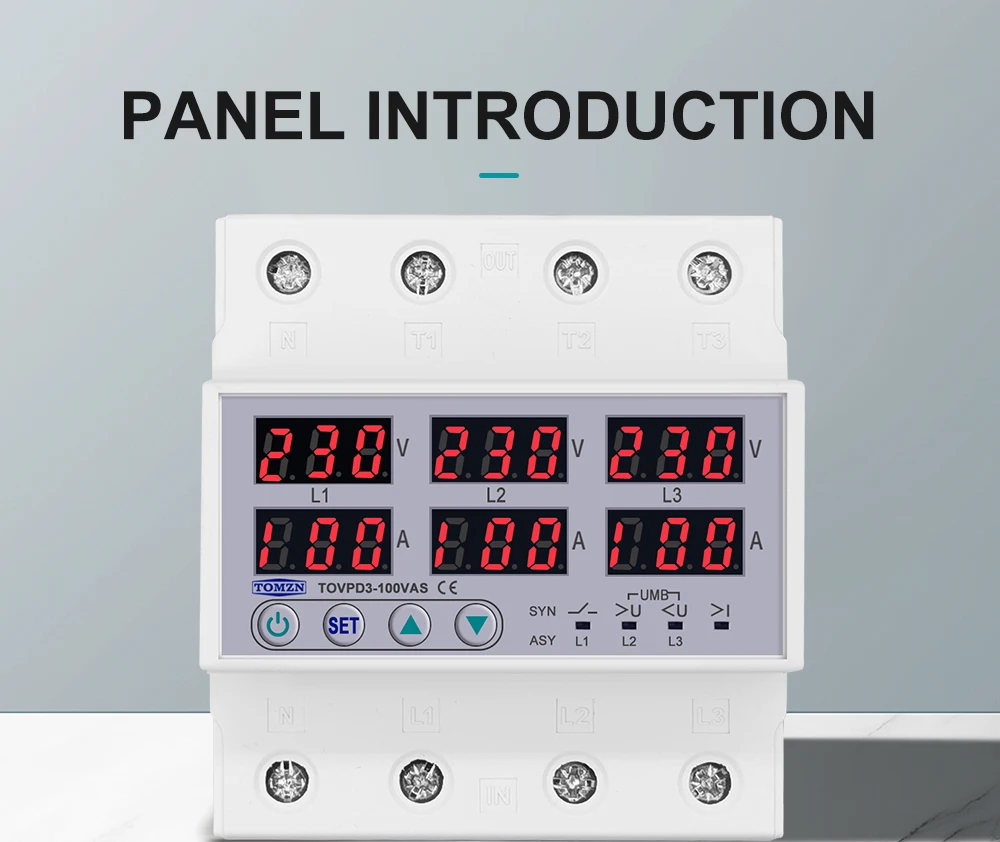

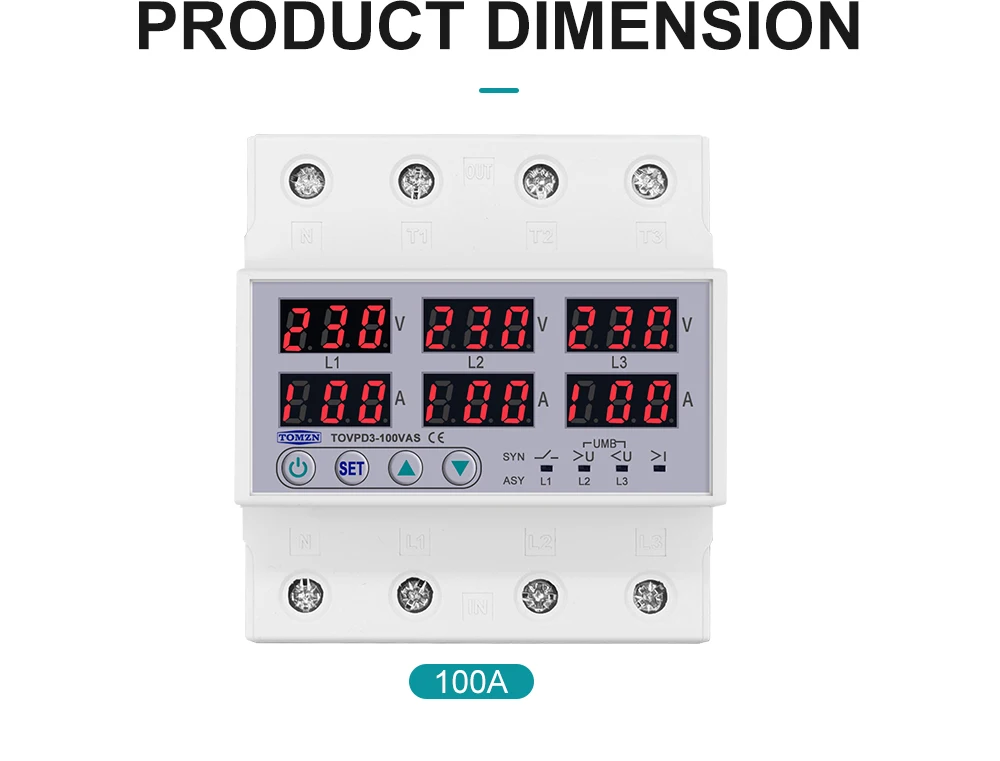

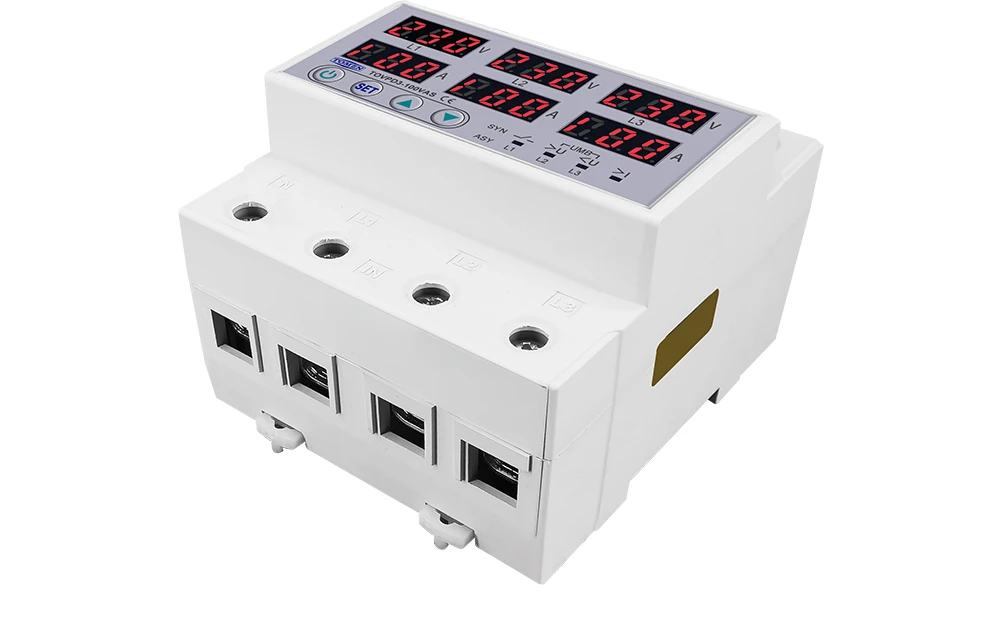

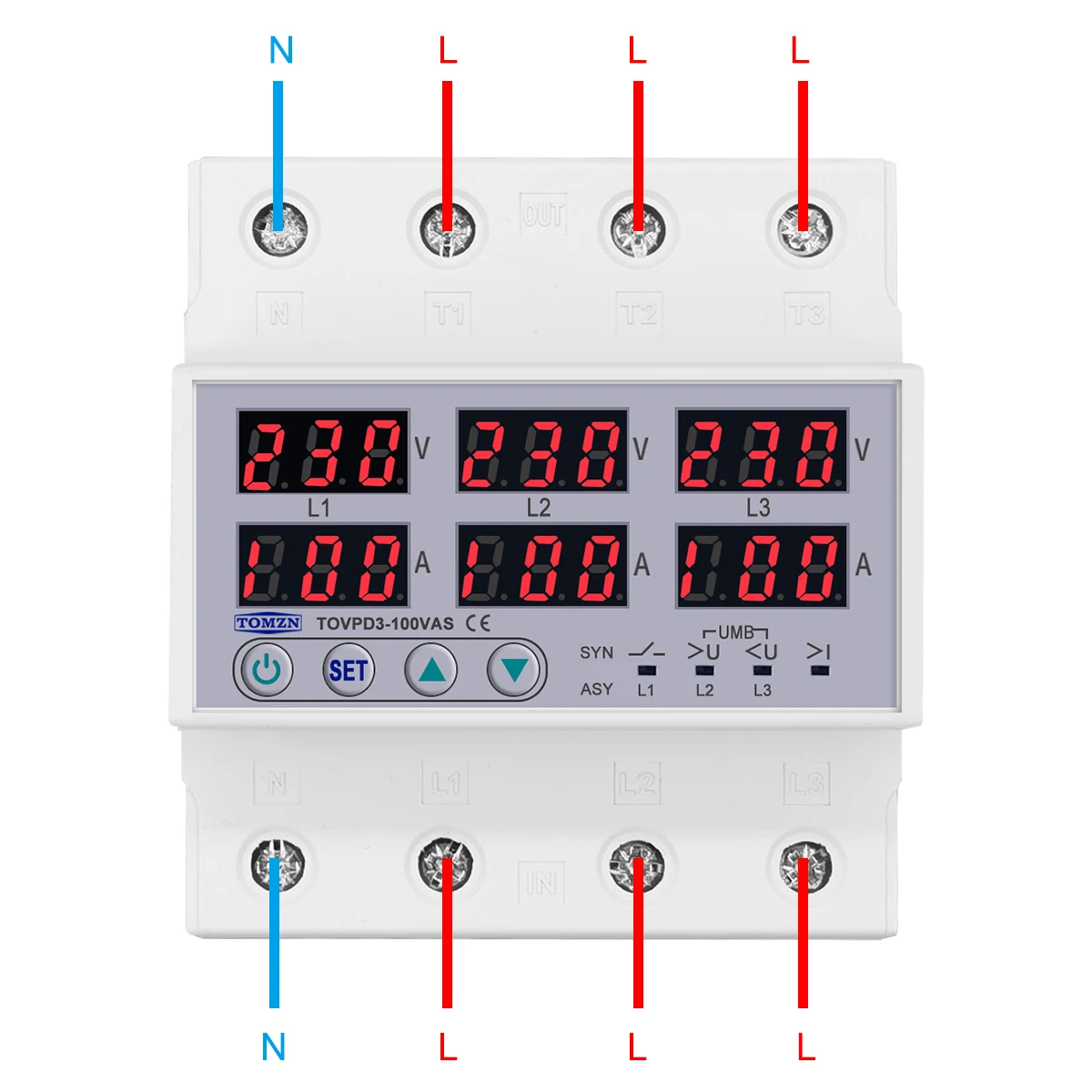

Model number: TOVPD3-100VAS

Rated voltage: 3*230V

Current: 1-100A

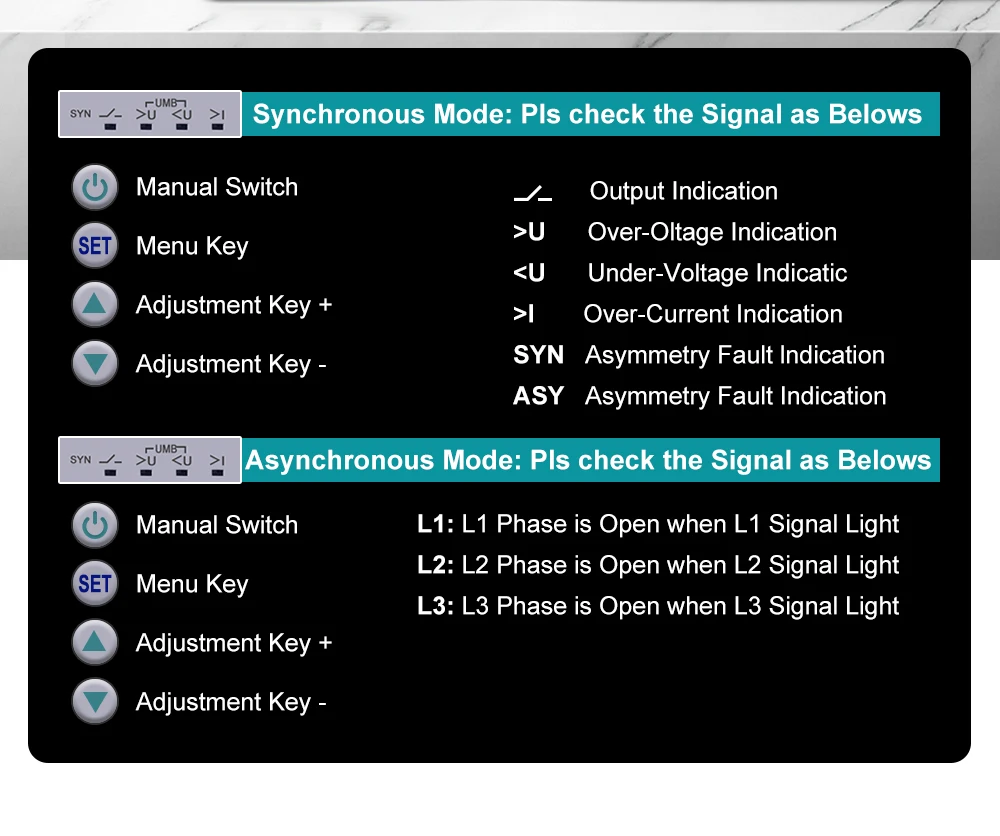

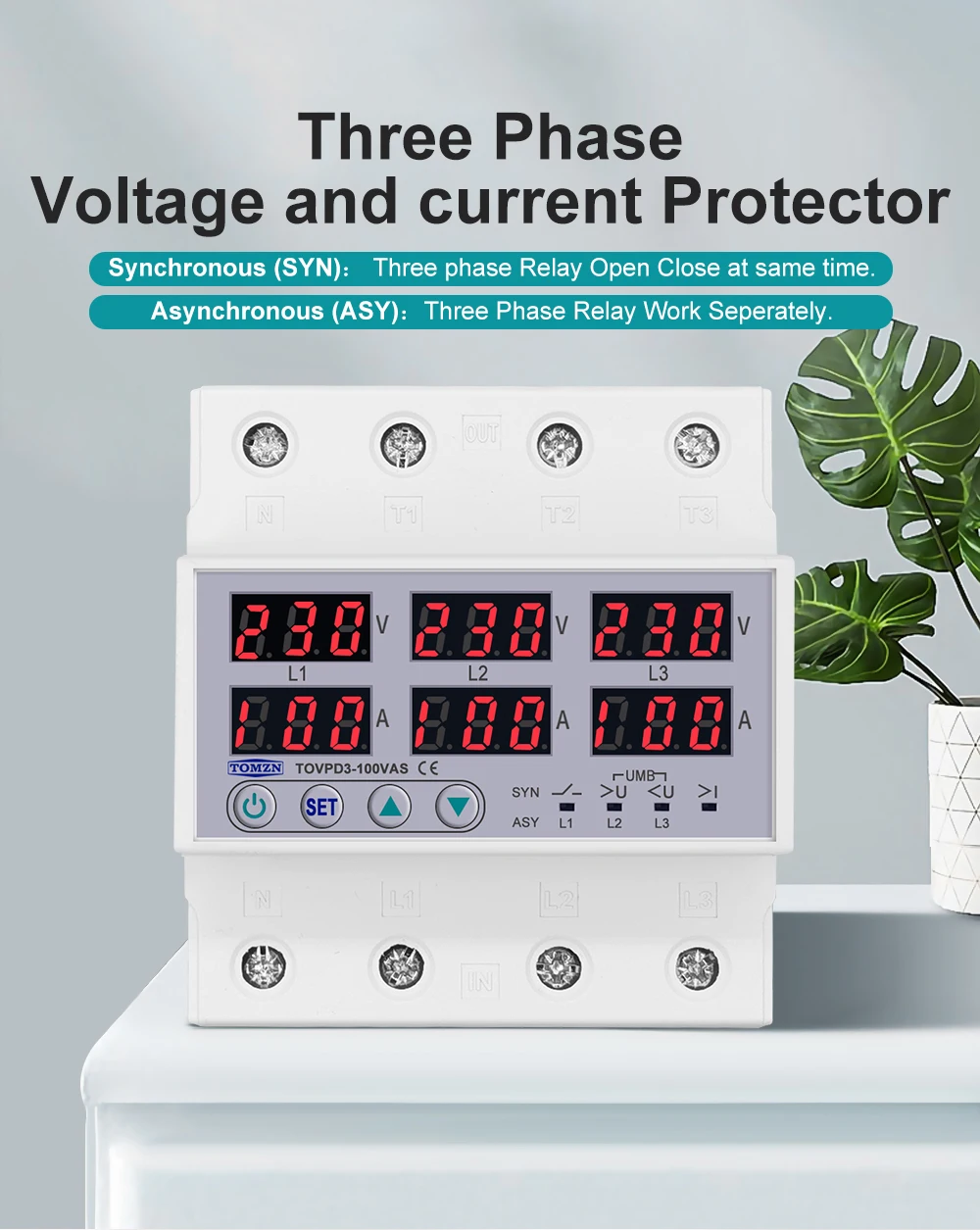

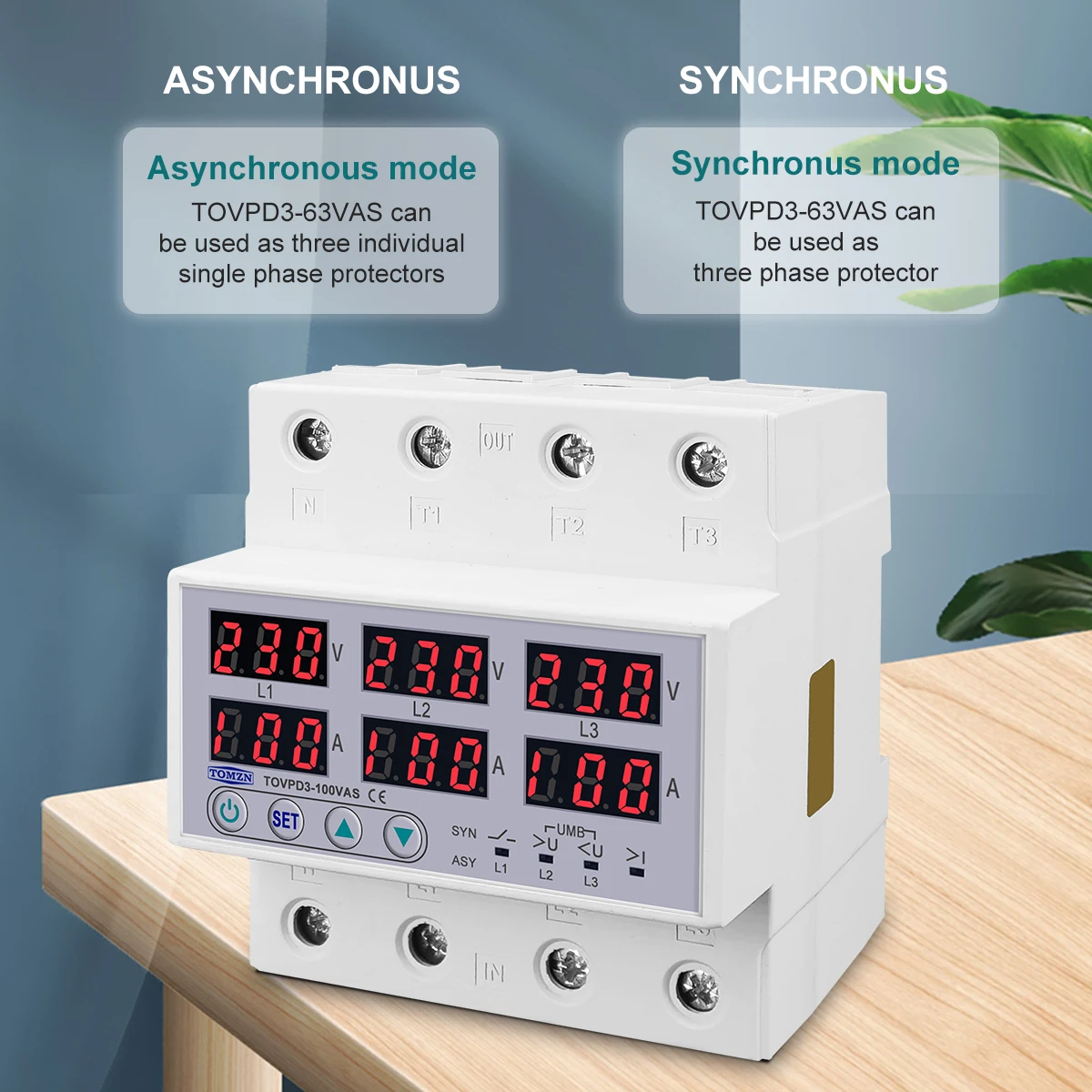

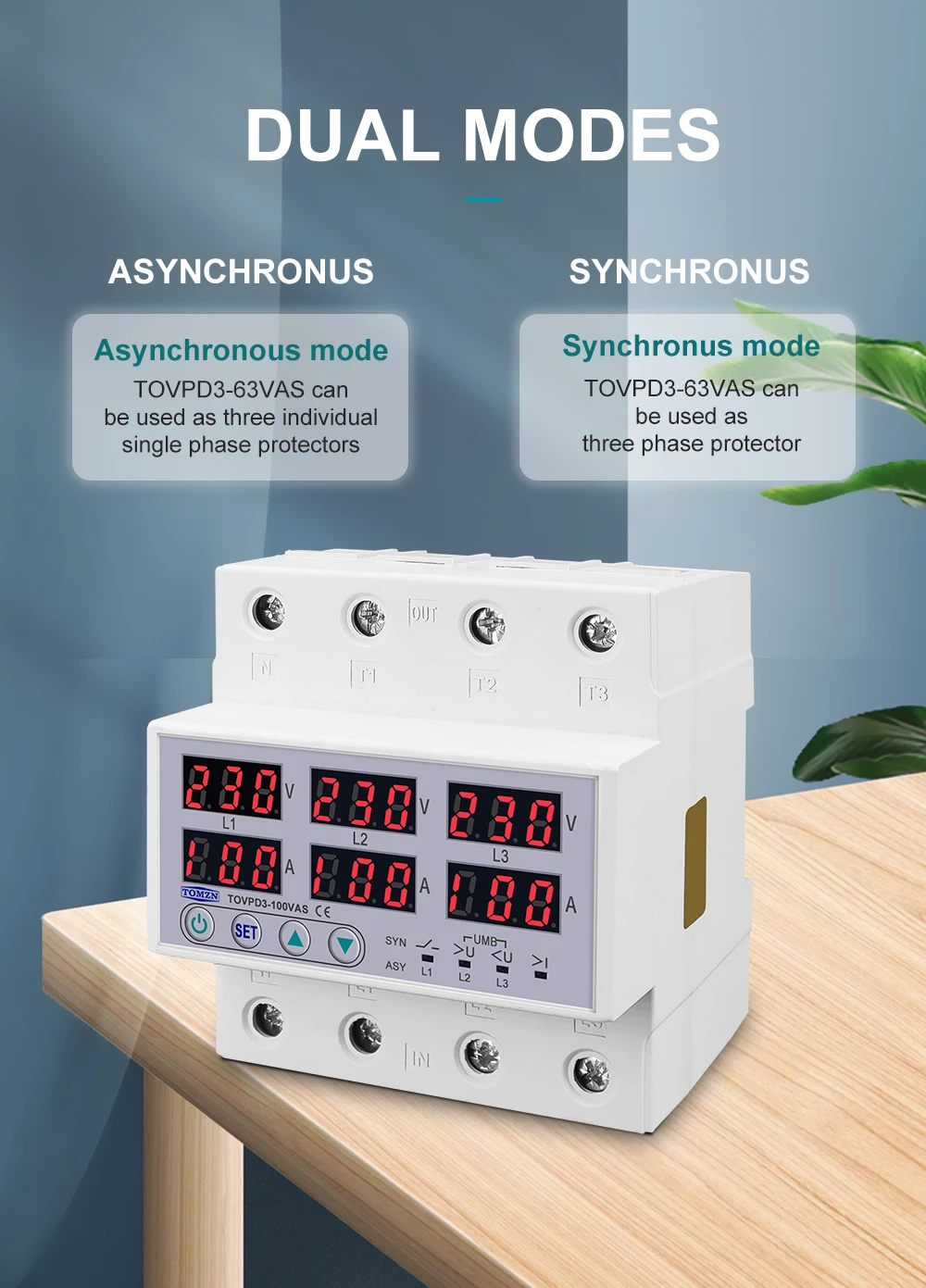

Synchronous (SYN): Three phase Relay Open Close at same time.

Asynchronous (ASY):Three Phase Relay Work Seperately

1.Over-voltage protection: Adjustable

2.Under-voltage protection: Adjustable

3.Over-Current protection: Adjustable

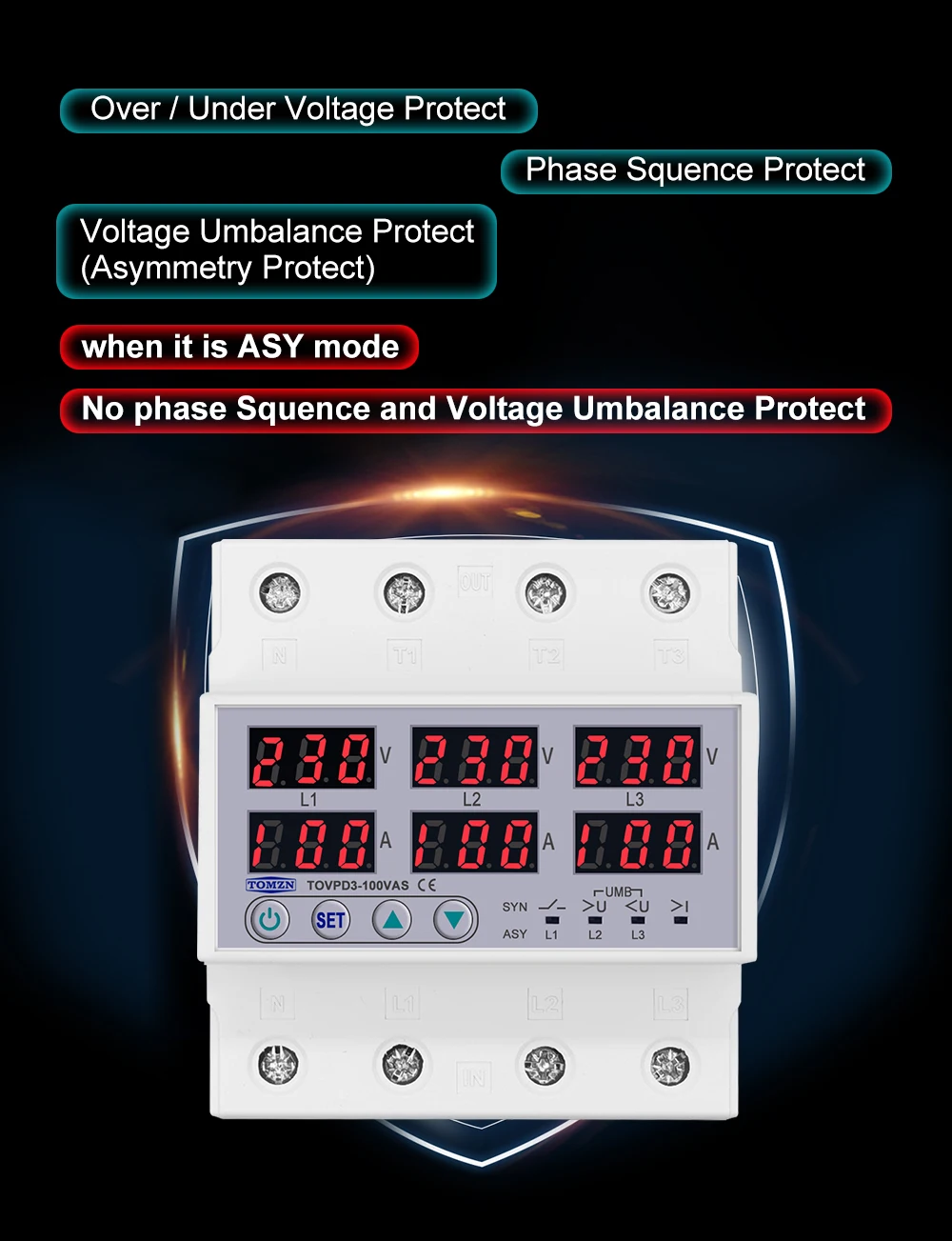

4.Three-phase unbalance protection

5. Phase sequence protection

6. Active time and reconnect time adjustable

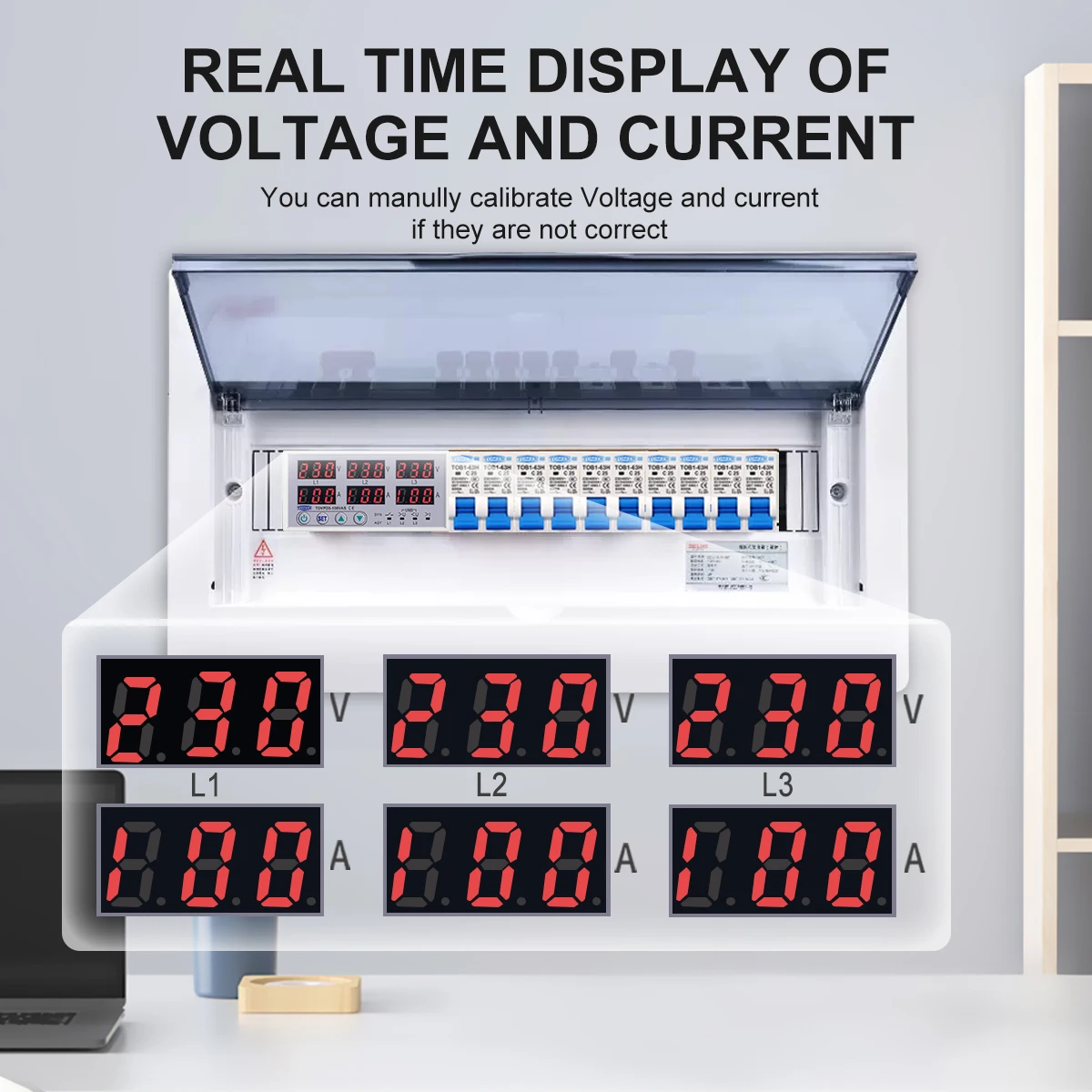

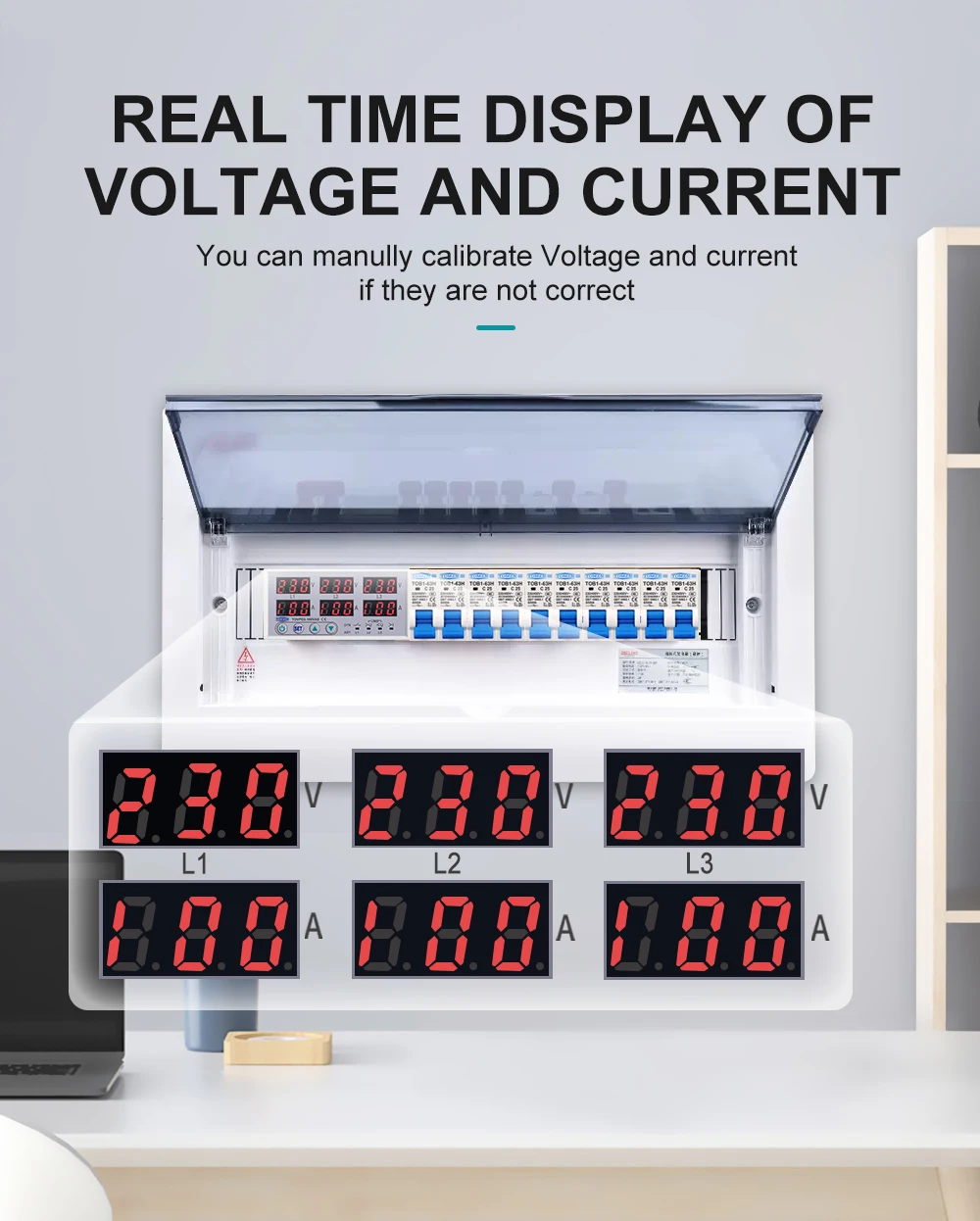

7. Voltage and current can be manually calibrated

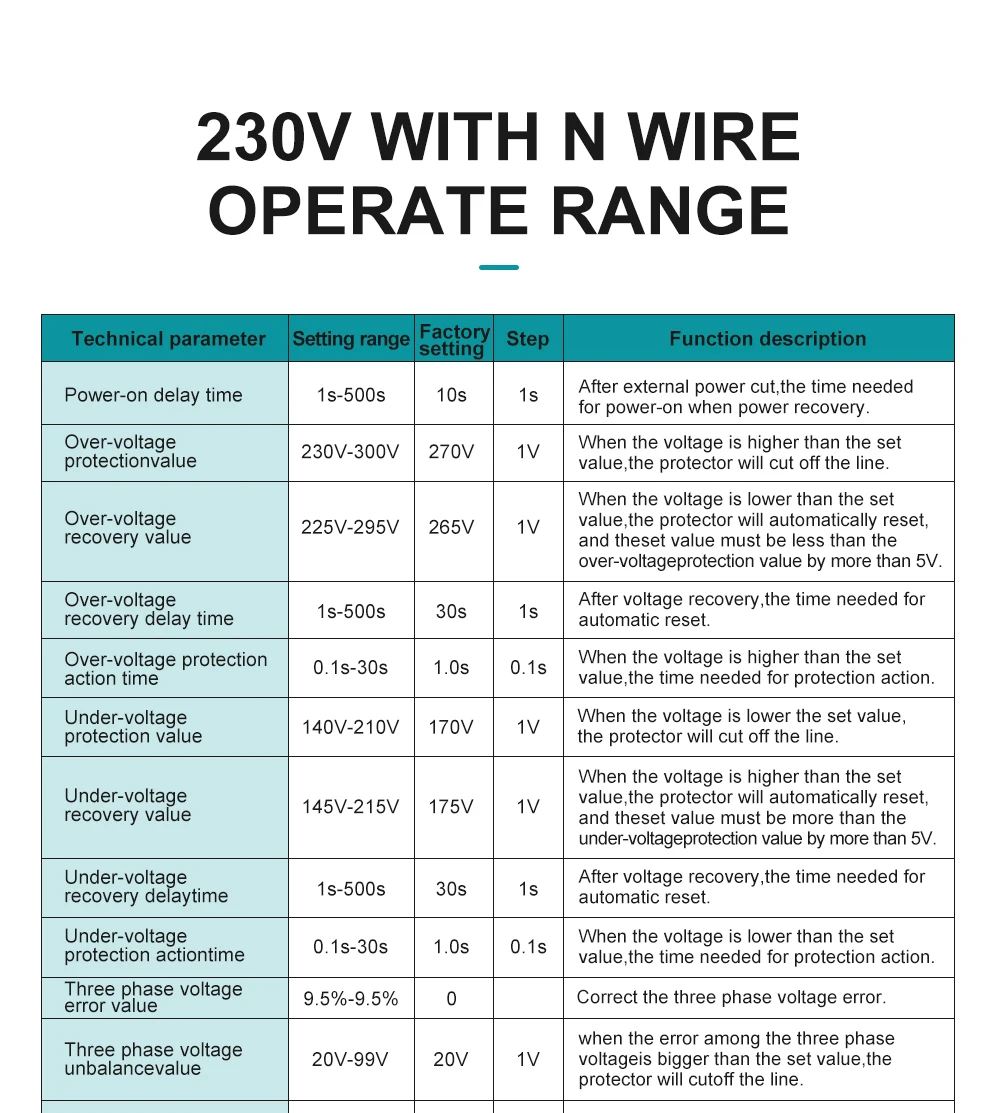

Code	Parameter	Value
P1	Power-on delay time	1-500S
U1	Overvoltage protection value	230-300V
U2	Overvoltage recovery value	220-295V
U3	Overvoltage recovery delay time	1-500S
U4	Over-voltage protection action time	0.1-30S
U5	Undervoltage protection value	140-210V
U6	Undervoltage recovery Voltage	145-215V
U7	Undervoltage recovery dalay time	1-500S
U8	Under-voltage protection action time	0.1-30S
U9U9	Voltage Deviation Voltage Deviation	-9.5 to 9.5%
U10	Three phase unbalance value	20-99V

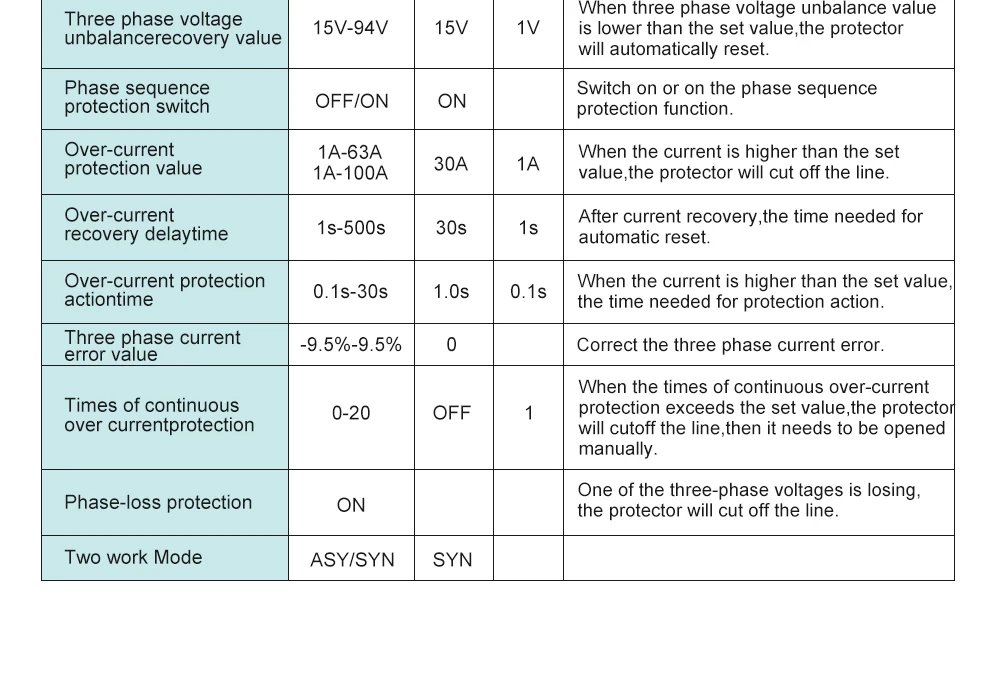

U11	Three-phase voltage imbalance recovery value	15-94V
U12	Phase sequence protection	ON/OFF
C1	Overcurrent protection value	1-63A/1-100A/OFF
C2	Over-current recovery delay time	1-500S
C3	Over-current protention action time	0.1-30S
C4	Current error value	-9.5 to 9.5%
C5	Continues Over Current Times	1-20/OFF
